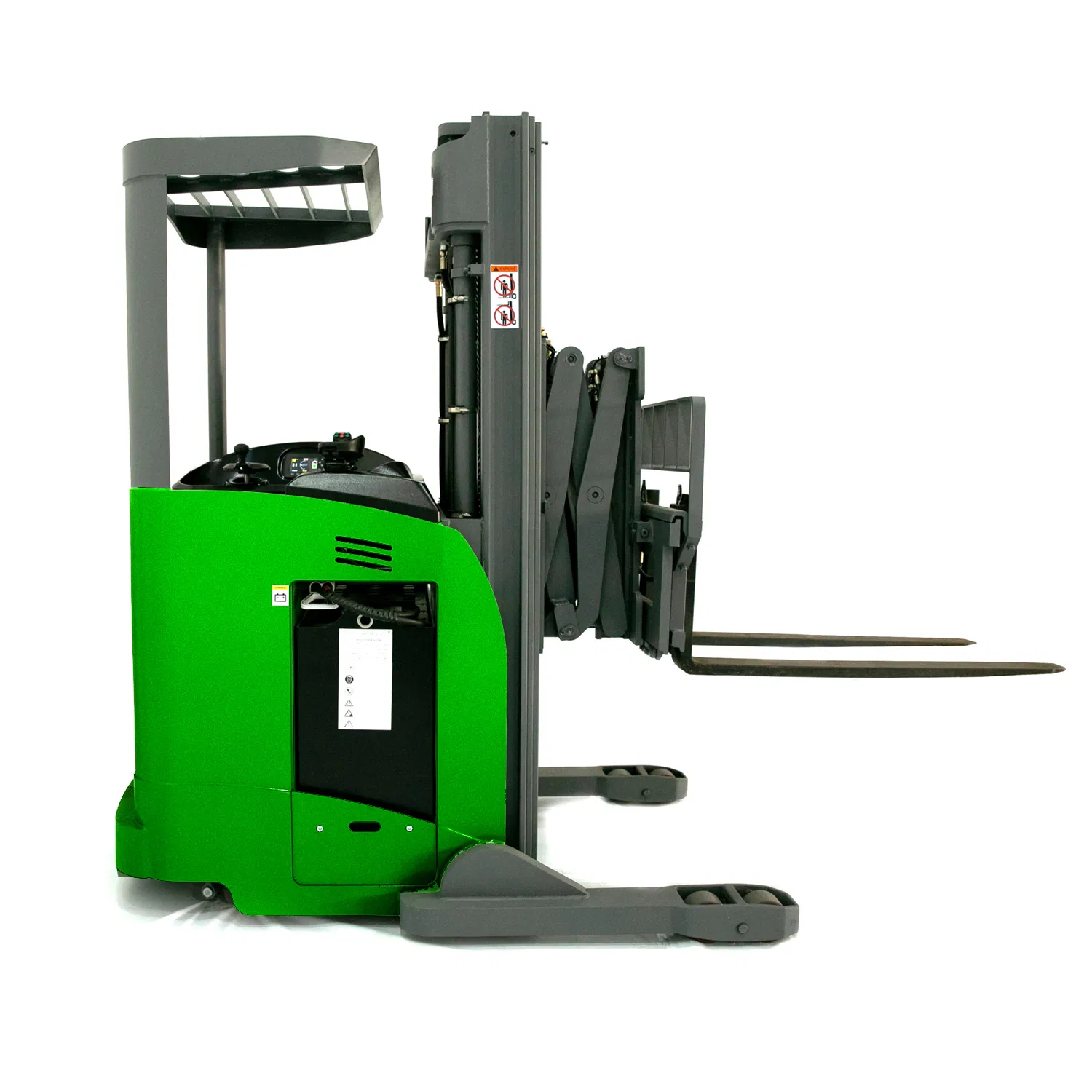

Material Handing Four Directional Vna Seated Full Power/Powered/Battery/Electric Fork/Forklift/Lift/Reach Truck Price with Single or Double Scissors Max 10000

Basic Specifications

Model NO.

CQDH20C

Type

Reach Forklift

Power

AC Motor

Fuel

Electric

Load Capacity

1.6 Ton

Lift Height

5000/7000/9000/10000mm

Load Center

500 mm

Turning Radius

1865 mm

Travel Speed

10.5/11 Km/H

Battery

36V / 700-1000Ah

Product Overview

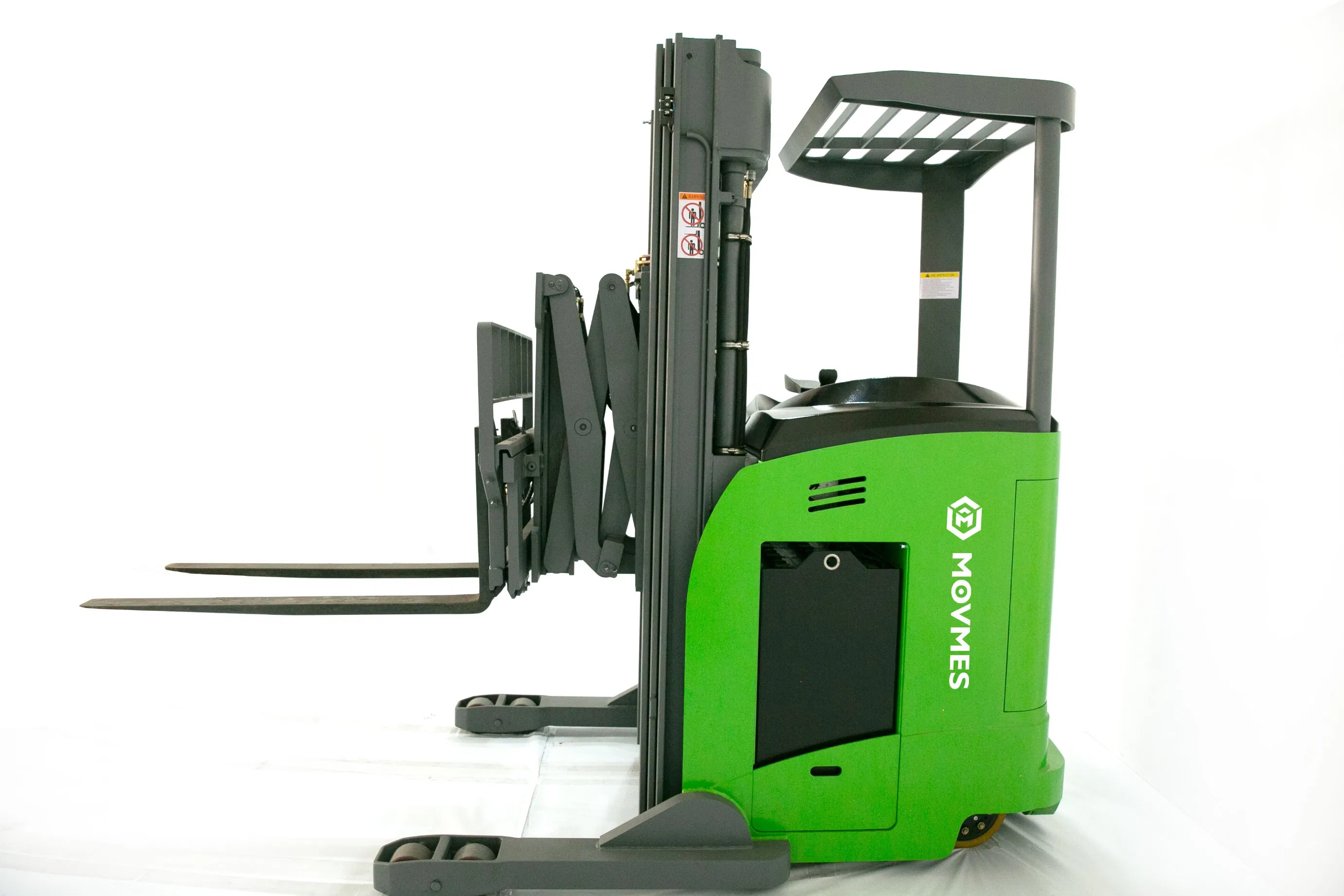

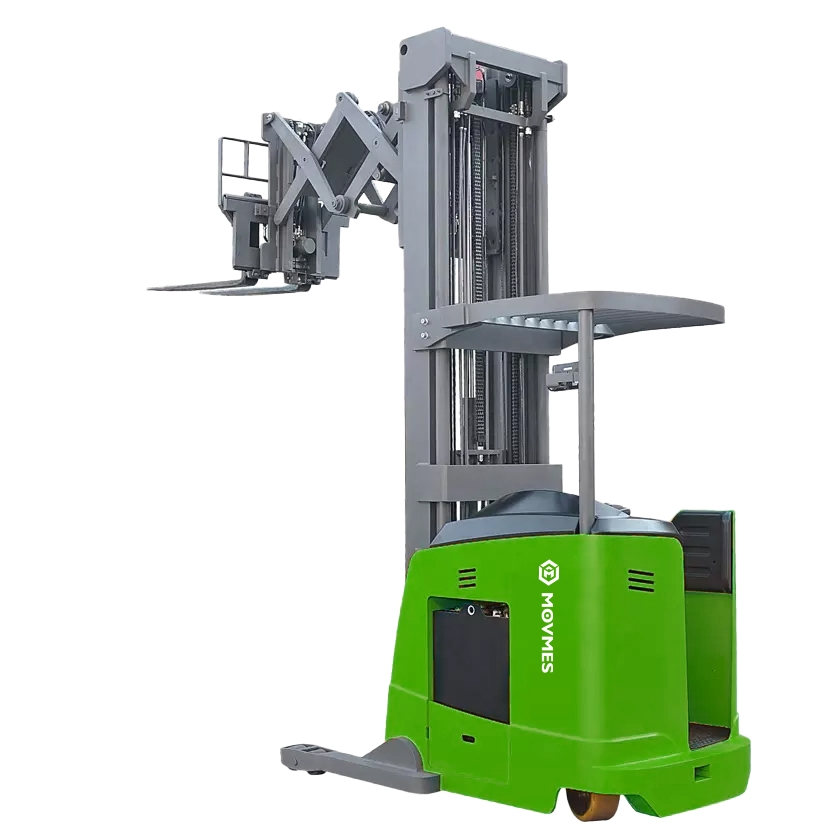

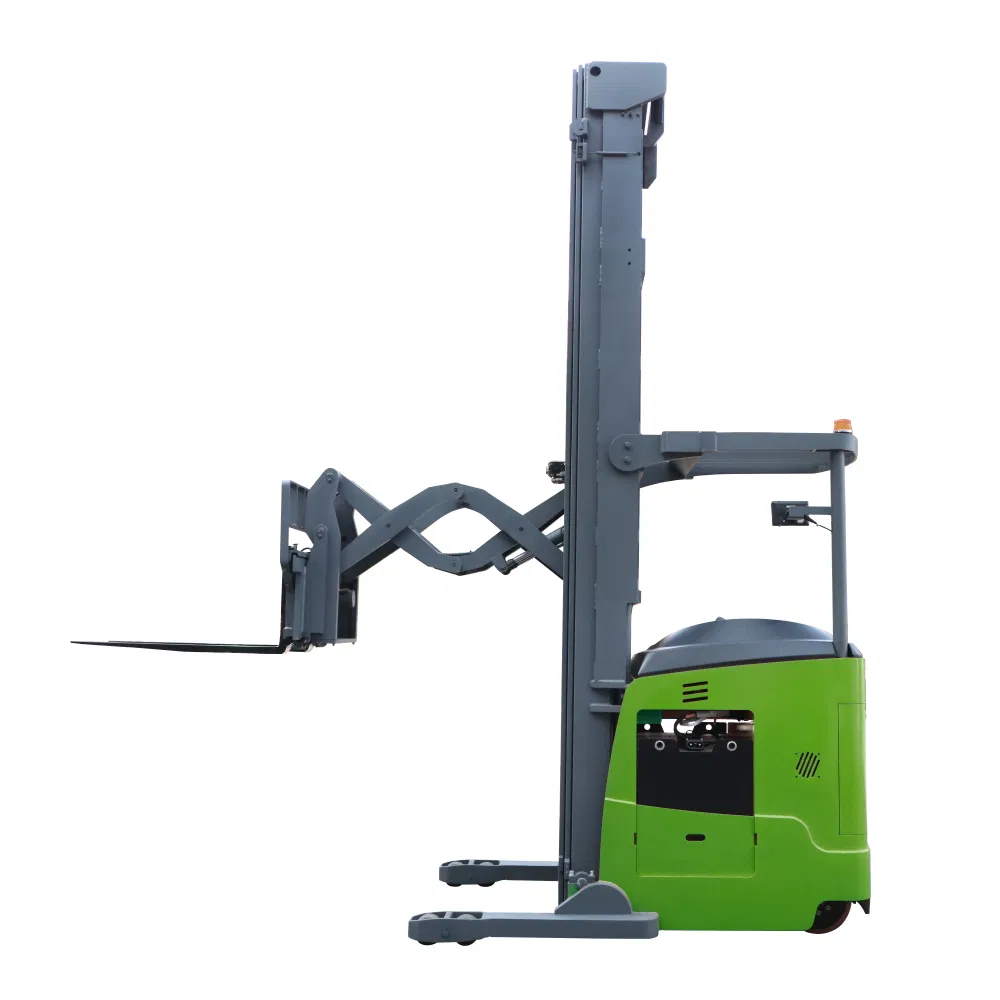

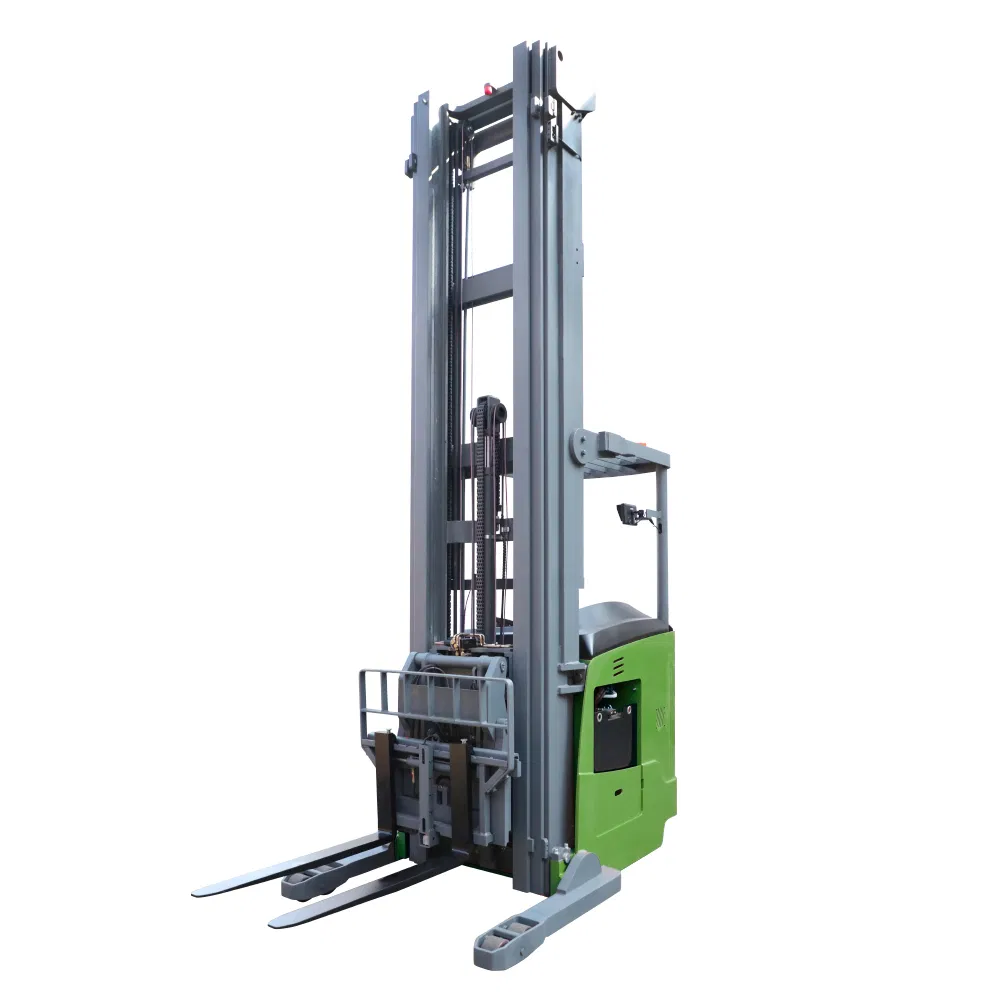

Electric Fork Reach Truck with Single or Double Scissors

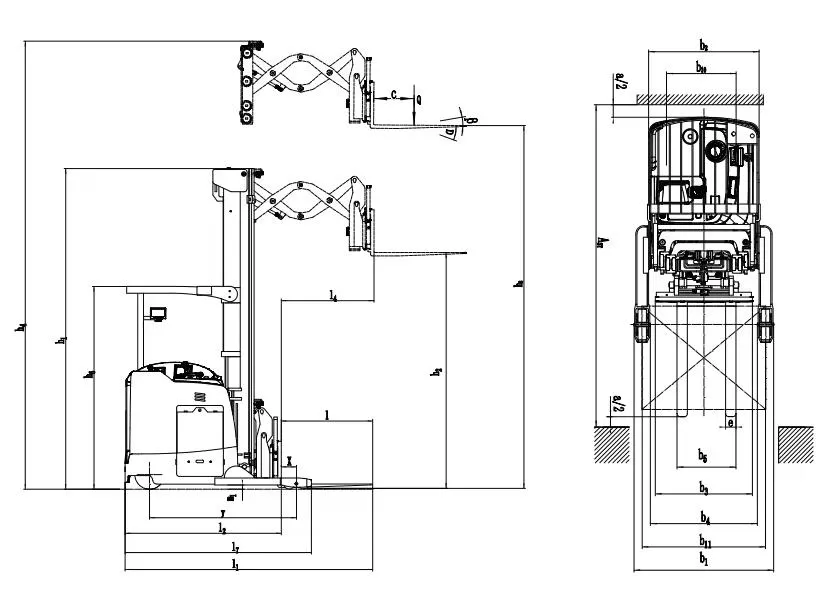

Technical Parameters

Model Description	Unit	CQDH20C (Double scissor)	CQDH20C (Single scissor)
Load capacity/rated load	kg	1600	1600
Load centre distance	mm	600	600
Tyre size, front	mm	343*140	343*140
Max. lift height	mm	Up to 10500	Up to 9000
Overall width	mm	1352/1070	1352/1070
Drive motor rating	KW	7.0 (AC)	7.0 (AC)
Lift motor rating	KW	14.0 (AC)	14.0 (AC)
Battery voltage	V/Ah	36/1000	36/700

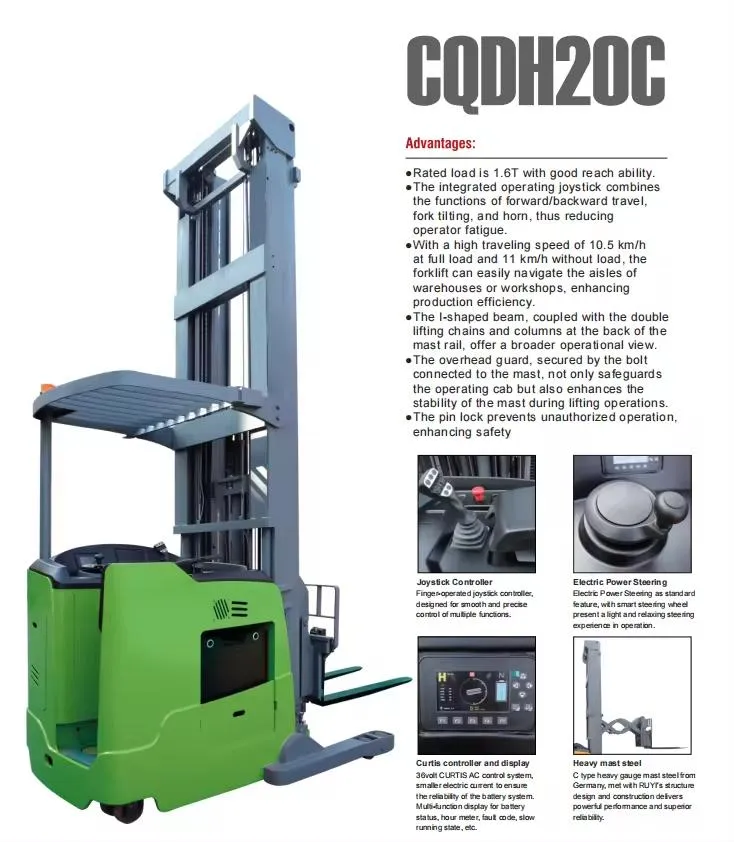

Key Advantages

⚙️

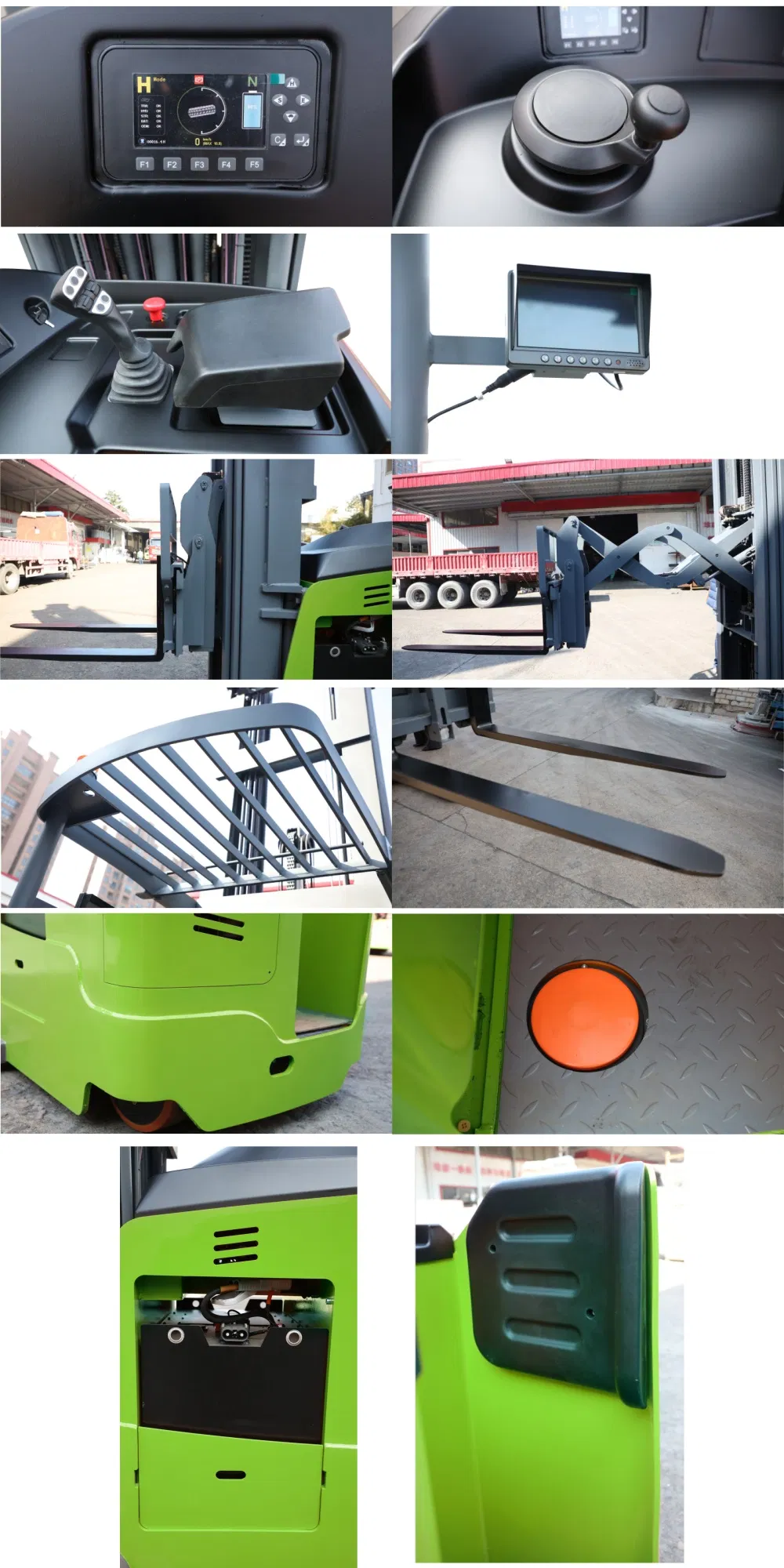

Intuitive Control: Integrated operating joystick combines travel, tilting, and horn functions to reduce operator fatigue.

⚡

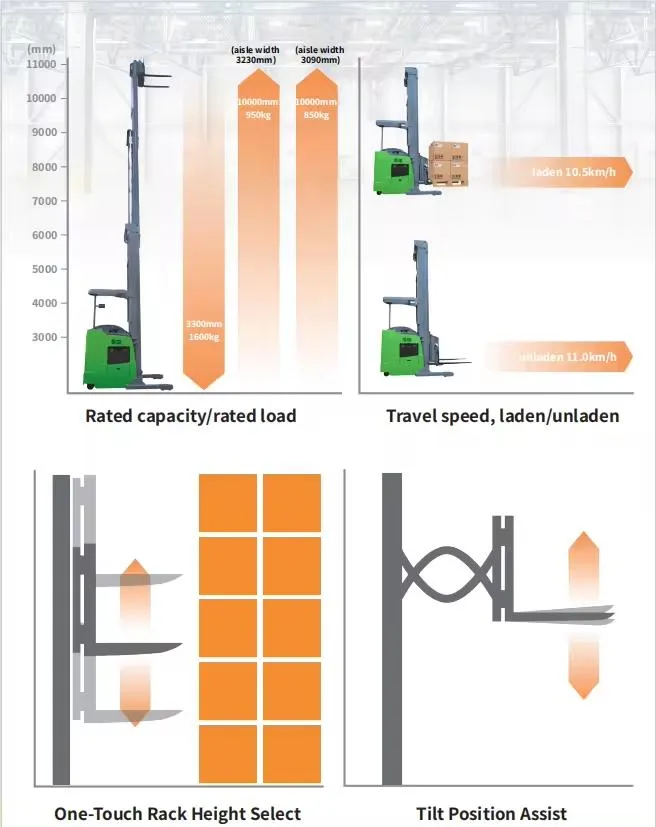

High Efficiency: Travel speeds up to 11 km/h allow for rapid navigation in warehouse aisles.

👁️

Superior Visibility: I-shaped beam and dual lifting chains provide a broader operational view for safety.

🛡️

Robust Safety: Bolt-secured overhead guard enhances mast stability and protects the operator.

🔒

Security: Pin lock system prevents unauthorized operation.

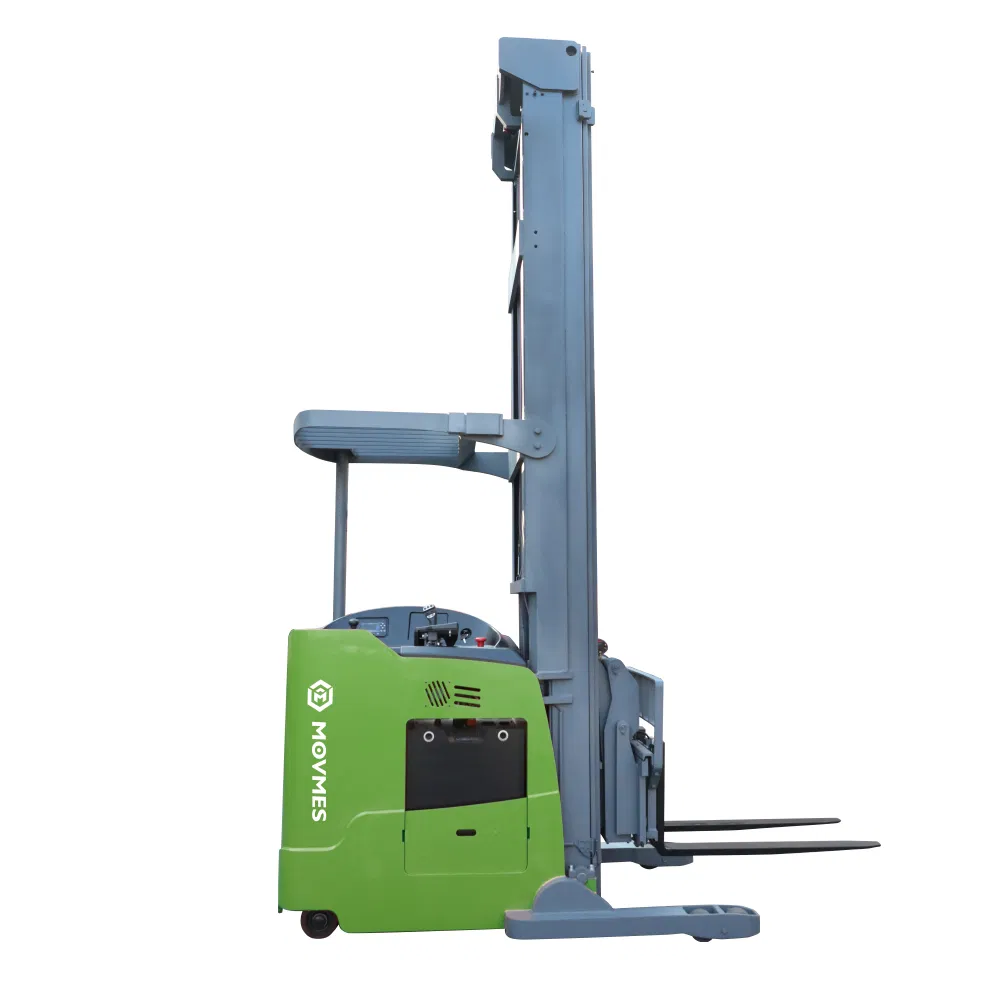

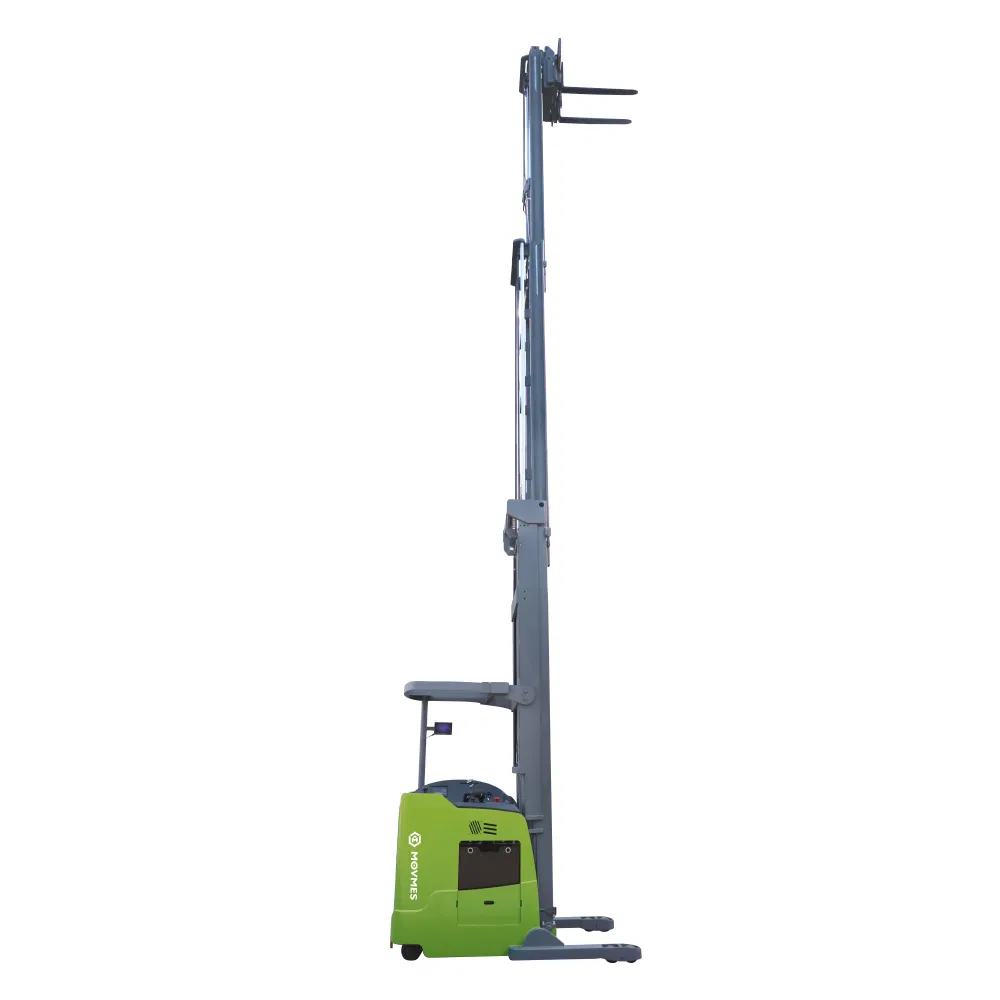

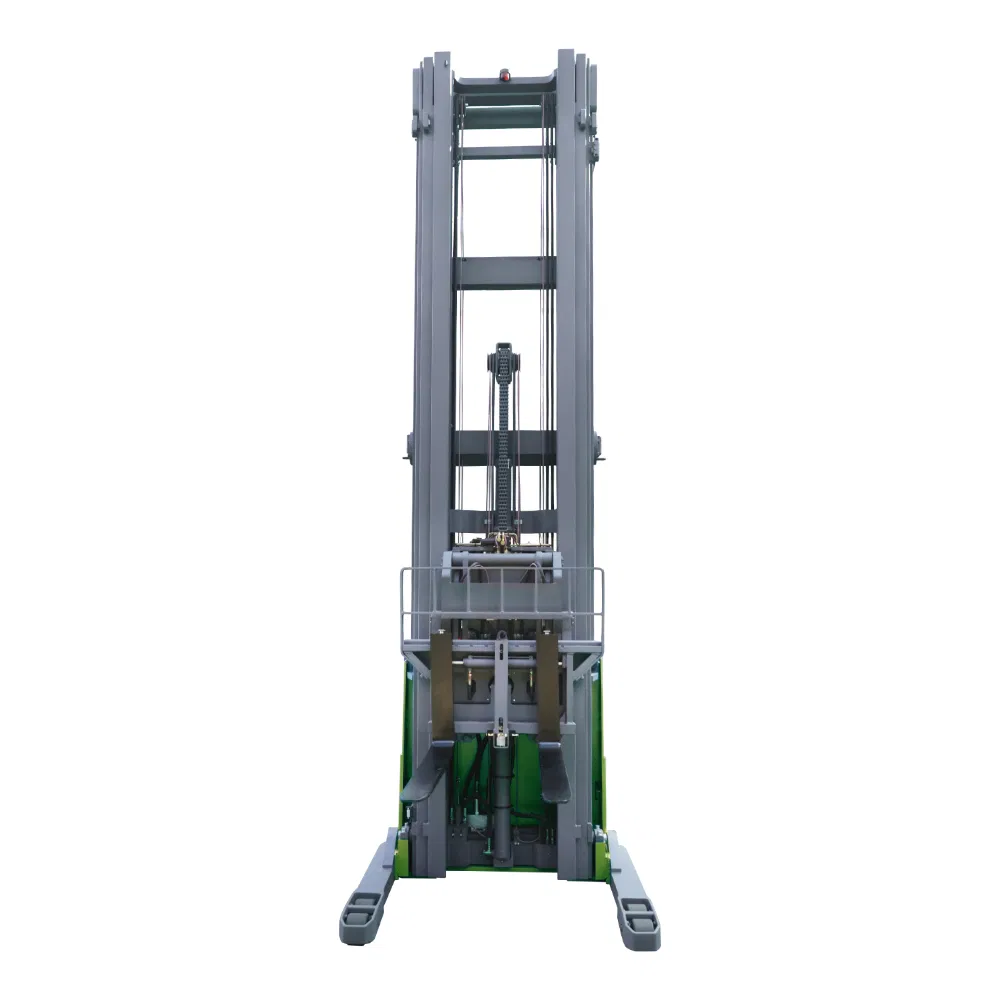

Product Gallery

Quality & Experience

36+ YearsExperience

8International Approvals

150,000m²Factory Area

157Export Countries

Certified by ISO9001:2008, ISO14001:2004, and CE/TUV standards, ensuring high-tier environmental and quality management.

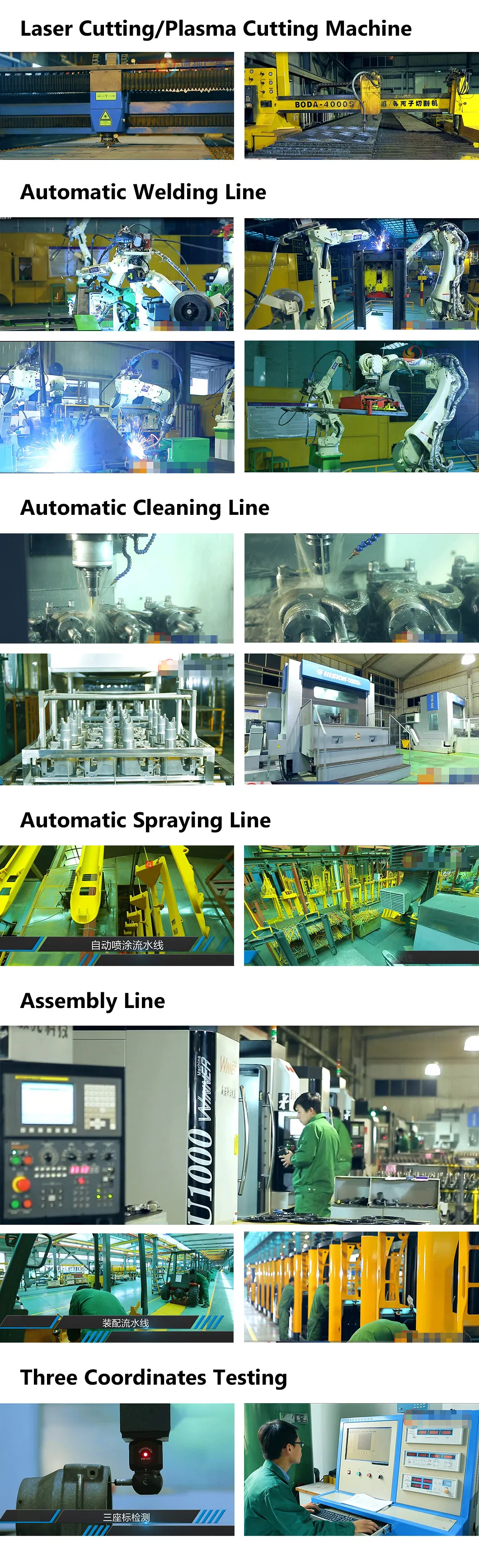

Rigorous Testing System

1

Strengthening test detection

2

Stability detection

3

Climbing performance and current detection

4

Braking performance debugging

5

Technical parameter verification

Frequently Asked Questions

Q1: What is the average working time and charging duration? The electric series offers a continuous working time of approximately 3-6 hours depending on battery volume. Full charging typically takes between 3 to 6 hours.

Q2: Can the reach truck be customized for different power standards? Yes, chargers are available in 24V/48V configurations with power plug options for USA, UK, Australia, and European standards.

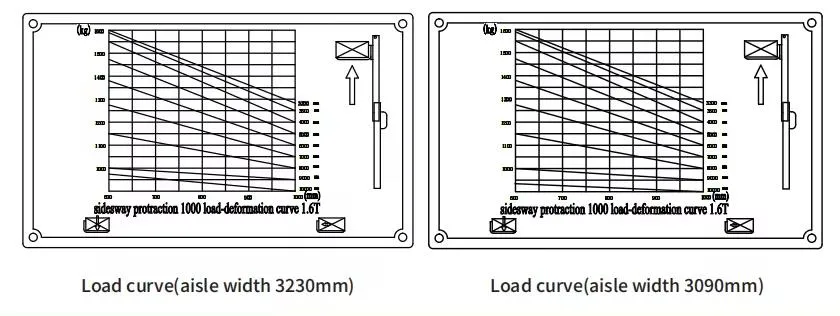

Q3: What is the maximum lift height available for this model? The CQDH20C model supports various lift heights ranging from 5000mm up to a maximum of 10500mm for specialized double scissor masts.

Q4: What safety features are included for the operator? It includes a bolt-secured overhead guard, a broad-view mast design, an integrated ergonomic joystick, and a pin lock system to prevent unauthorized use.

Q5: Is there a warranty provided for these electric trucks? Yes, a one-year warranty is provided, which includes free replacement of non-human damaged wearing parts during the coverage period.

Q6: What is the rated load capacity? The rated load capacity for this reach truck series is 1.6 Tons (1600 Kg) with excellent reach capabilities.
