| Chassis | I-SUZU JUKA |
| Curb Weight | 19600KG |
| Engine Model | 4HK1-TCG60 (5.193L 205HP) |
| Gear-box | MLD-6Q transmission |
| Wheel base | 5550mm |
| Outline dimension | 10400mm * 2550mm * 3900mm |
| Tire Specification | 295/80R22.5 18PR |

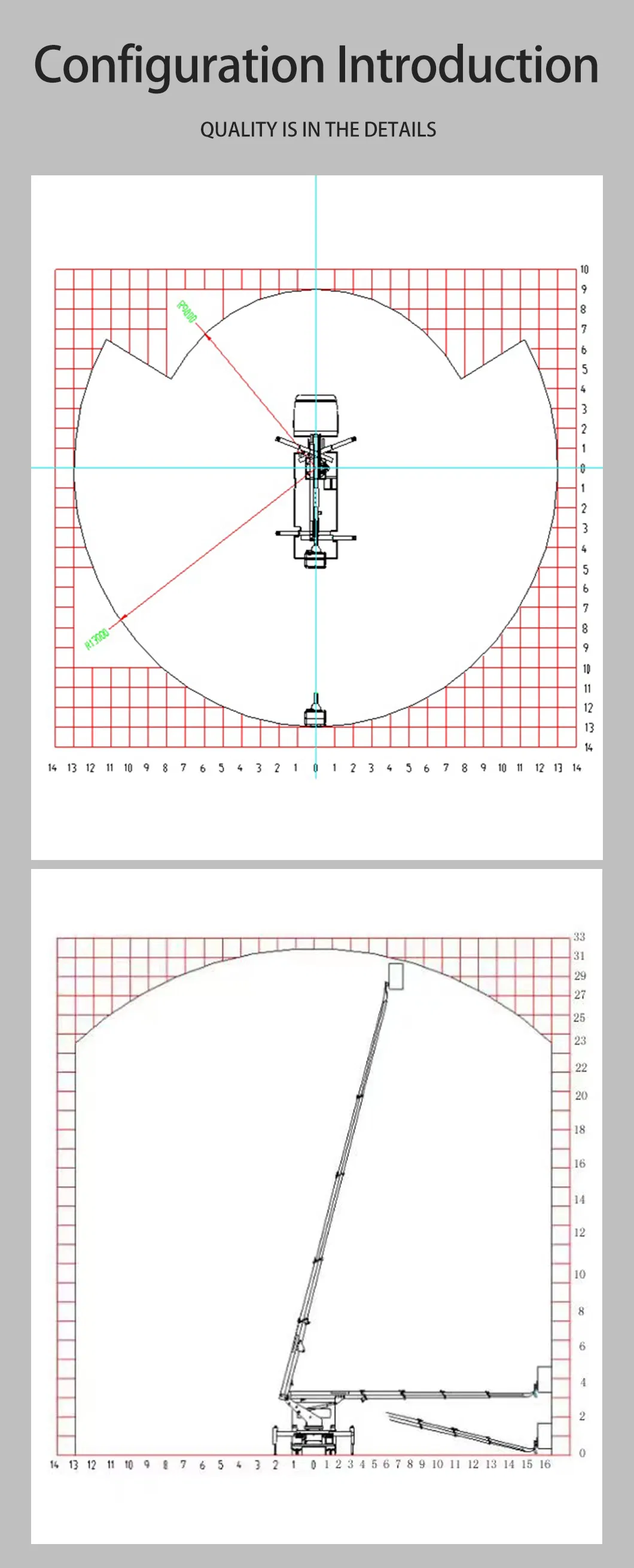

| Maximum operation height | 60m |
| Maximum range of work | 27m |
| Rated load of platform | 400kg |
| Arm frame rotation | 360° |
| Platform size | 3200mm * 1000mm * 1100mm |
| Boom Structure | 9-section arm, 8-section synchronous telescoping |
| Operating System | Wireless remote control, three-way operation |
| Hydraulic System | Electro-hydraulic proportional valve, stepless speed regulation |
| Hydraulic Legs | X-shaped, 4 three-section outriggers (8.6m wide x 8.4m long) |
| Safety Features | Interlocking protection, tilt alarm, emergency power, weight detection |

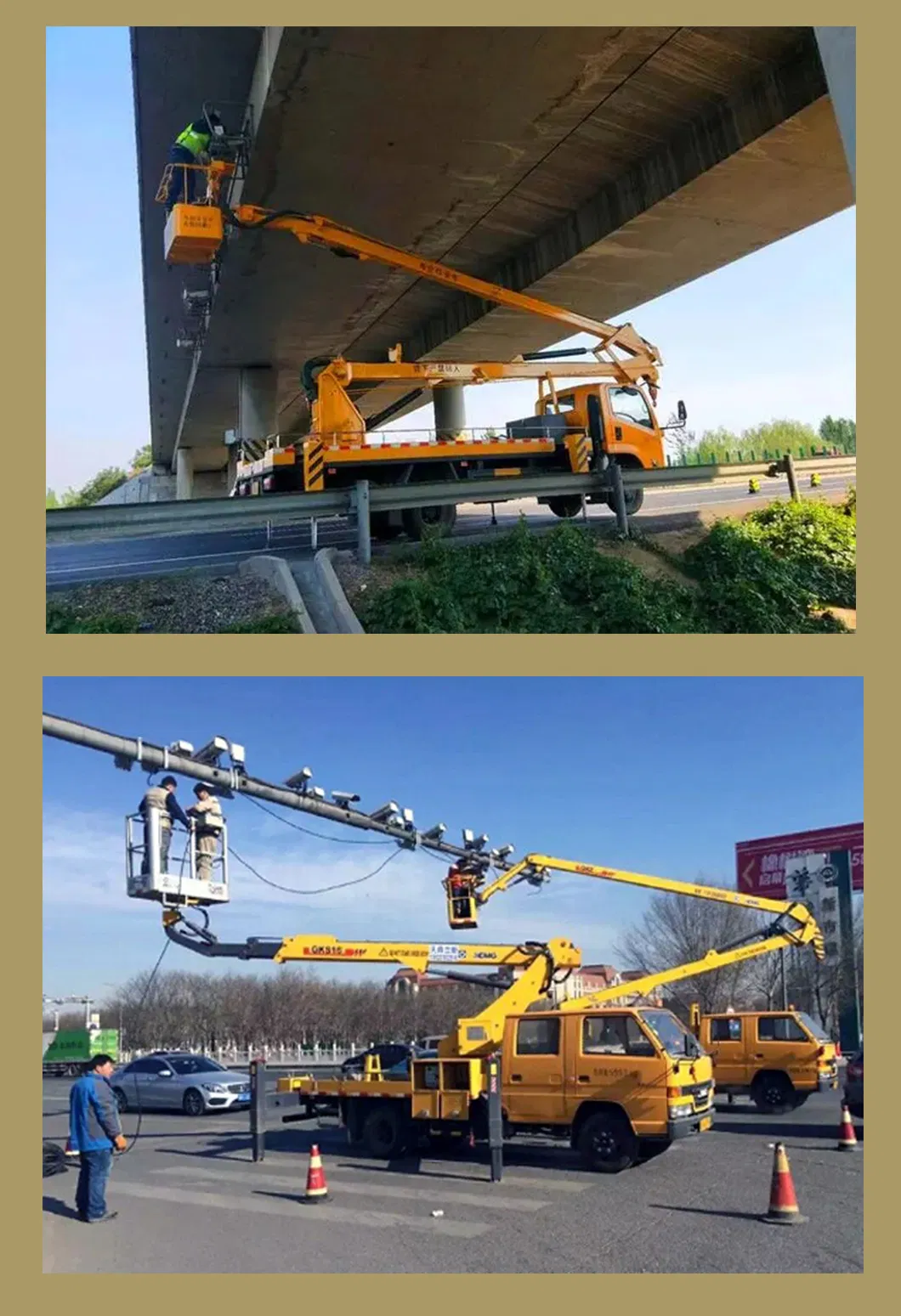

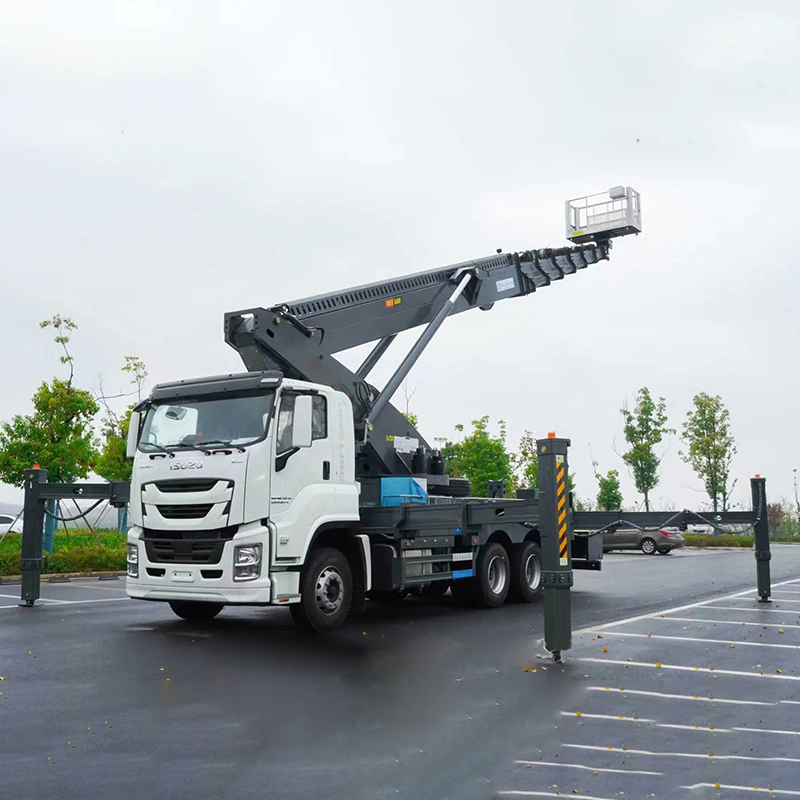

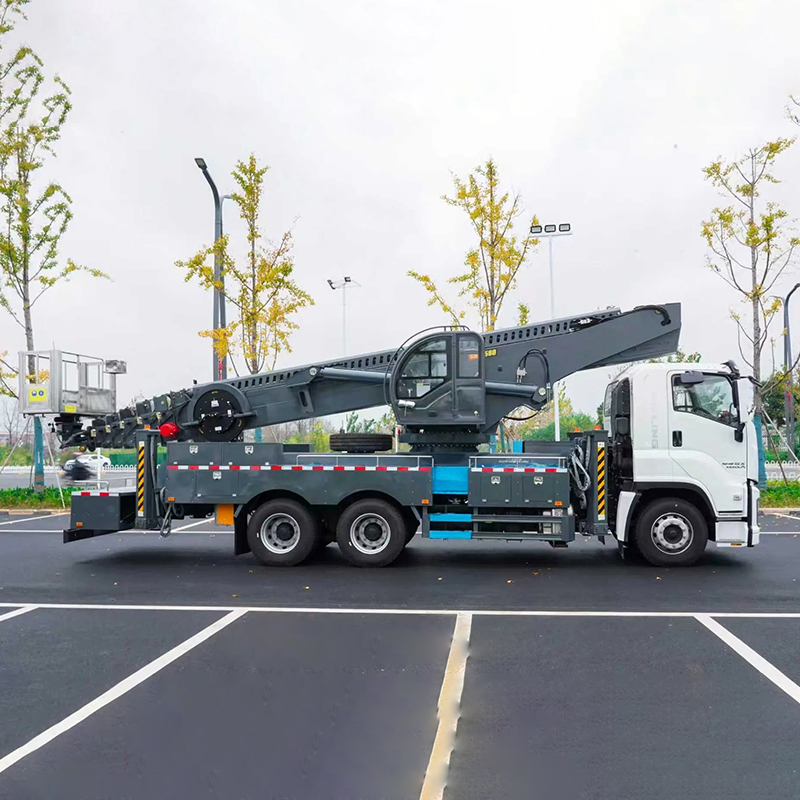

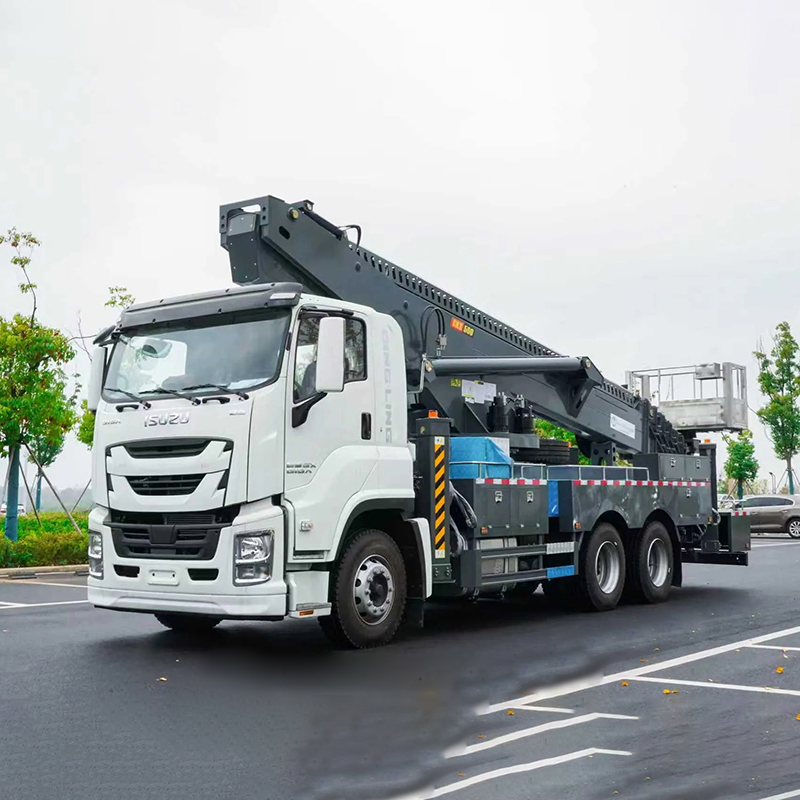

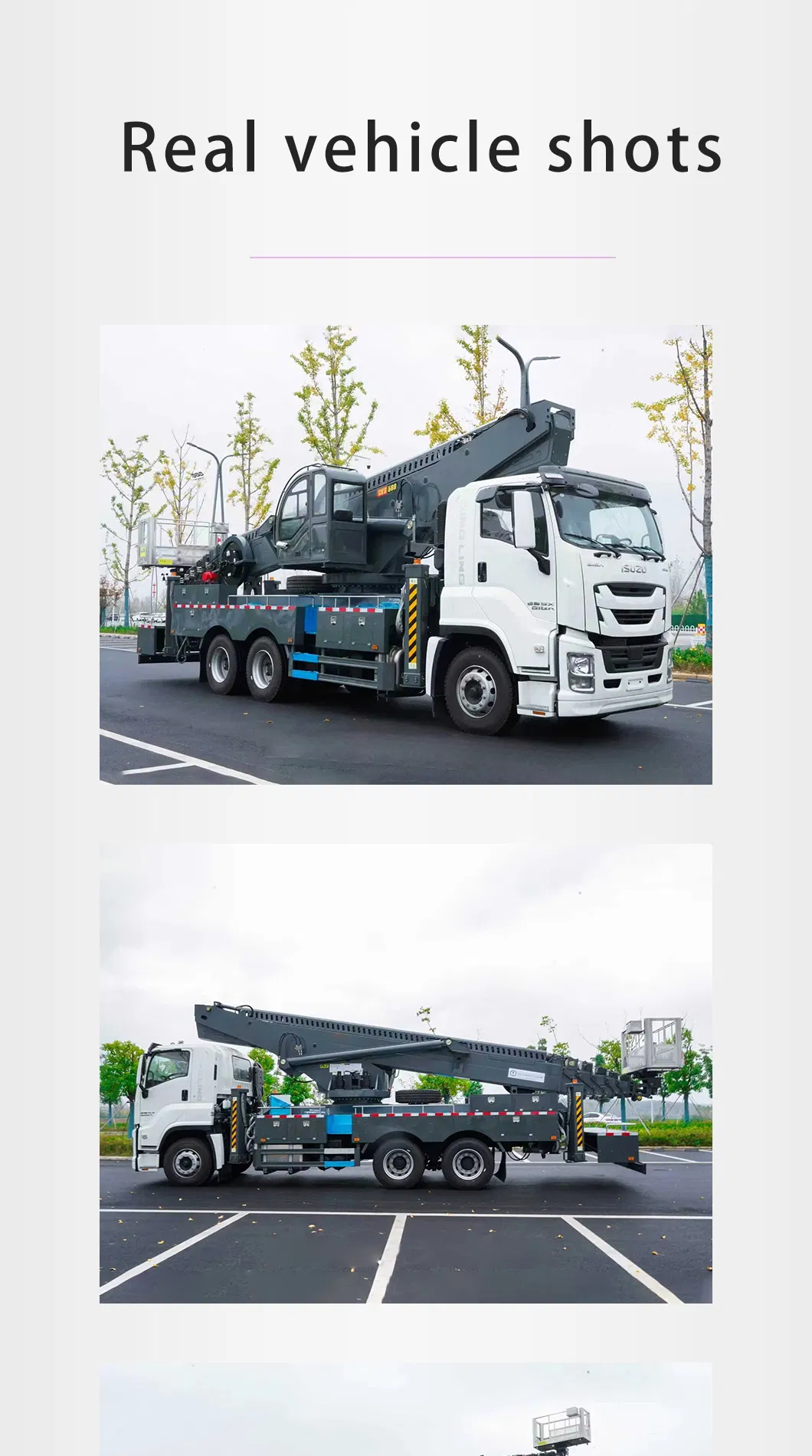

Aerial work vehicles are special engineering vehicles used for high-altitude operations. They use mechanical devices to lift operators and equipment to the required height to complete maintenance, installation, cleaning and other tasks. The design combines the mobility of a car chassis with the high-reach functionality of an aerial platform, integrating lifting, rotation, and telescopic movements.

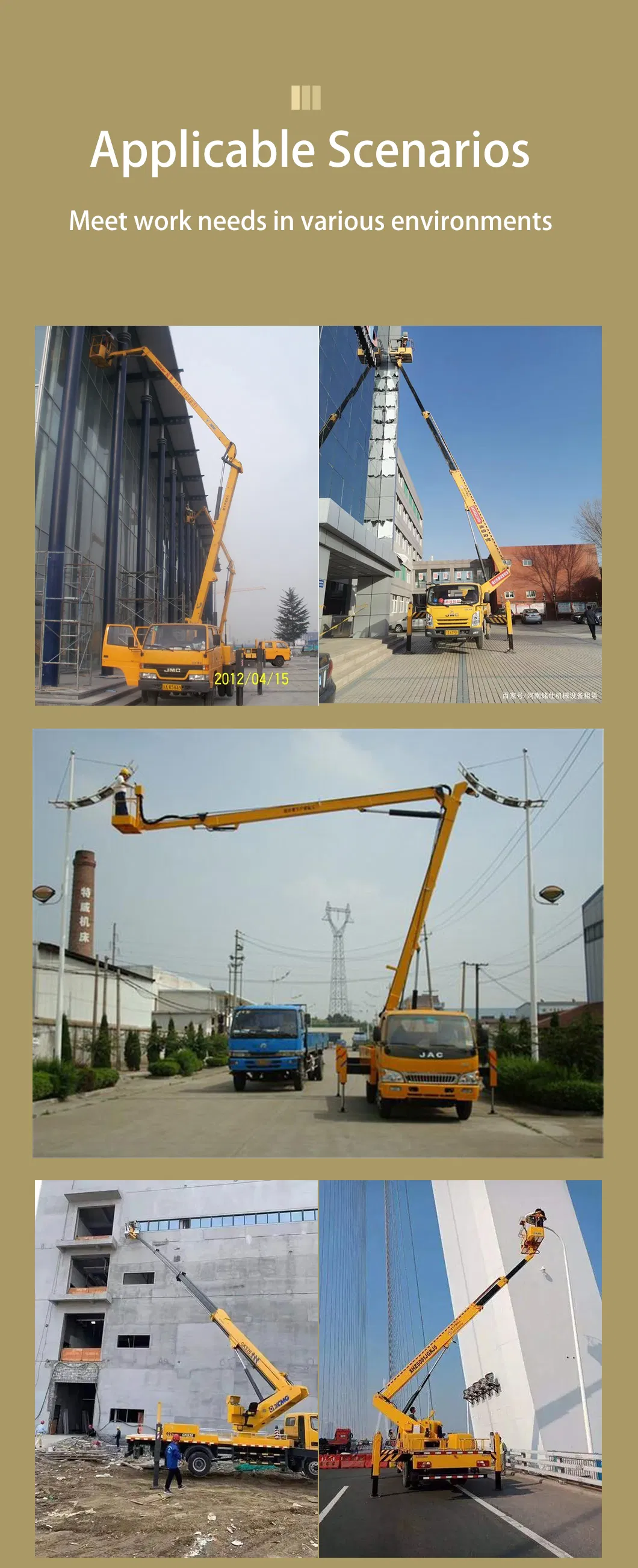

These vehicles offer excellent maneuverability and flexibility, allowing quick positioning in complex work sites. The working arm designs (telescopic and folding) are flexibly adjusted based on required height. Equipped with a stable support system and multiple safety protection devices, they ensure a secure operating environment.

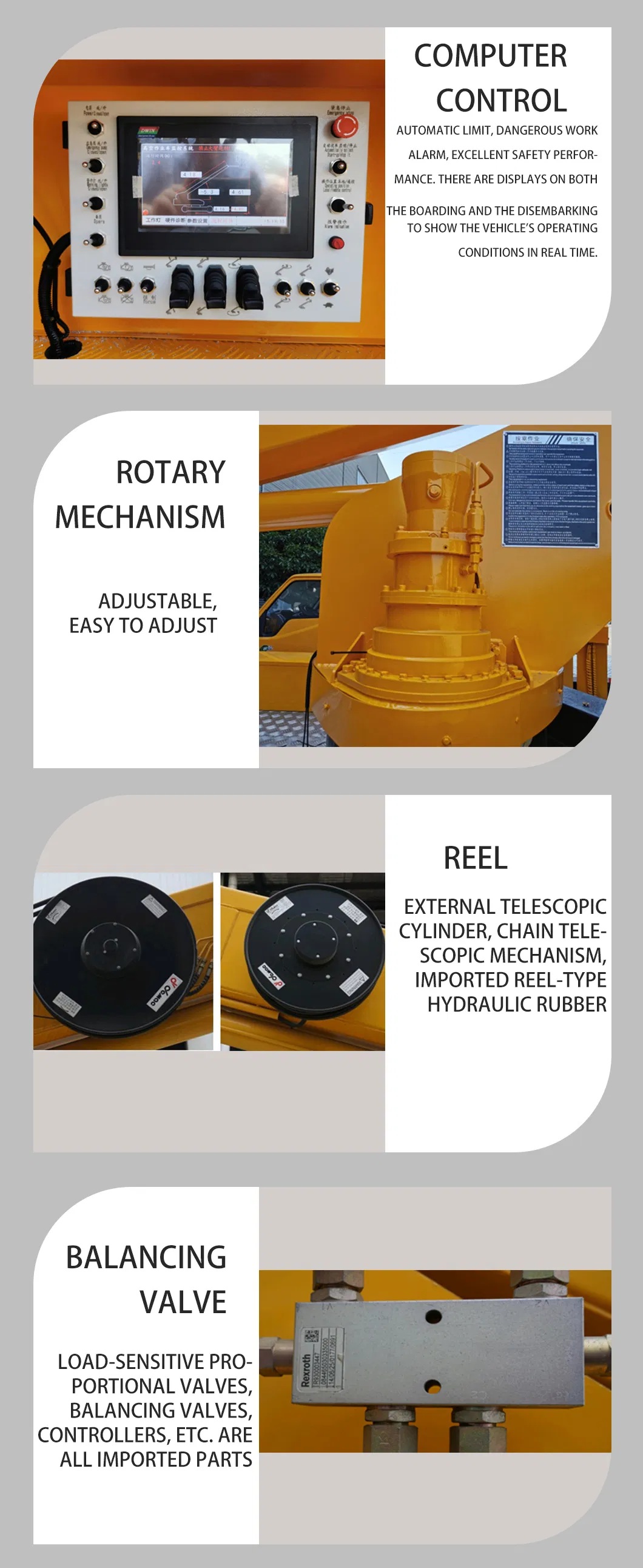

Modern aerial work vehicles feature intelligent control systems for precise operation. Via the control panel or wireless remote, operators manage lifting and rotation with ease. Functions like automatic balancing and fault alarms further enhance safety and convenience during high-altitude tasks.
