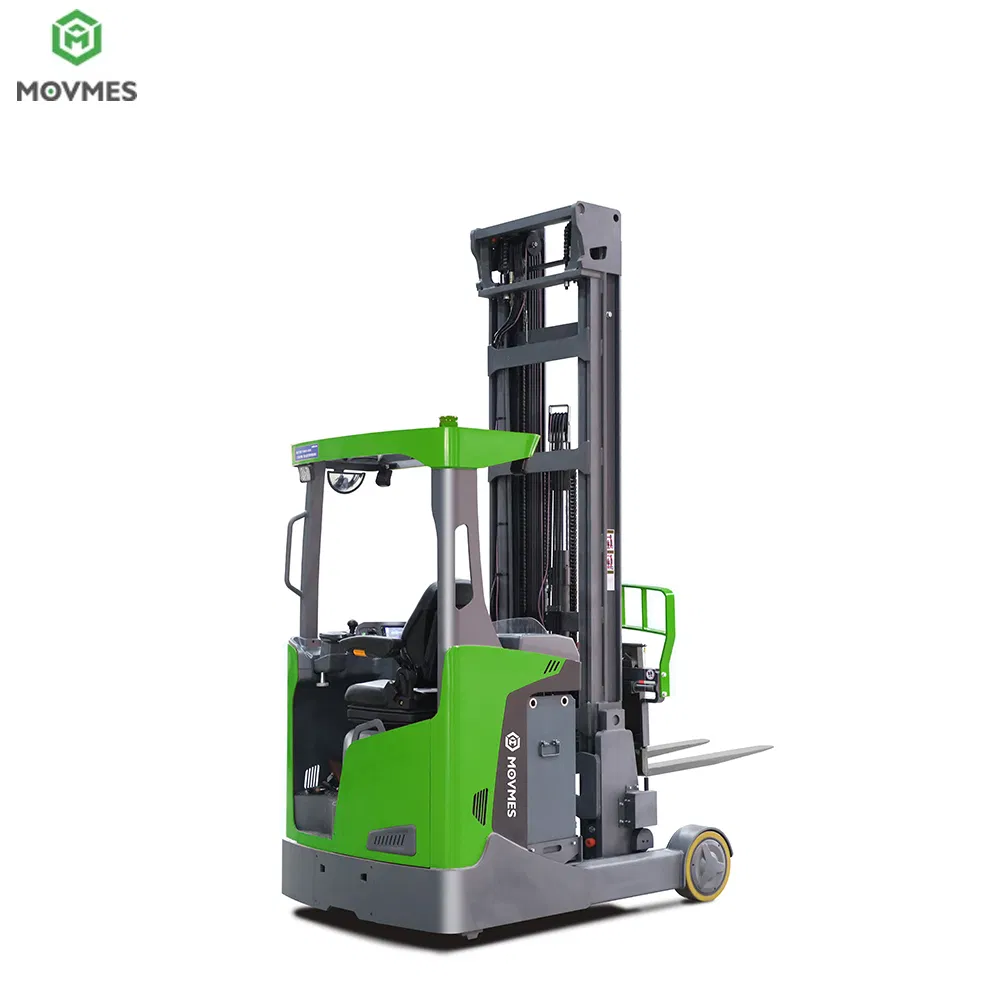

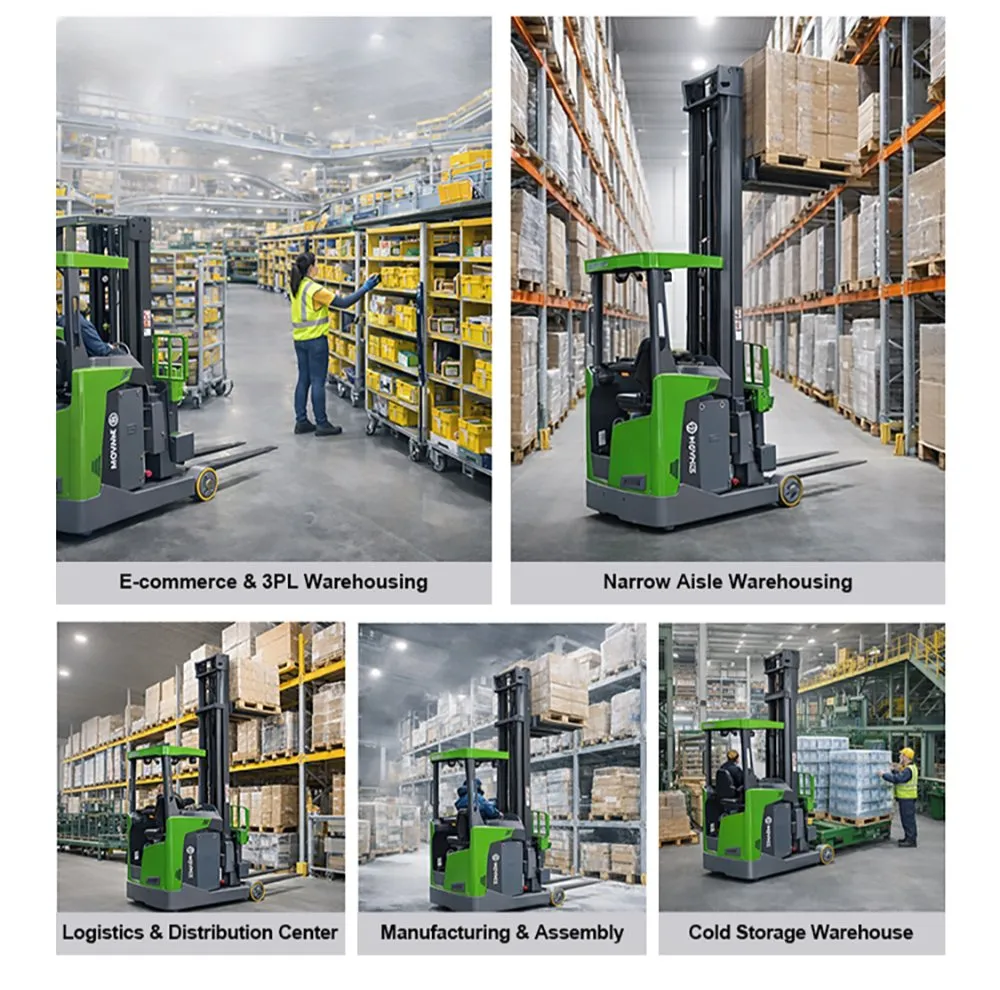

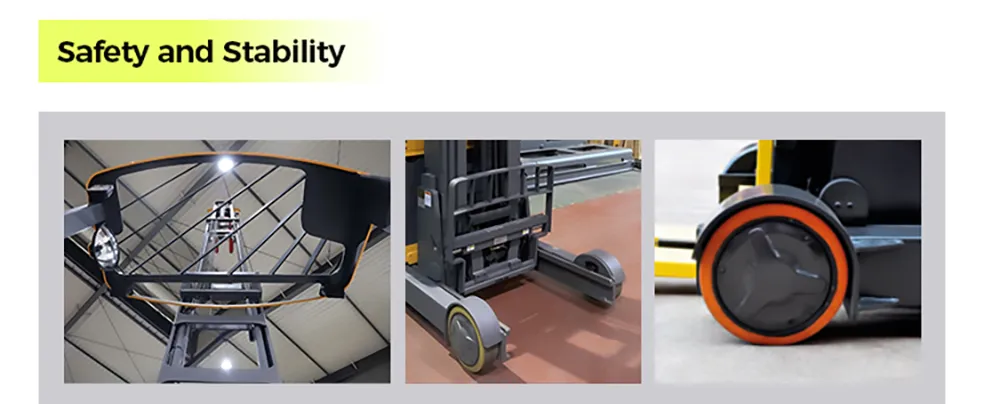

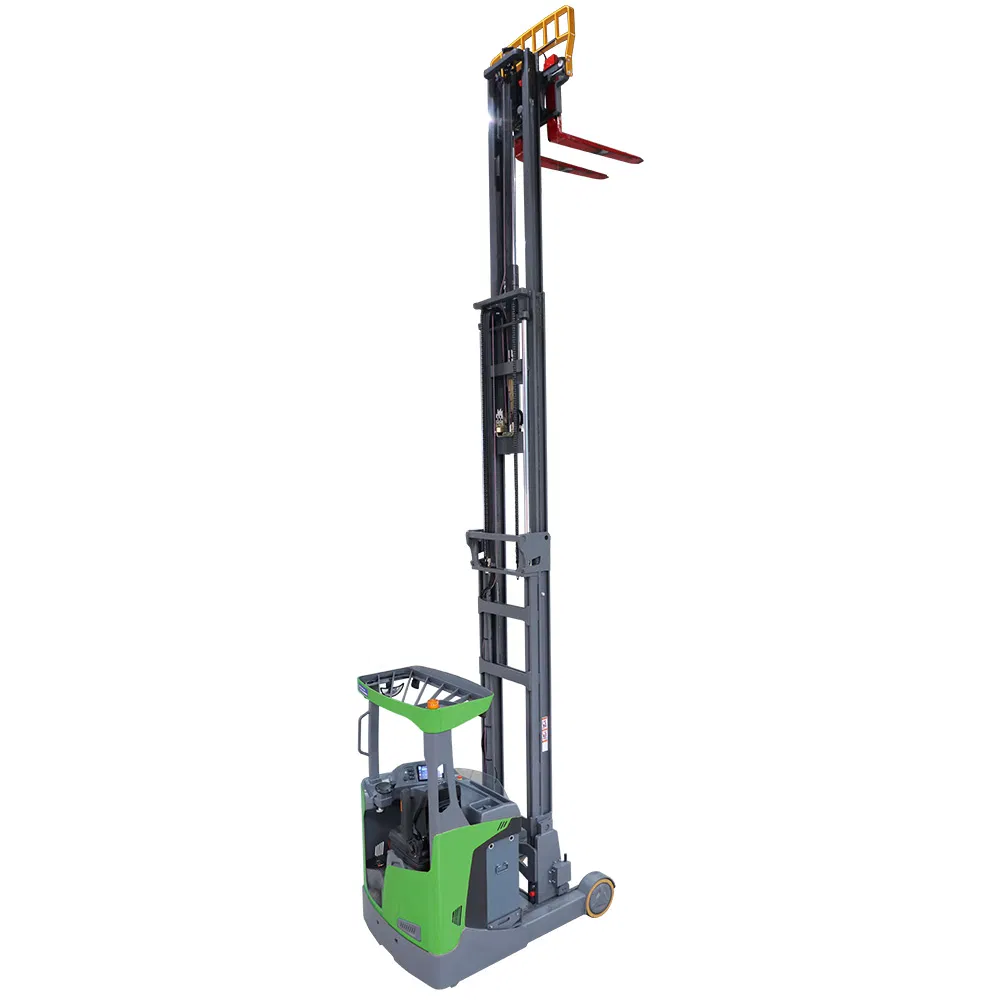

The CQD20-D Reach Truck is engineered for efficient and precise material handling in narrow aisle and high-racking warehouse environments. Its compact design and stable reach system allow operators to stack and retrieve pallets safely, even in confined spaces.

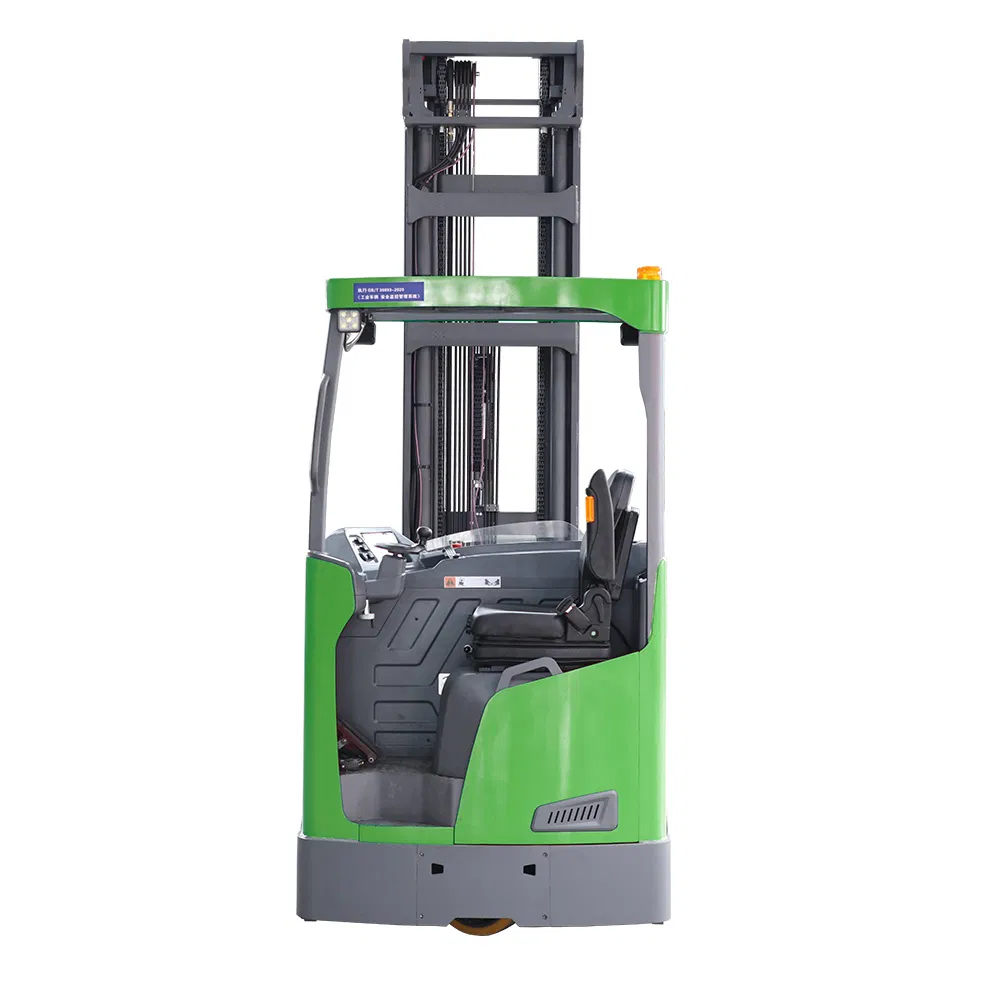

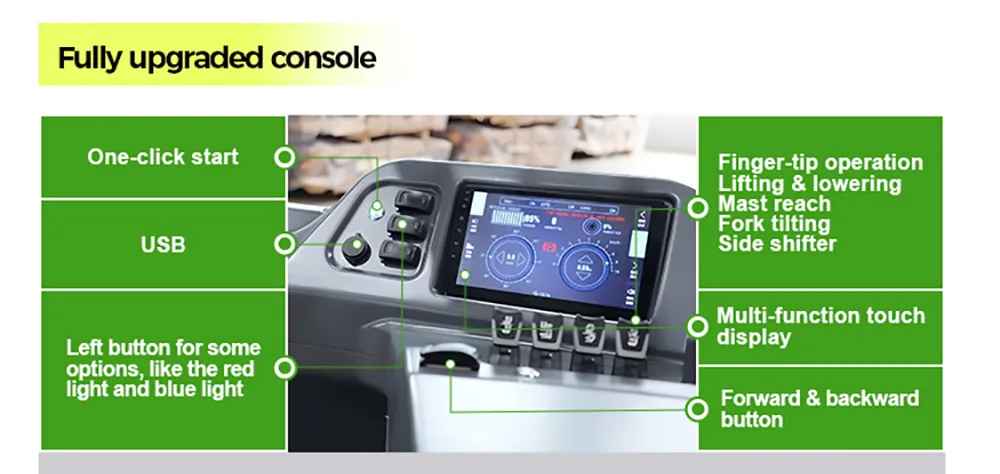

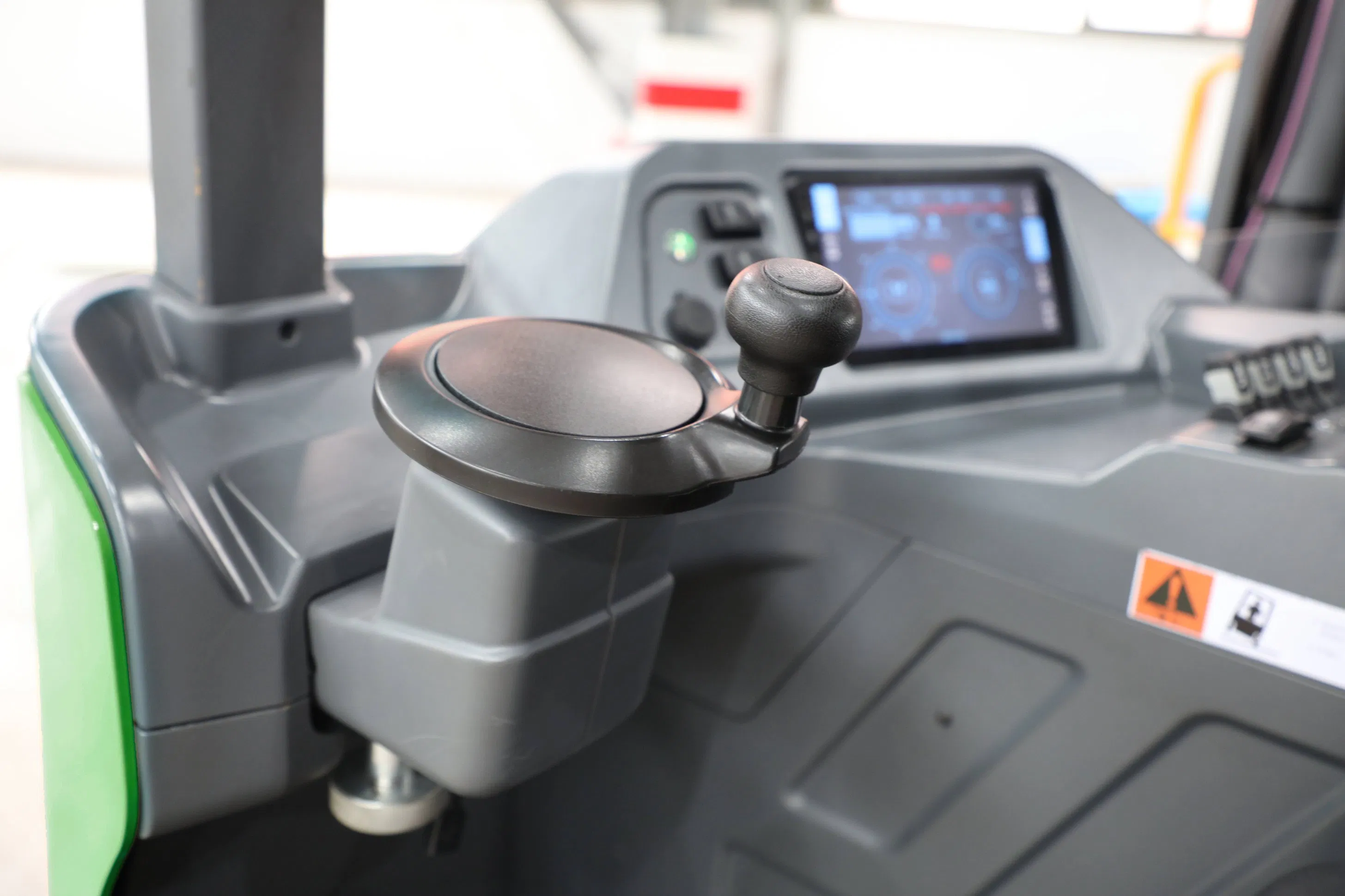

Powered by a reliable electric drive system, the truck delivers smooth operation, low noise, and zero emissions—making it an ideal solution for indoor logistics, distribution centers, and modern warehouses. The ergonomic operator compartment and responsive controls help improve productivity while reducing operator fatigue.

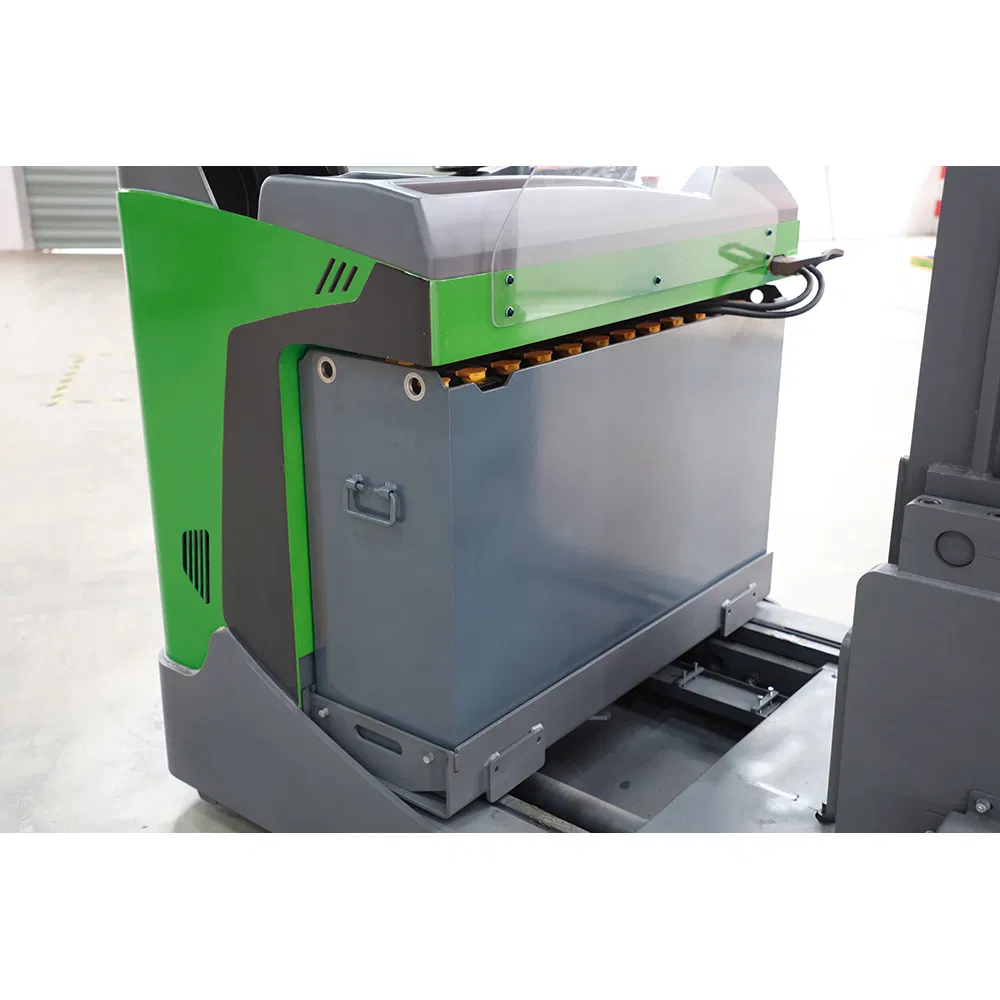

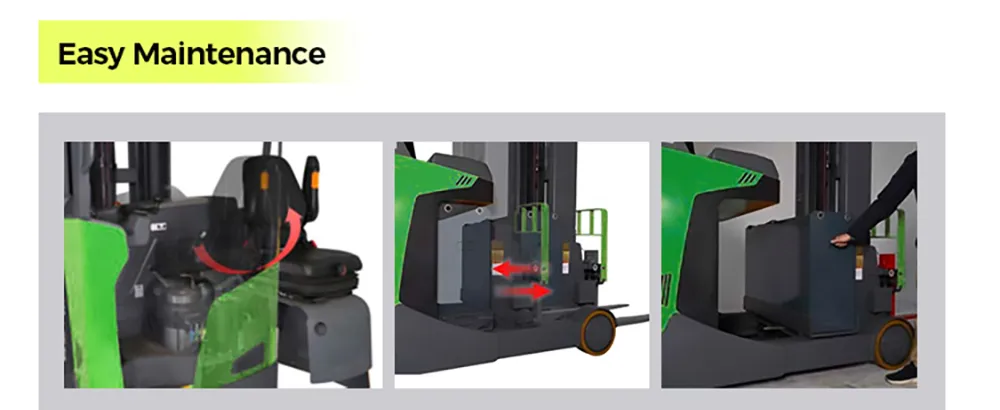

The unit features a one-piece upper cover for easy maintenance of controllers, pumps, and motors. Sideway battery movement with the mast allows for quick and easy replacement during multi-shift operations.
| Parameter | Unit | CQD20-D Data |
|---|---|---|
| Drive type | - | Electric |
| Operator type | - | Seated |
| Rated load | Q(kg) | 2000 |
| Load center distance | C(mm) | 600 |
| Wheelbase | Y(mm) | 1510 |
| Service weight (with battery) | kg | 4205 |
| Travel speed (laden/unladen) | km/h | 10.5 / 11 |
| Lift speed (laden/unladen) | m/s | 0.3 / 0.46 |
| Lower speed (laden/unladen) | m/s | 0.5 / 0.56 |
| Battery voltage/capacity | V/Ah | 48 / 500 |
