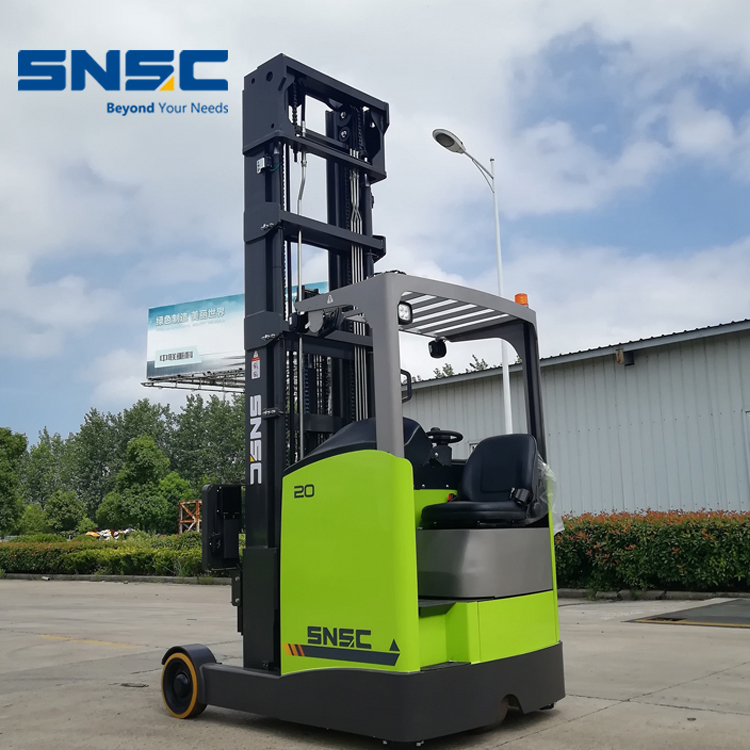

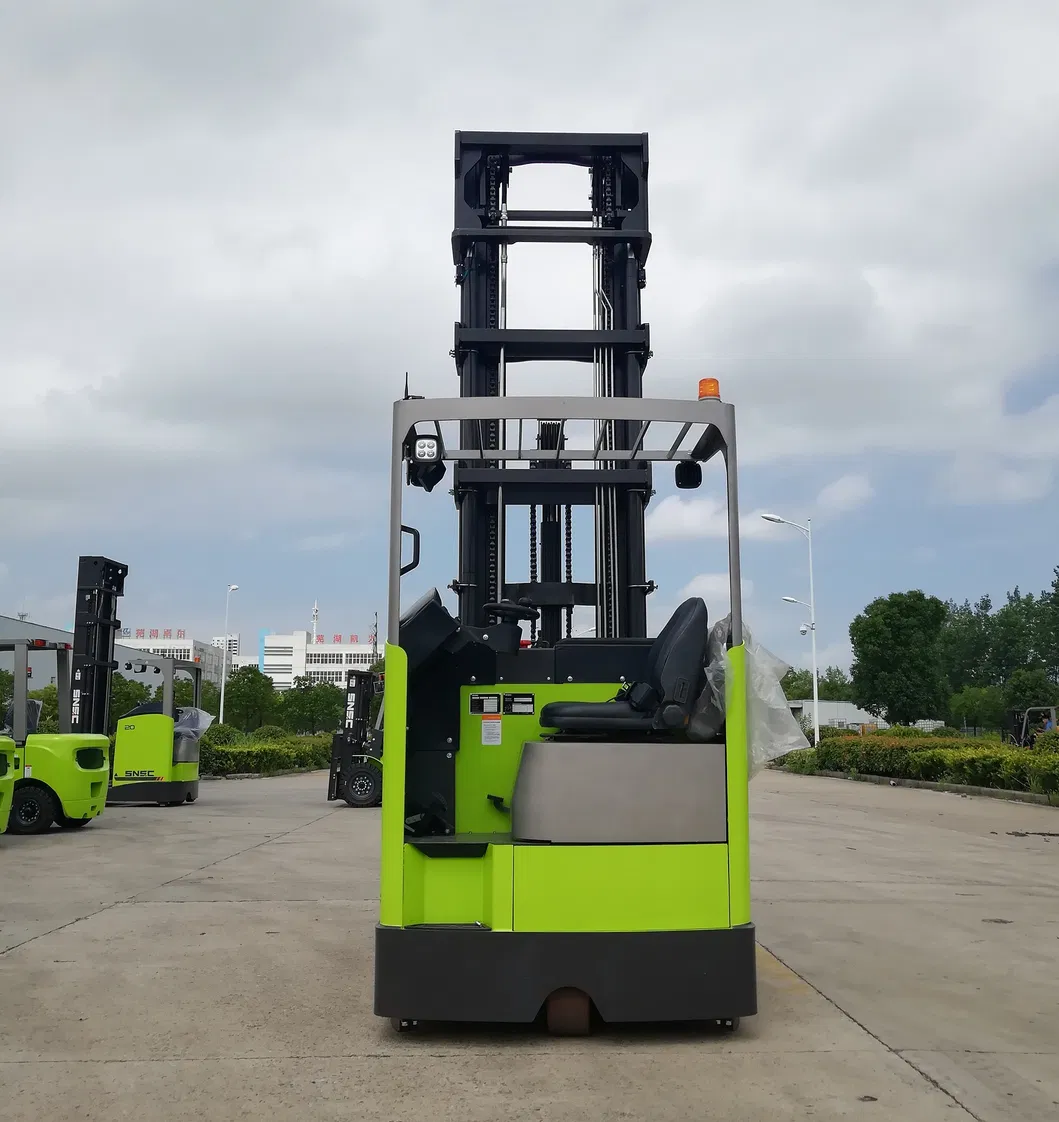

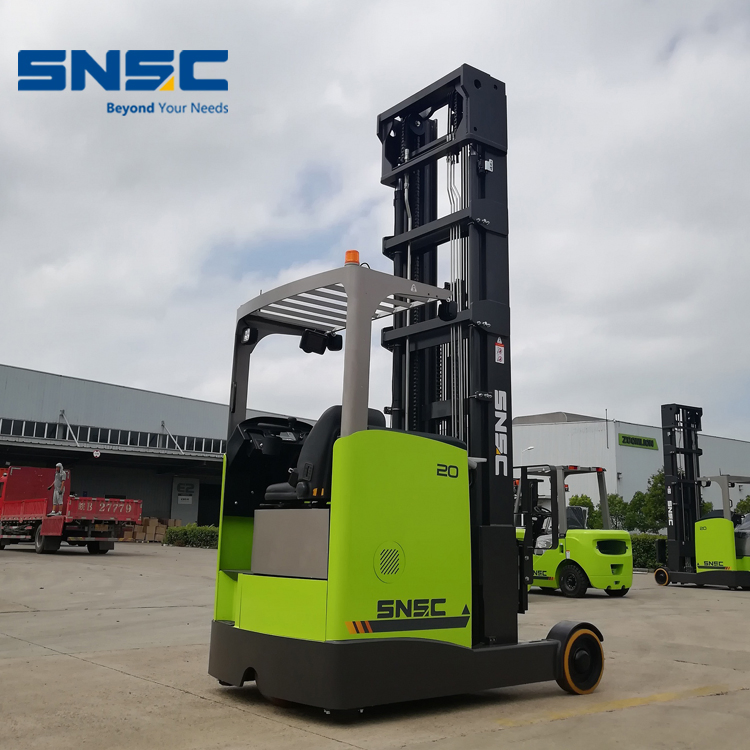

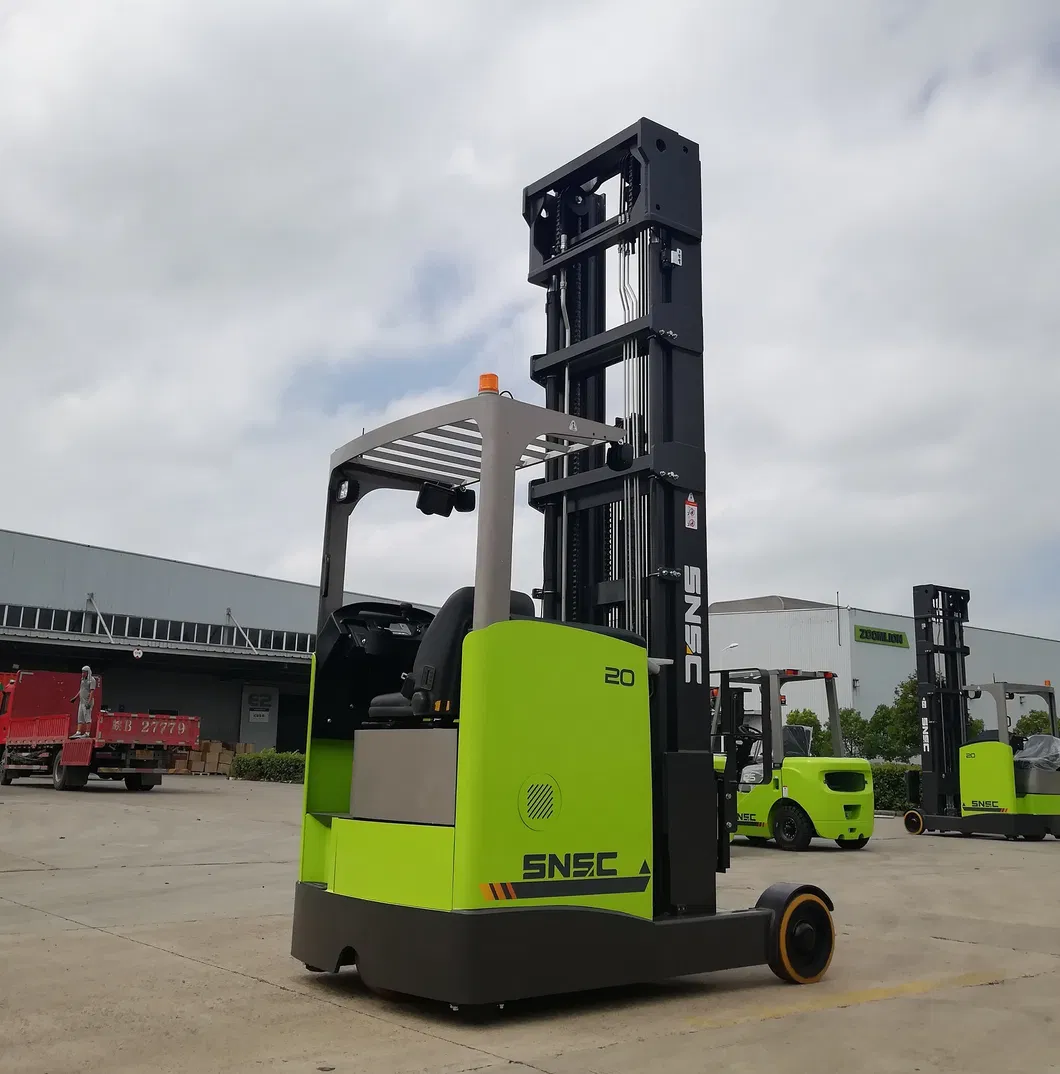

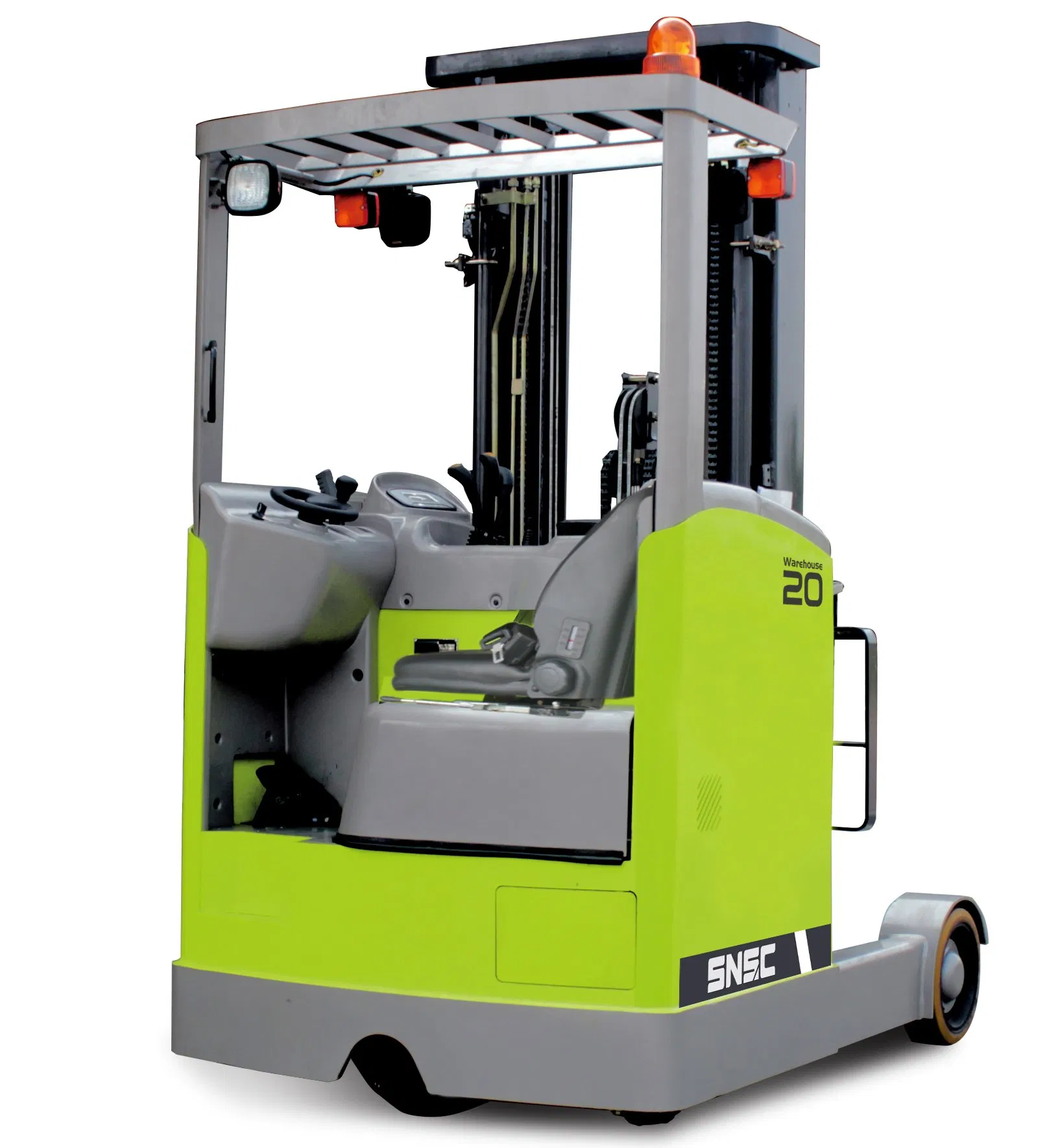

1.6-2Ton Electric Reach Truck For Sale
1.6-2Ton Electric Reach Truck lift from 3-12m, with small width from 1020-1100mm, turning radius from 1700-1740mm and narrow cabine to ensure trucks can be used in racks. Widely used in super market, food factory and logistic shop etc.
| No. | Item | Value (YB20-S2) |
|---|---|---|
| 1 | Power | Battery |
| 2 | Operator type | Seated |
| 3 | Rated capacity | 2000 kg |
| 4 | Centre of load | 600 mm |
| 5 | Front overhang | 378 mm |
| 6 | Wheelbase | 1570 mm |
| 7 | Curb weight (battery included) | 3332 kg |
| 11 | Tire driving/bearing | PU/PU |
| 19 | Height of mast, lowered | 2190 mm |
| 21 | Lifting height | 4500 mm |
| 25 | Overall length | 2642 mm |
| 27 | Overall width | 1270/1294 mm |
| 28 | Fork dimensions | 40*122*1220 mm |
| 37 | Outer turning radius | 1825 mm |
| 38 | Travel speed, laden/unladen | 9/9.5 km/h |
| 39 | Lifting speed, laden/unladen | 260/360 mm/s |
| 44 | Drive motor | 6.4 kW |
| 45 | Lift motor | 11 kW |
| 46 | Steer motor | 0.6 kW |
| 47 | Battery voltage/capacity | 48V |
| 49 | Type of drive control | MOSFET |

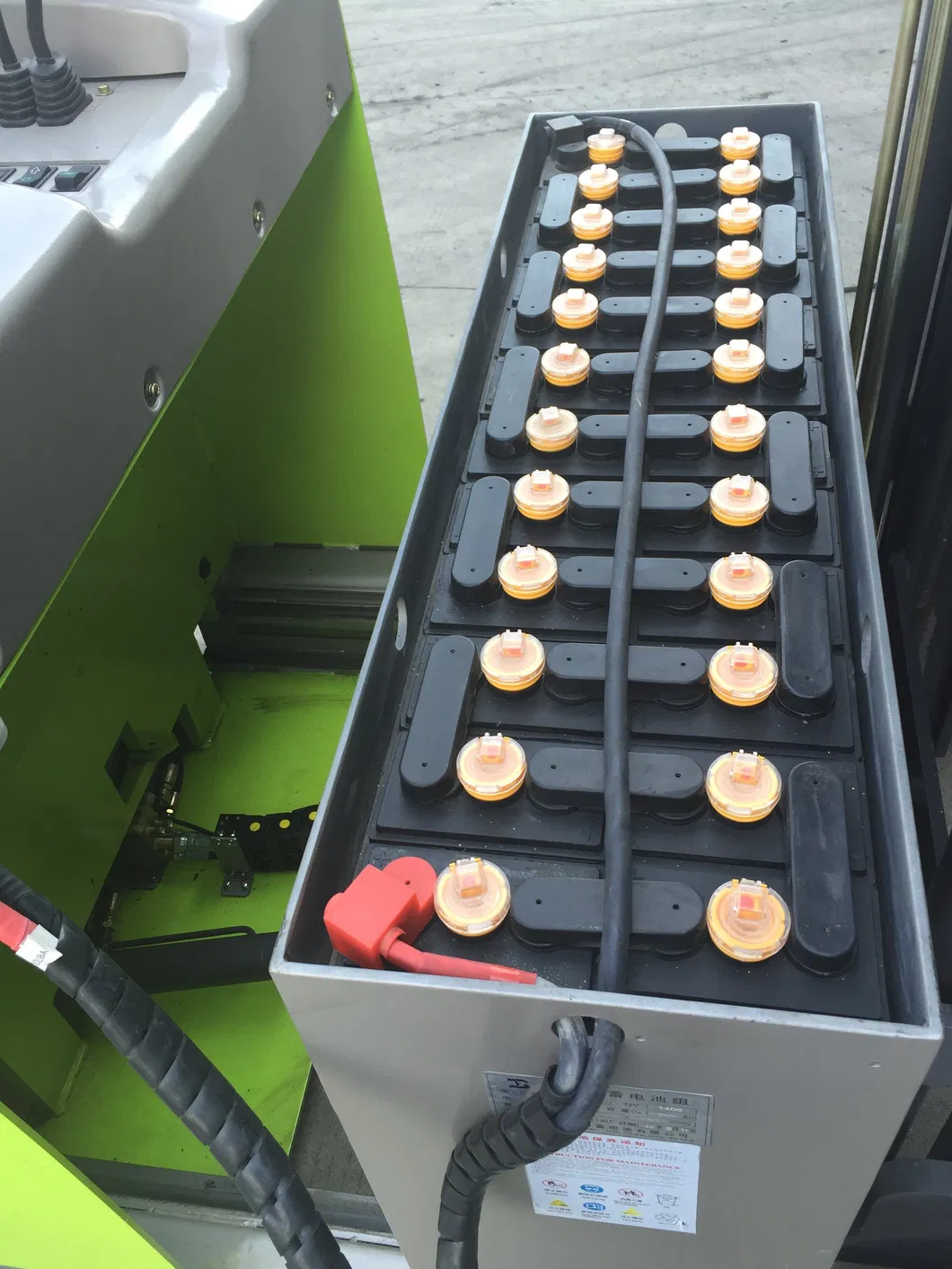

For daily maintenance of the battery, you don't need to hang up the battery box. Simply using a box handle controller, you can automatically remove and replace the battery box.

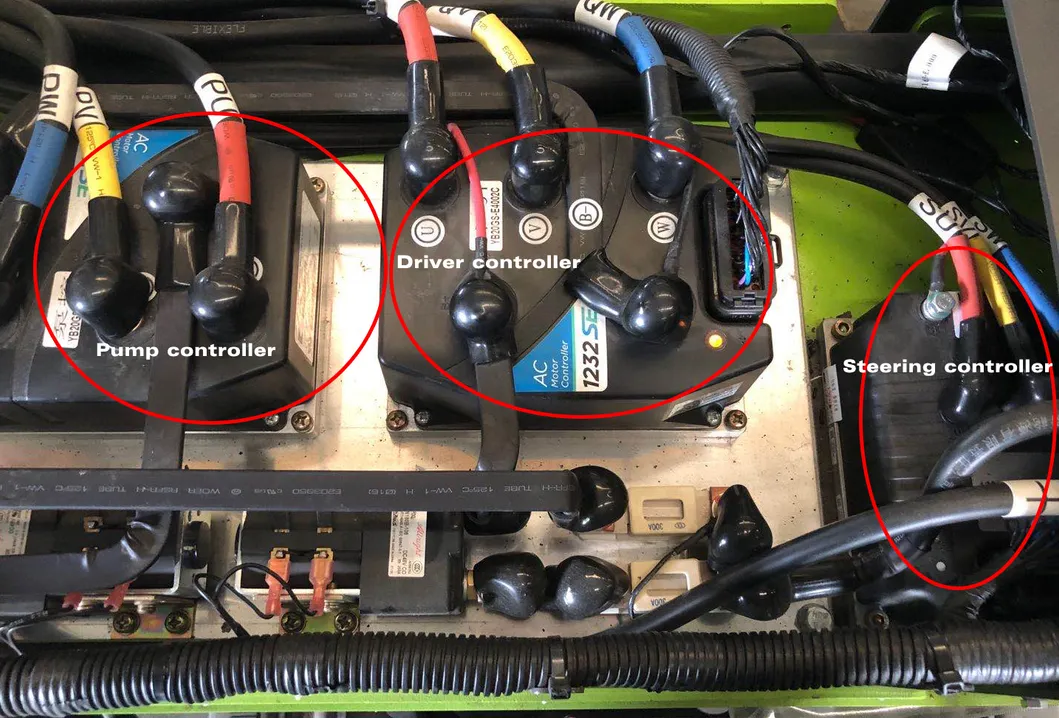

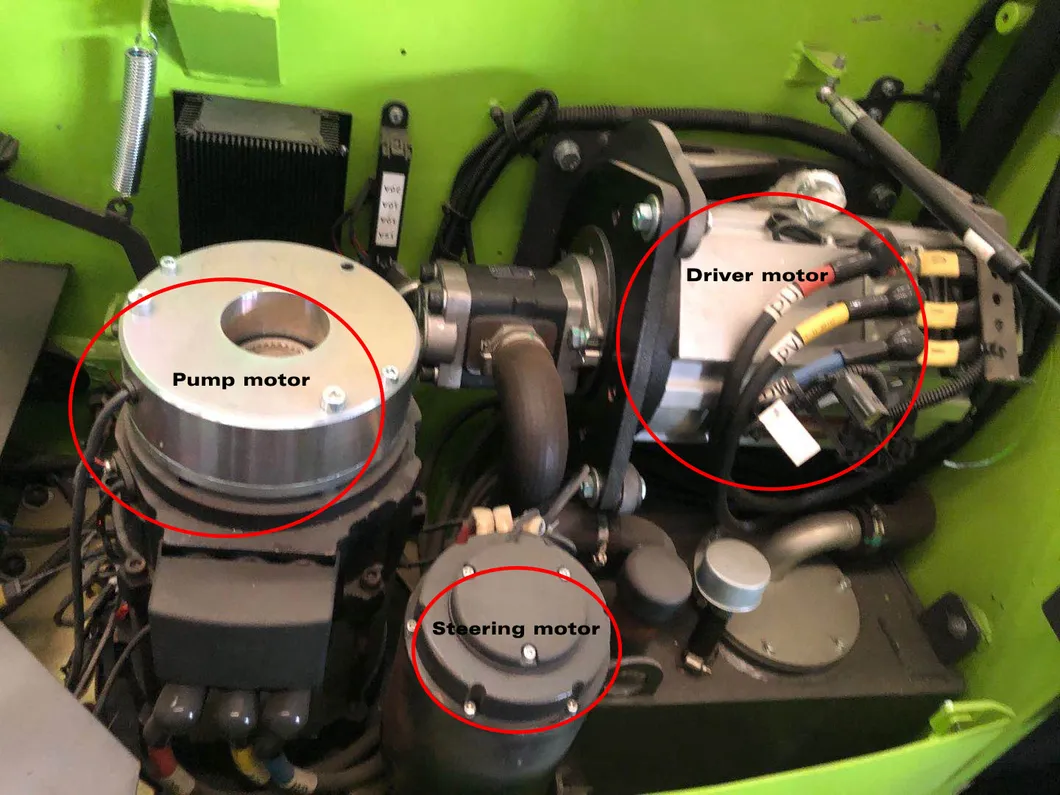

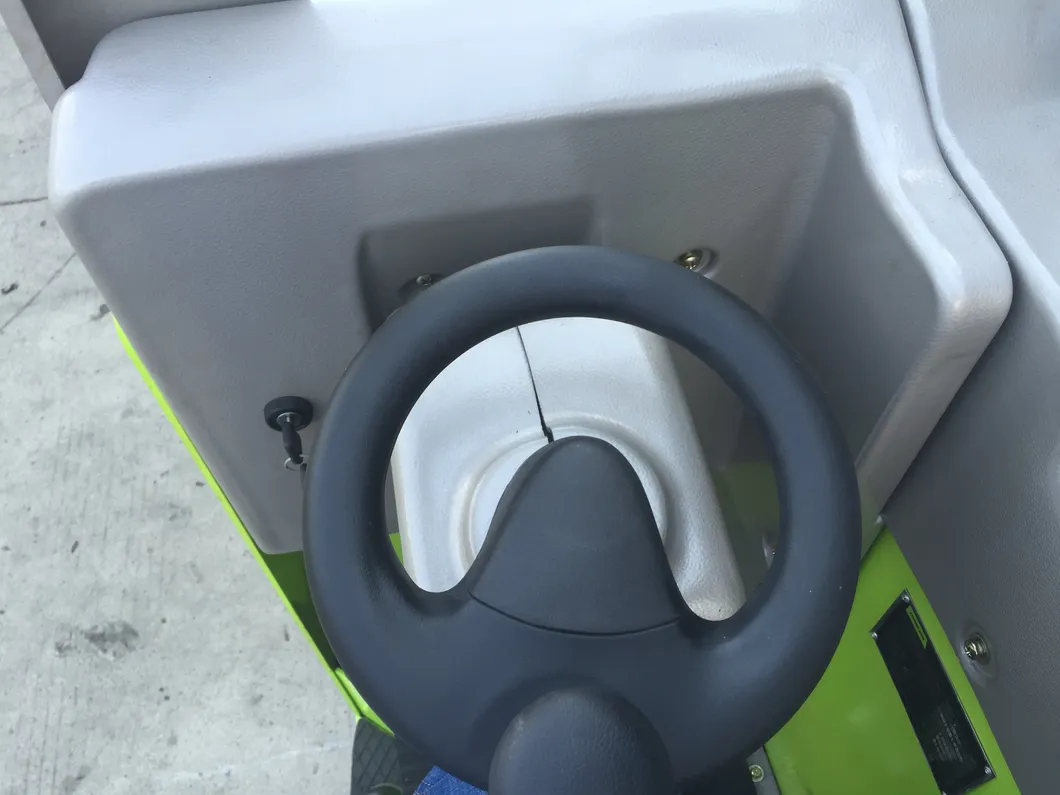

Drive motor for forward and backward; Pump motor for lifting and down; Steering motor for electric steer. Fully electric steering system ensure flexible turning and free maintenance.

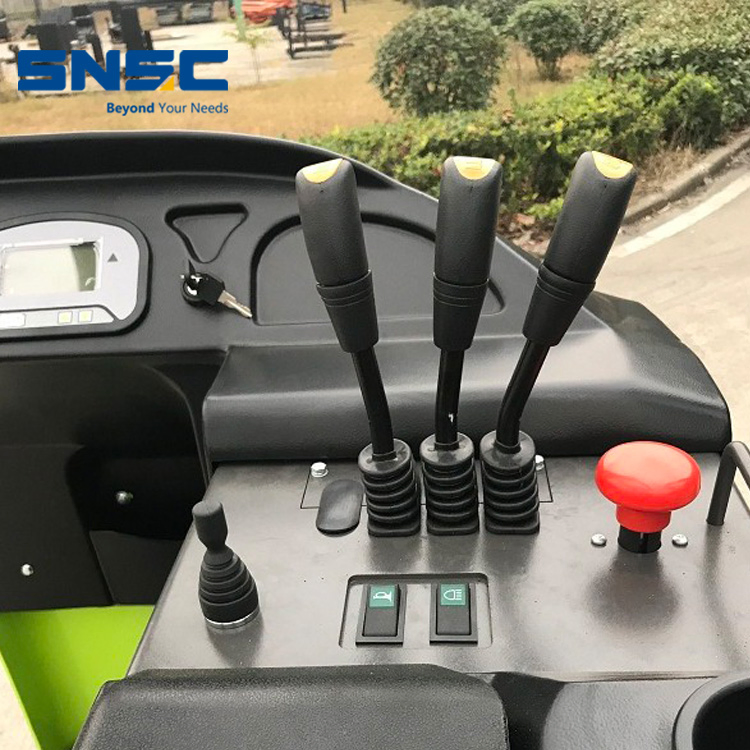

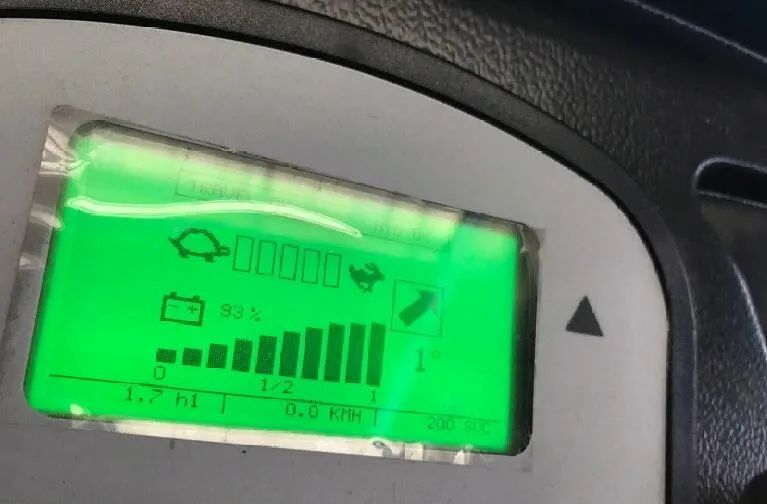

Multifunction intelligent CURTIS LCD display with using time, fault code, battery status, forklift running information, and Speed mode setting (E.S.H, economic, slow, high). The fault code keeps operators and service engineers aware of any problems, speeding up repairs and preventing damage.
