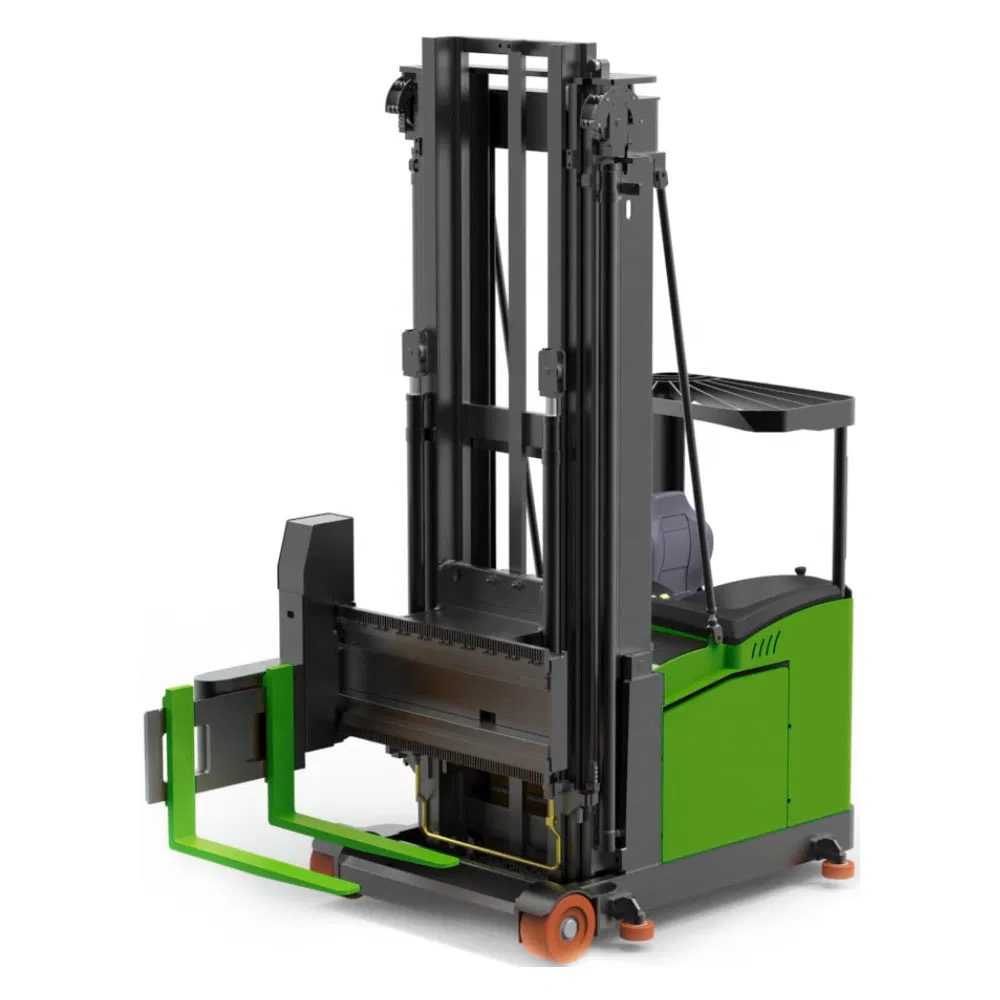

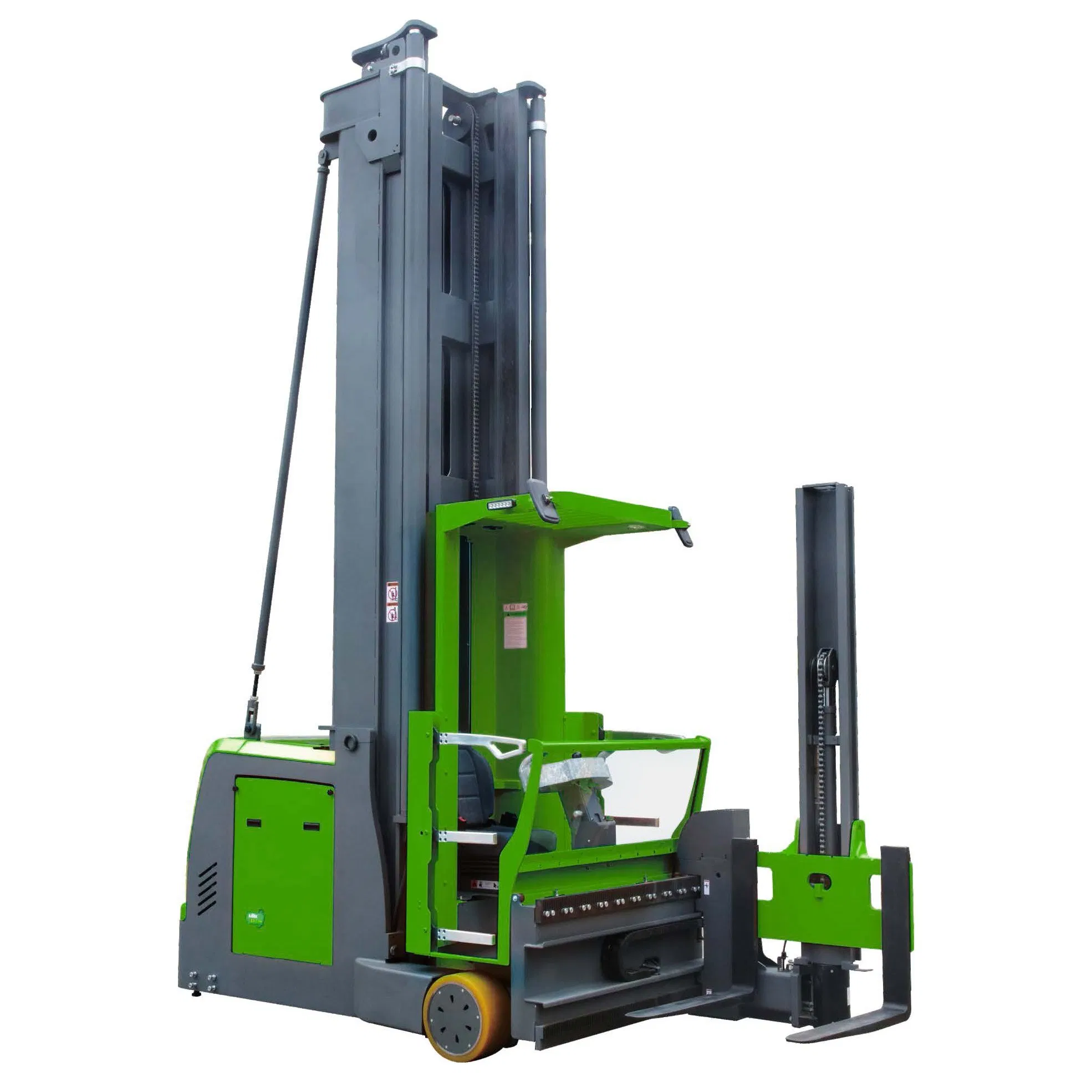

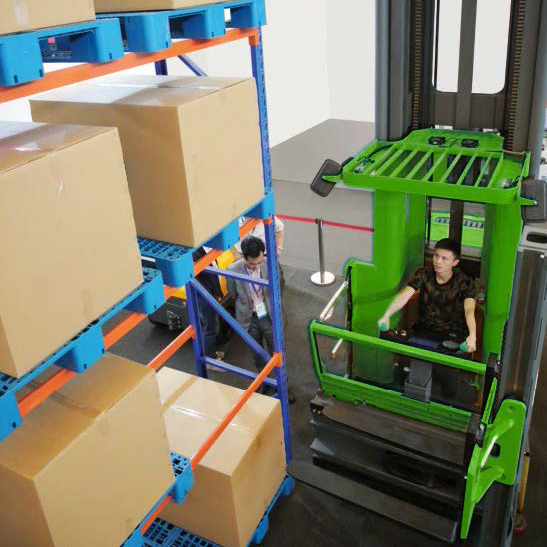

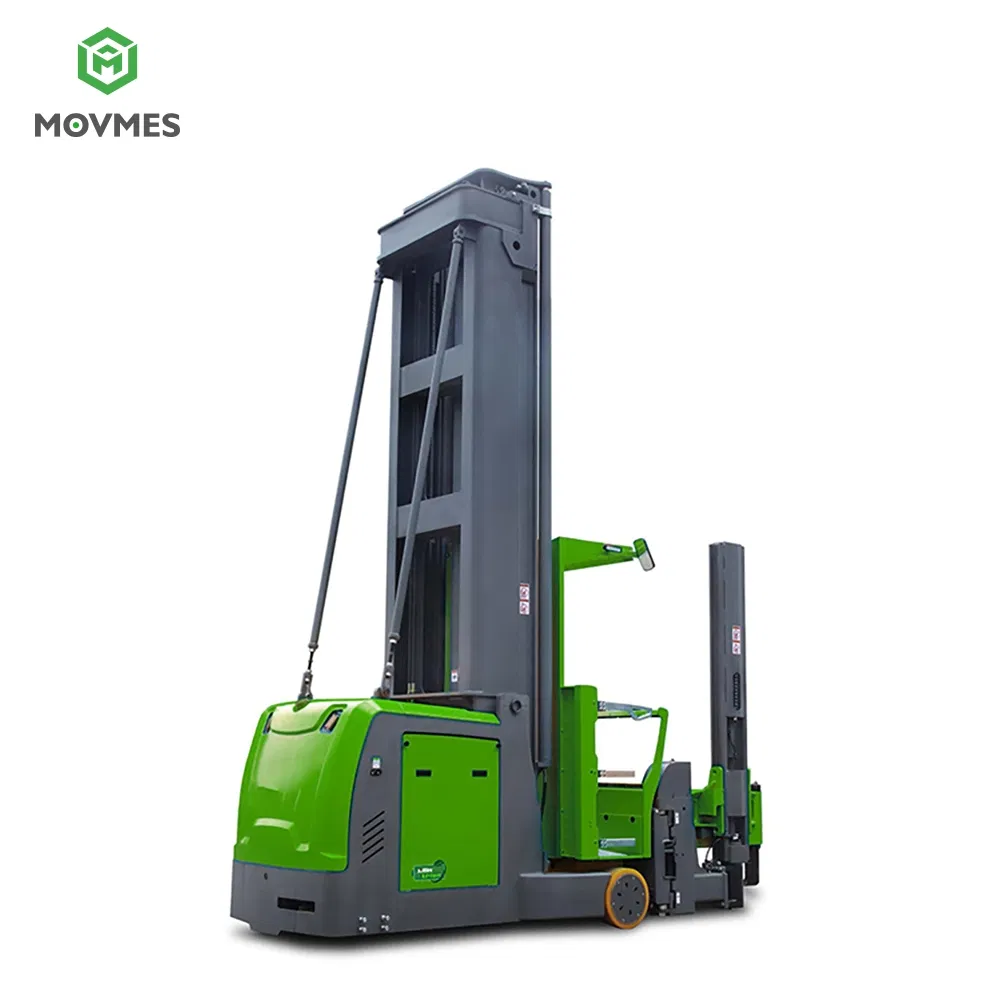

The OPTS15 is a high-performance man-up tri-lateral stacker engineered specifically for very narrow aisles (VNA), offering an impressive lifting height range of 6m to 15.5m. This specialized reach truck is designed to optimize warehouse space utilization while ensuring maximum operational safety and efficiency.
Key Features:
| Parameter | Unit | OPTS15 (9.2M) | OPTS15 (10M) | OPTS15 (10.5M) | OPTS15 (13M) |
|---|---|---|---|---|---|
| Operation Type | - | Tri-Lateral Reach Truck | Tri-Lateral Reach Truck | Tri-Lateral Reach Truck | Tri-Lateral Reach Truck |
| Rated Load Capacity | Q (kg) | 1500 | 1500 | 1500 | 1500 |

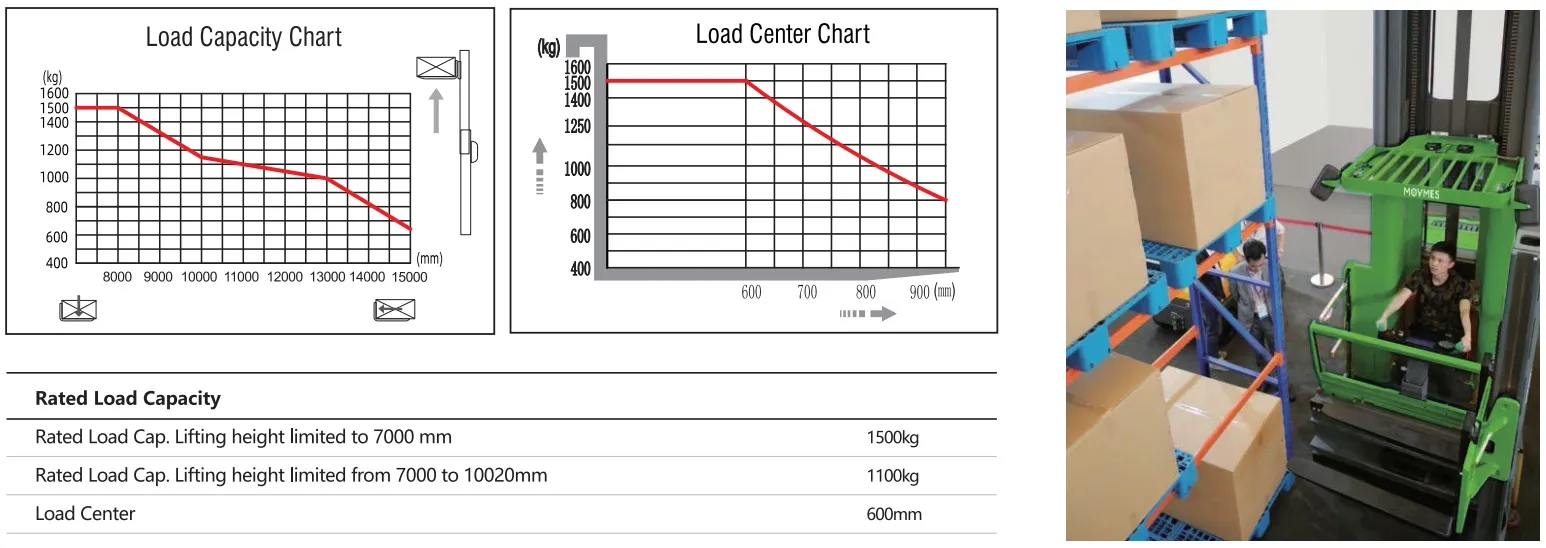

| Load Capacity at Max Height | kg | 950 | 900 | 850 | 600 |
| Lifting Height | h3 (mm) | 7460 | 8260 | 8760 | 11260 |
| Total Lifting Height | h3+h9 (mm) | 9200 | 10000 | 10500 | 13000 |

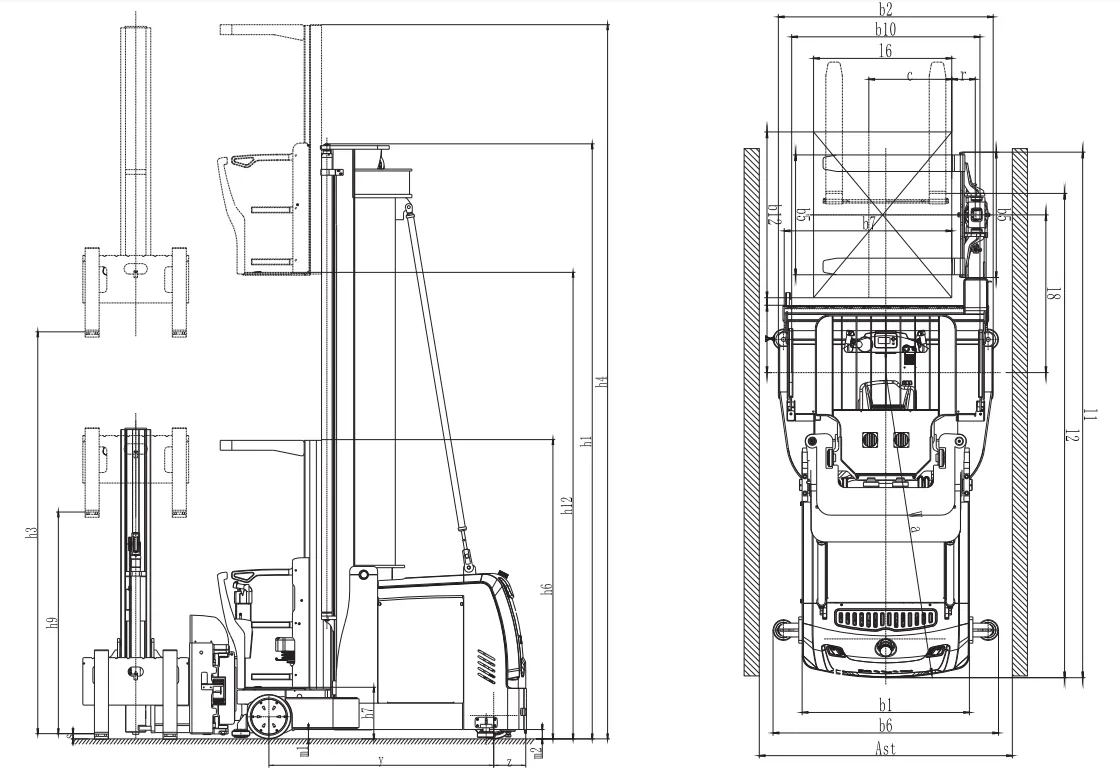

| Overall Length | l1 (mm) | 3805±20 | 3805±20 | 3805±20 | 4125±20 |
| Turning Radius | Wa (mm) | 2220±20 | 2220±20 | 2220±20 | 2540±20 |
| Battery Voltage/Capacity | V/Ah | 80/560 | 80/560 | 80/560 | 80/560 |
We provide professional material handling solutions aimed at improving circulation efficiency and reducing costs. Our warehousing trucks are tested through rigorous market standards to ensure reliability and performance.
