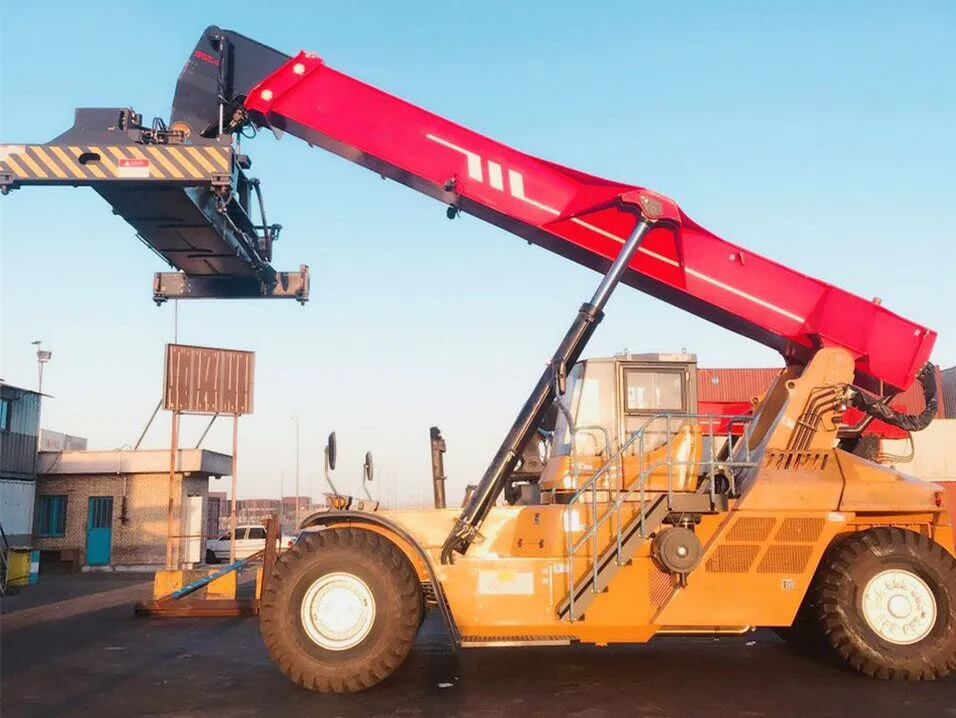

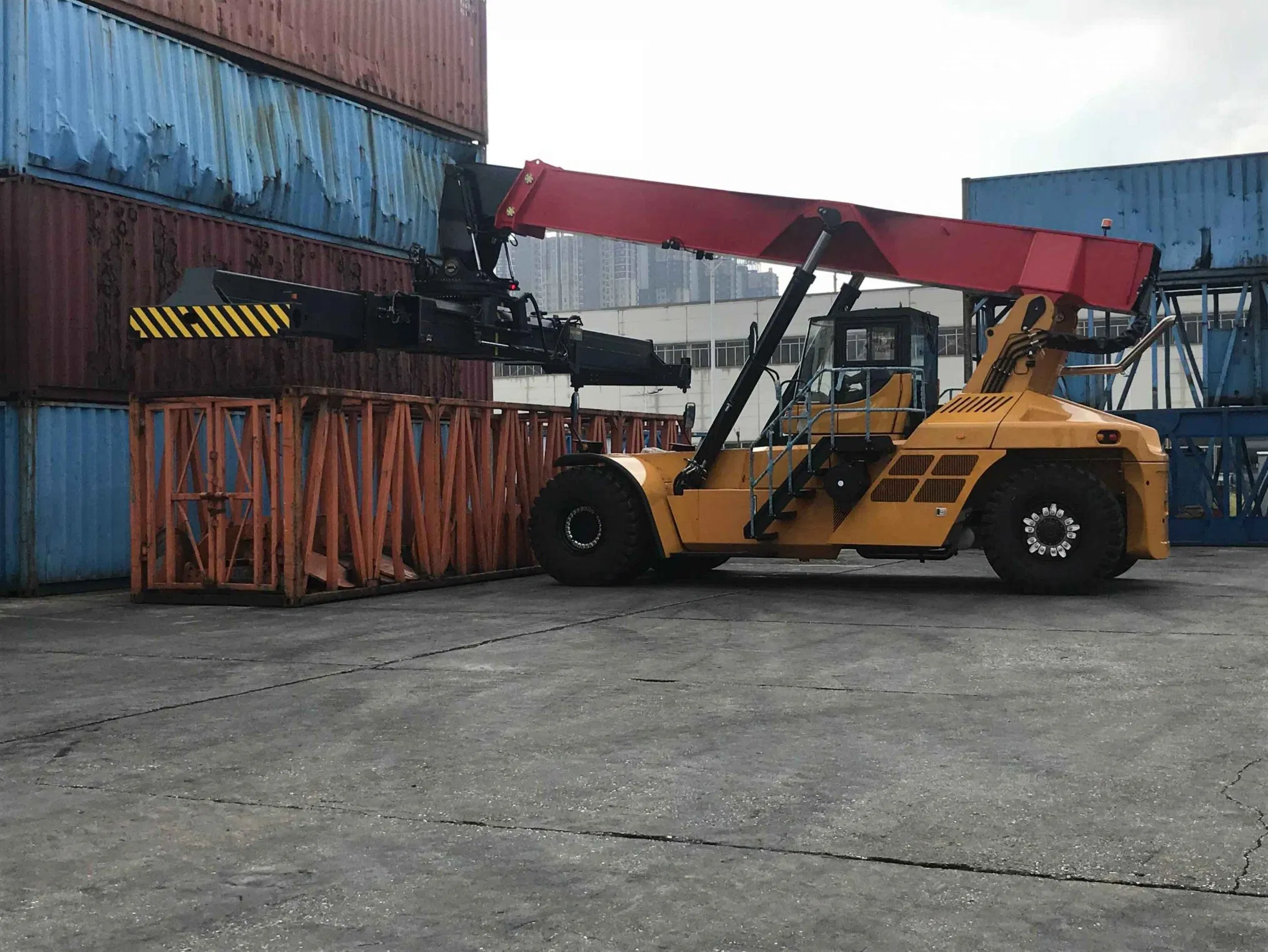

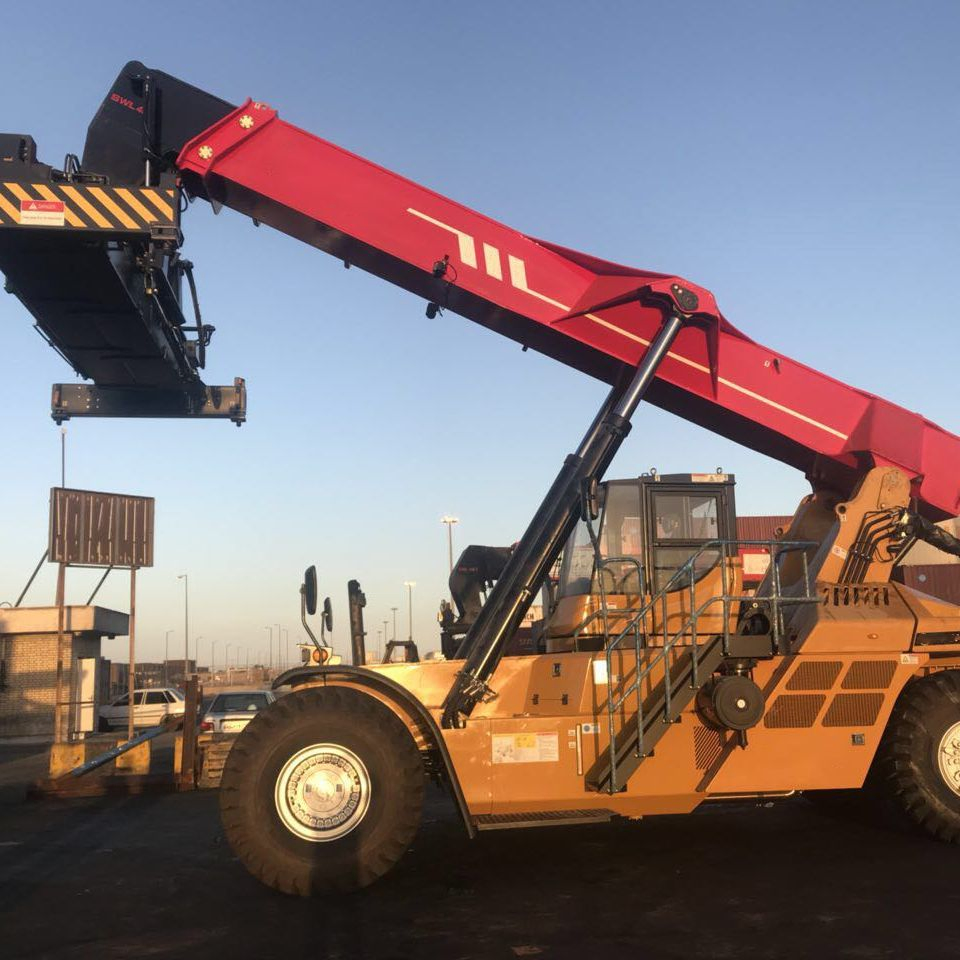

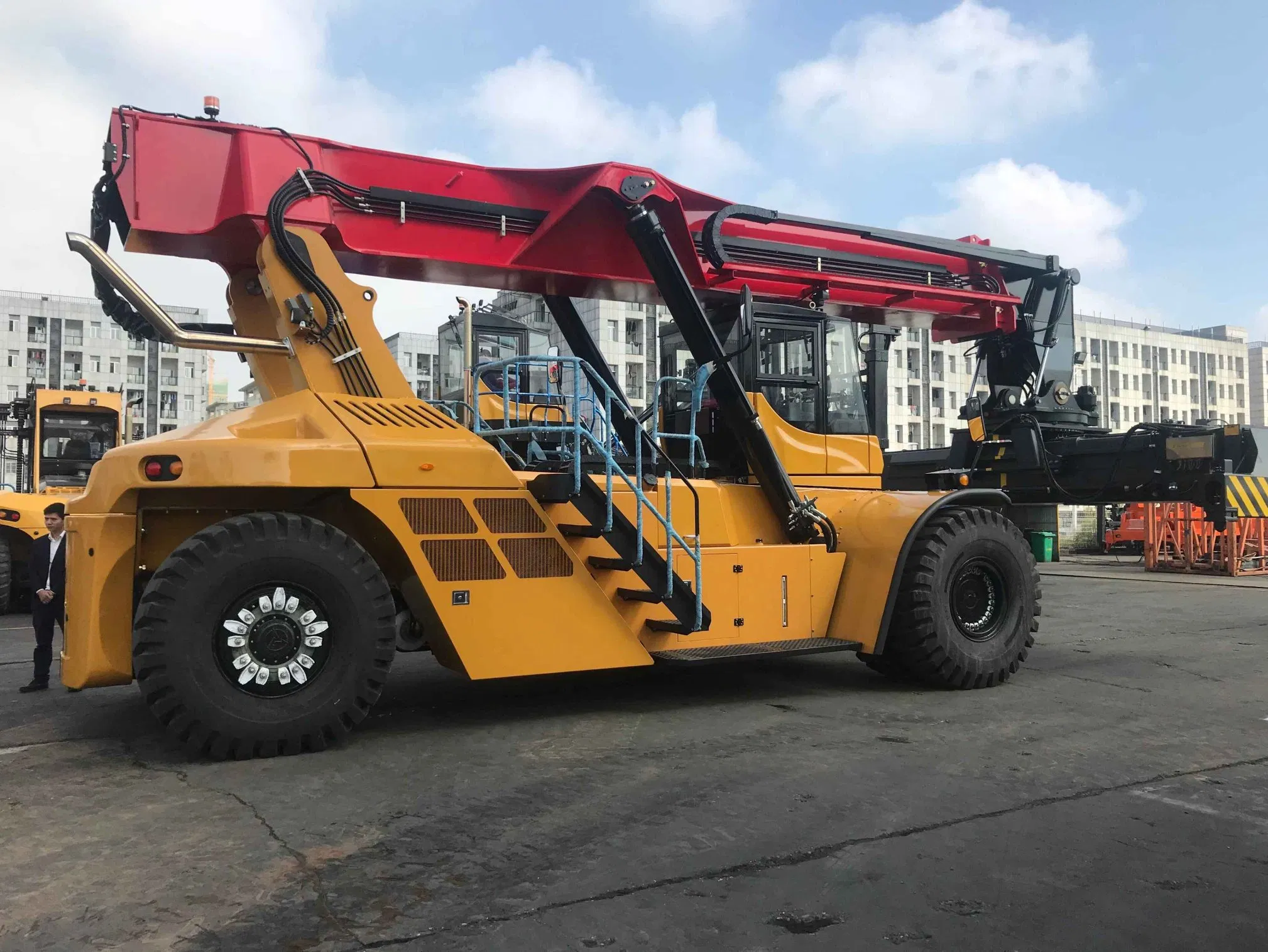

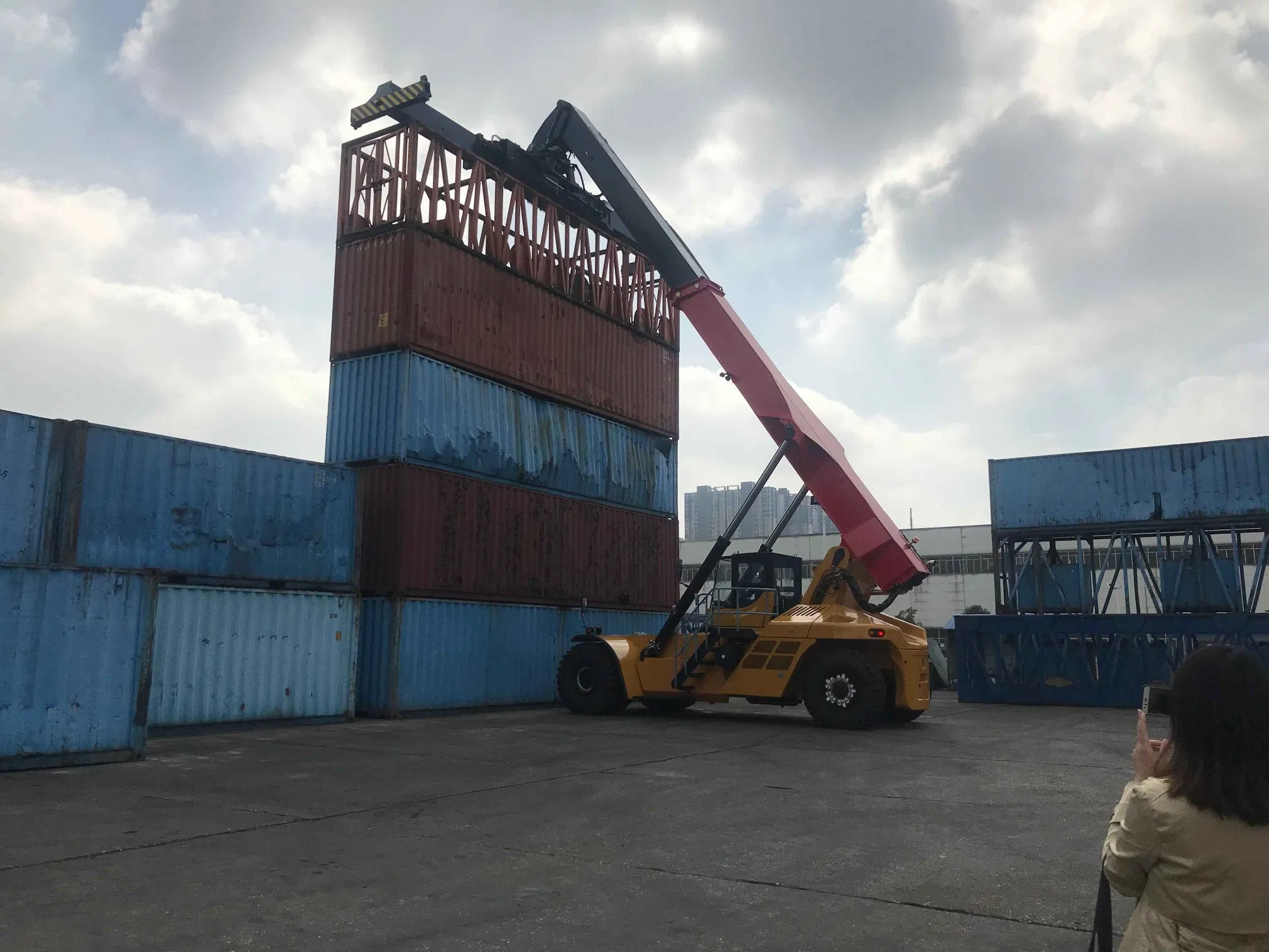

Reach stacker SRSC45H1 is mainly used in ports, wharfs and storage yards to handle, transfer and stack various containers and other materials. With many product series such as heavy, overweight hurdling, light, empty container and off-road reach stackers, each stacker SRSC45H1 can accommodate various industries, bringing you the maximum economic benefit.
Uses intelligent control technology to detect equipment's real-time working parameters and automatically adjust status to prevent rollover.
Intelligent control regulates spreaders and booms to effectively prevent collision among frame and boom, eliminating accidents by faulty operation.
Features a flexible damping system to achieve safer operation and lower maintenance cost while raising comfort and prolonging component longevity.
Laser scanning and graphic identification technology detects people or obstacles to brake automatically and prevent accidents.
Equipped with world-famous engines like Volvo and Cummins for optimized dynamic performance and equipment longevity.
Intelligent controller monitors boom parameters in real-time to allow vertical lifting, making stacking safer and more efficient.
| Boom | Max.lifting height | mm | 15100 |
| Inclination angle | Degree | 0-60 | |
| Max lifting speed (Unloaded/loaded) | mm/s | 420/250 | |
| Max lowering speed (Unloaded/loaded) | mm/s | 360/360 | |
| Max travelling speed (Unloaded/loaded) | km/h | 25/21 | |
| Gradeability (Unloaded/loaded) | % | 39/32 | |
| Overall weight | t | 71.2 | |
| Rated capacity | t | 45 | |
| No. of stack | - | 5 (9'6"/8'6") | |
| Wheel base | mm | 6000 | |
| Overall height | mm | 4670 | |
| Overall width | mm | 6052-12185 | |
| Min Turing radius | mm | 8000 | |
| Max. lifting torque | KN.m | 961 | |
| Fully extended boom | m | 34.2 | |
