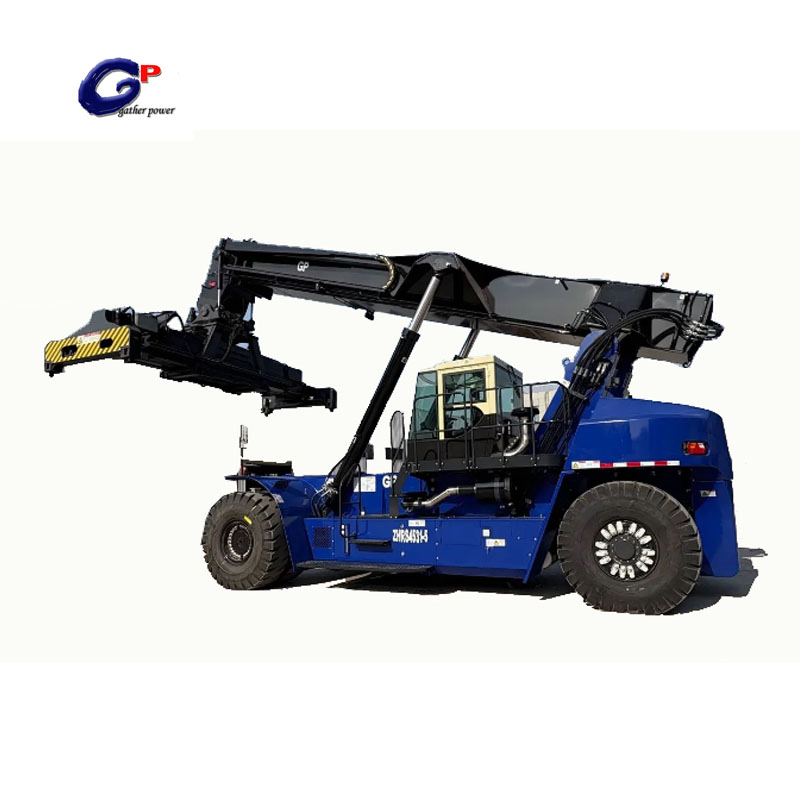

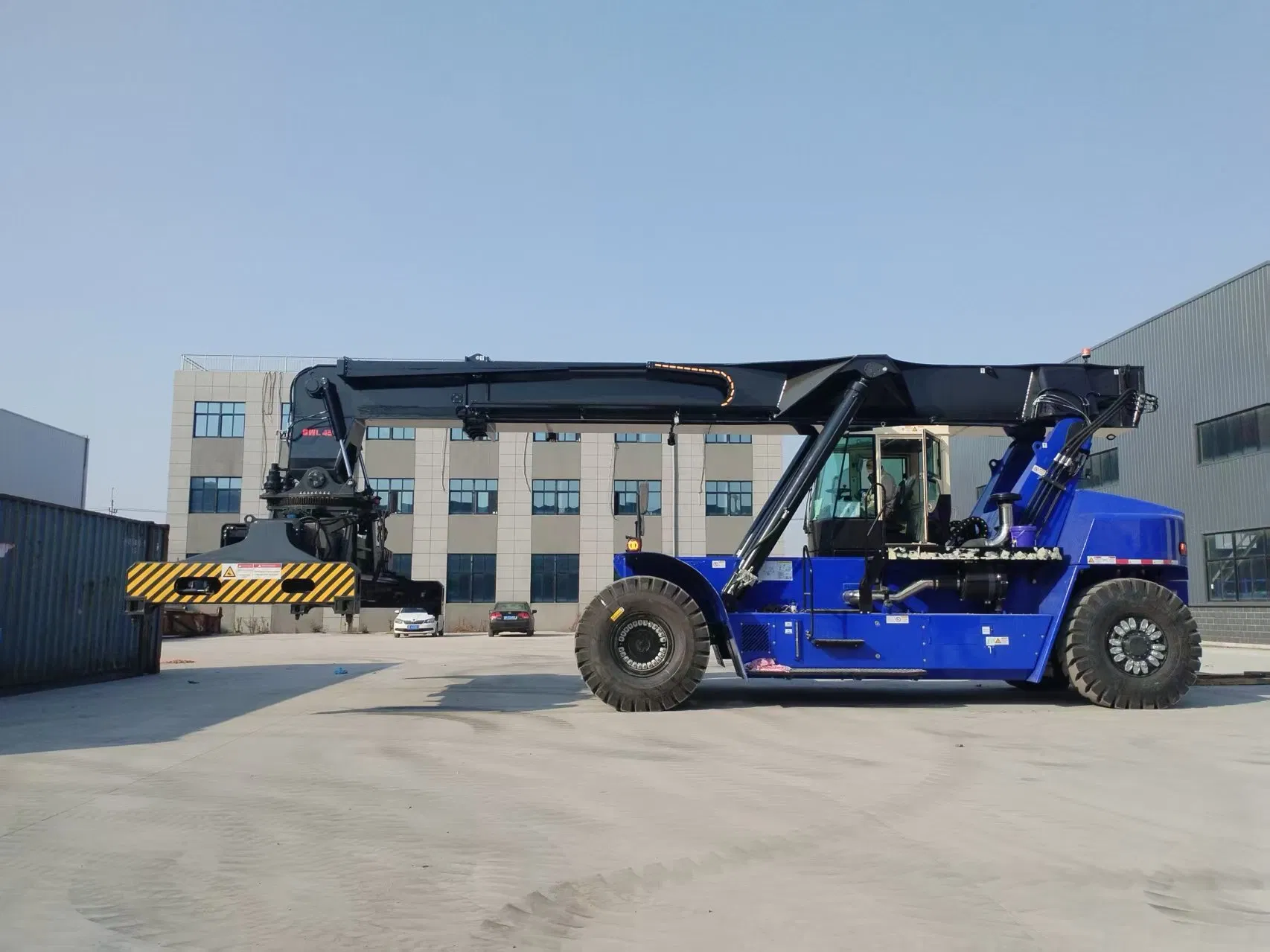

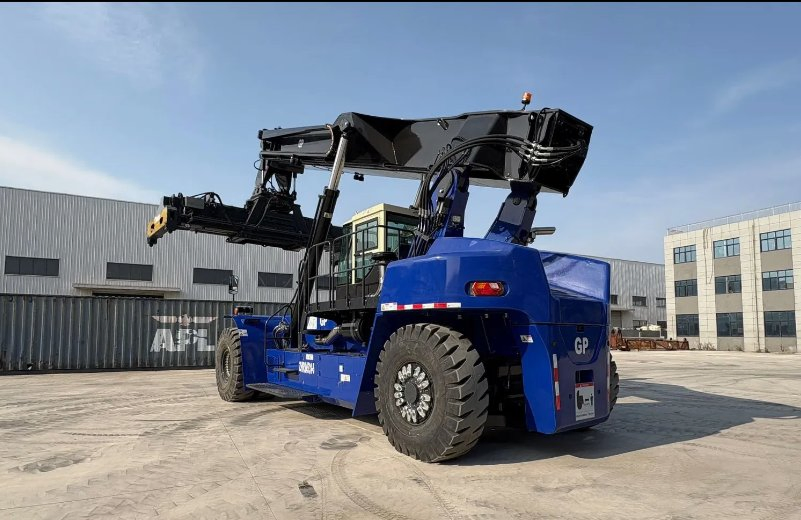

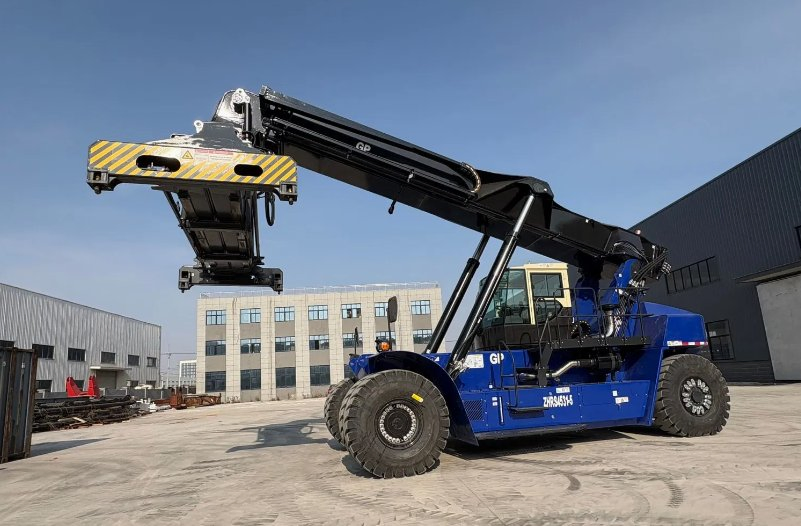

45t Container Forklift Reach Stacker with Cummins Engine

1 / 5

45t Container Forklift Reach Stacker with Cummins Engine

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊 Basic Information

Model NO.

ZHRS4531

Type

Reach Stacker

Power

AC Motor

Load Capacity

＞42T

Fuel

Diesel

Cab Location

Adjustable

Load Center

>500mm

Lift Height

>5000mm

Condition

New

Tyre

Pneumatic

Battery

24V

Origin

China

📦 Packaging & Delivery

Package Size

8700.00cm * 2300.00cm * 230.00cm

Gross Weight

17000.000kg

Transport

Moistureproof Package in Container

⚙️ Product Description & Features

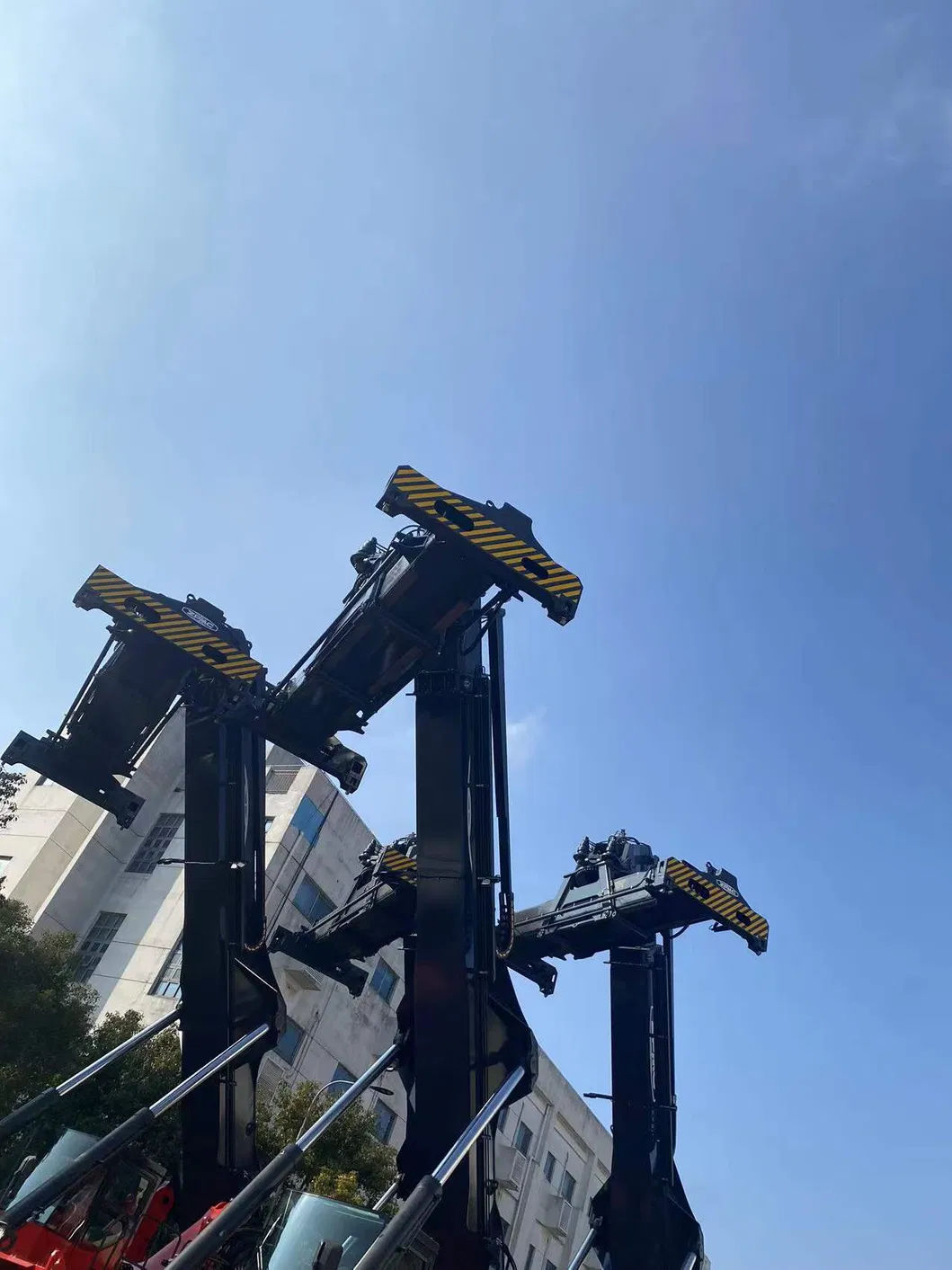

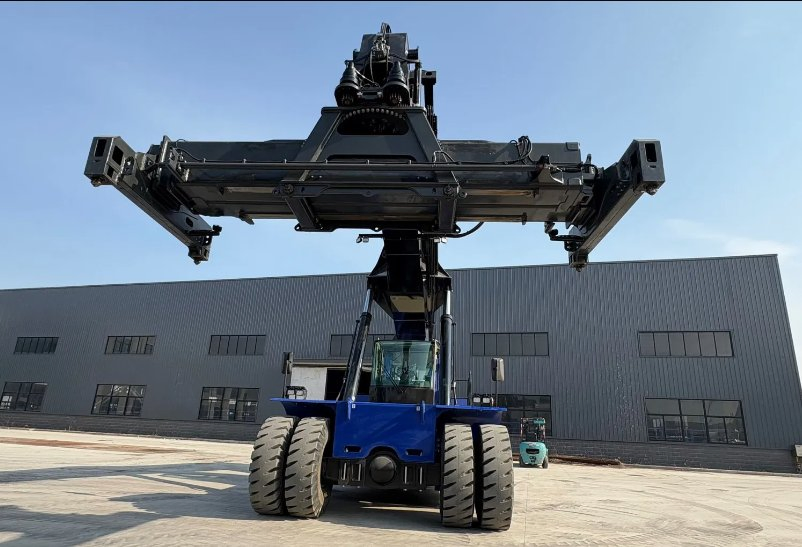

Spreader: ZPMC ZDJ450 spreader featuring robust safety protection. Includes twist-lock interlock, mechanical anti-unhook device, anti-sway function, and automatic locking. Applicable to 20' - 40' containers with a horizontal rotation of +195° to -105° and a side shift distance of ±800mm. External telescopic cylinder design ensures easy maintenance.

Electric Control System: Utilizes CAN bus technology for long-distance, accurate data transmission with high reliability. Integrated with German IFM controllers.

Hydraulic System: Equipped with load-sensitive electric proportional control valves and variable piston pumps for precise boom movement. Features an independent brake system to prevent contamination and an automatic air emission system to prolong component service life.

Parameter	Unit	GPZR45	GPZR4535	GPZR1009-S6	GPZR1009-S8

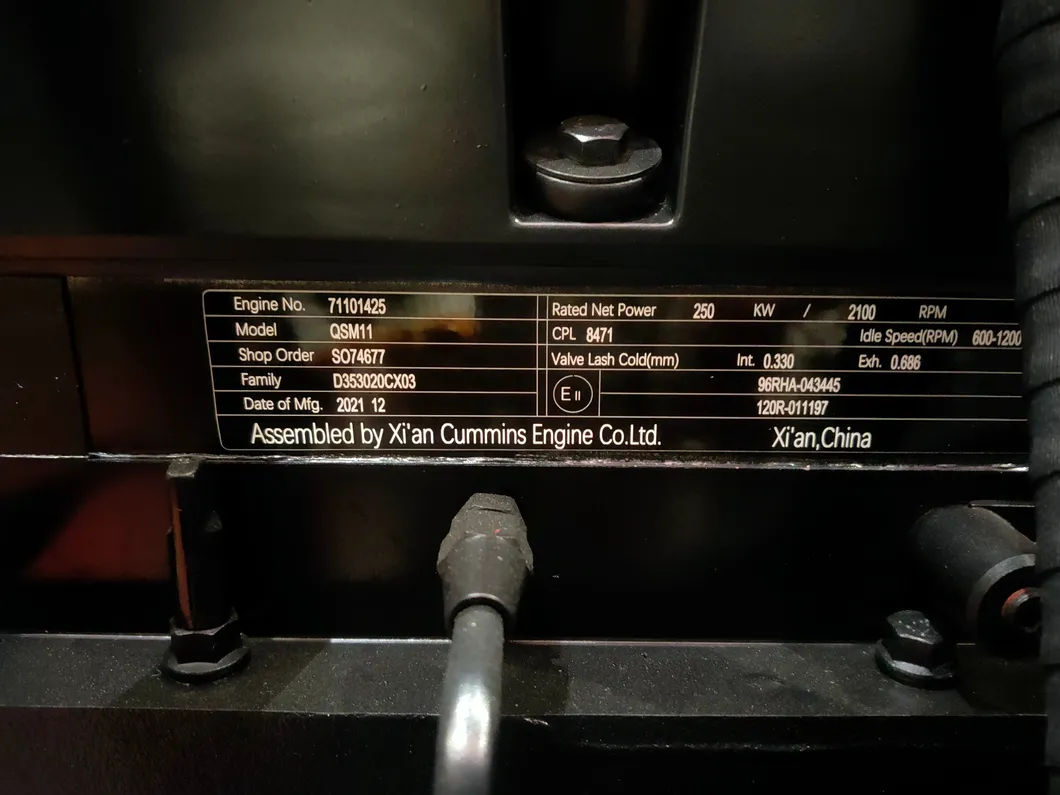

Engine Model	-	VOLVO TAD 1340 VE	VOLVO TAD 1340 VE	CUMMINS QSB 6.7	CUMMINS QSB 6.7
Rated Power/Speed	Kw/rpm	256/2100	256/2100	164/2300	164/2300
Exhaust Standard	-	EURO 3	EURO 3	EURO 3	EURO 3
Gear Model	-	DANA 15.5HR36432	DANA 15.5HR36432	DANA 13.7HR32334	DANA 13.7HR32334
Max Lifting Height	mm	15100	15100	16200	21200
Max Lift Speed	mm/s	420/250	420/250	450/400	450/400
Max Travel Speed	km/h	25/21	25/21	28/25	28/25
Wheelbase (L1)	mm	6000	6500	5000	5000
Stacking Layers	-	5 (9'6")	5 (9'6")	6 (8'6")	8 (8'6")

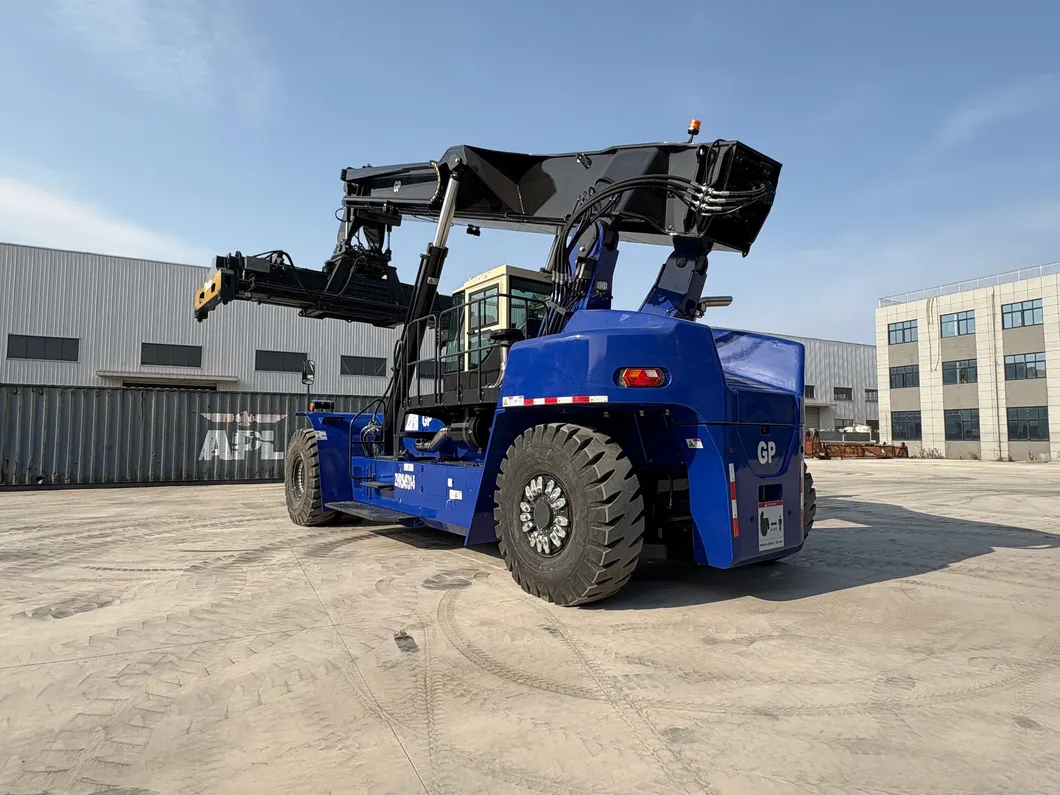

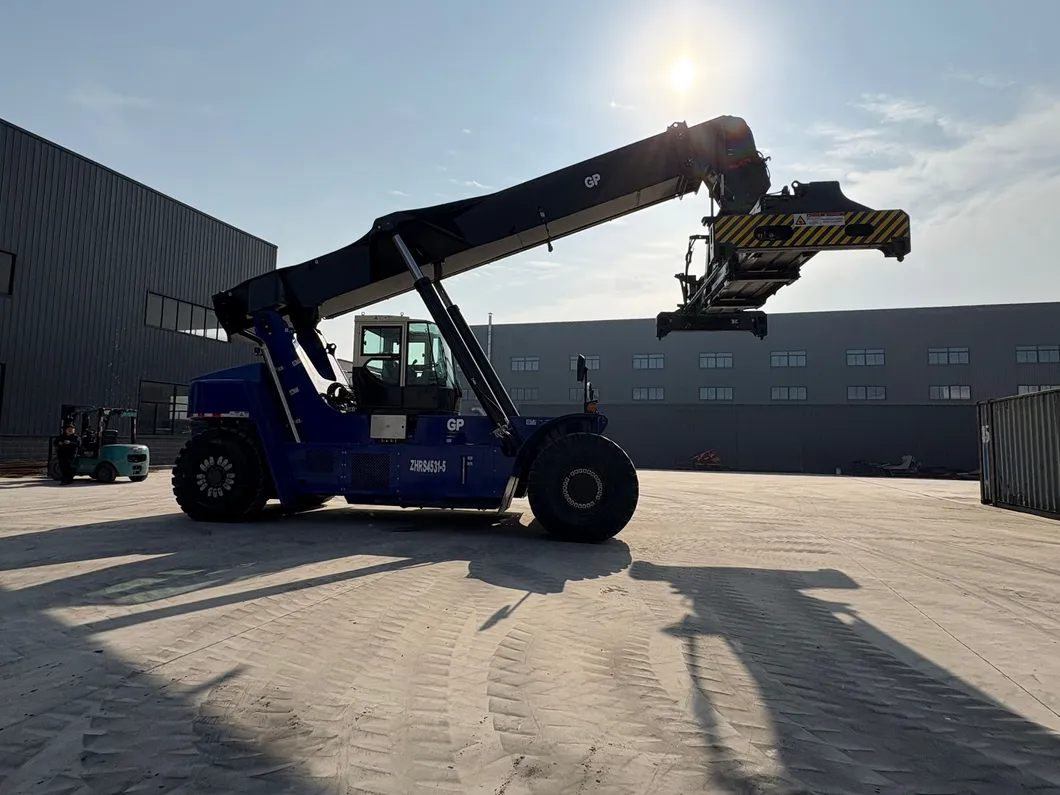

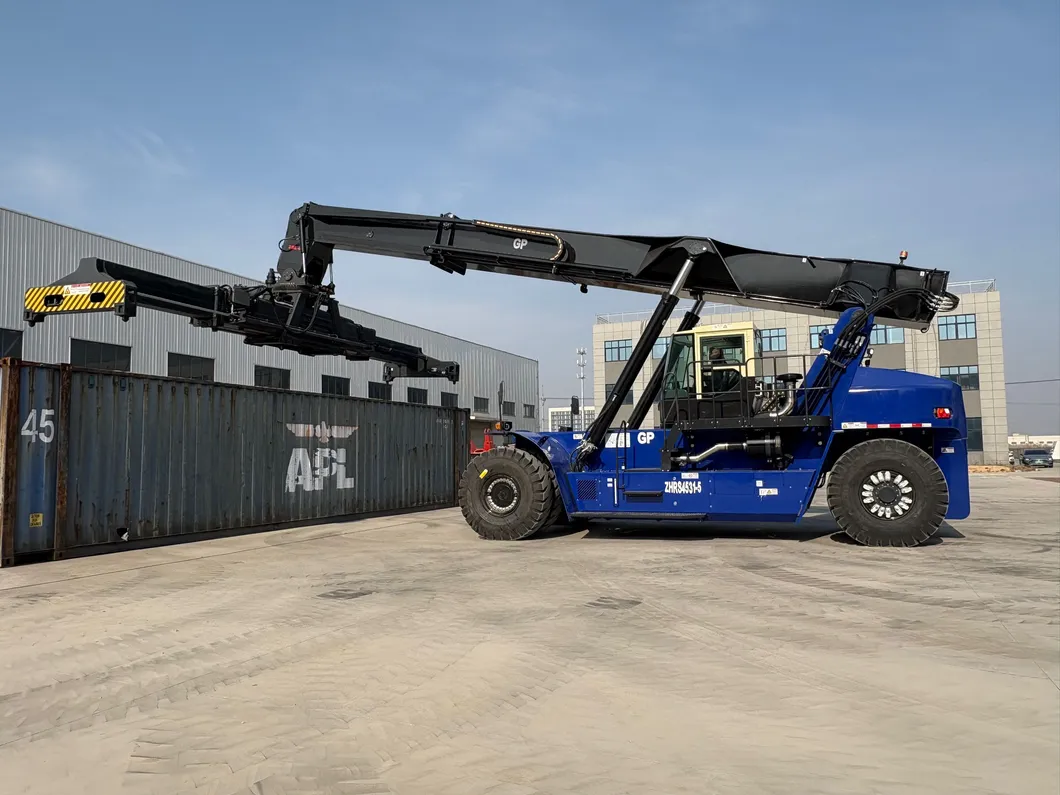

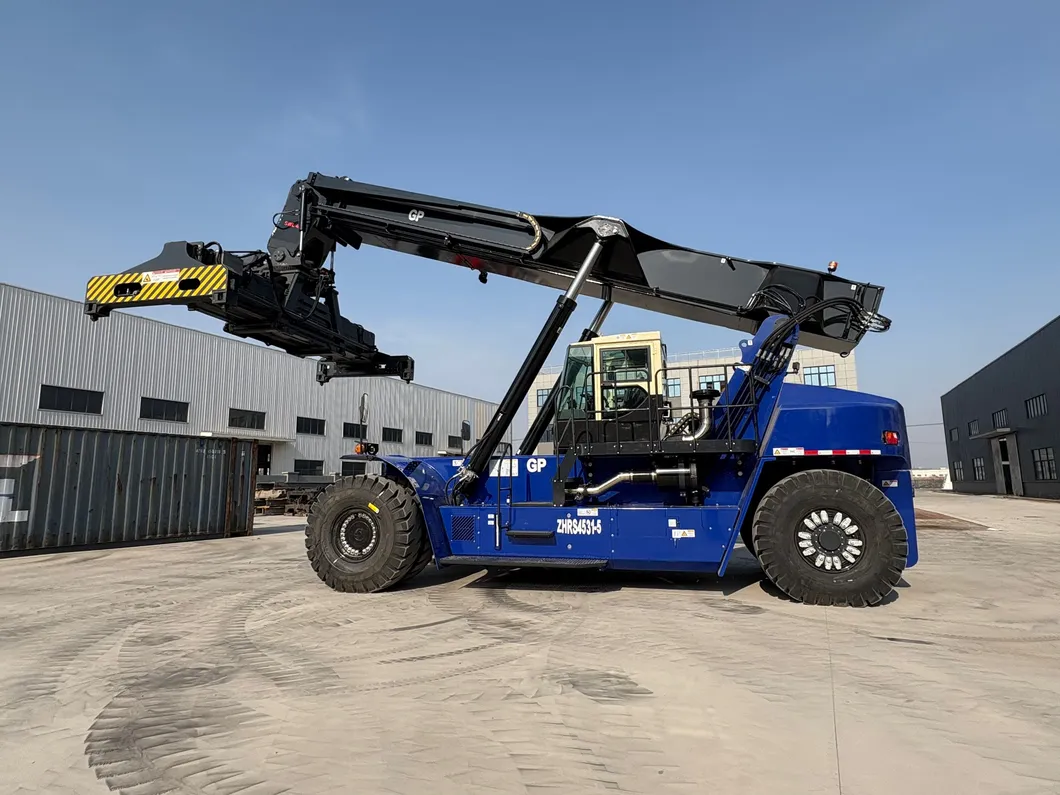

📷 Detailed Photos

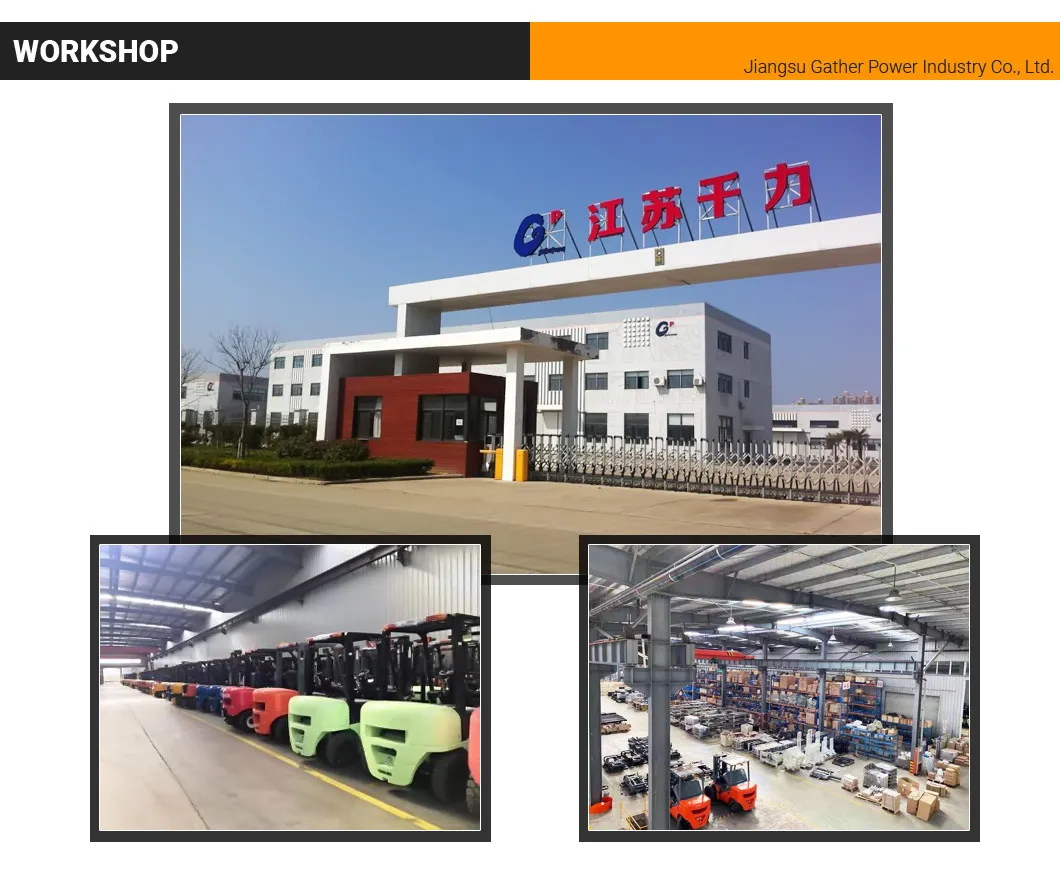

🏭 Production & Facilities

❓ Frequently Asked Questions

What is the maximum lifting capacity of this reach stacker?

The ZHRS4531 model is designed for heavy-duty container handling with a load capacity exceeding 42 tons (up to 45 tons for specific models).

Which engine types are available?

The machines are equipped with high-performance engines such as the VOLVO TAD 1340 VE or CUMMINS QSB 6.7, meeting EURO 3 exhaust emission standards.

What safety features are integrated into the spreader?

The ZDJ450 spreader includes a twist-lock interlock, mechanical anti-unhooking device, anti-sway function, and an automatic locking system for maximum operational safety.

Can it handle both 20' and 40' containers?

Yes, the telescopic spreader is specifically designed to apply to both 20' and 40' ISO standard containers with a side-shift distance of ±800mm.

What control system does the vehicle use?

It uses a advanced CAN bus system for accurate data transmission and high reliability, paired with German-engineered IFM controllers.

Is the hydraulic system energy efficient?

Yes, it features a load-sensitive electric proportional control valve and variable piston pump to optimize boom movements, significantly reducing energy consumption.
