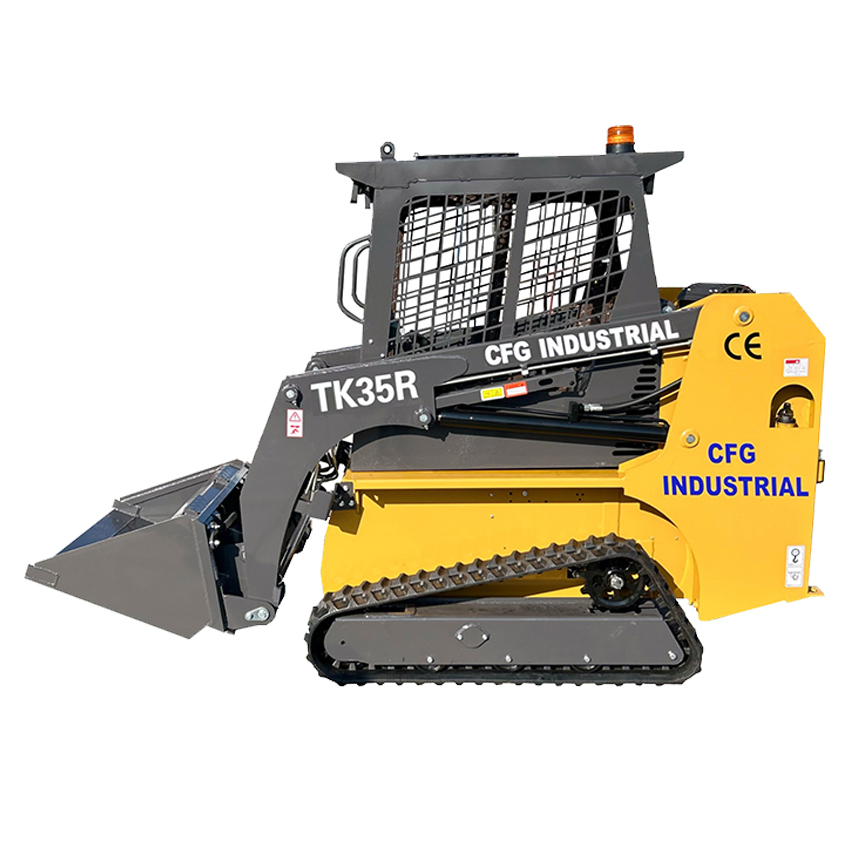

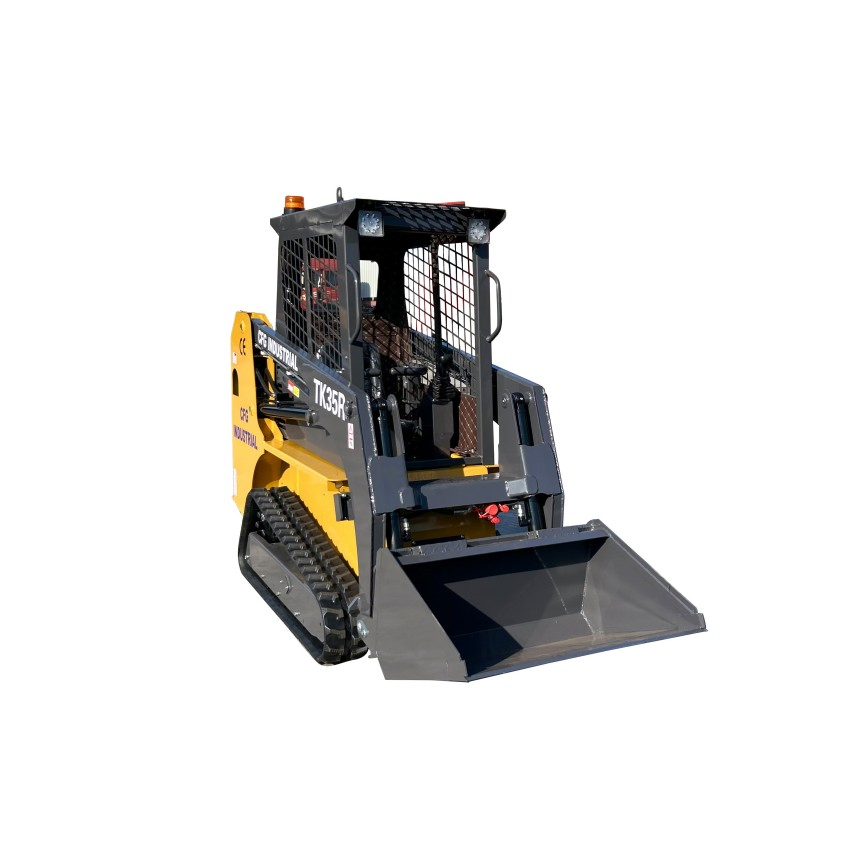

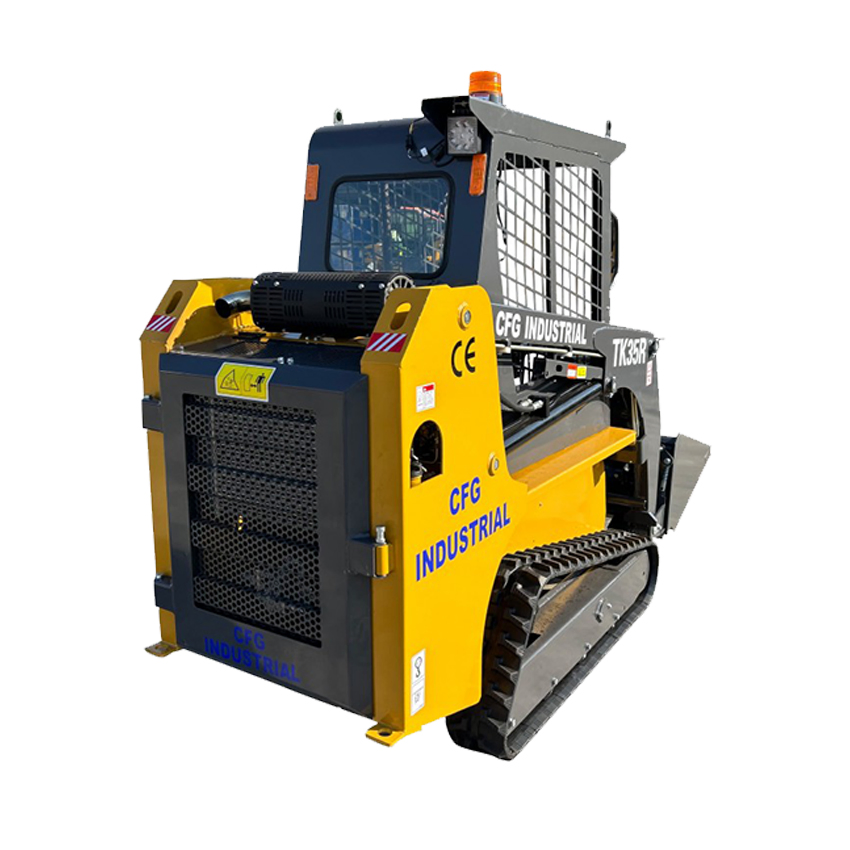

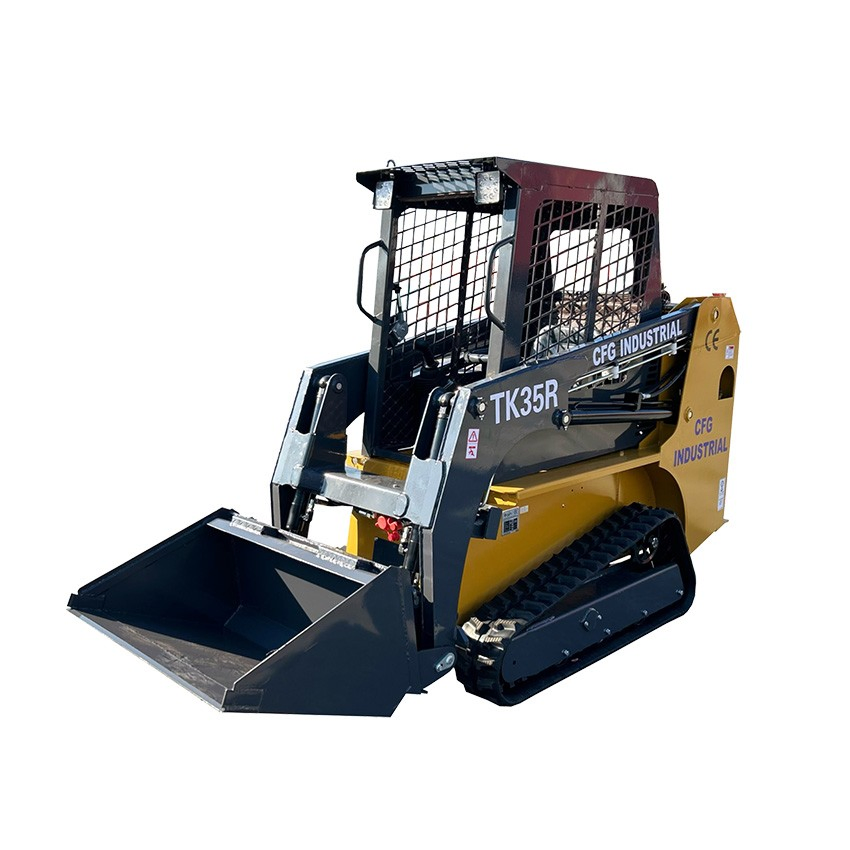

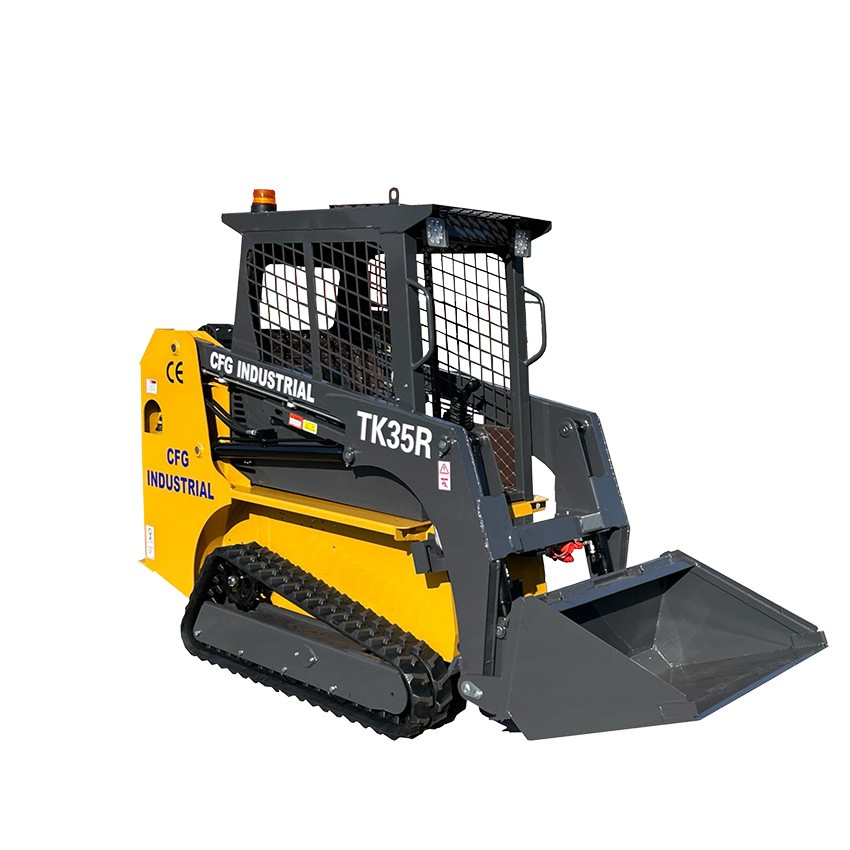

| Model Information: TK35R | Configuration Status | |
|---|---|---|
| Basic Performance Parameters | Working Weight (kg) | 1550 |
| Bucket capacity (m³) | 0.16 | |
| Travel speed low/high speed (Km/h) | 4.5 | |
| Maximum lifting force (Kg) | 380 | |
| Maximum working height (mm) | 3686 | |
| Unloading height (mm) | 1933 | |
| Loading distance at max unloading height (mm) | 650 | |
| Ground clearance (mm) | 145 | |
| Max. height unloading angle (°) | 40 | |
| Wheelbase (mm) | 1127 | |
| Body Dimensions | Overall Length (mm) | 2911 |
| Overall Width (mm) | 912 | |
| Overall Height (mm) | 910 | |
| Rear axle to bumper (mm) | 1860 | |

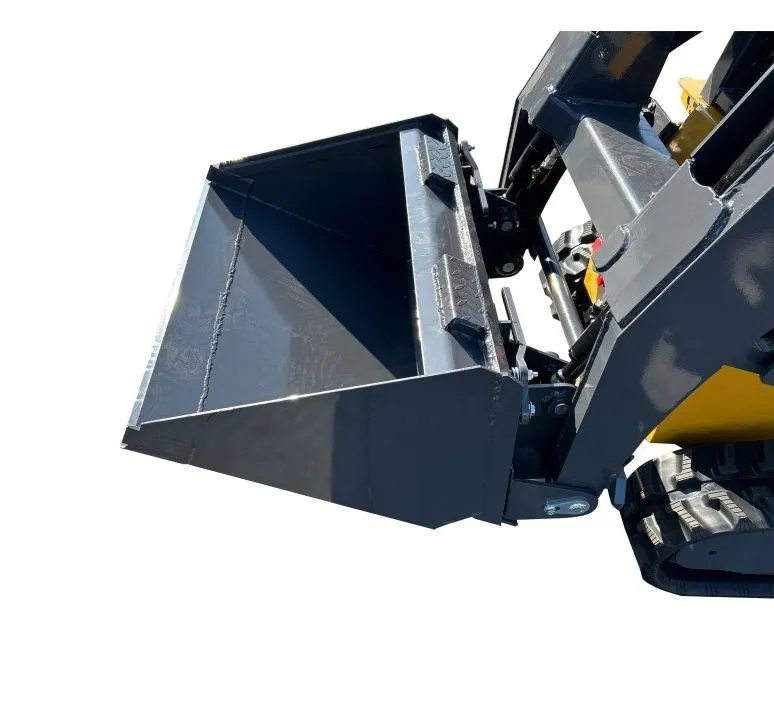

| Bucket width (mm) | 950 | |

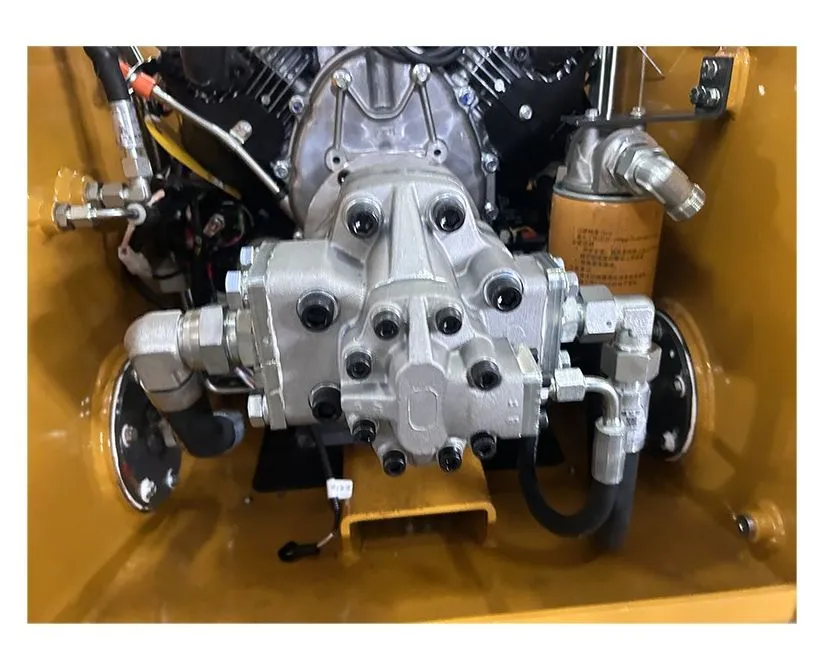

| Engine Info | Engine Brand | Rato999 |
| Maximum horsepower (PS) | 32.8 | |
| Max. power (Kw) | 24 | |
| Cooling method | Fan cooling | |
| Fuel Type | Gasoline | |
