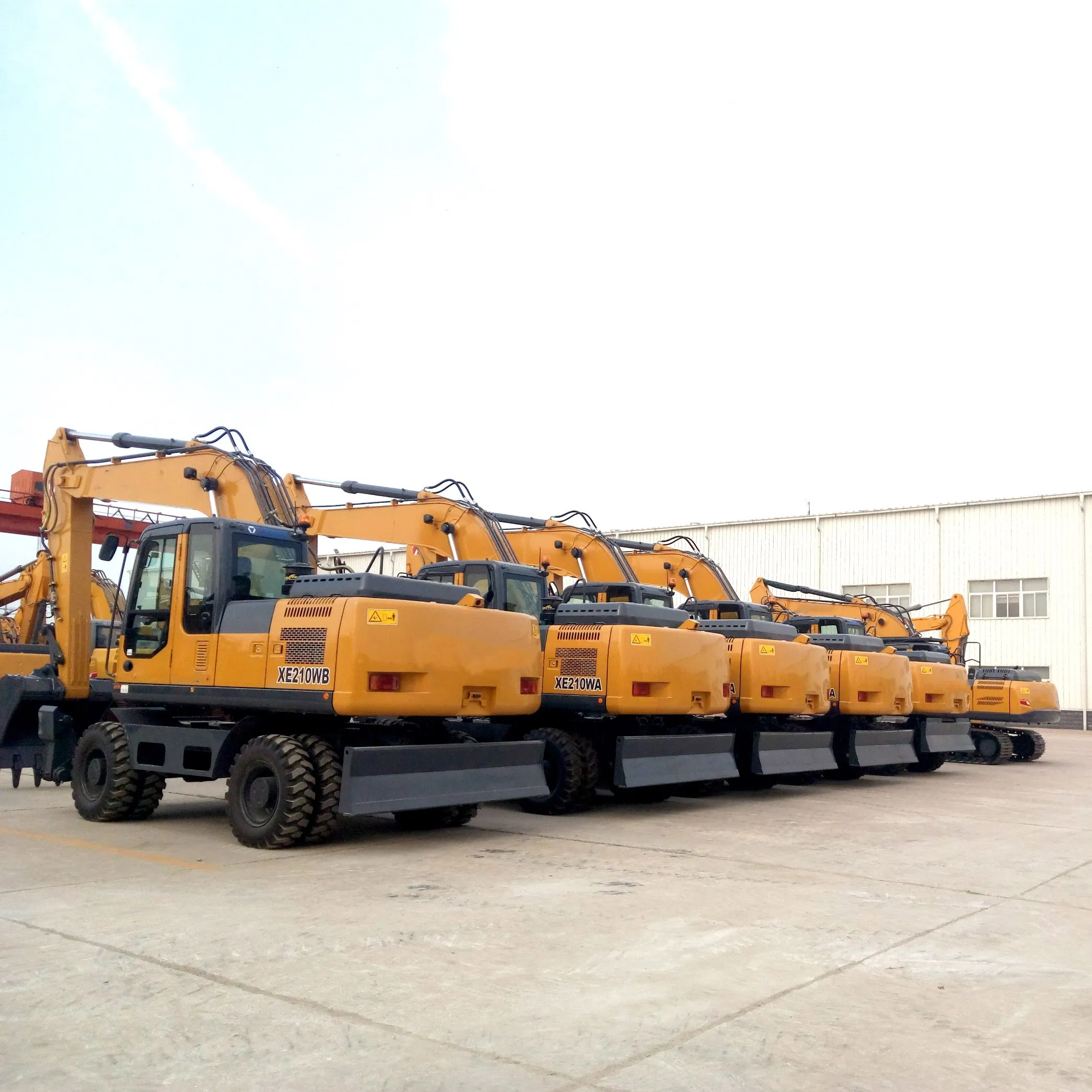

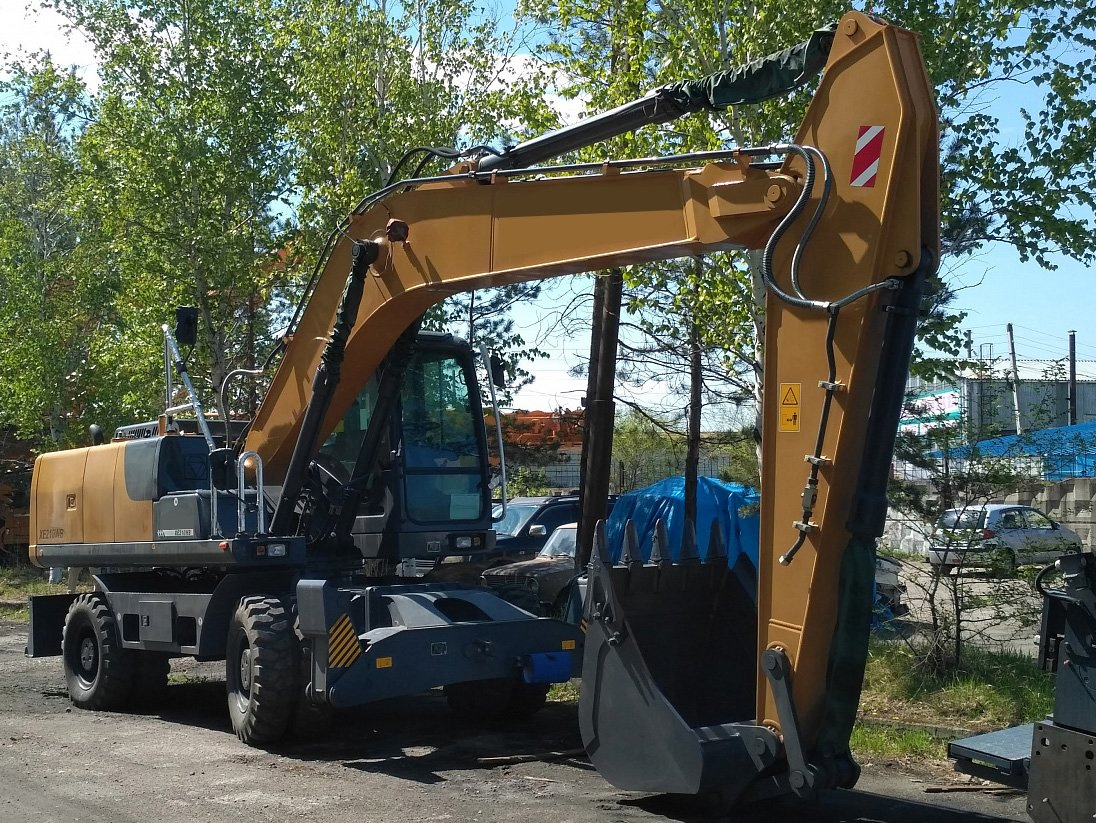

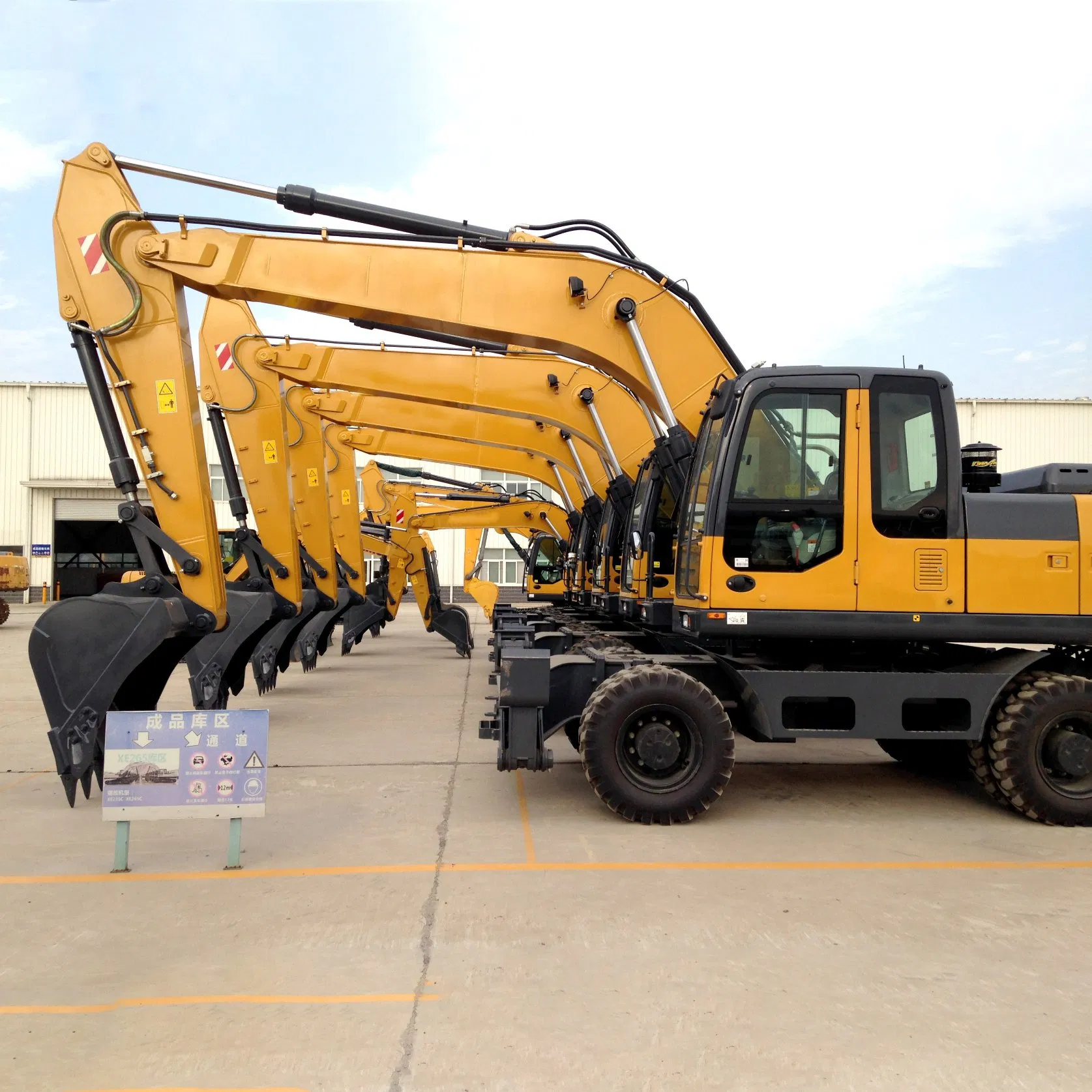

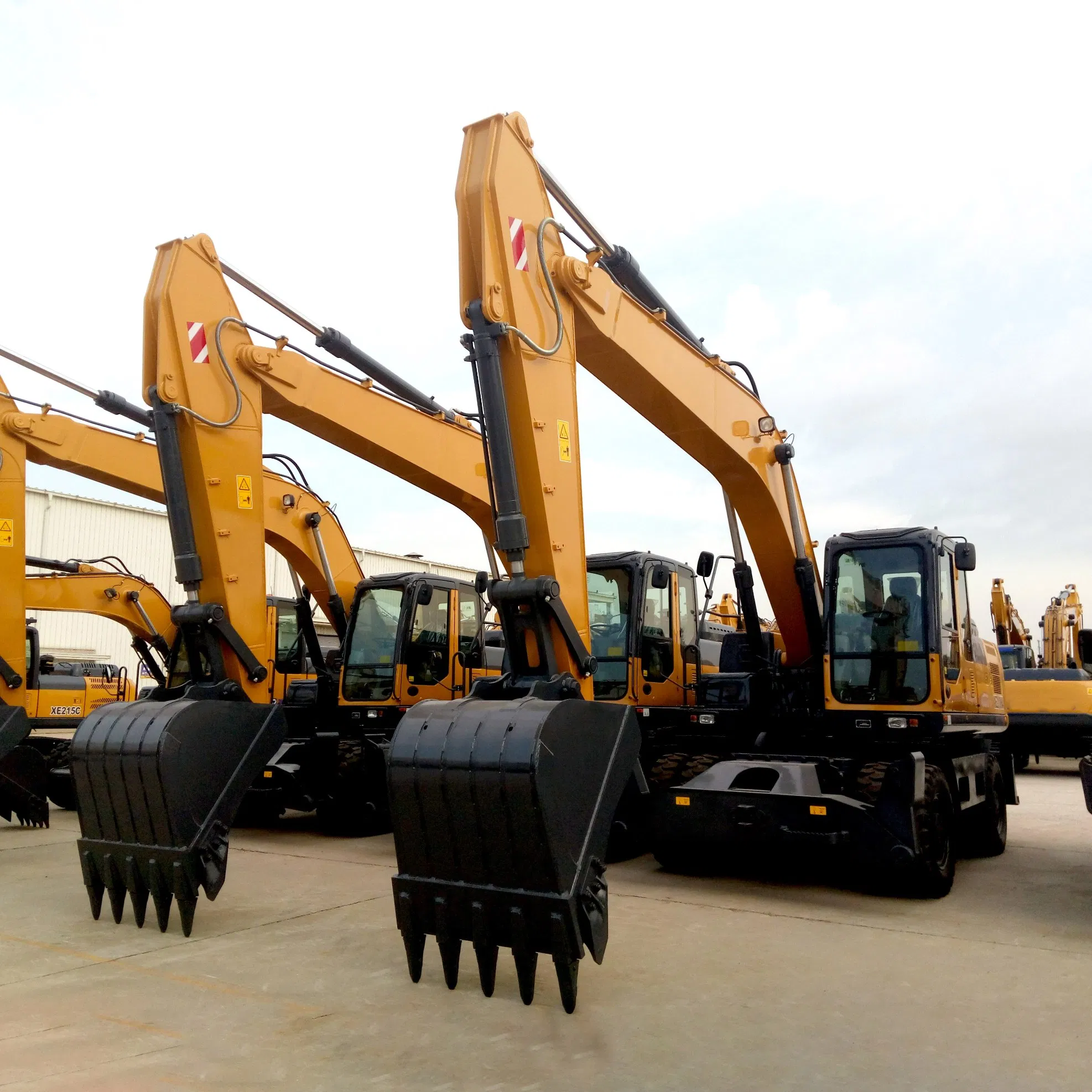

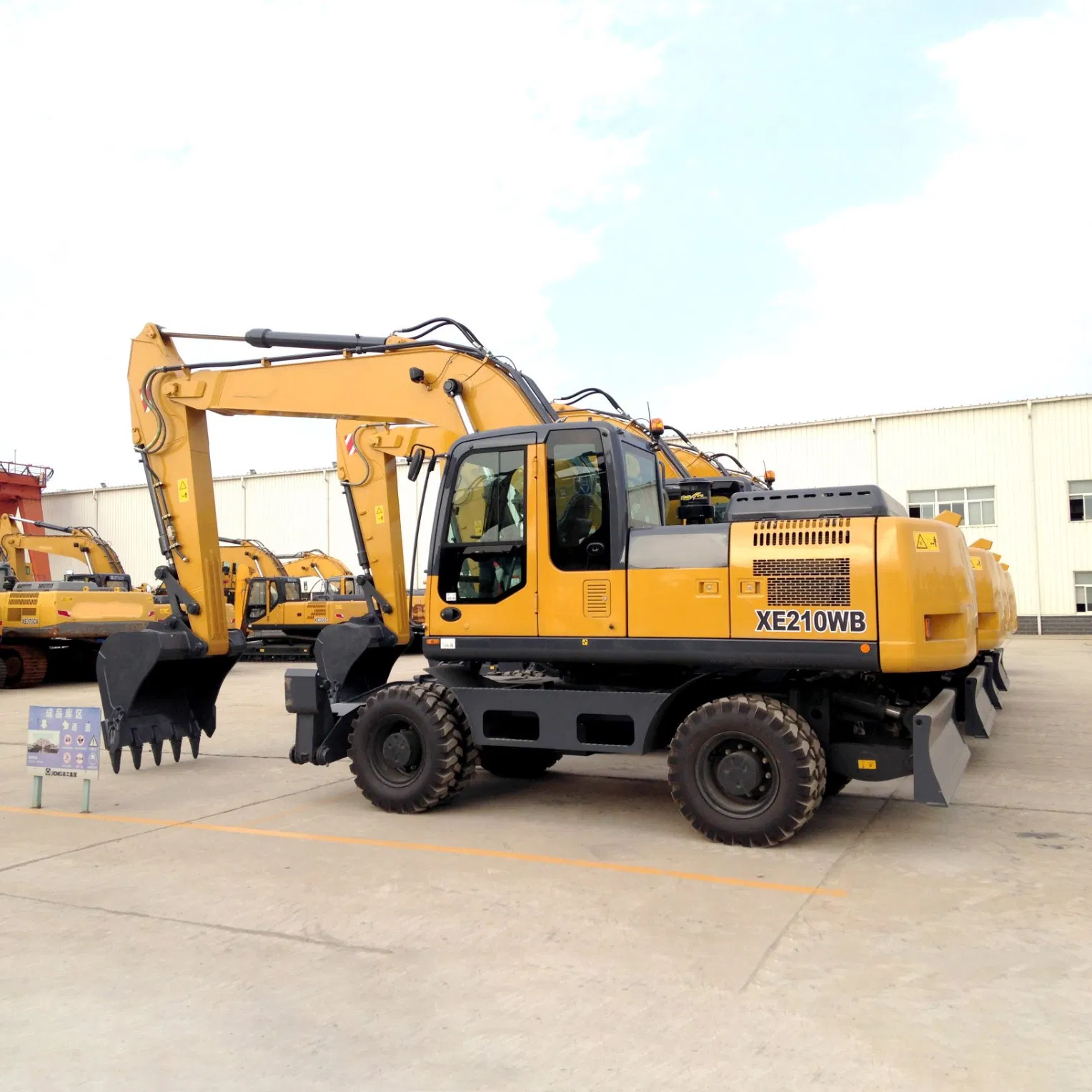

Xe210wd 21 Ton Wheel Excavator with 0.9m³ Long Reach Hydraulic Boom
Xe210wd 21 Ton Wheel Excavator with 0.9m³ Long Reach Hydraulic Boom
Xe210wd 21 Ton Wheel Excavator with 0.9m³ Long Reach Hydraulic Boom
Xe210wd 21 Ton Wheel Excavator with 0.9m³ Long Reach Hydraulic Boom
Xe210wd 21 Ton Wheel Excavator with 0.9m³ Long Reach Hydraulic Boom
1 / 5
Xe210wd 21 Ton Wheel Excavator with 0.9m³ Long Reach Hydraulic Boom
Xe210wd 21 Ton Wheel Excavator with 0.9m³ Long Reach Hydraulic Boom
Xe210wd 21 Ton Wheel Excavator with 0.9m³ Long Reach Hydraulic Boom
Xe210wd 21 Ton Wheel Excavator with 0.9m³ Long Reach Hydraulic Boom
Xe210wd 21 Ton Wheel Excavator with 0.9m³ Long Reach Hydraulic Boom

Xe210wd 21 Ton Wheel Excavator with 0.9m³ Long Reach Hydraulic Boom

After-sales Service: Online/Overseas Serive
Warranty: 1 Year
Type: Crawler Excavator
Send Inquiry

Product Description

📊 Overview
Model NO.
XE210WD
Operating Weight
20800kg
Rated Power
135kw/2050rmp
Engine Model
QSB7
Bucket Capacity
0.86m³
Drive Type
Electric Drive
Transmission
Hydraulic Transmission
Travel Speed
31/9.5 Km/H
Certification
CE, ISO9001: 2000
Condition
New
⚙️ Product Parameters
Category Item Unit Specifications
BasicModel-XE210WB
Operating weightKg20500
EngineModel-QSB7
Output powerkW/r/min135/2050
Maximum torque/speedN.m740/1200
DisplacementL6.7
PerformanceRated flowL/min2×220
Working PressureMPa31.4/34.3
Swing speedr/min13
Bucket digging forcekN144
Travel speedkm/h9.5/31
DimensionsOverall lengthmm9597
Overall widthmm2552
Overall heightmm3590
Wheel basemm2850
ScopeMax. digging radiusmm9840
Max. digging heightmm9000
Max. digging depthmm6460
📷 Visual Display
Wheel Excavator XE210WD View 1
Wheel Excavator XE210WD View 2
Wheel Excavator XE210WD View 3
Wheel Excavator XE210WD View 4
Wheel Excavator XE210WD View 5
Wheel Excavator XE210WD View 6
Wheel Excavator XE210WD View 7
Wheel Excavator XE210WD View 8
Wheel Excavator XE210WD View 9
Wheel Excavator XE210WD View 10
❓ Frequently Asked Questions
1. What is the engine model and power output of the XE210WD?
The XE210WD is equipped with a QSB7 engine, providing a rated power of 135kw at 2050 rpm and a maximum torque of 740 N.m.
2. What is the maximum digging depth and height for this excavator?
This model features a maximum digging height of 9000mm and a maximum digging depth of 6460mm.
3. How fast can the XE210WD travel?
The excavator offers two travel speed settings: 9.5 km/h and a high speed of up to 31 km/h.
4. What type of transmission and drive system does it use?
It utilizes a hydraulic transmission system and an electric drive type for efficient operations.
5. Is the XE210WD suitable for specialized environments?
Yes, it is designed for versatile use including special excavation, marine applications, mining, and general excavation tasks.
6. What certifications does this product hold?
The XE210WD is compliant with international standards, holding CE and ISO9001: 2000 certifications.
