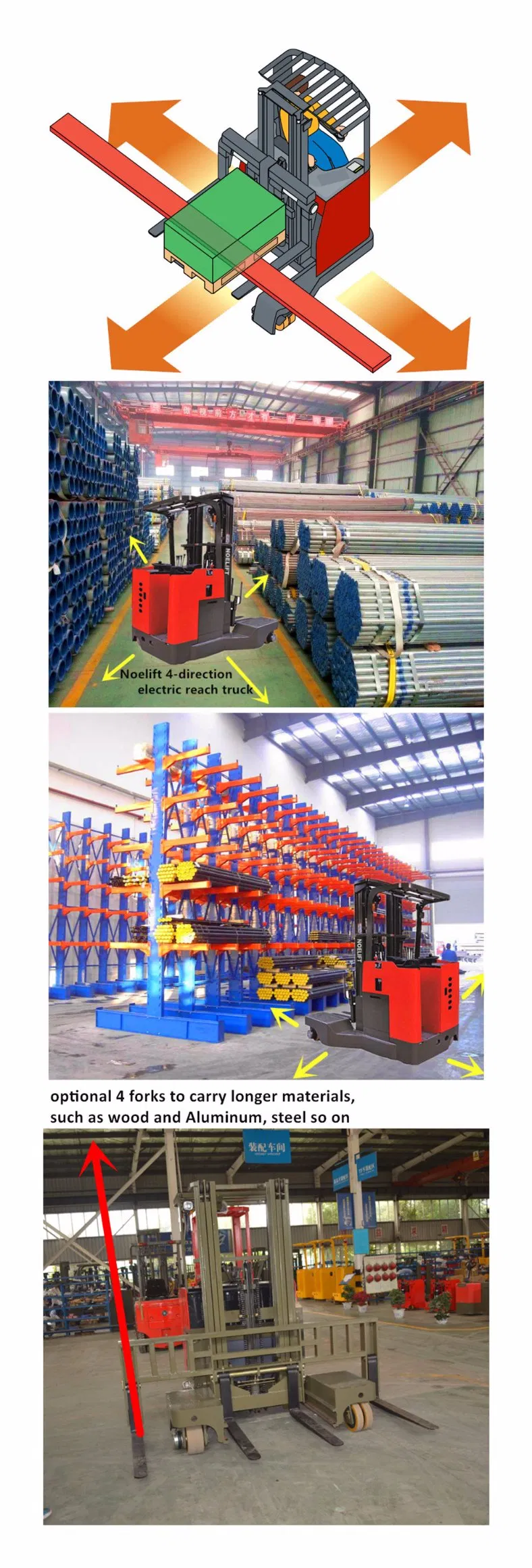

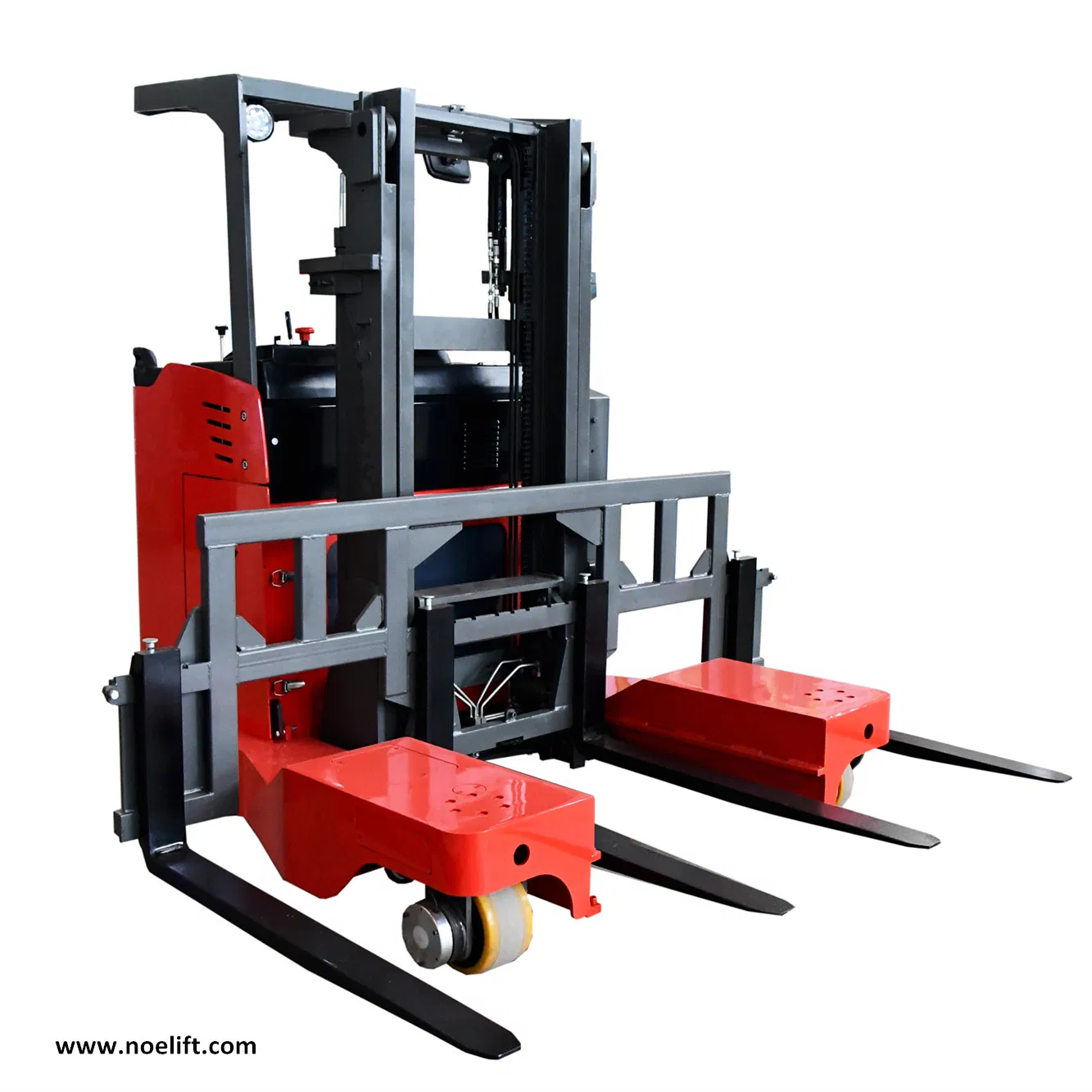

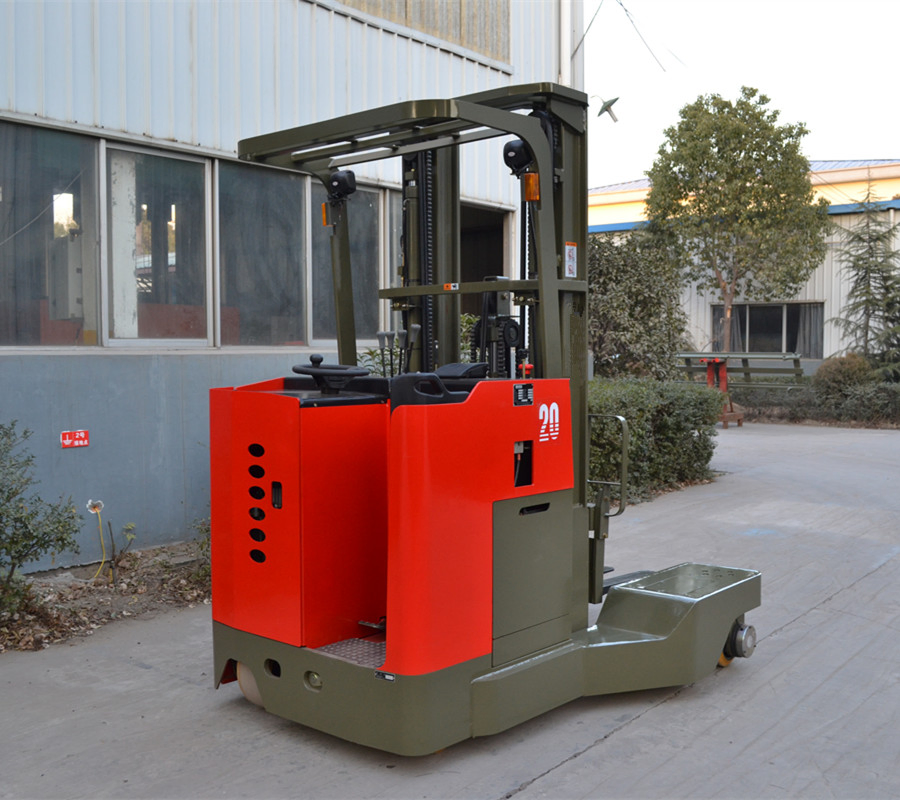

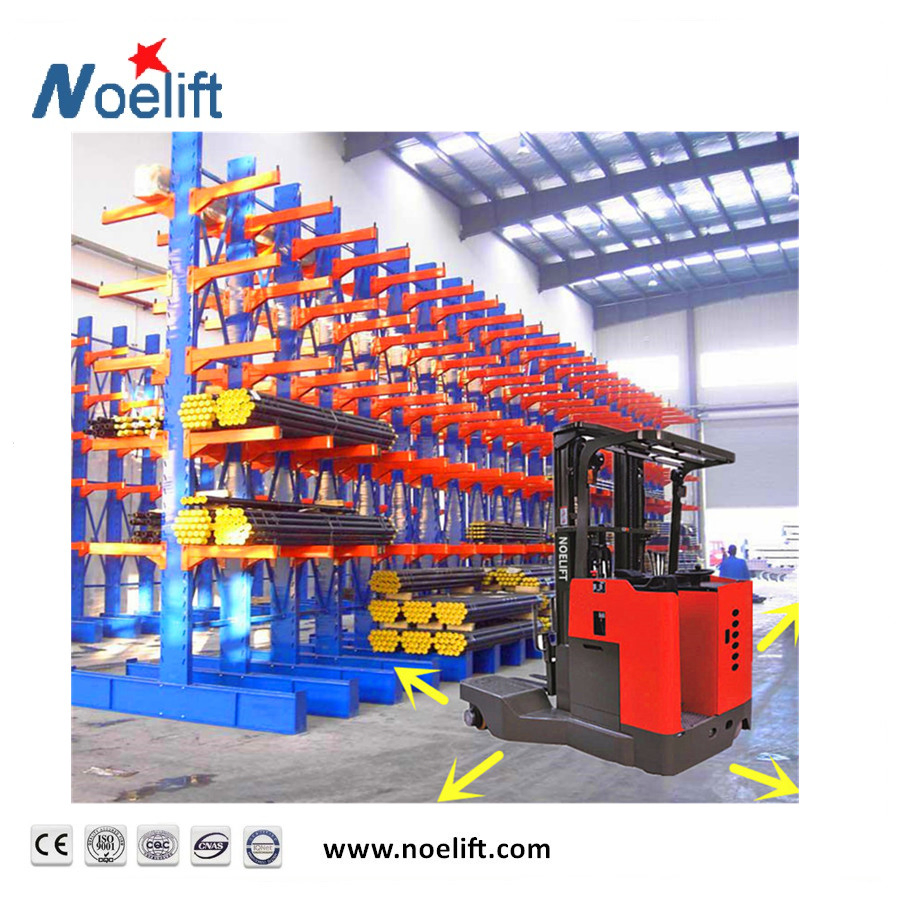

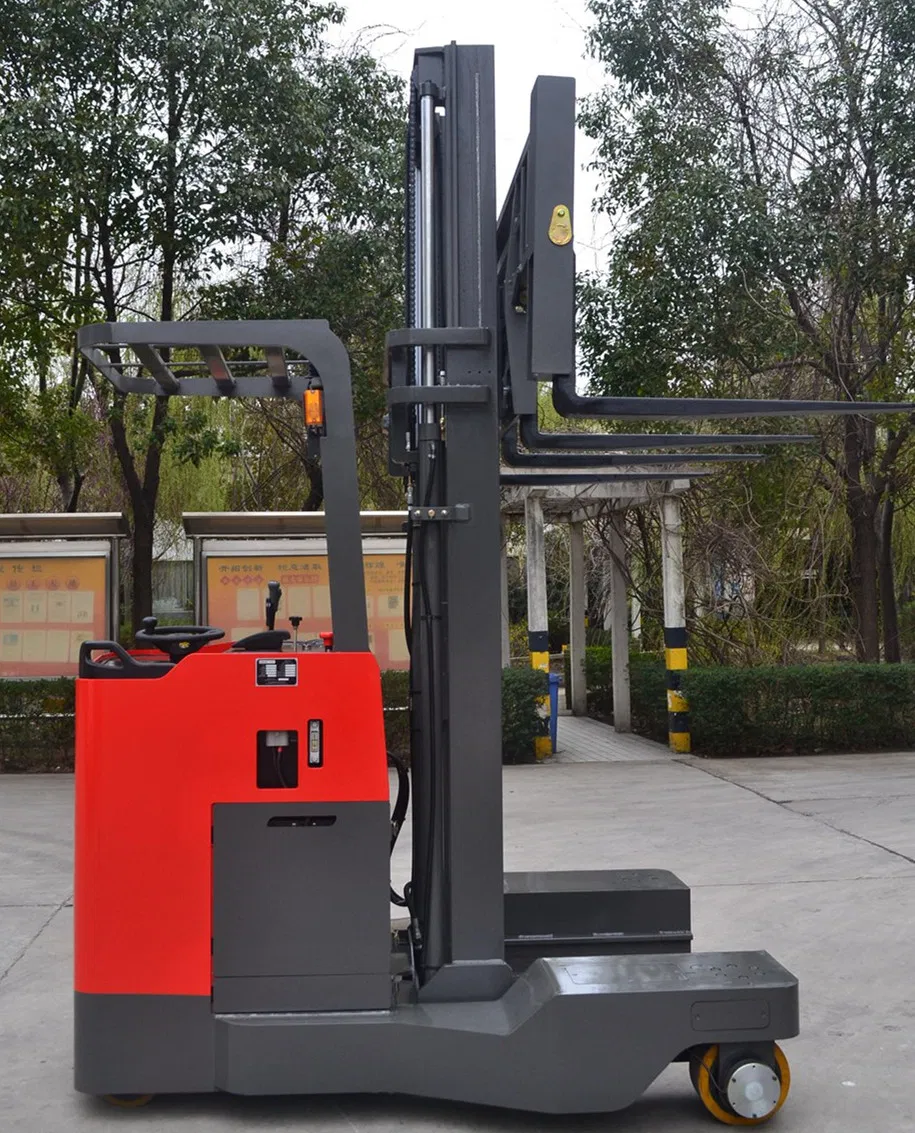

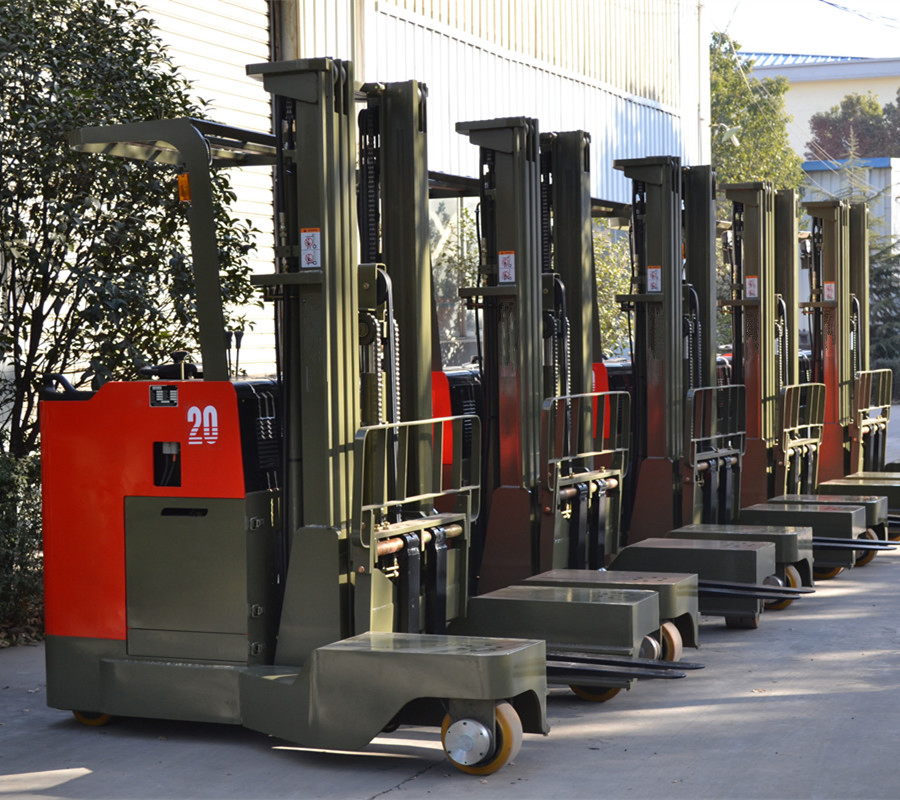

Long materials carrier 4-direction electric reach truck
Low noise and non-pollution electricity energy adopted ensure 4-direction electric reach truck Environment-Friendly.
Brushless AC driving motor and side-pull battery ensure 30% energy saving. US CURTIS controller ensures equipment longer service life.

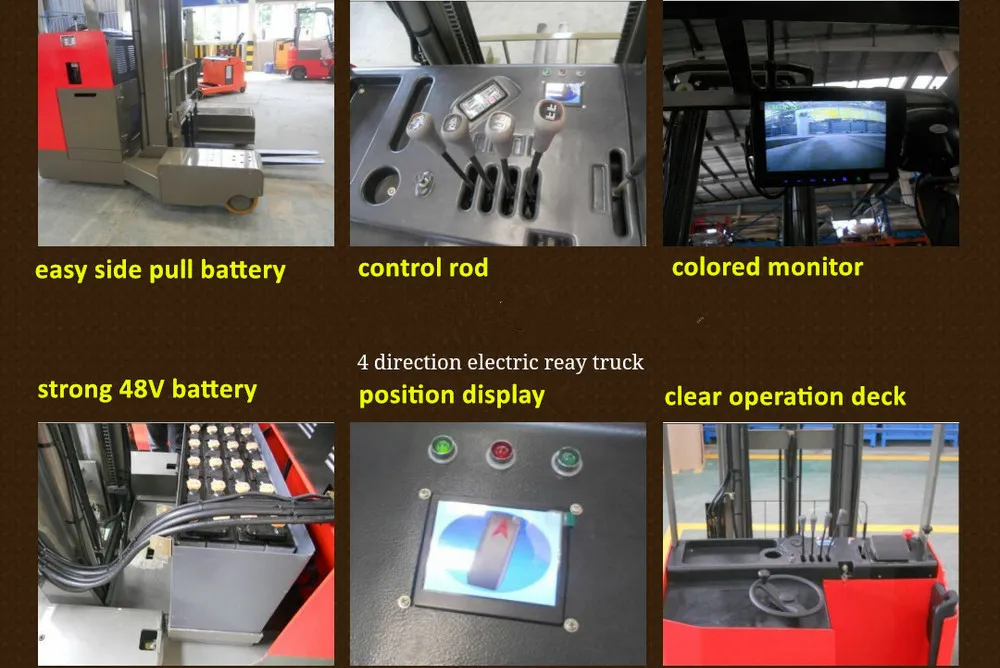

Strong industrial 48V battery and 5.5V strong driving motor ensure powerful performance and efficiency.
Strict quality inspection system with ISO9001-2008 and CE approval.
*Note: Color monitor and camera equipped when lift height ≥4.5m.
| Description | Model TFB15 | Model TFB20 | Model TFB25 |
|---|---|---|---|
| Loading Capacity (kg) | 1500 | 2000 | 2500 |
| Loading Center (mm) | 500 | 500 | 500 |
| Lifting Height (mm) | 3000 | 3000 | 3000 |
| Overall Length (mm) | 2267 | 2488 | 2488 |
| Overall Width (mm) | 1640 | 1800 | 1800 |
| Driving Motor (Kw) | 5.5 (AC) | 5.5 (AC) | 5.5 (AC) |
| Mast Type | Lift Height | Lowered Height | Capacity @ Max (TFB15) | Capacity @ Max (TFB20) |
|---|---|---|---|---|
| Duplex | 3000mm | 2120mm | 1500kg | 2000kg |
| Duplex | 4000mm | 2620mm | 1000kg | 1200kg |
| Triplex (Full Free) | 5000mm | 2340mm | 900kg | 1000kg |
| Triplex (Full Free) | 6000mm | 2680mm | 700kg | 800kg |
