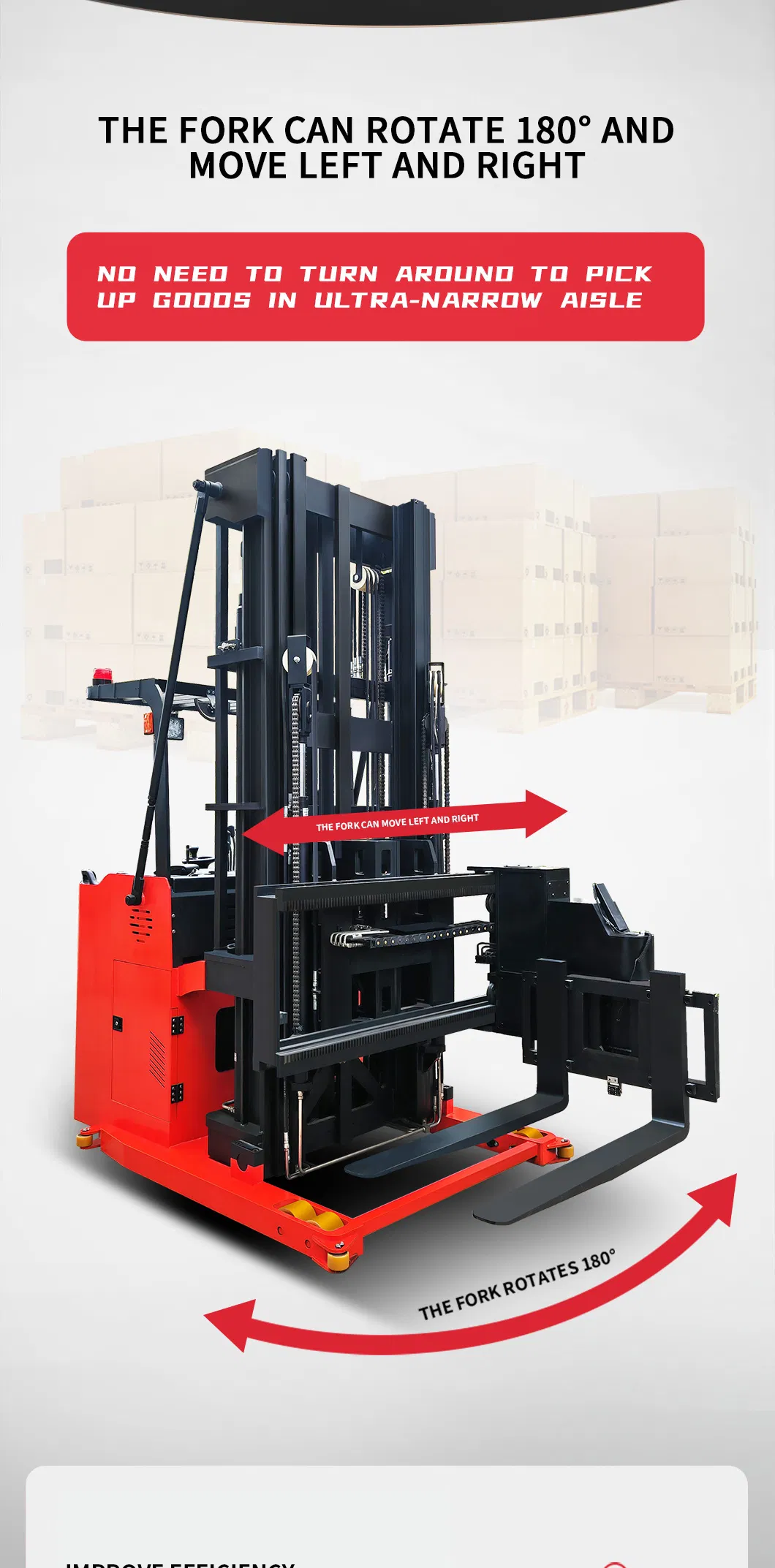

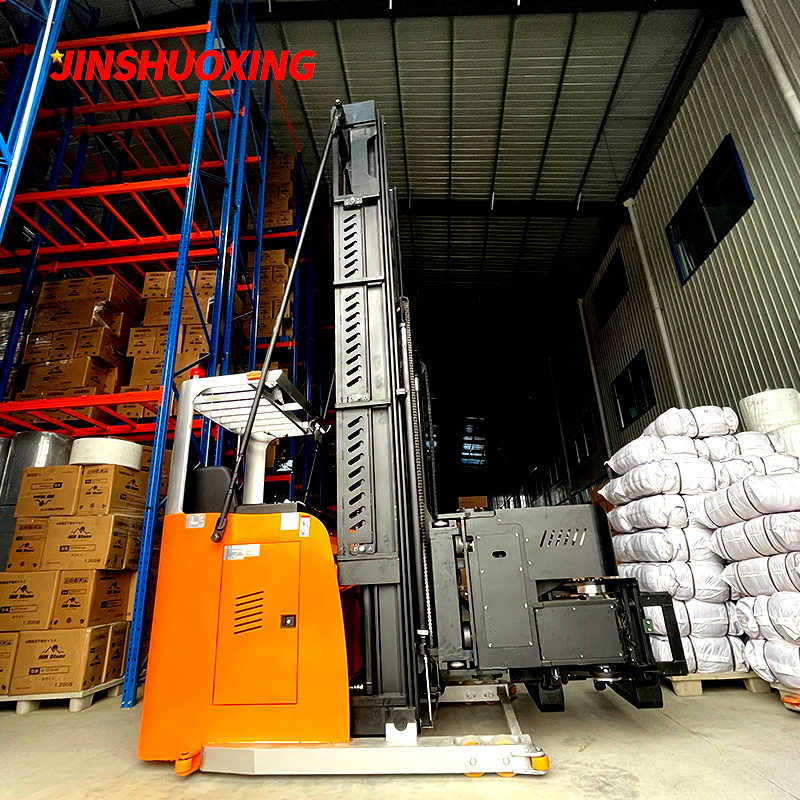

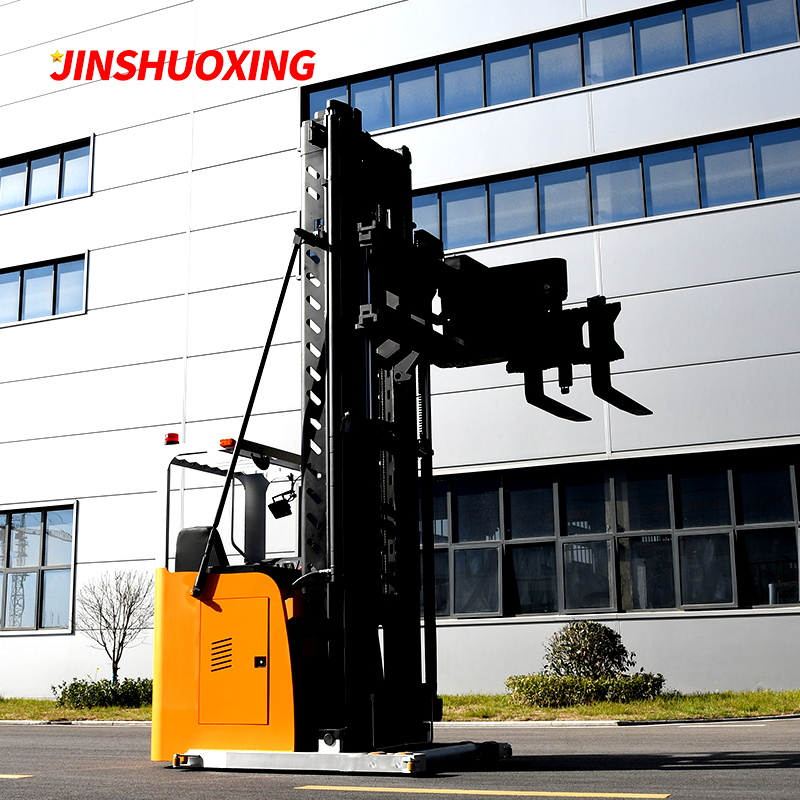

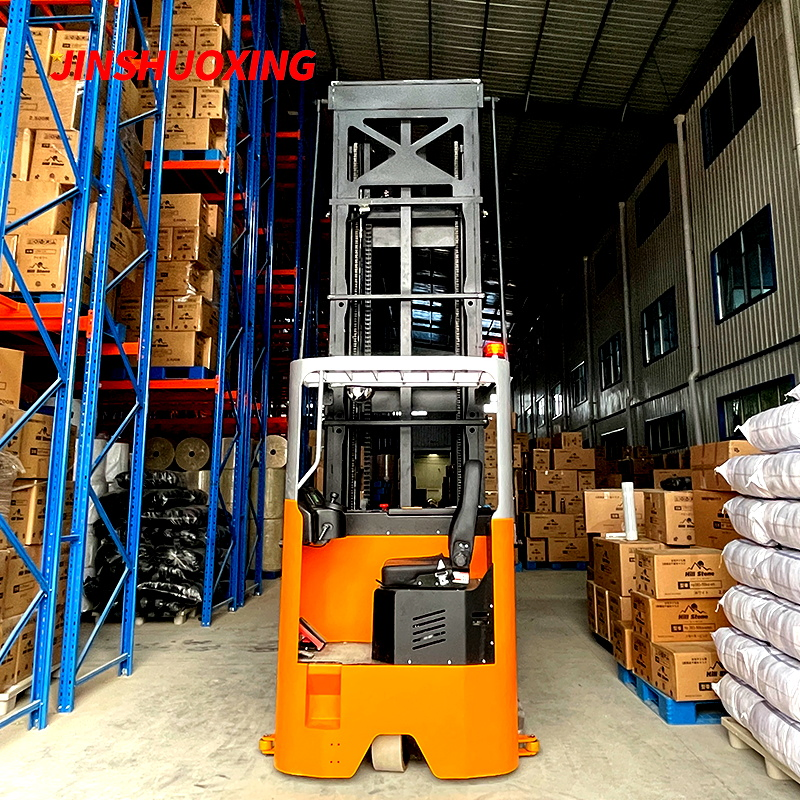

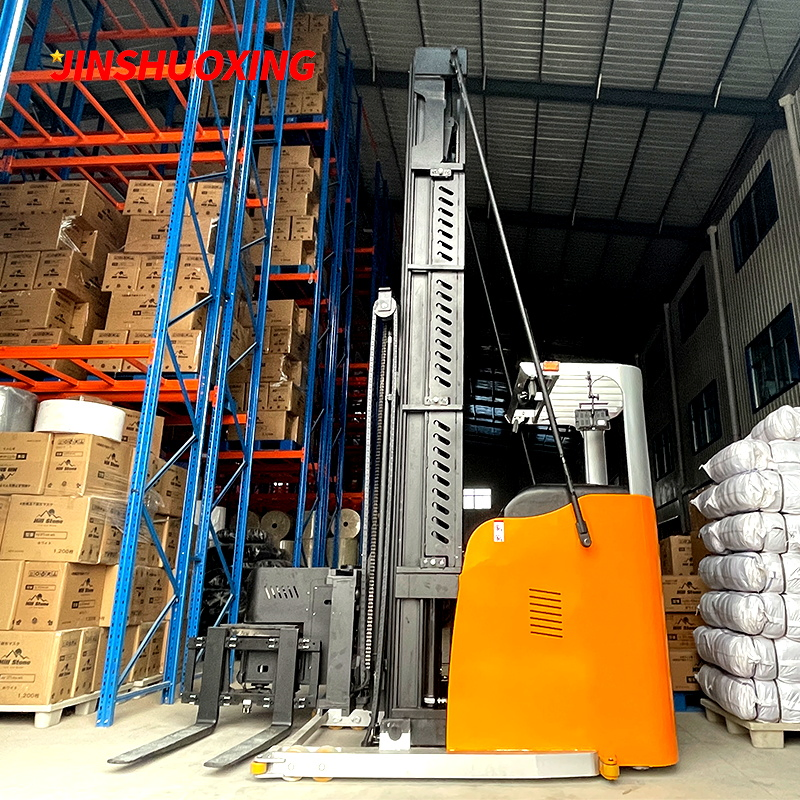

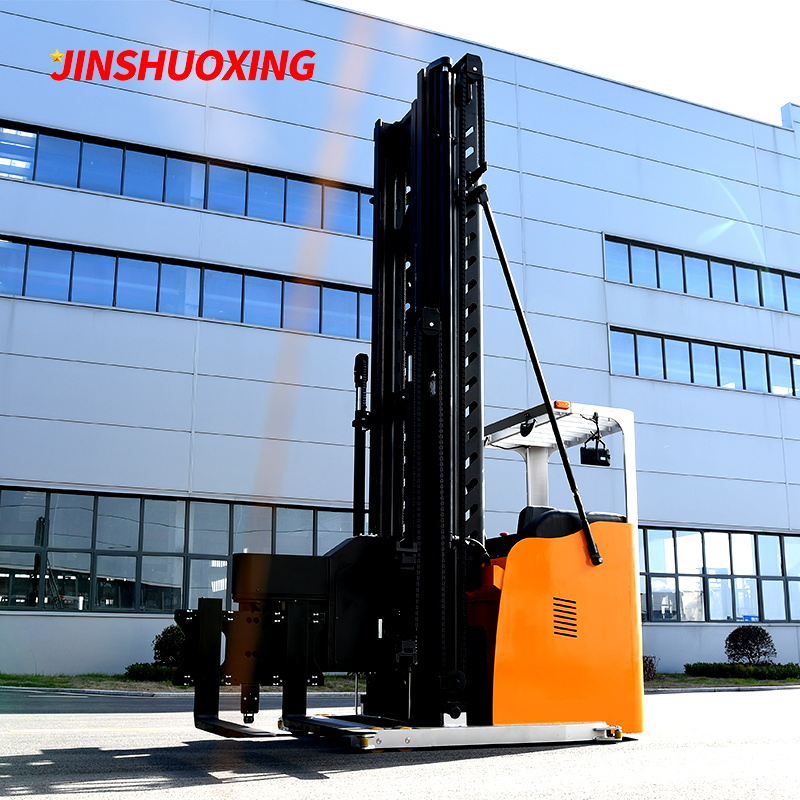

Vna 3 Way High Lift Electric Sit-Down Very Narrow Aisle Truck

After-sales Service: Long Term
Warranty: 1year
Cab Location: Adjustable

Product Description

📋

Basic Information

Model NO.
CDDM / CDDM15E / CDMX
Type
Side Forklift
Power
AC Motor
Load Capacity
1T - 5T
Fuel
Electric
Lift Height
>5000mm
Battery Voltage
48V / 540Ah
Condition
New
📸

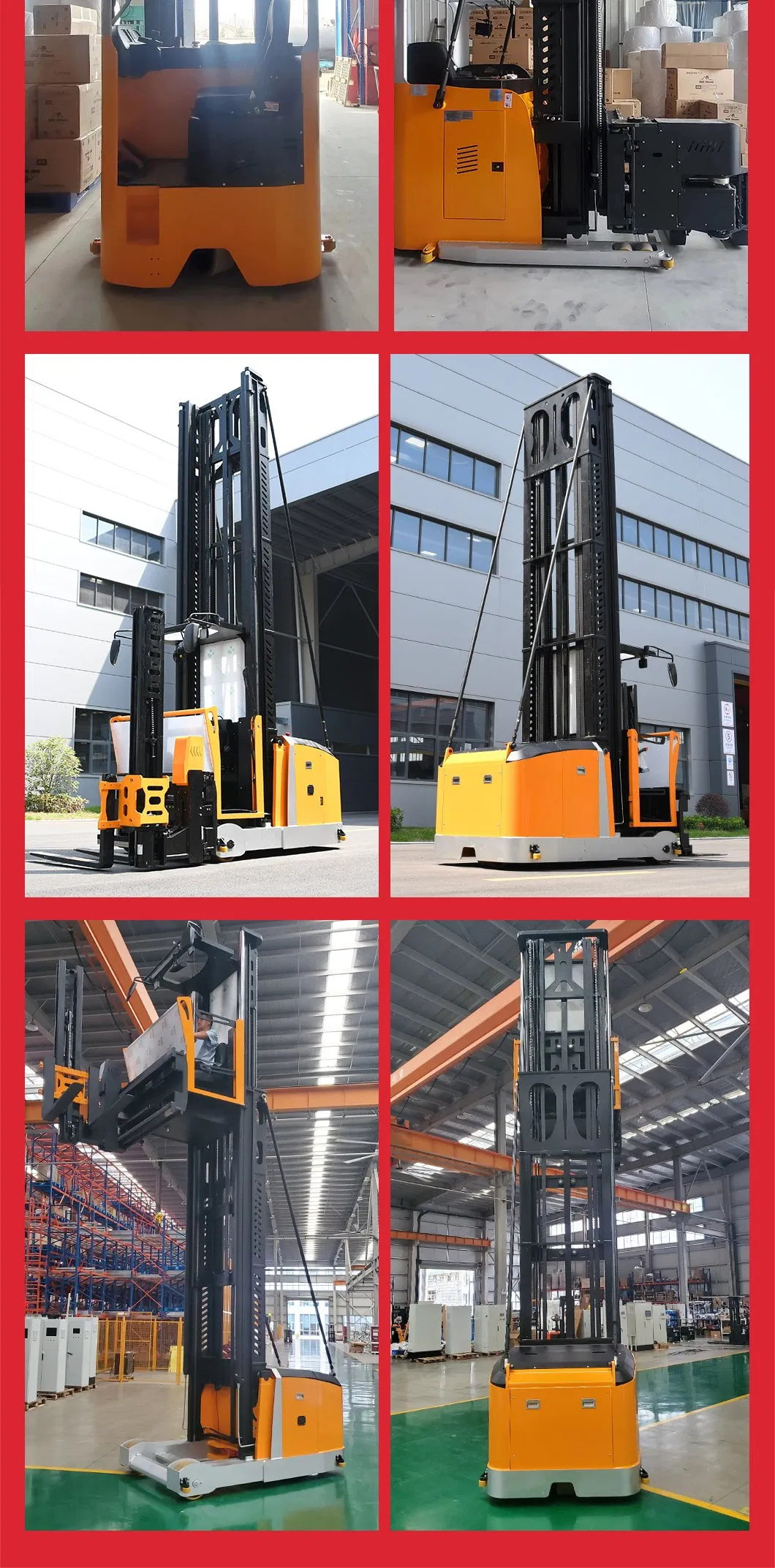

Product Showcase

⚙️

Technical Specifications

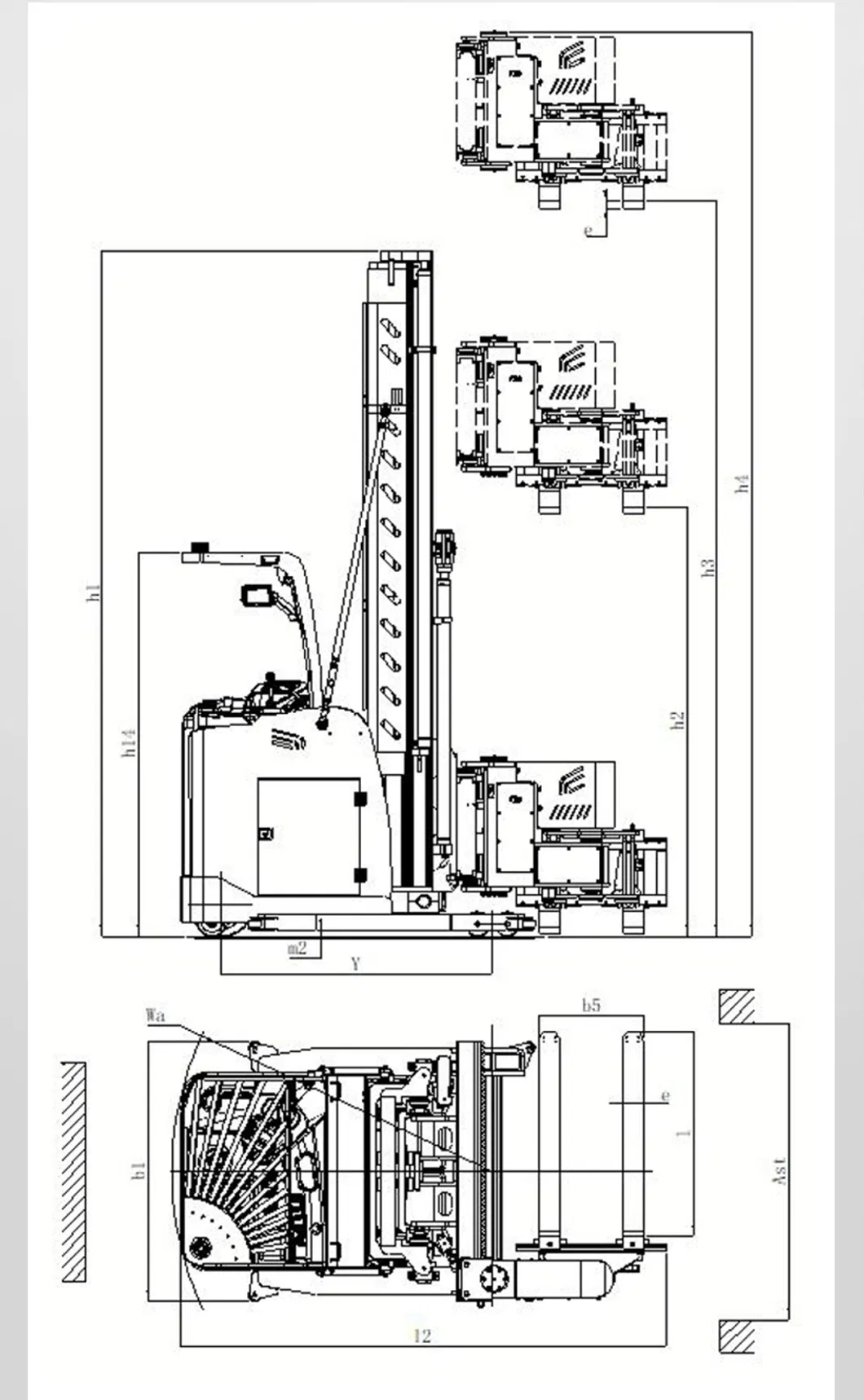

STANDING TYPE 3-WAY ELECTRIC STACKER CDDM10-60S CDDM15-60S
Features Power - Electric Electric
Load Capacity Q (kg) 1000 1500
Load Center C (mm) 500 600
Dimensions Height of Mast Closed h1 (mm) 3400 3400
Lifting Height h3 (mm) 6000 6000
Overall Width b1 (mm) 1445 1550
Turning Radius Wa (mm) 1985 1985
Motor Drive Motor Output kW 6.5 AC 6.5 AC
Lift Motor Output kW 15 AC 15 AC

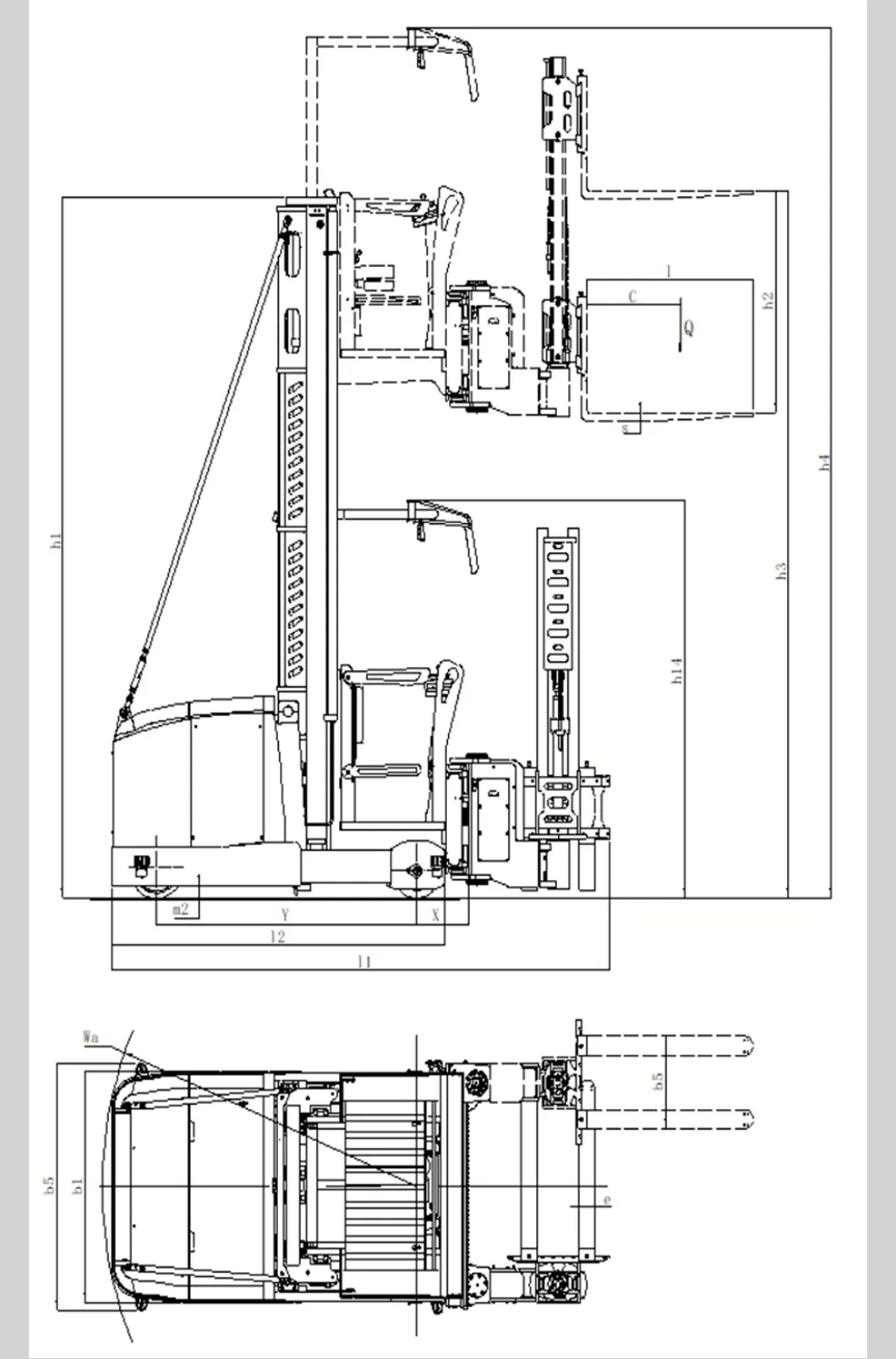

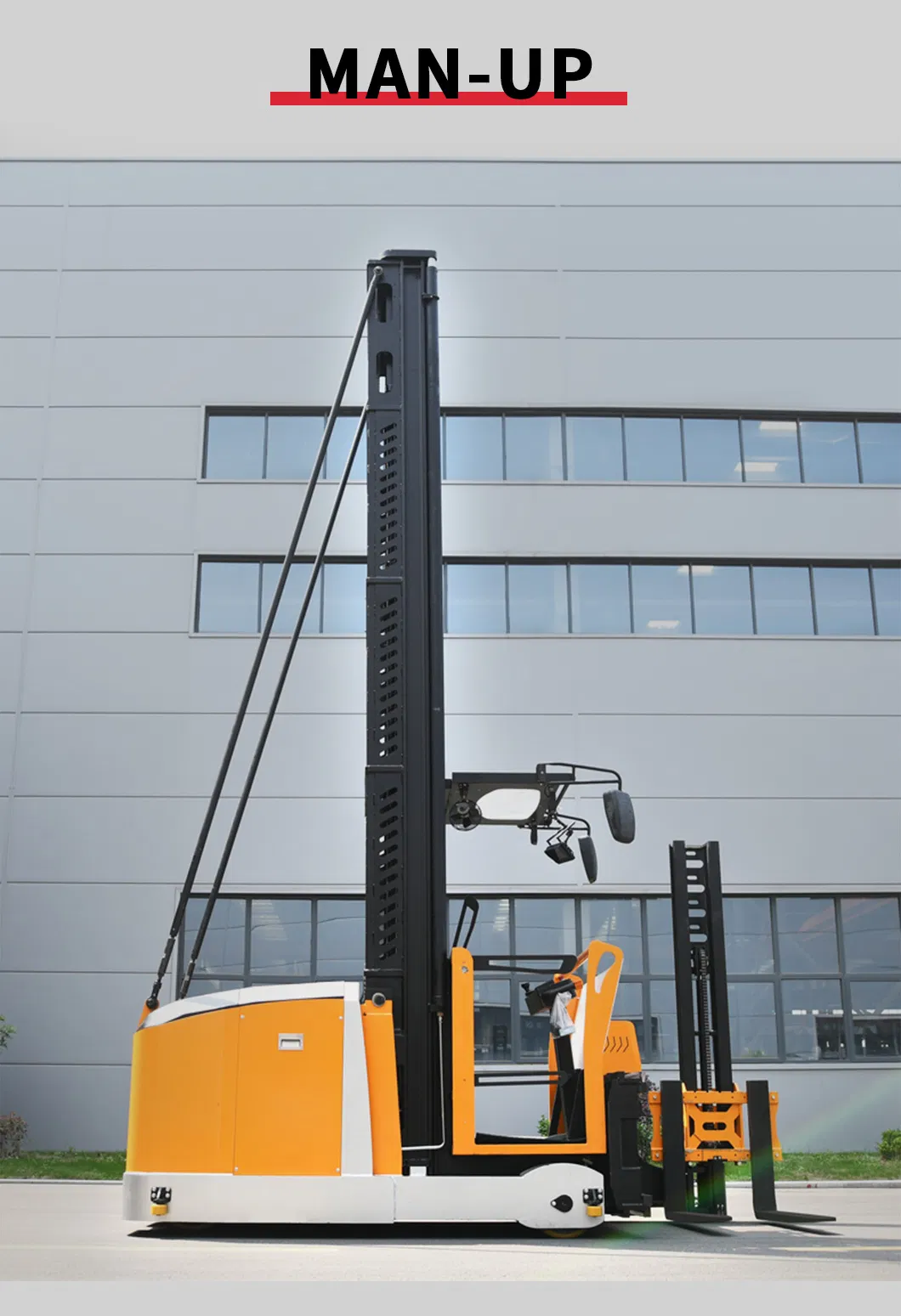

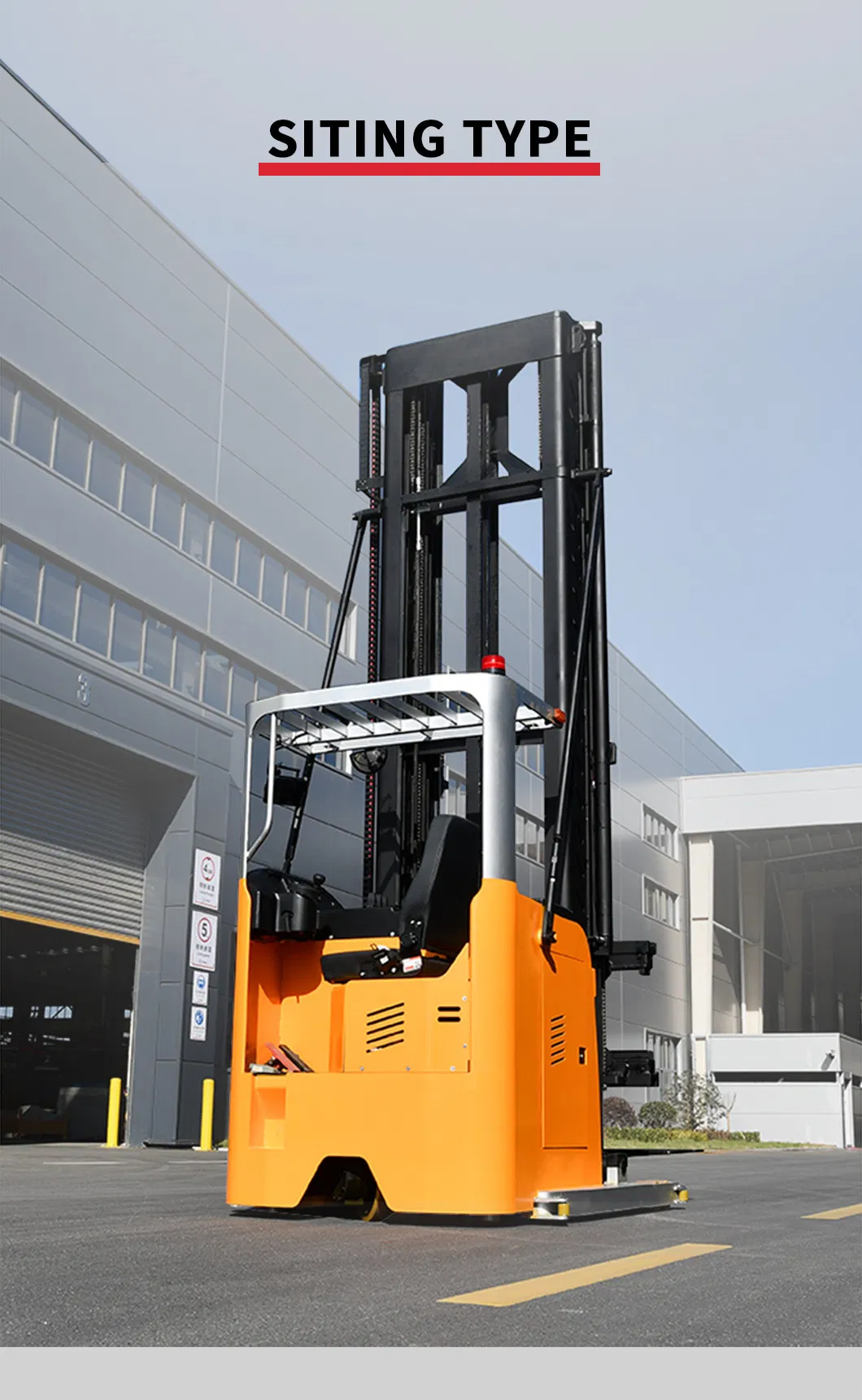

SITTING TYPE 3-WAY ELECTRIC STACKER CDDM15E-60S
Load Capacity Q (kg) 1500
Dimensions Overall Width b1 (mm) 1550
Performance Driving Speed (Load/Unload) km/h 8/7
Motor Drive Motor kW 8 AC

Frequently Asked Questions

How is the quality of your product?
We focus on producing high-quality products with thick materials and durable core components. Each product has undergone long-term market validation with a low failure rate.
Do you have an advantage in price?
We have long-term cooperative raw material suppliers, and our production personnel are highly skilled. This allows us to offer higher price advantages for products of the same quality.
How do you ensure the product meets my usage conditions?
Our professional sales team will communicate with you in detail about your specific needs and recommend the most suitable products based on over 5 years of industry experience.
Can you provide customized services?
Yes, we provide various customization services, including color, logo, body size, and specific functional adjustments to meet your operational requirements.
How long is the production lead time?
Production typically takes approximately 10 to 30 days. Standard products may ship immediately, while customized or complex orders require more time.

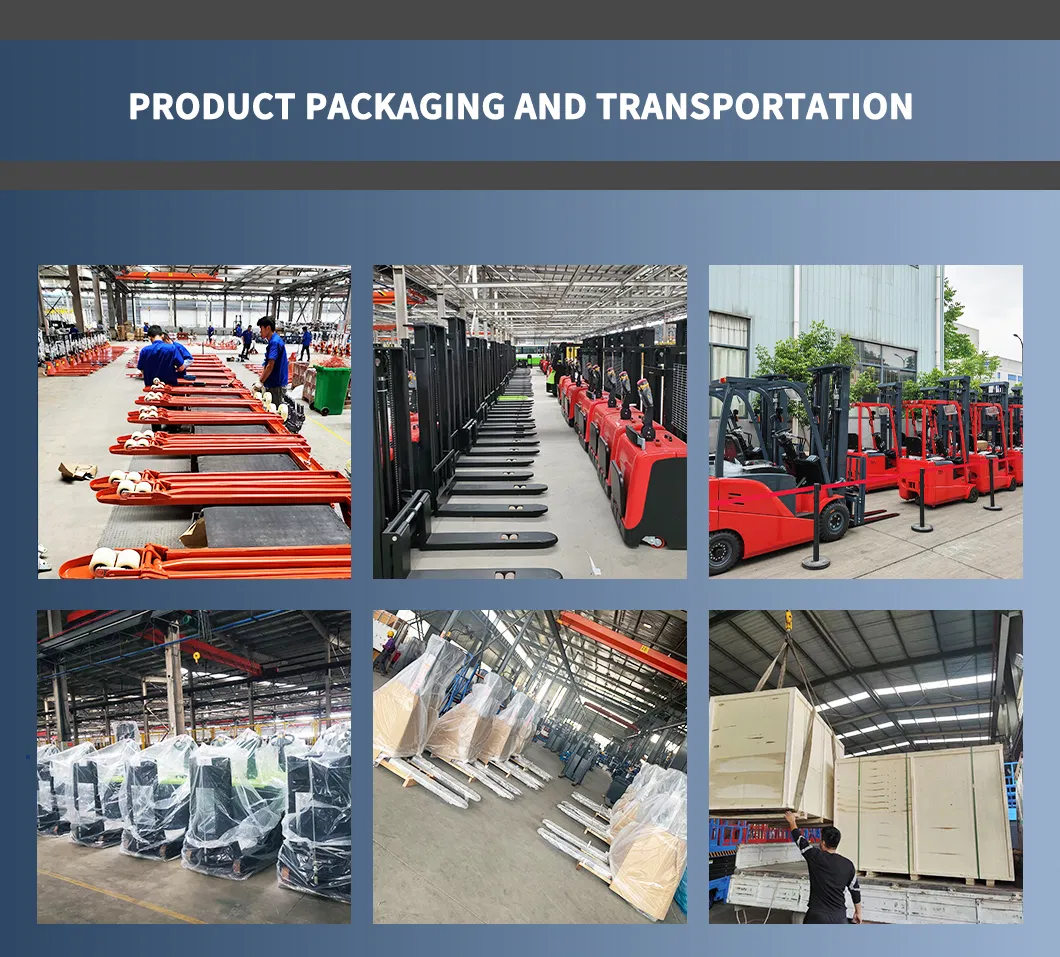

What shipping methods are available?
We primarily transport by sea. Depending on the destination, railway or international express (for smaller parts) are also available.
