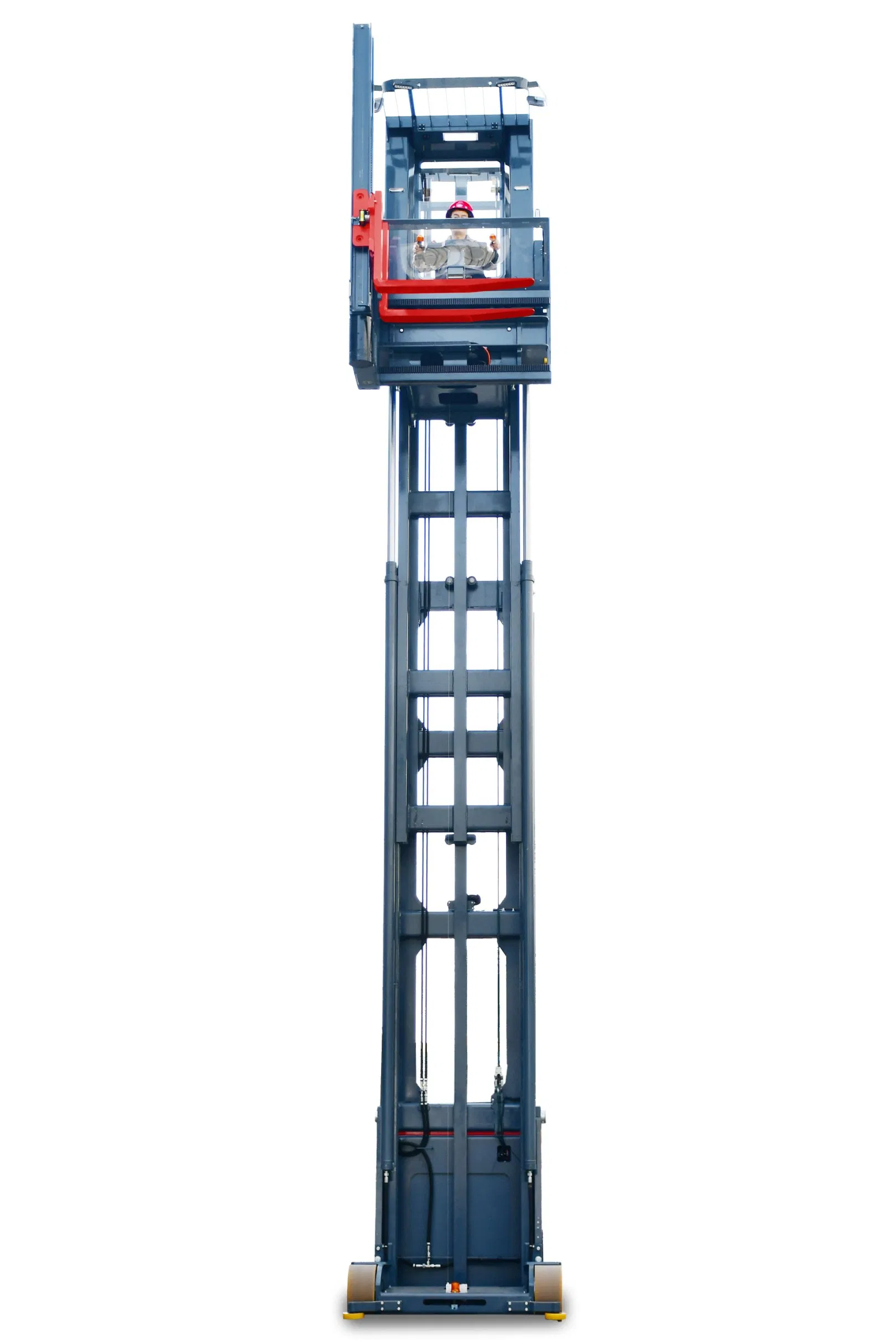

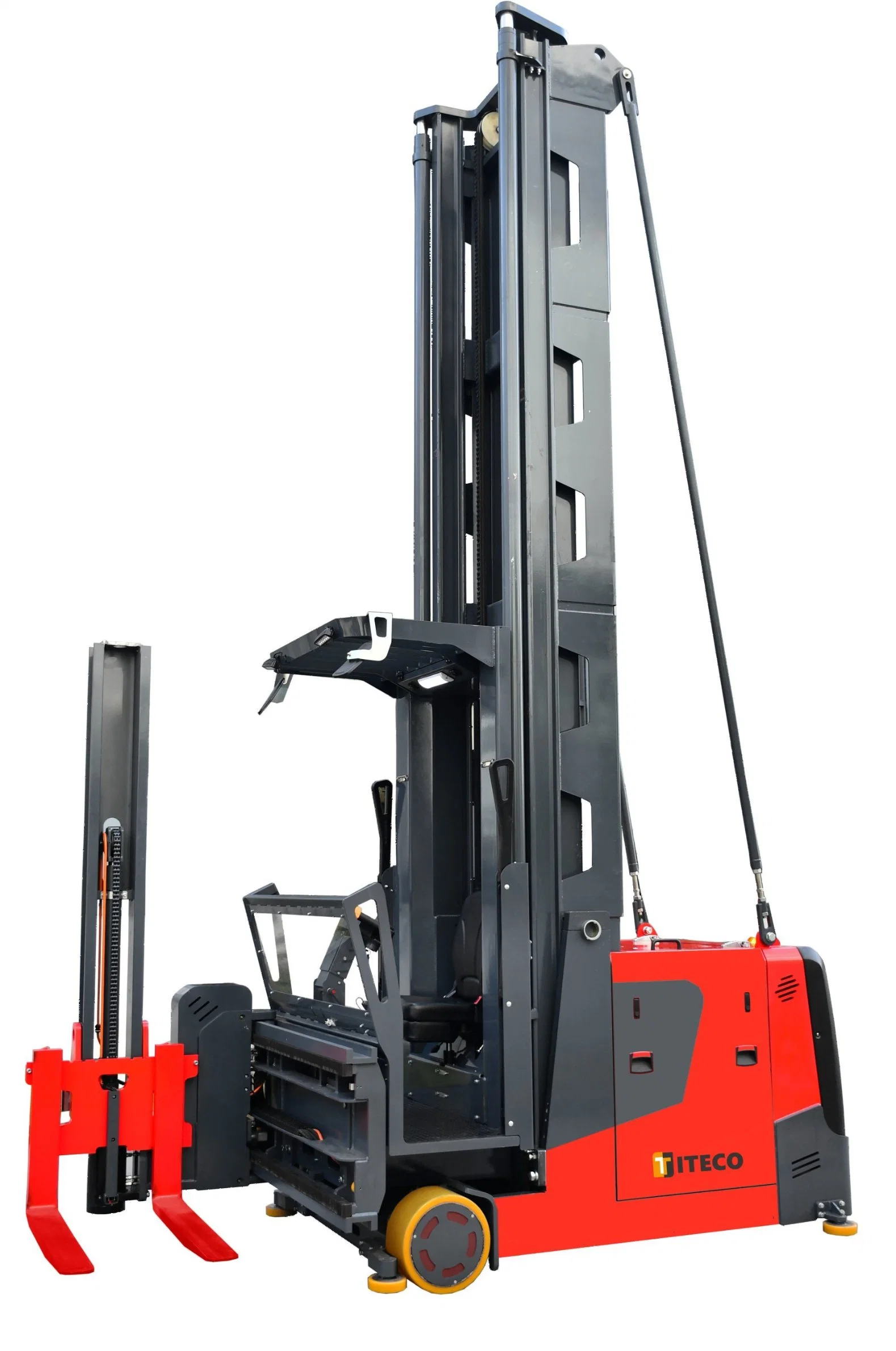

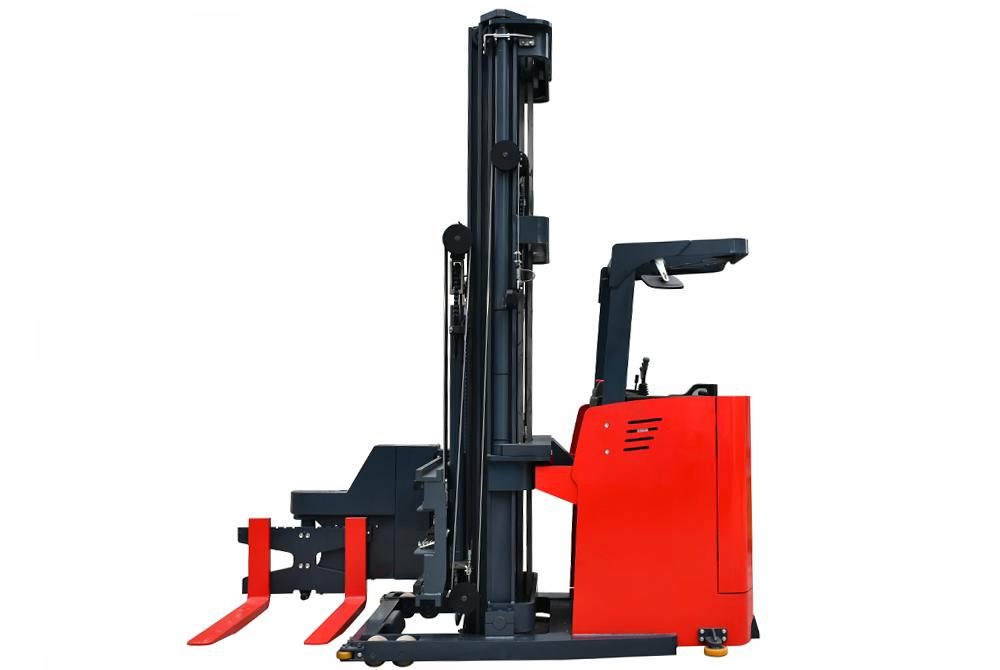

Very Narrow Aisle Vna Truck Forklift Electric Forklift Truck for Storage Steel Pallet Racking

1 / 5

Very Narrow Aisle Vna Truck Forklift Electric Forklift Truck for Storage Steel Pallet Racking

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

📊Basic Information

Model NO.

MC15

Type

Electric Forklift

Power

AC Motor

Load Capacity

1T - 5T

Fuel

Electric

Lift height

3000-9000mm

Load center

500mm

Turning Radius

1880mm

Origin

China

Package Size

654x221x668cm

🛠️Technical Specifications

Model	Unit	MC10	MC10SQ	MC15	MC15SQ
Power type	-	Battery	Battery	Battery	Battery
Operation Type	-	Stand-on	Stand-on	Stand-on	Stand-on
Service weight	kg	4260	4800	4690	5520
Rated capacity	kg	1000	1000	1500	1500
Load center	mm	500	500	600	600
Lift height	mm	3000	4500	3000	4500
Turning radius	mm	1880	1880	1980	1980
Travelling speed	km/h	7.5/8	7.5/8	7.5/8	7.5/8
Lifting speed	mm/s	230/300	230/300	200/300	200/300

💡Applications & Functionality

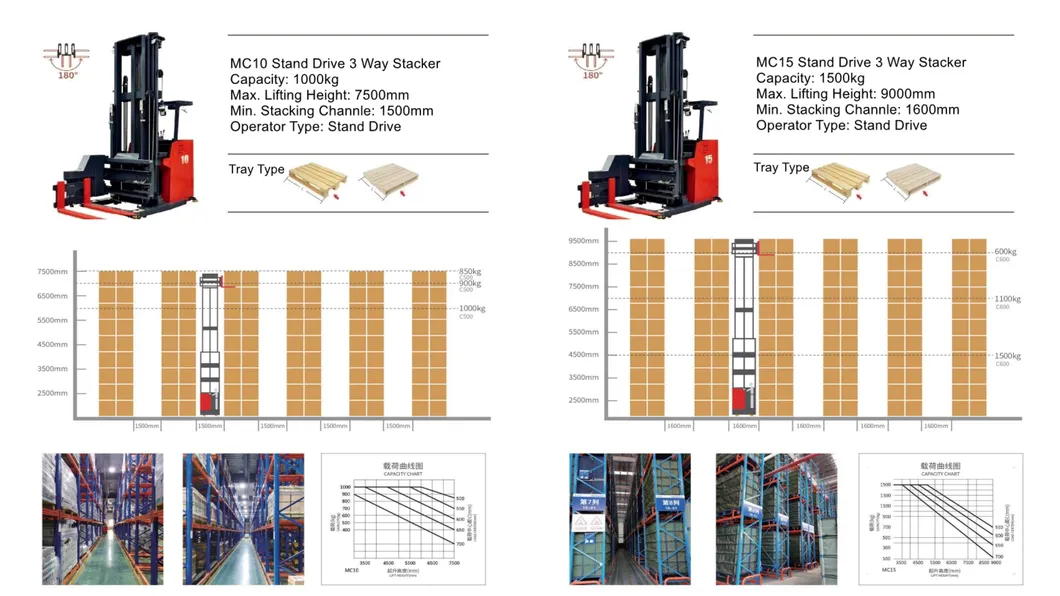

MC Series 1.0-1.5T 3-way pallet stacker (Stand-on Driving type)

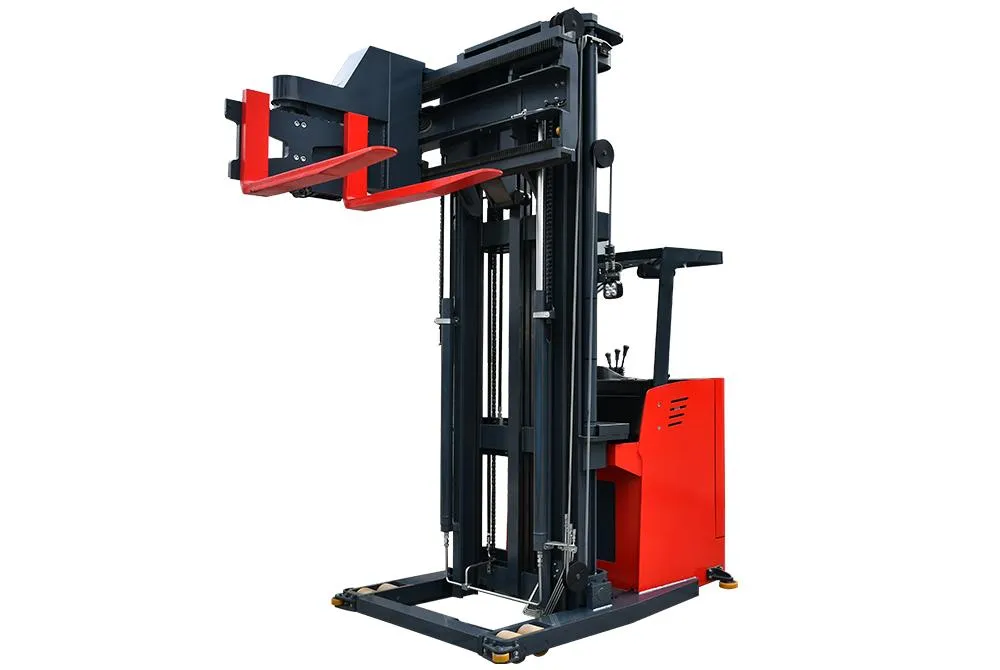

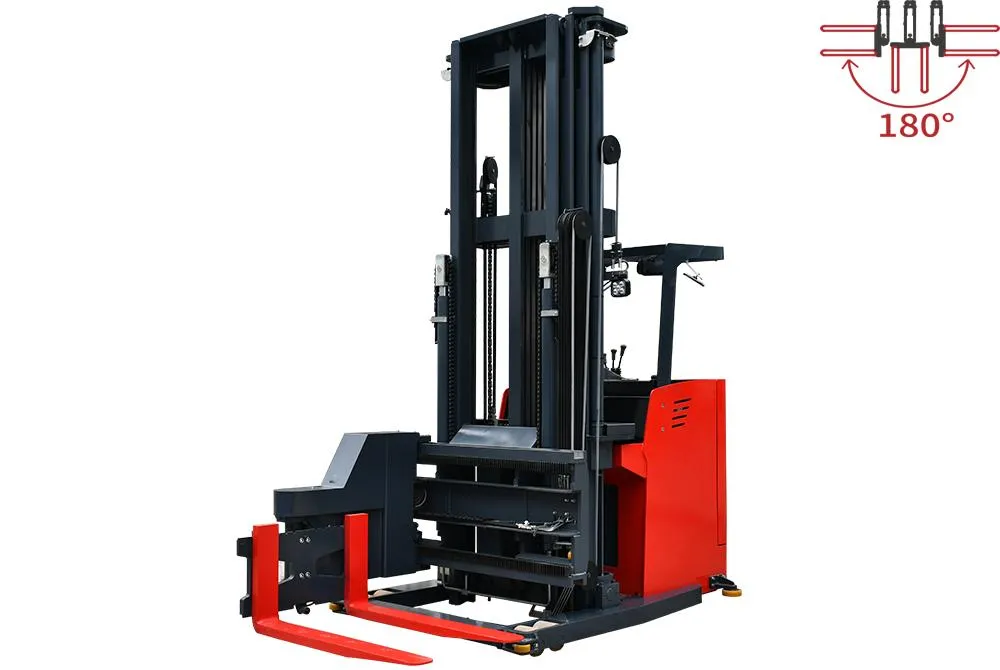

3-way stacking function: forks can rotate 180° and do left-right side shift without body turning.

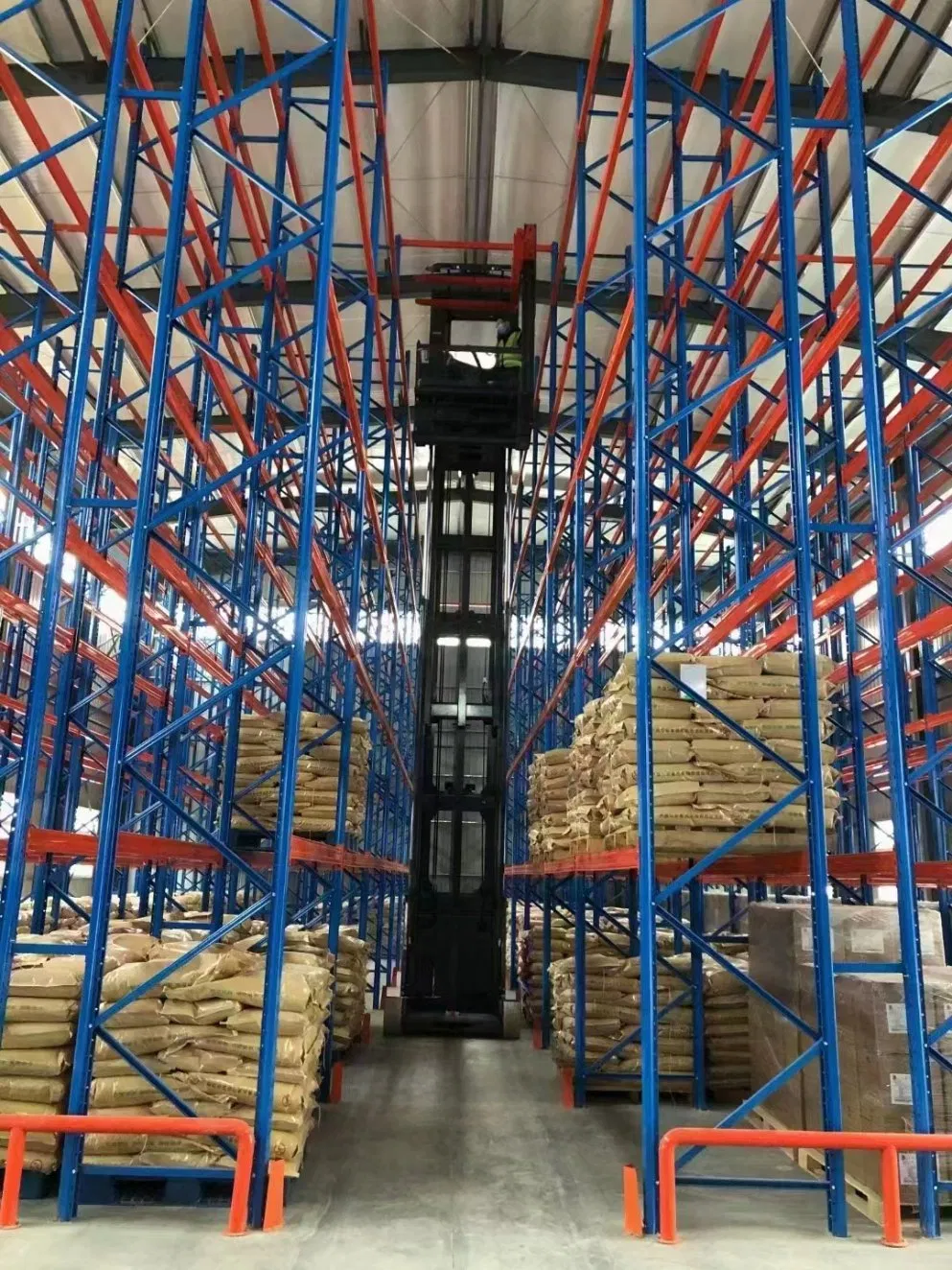

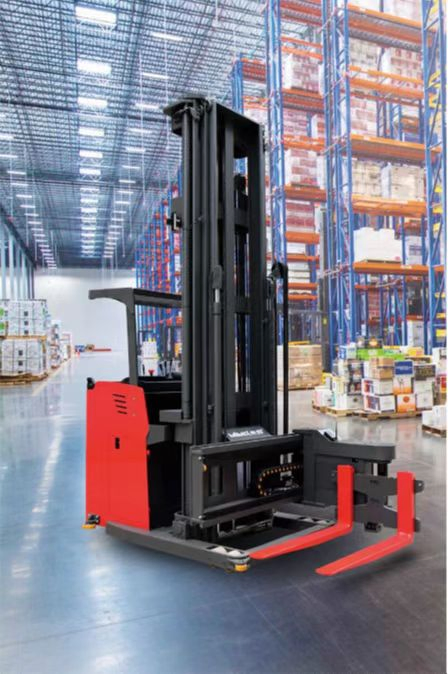

Ideal for intensive storage in logistics, medicine, food, and low-temperature cold storage.
Specifically designed for stacking in ultra-narrow roadways and high shelf configurations.
Supports horizontal handling and efficient load/unload operations.

⭐Main Features

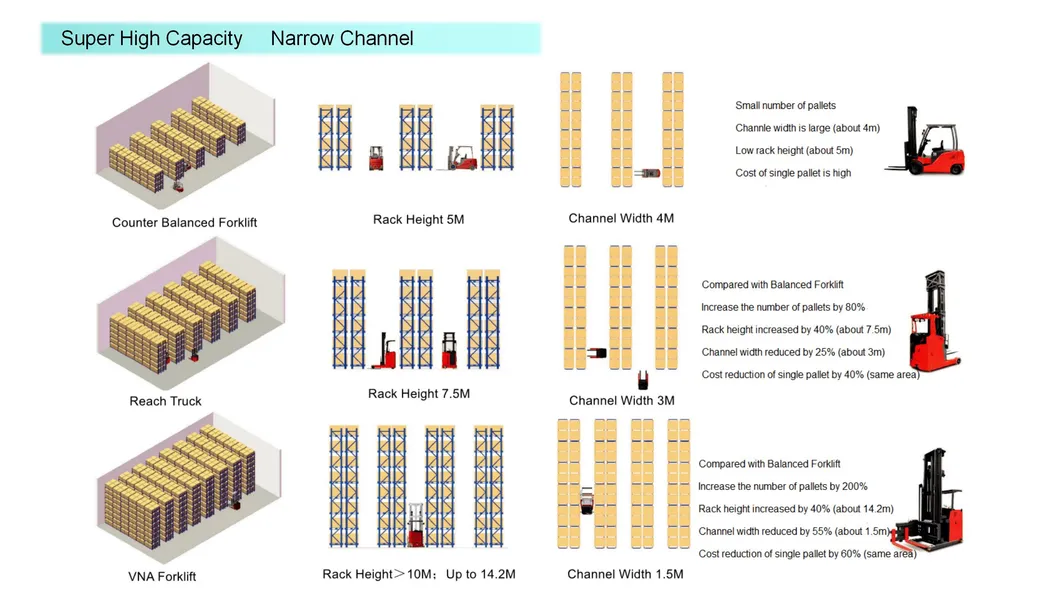

Space Utilization: Improves storage capacity with a minimum net channel of 1500mm and max lifting height of 9000mm.
Advanced Control: Curtis controller with a whole-AC system for high efficiency and energy conservation.
Maintenance-Free: Whole-AC driving system ensures quick reaction, low noise, and minimal maintenance costs.
Precision Steering: Standard electric power steering for safe and comfortable operation.
High Stability: Large section mast structure ensures rigidity for high-shelf storage.
Premium Components: Imported hydraulic parts and side-pull type battery for convenience.

⚙️Premium Configurations

Gantry channel steel imported from Germany with shock absorption.
Danfoss or Eaton side shift and rotary motors.
Japan Tokai Rubber and Plastic Pipe; Tianjin Shimadzu Gear Oil Pump.
American AMP waterproof and dustproof plug-ins.
Japanese NOK seals and German SICK brand steering sensor switches.
H-shaped channel steel and central guide rail for high-position stability.
High gantry video color display and battery side-pull replacement rack.

🤝Our Service Commitment

Pre-Sales Service

Inquiry and consulting support.
Photos & Videos of orders before shipment.
Factory visiting support.

After-Sales Service

Operation training and user manuals.
Life-time supply for spare parts.
24/7 technical support via email.

❓Frequently Asked Questions

What are the advantages of a 3-way pallet stacker?

A 3-way stacker allows the forks to rotate 180 degrees and move left or right without turning the vehicle body. This makes it perfect for ultra-narrow aisles, significantly increasing warehouse storage density.

What is the maximum lifting height available?

The MC series can reach a maximum lifting height of 9000mm (9 meters), making it suitable for high-shelf storage systems.

Is the motor maintenance-free?

Yes, the forklift utilizes a whole-AC driving system with a maintenance-free motor, which reduces long-term maintenance costs and provides quieter operation.

Can this forklift be used in cold storage?

Yes, the 3-way pallet stacker is a primary choice for intensive storage in logistics, medicine, and low-temperature cold storage environments.

What is the minimum aisle width required?

This VNA (Very Narrow Aisle) truck can operate in a minimum net channel width of approximately 1500mm, depending on the specific pallet size.

What kind of warranty is provided?

We offer a one-year guarantee for the main parts of the whole machine, along with 24-hour technical support and life-time spare parts supply.
