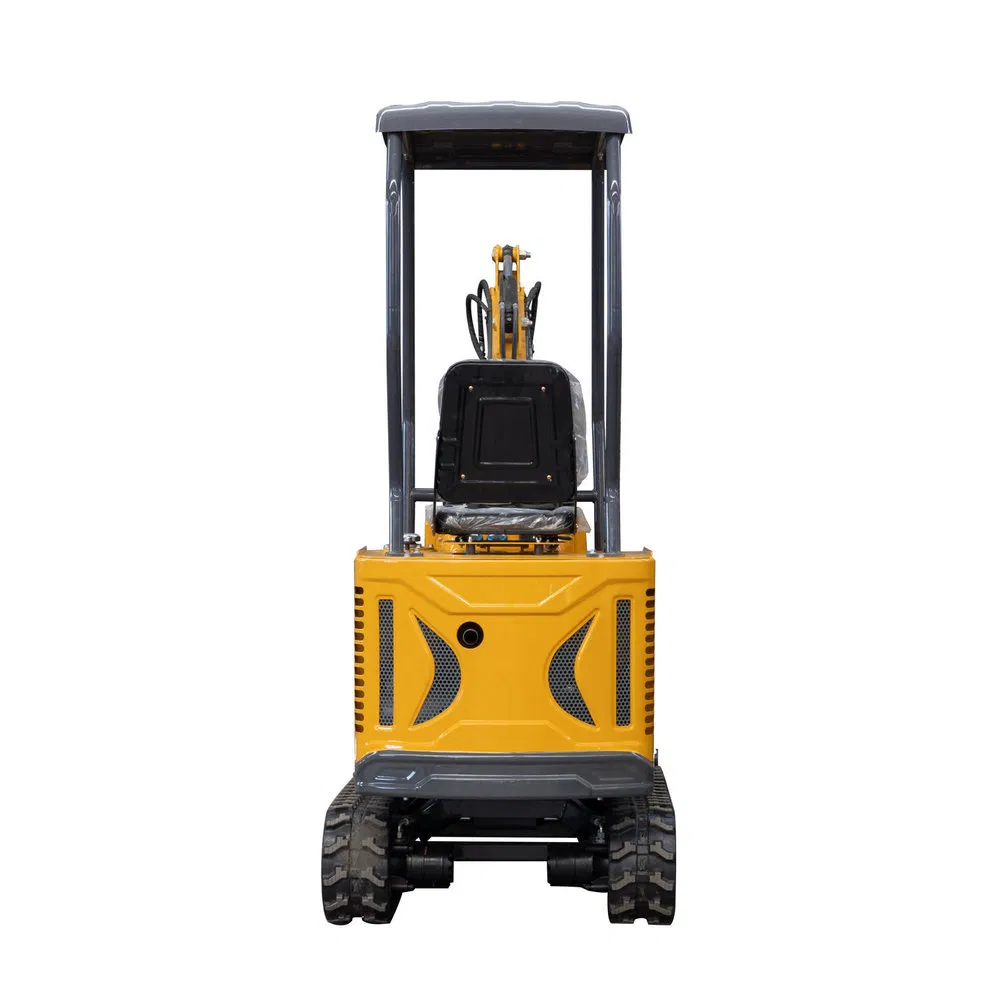

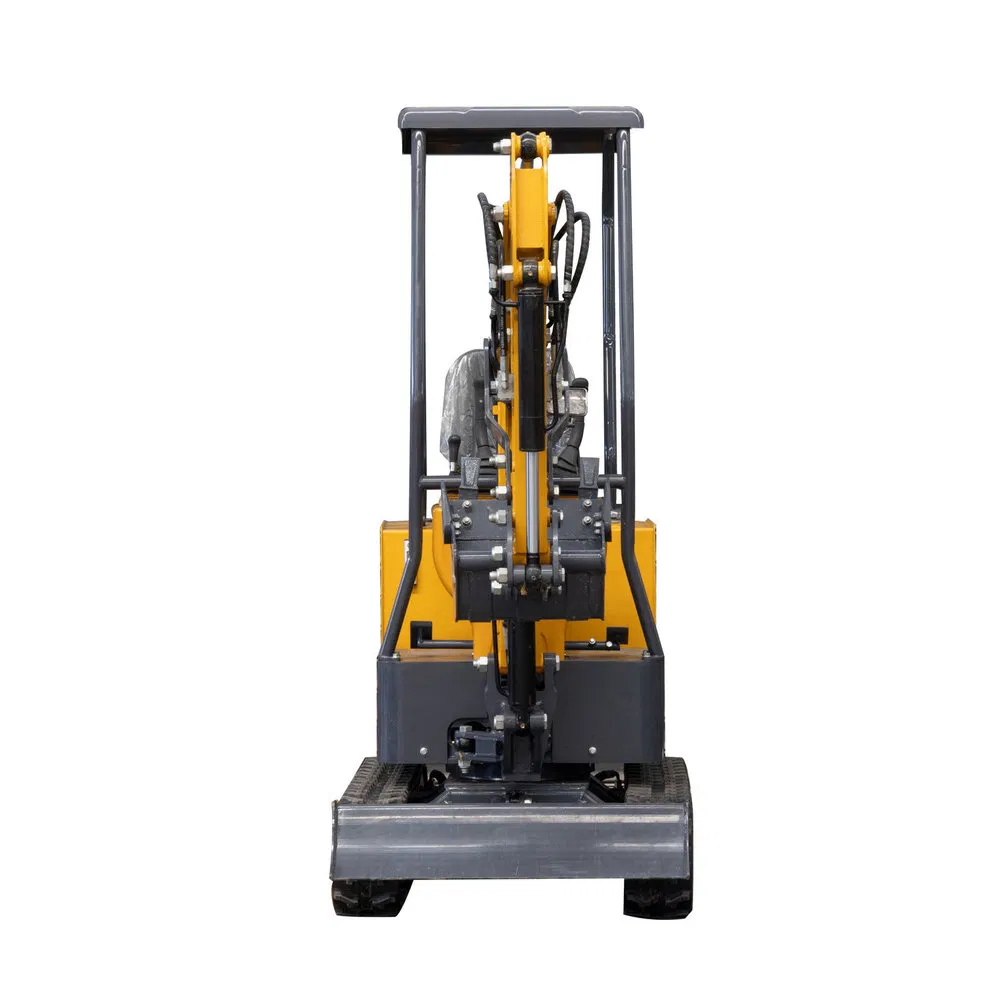

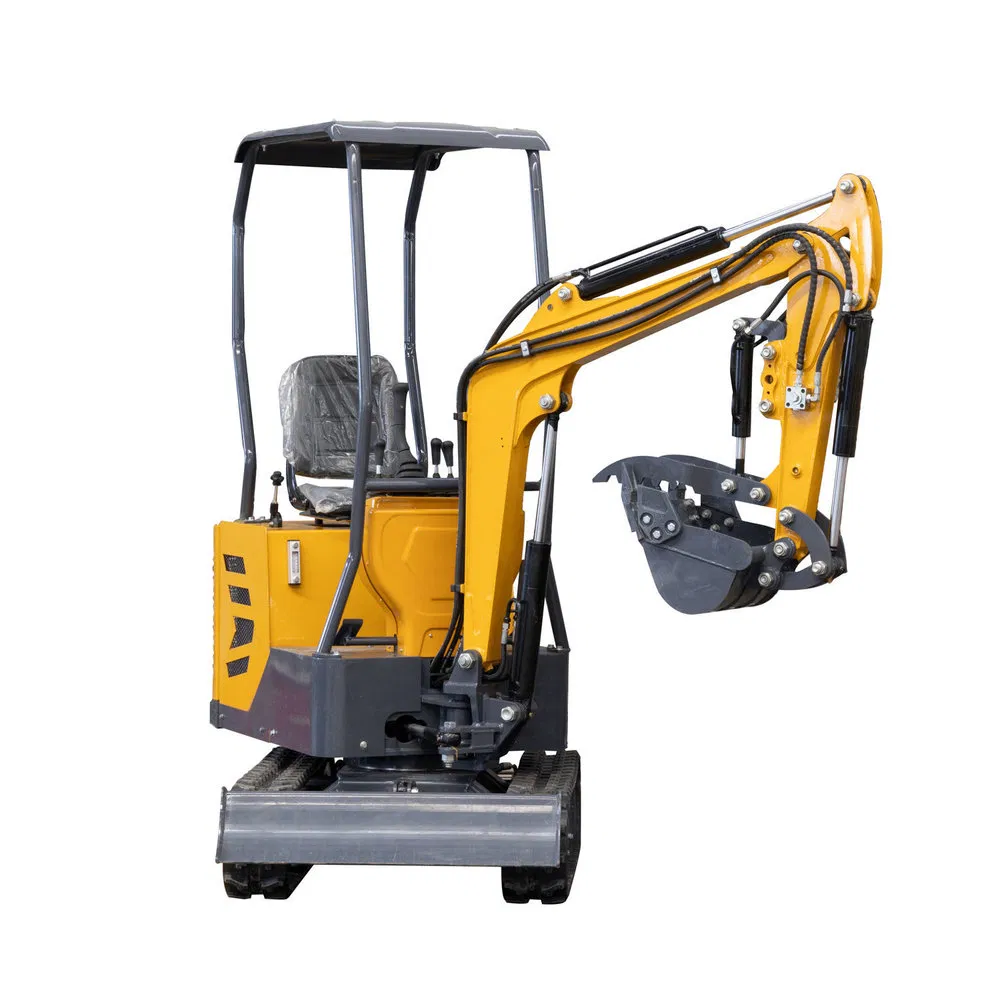

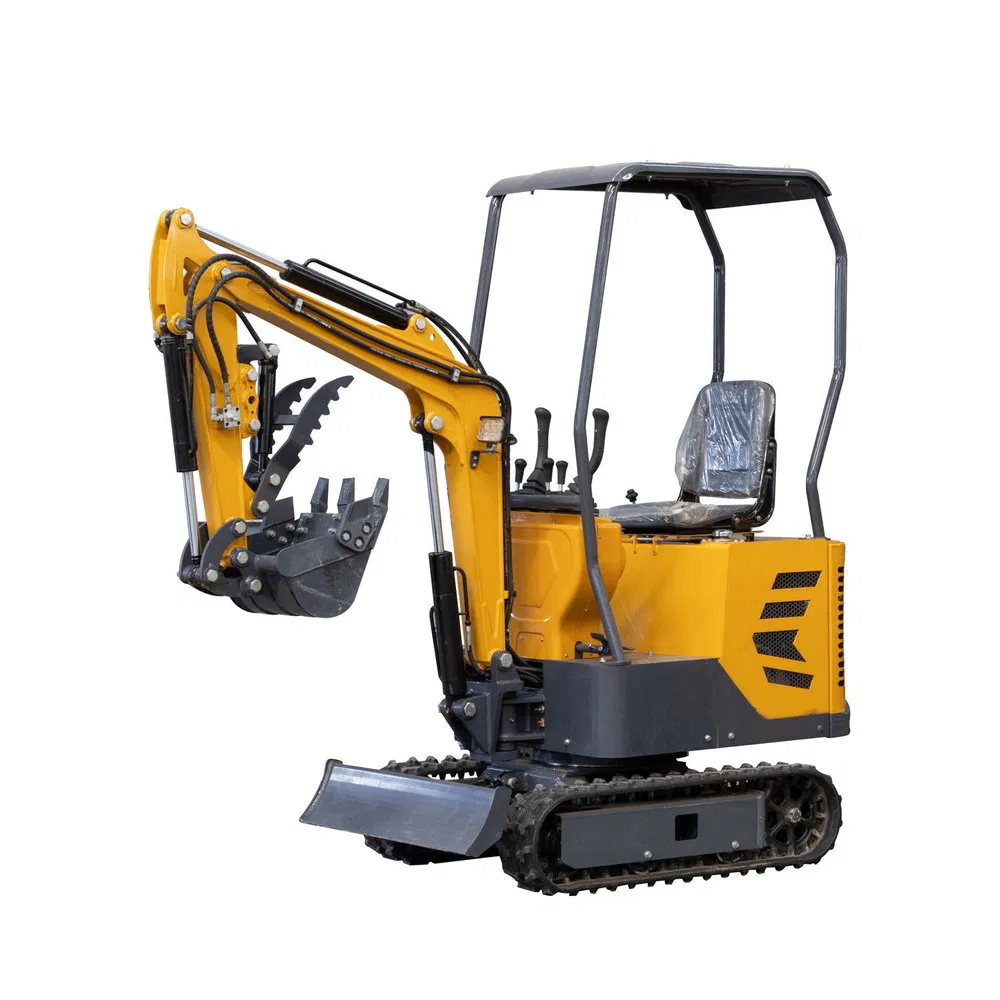

This high-performance mini excavator combines compact design with powerful functionality, making it the ideal solution for confined spaces and versatile job sites. With a compact body width of just 934mm and equipped with a robust Rato 420CC engine delivering 13 HP power, this small excavator excels in excavation, digging, trenching, and demolition tasks.
Powerful Engine Performance: Equipped with a Rato 420CC air-cooled engine generating 13 HP (8.6 kW) at 3600 rpm, delivering reliable power for continuous operation while maintaining excellent fuel efficiency.
Ultra-Compact Design: With transport dimensions of 2350mm (L) × 934mm (W) × 2170mm (H), this mini excavator easily navigates narrow doorways, gardens, and urban construction sites.

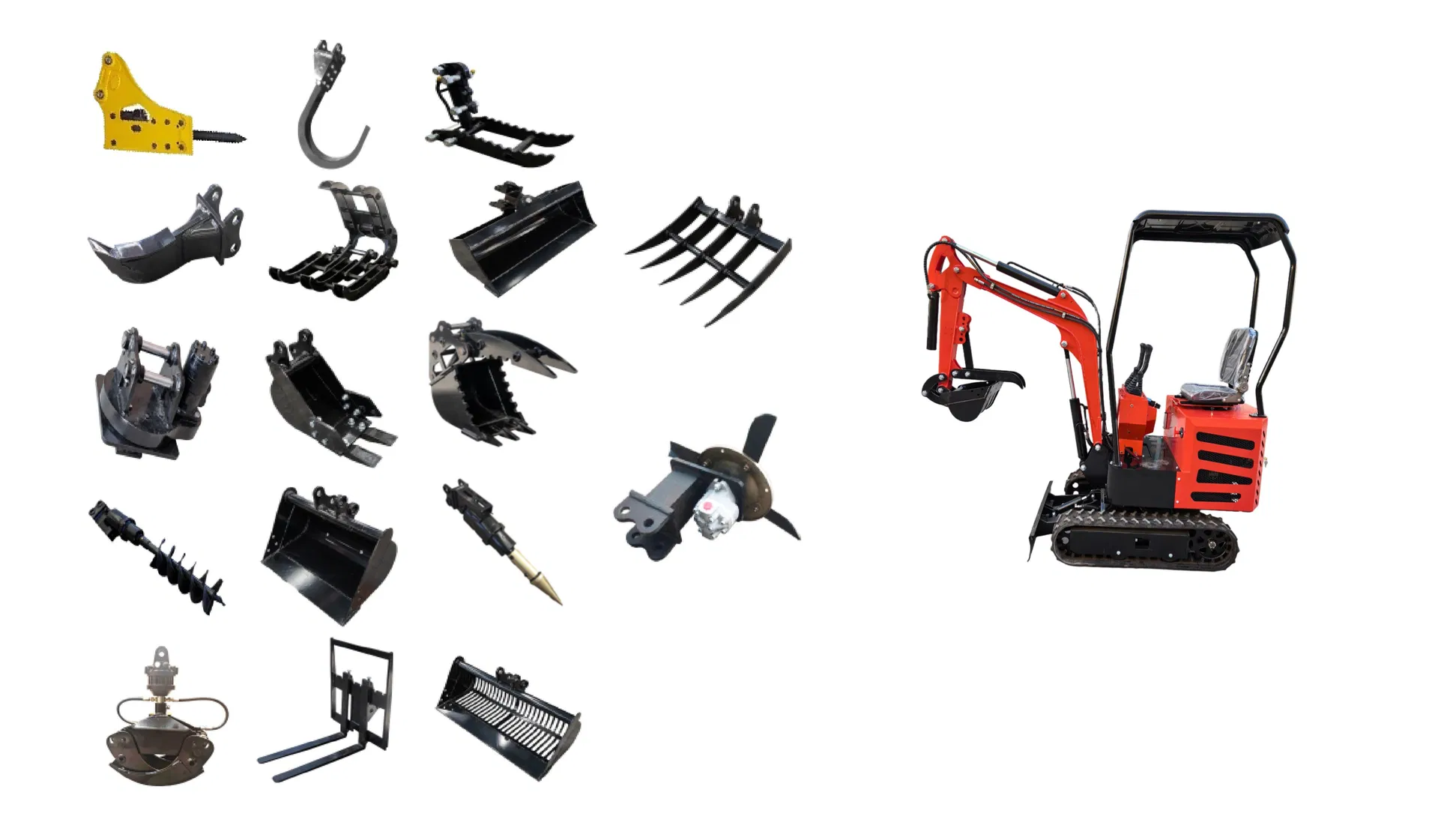

Versatile Attachment System: Compatible with multiple attachments, including crushers, rotary drilling rigs, and weeding rakes, transforming this machine into a multi-purpose tool.
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Engine Model | Rato 420CC |
| Power | 13 HP / 8.6 kW |
| Speed | 3600 rpm |
| Displacement | 0.42 L |
| Cooling Type | Air-cooled |
| Fuel Consumption | 0.8–0.9 L/h |
| Transport Length | 2350 mm |
| Transport Width | 934 mm |
| Transport Height | 2170 mm |
| Ground Clearance | 145 mm |
| Bucket Width | 380 mm |
| Boom Length | 1500 mm |
| Arm Length | 800 mm |
| Dozer Blade Width | 910 mm |
| Fuel Tank | 6.6 L |
| Hydraulic Oil Tank | 12 L |
| Track Size | 180×72×37 |

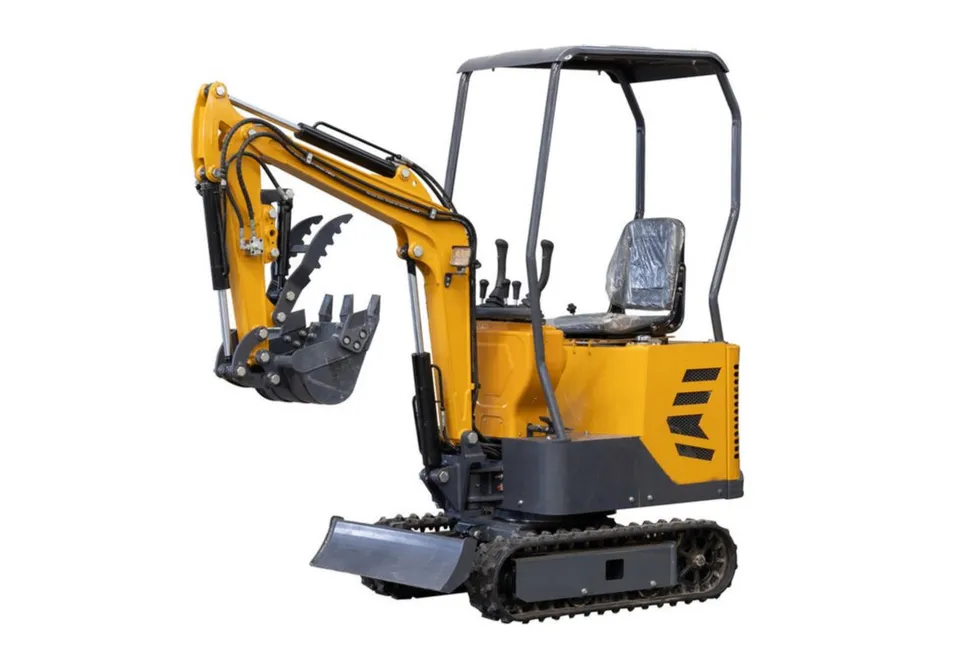

Features a robust hydraulic system operating at 17-18 MPa pressure with a 12L hydraulic oil tank, ensuring smooth and precise control during operation.

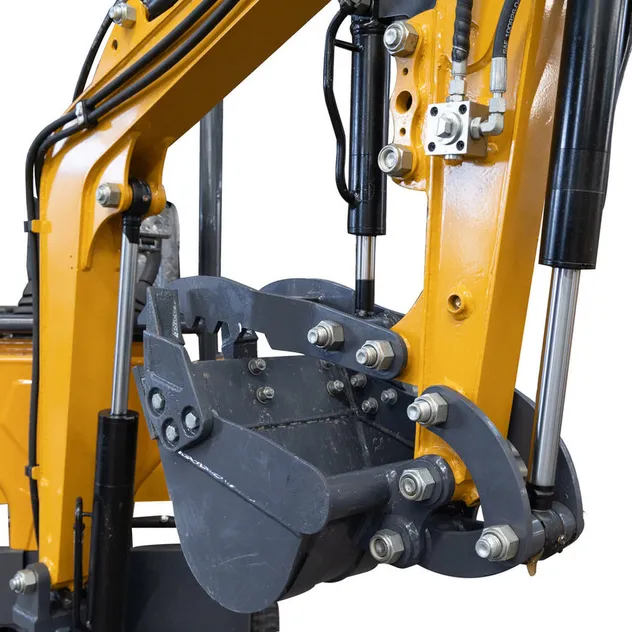

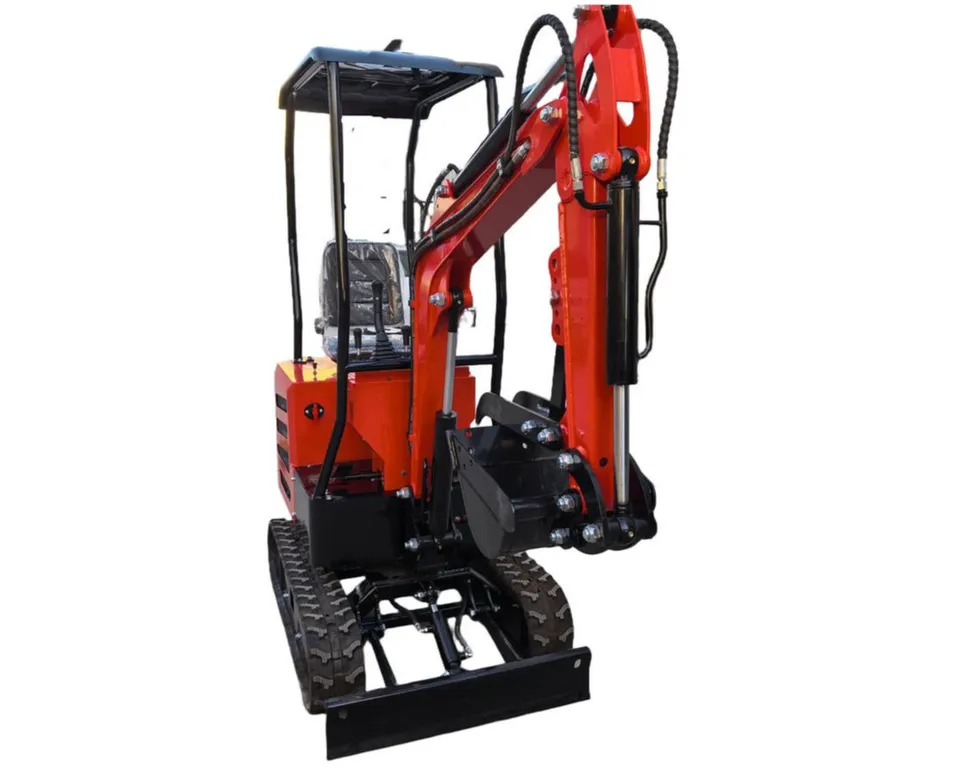

Engineered with a 1500mm boom length and 800mm arm length, plus a 910mm dozer blade width, providing excellent digging depth and reach.

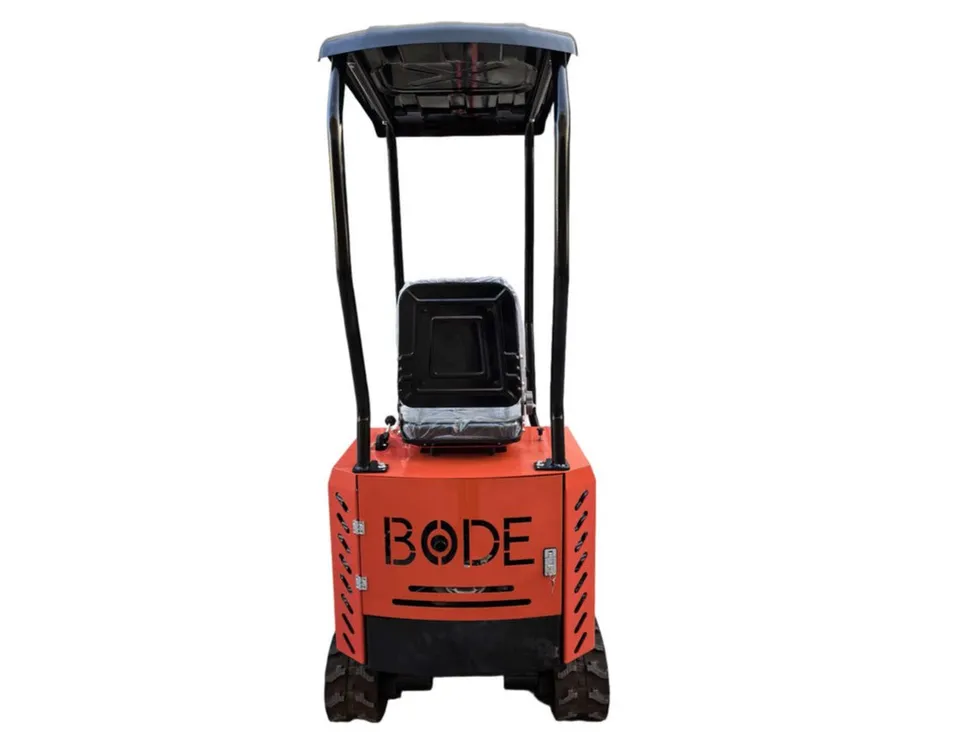

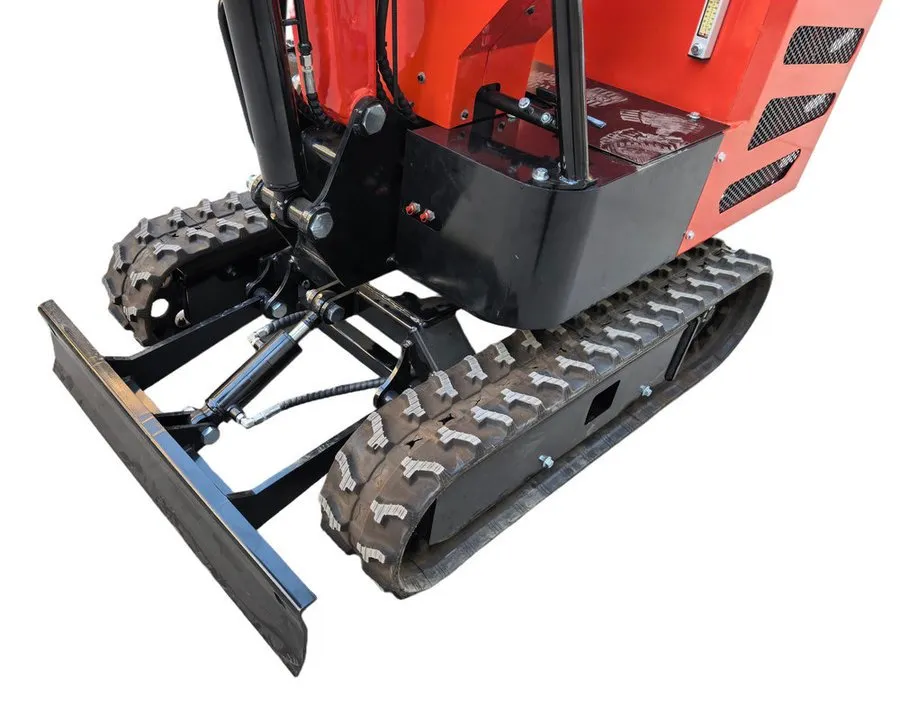

180×72×37 track size delivers superior stability and traction across different terrains, including soft soil and uneven surfaces.
