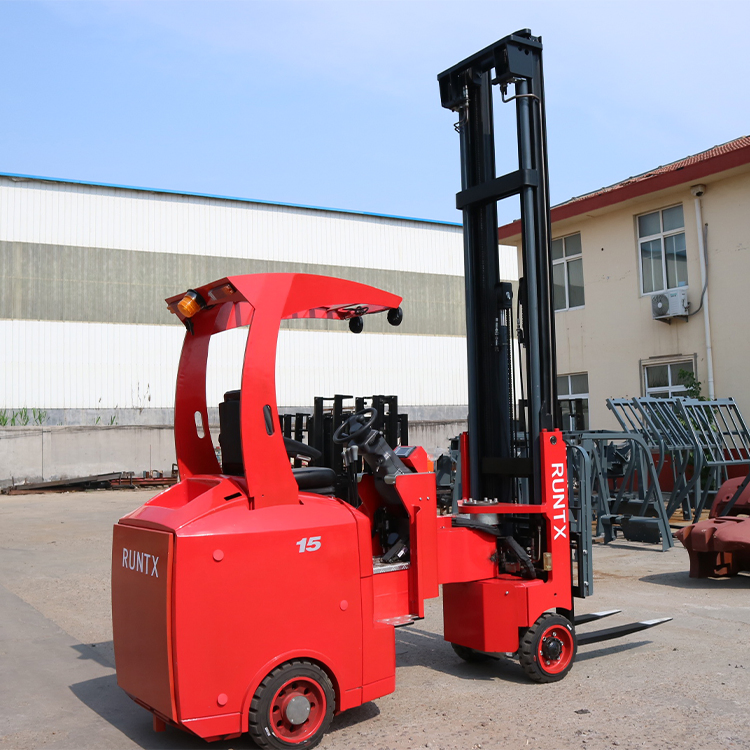

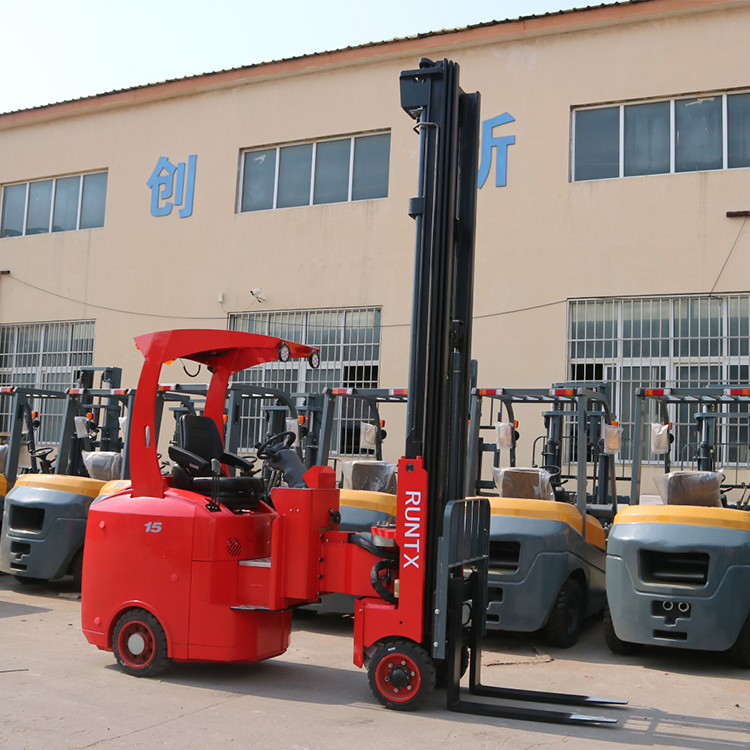

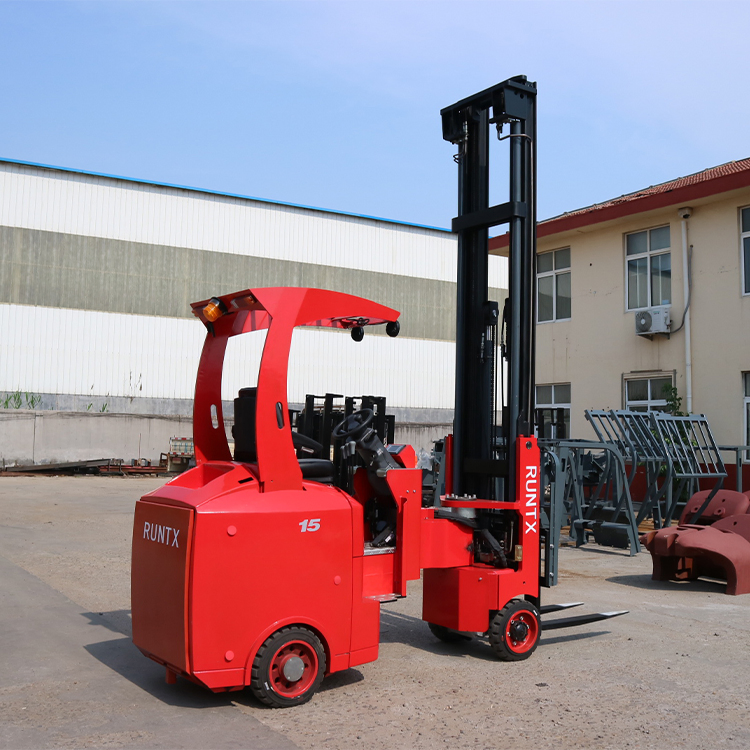

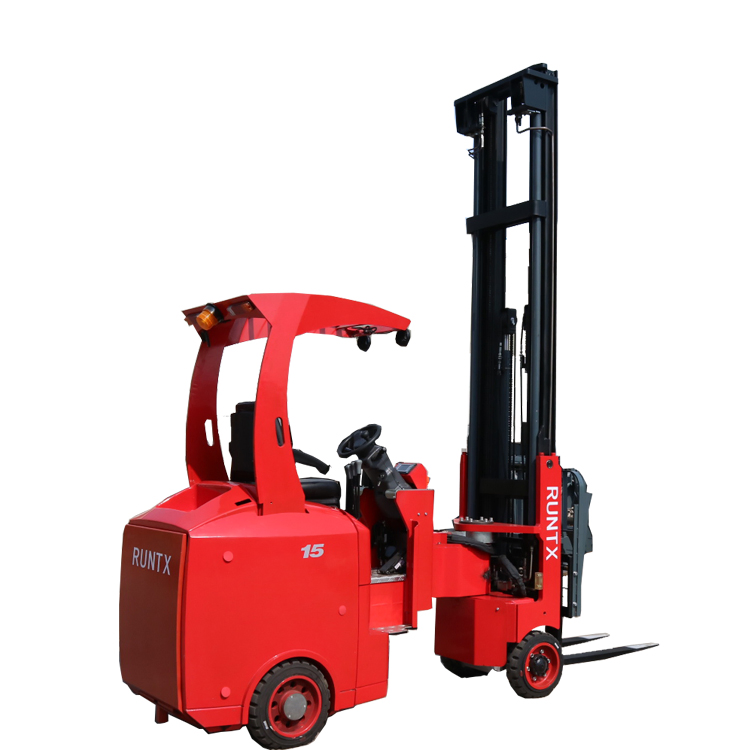

Runtx Very Narrow Aisle Forklift Vna Forklift Truck Vna15 1.5 Ton Forklift Truck for Warehouse Use

Customization: Available
After-sales Service: One Year
Warranty: One Year

Product Description

Basic Information
Model NO.
VNA15
Cab Location
Adjustable
Type
Stacker
Power
AC Motor
Load Capacity
1.5t-3t
Fuel
Electric
Load Center
500mm
Lift Height
3000mm-12400mm
Condition
New
Origin
China
Capacity
5000 Units/Year
Product Description

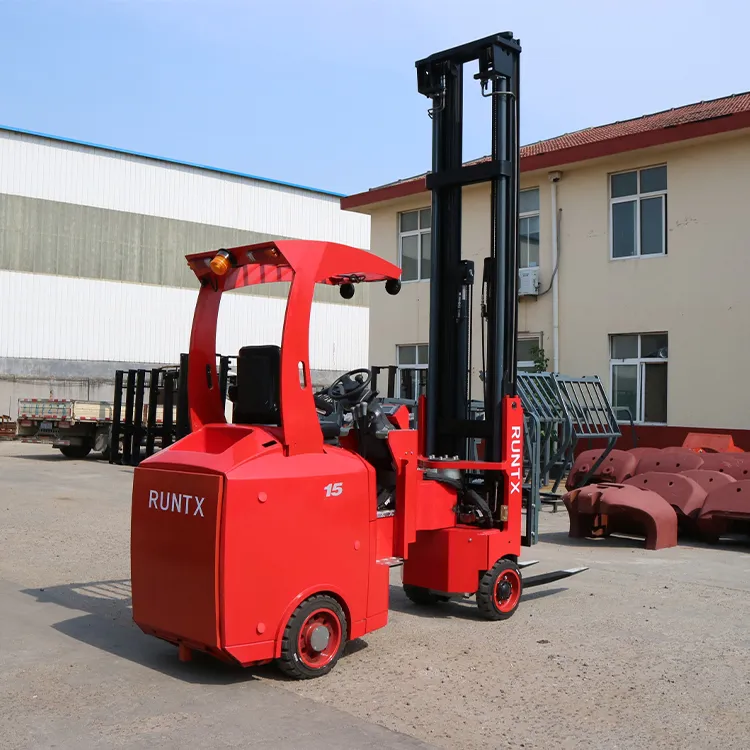

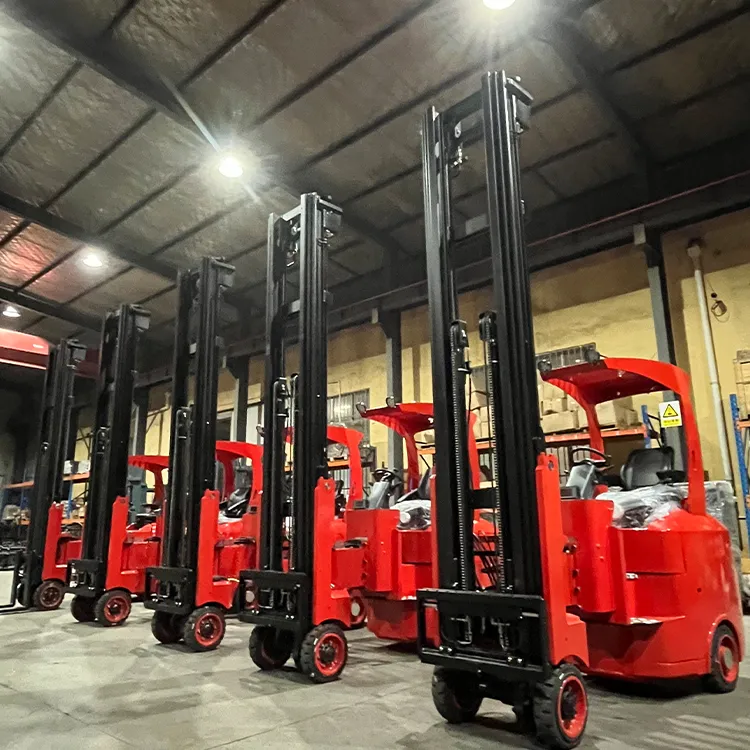

Very Narrow Aisle Forklift 1 Very Narrow Aisle Forklift 2
Item Unit VNA15 VNA20 VNA25 VNA30
Loading Capacitykg1500200025003000
Loading Centermm500500500500
System Type-ACACACAC
Battery Type-Lead acid / Lithium battery
Lifting Heightmm4500-80004500-100004500-124004500-12400
Min Stacking Widthmm1600/18001800/20002000/20002000/2000
Weight (incl. battery)kg6500690072007800
Product Details
🛡️
Safety Control: Standard cornering speed limit, ramp stop, and ramp descent functions ensure maximum operational safety.
🕹️
OPS Monitoring: Driver presence safety monitoring (OPS) effectively improves situational safety during high-level lifting.
🏗️
Braking System: Automatic gap compensation mechanism adjusts the brake friction plate wear automatically.
🛣️
Versatile Operation: Suitable for both indoor and outdoor use with patterned solid tires for superior handling.

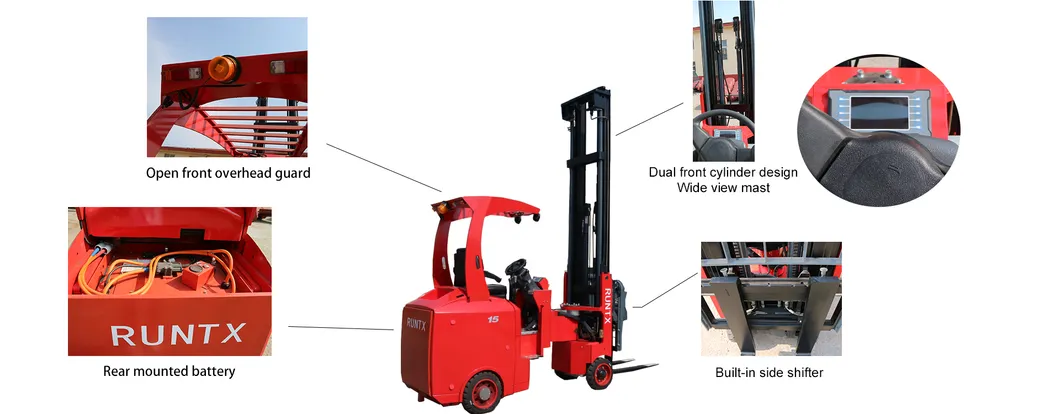

VNA Operation Detail

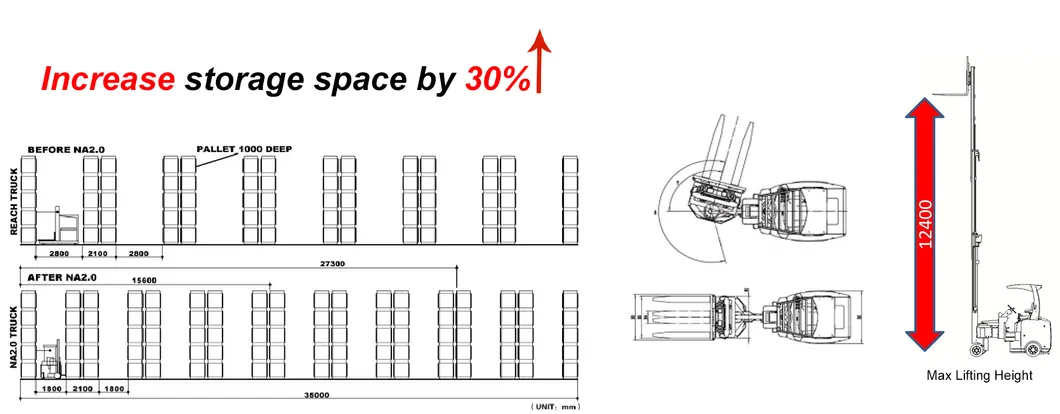

VNA Technical Detail
Space Optimization: Very narrow aisle electric forklifts can operate freely in aisles of 1700-2200mm. Compared with reach-type forklifts, they can increase storage space by 30% without needing a guidance system.
About Shipping

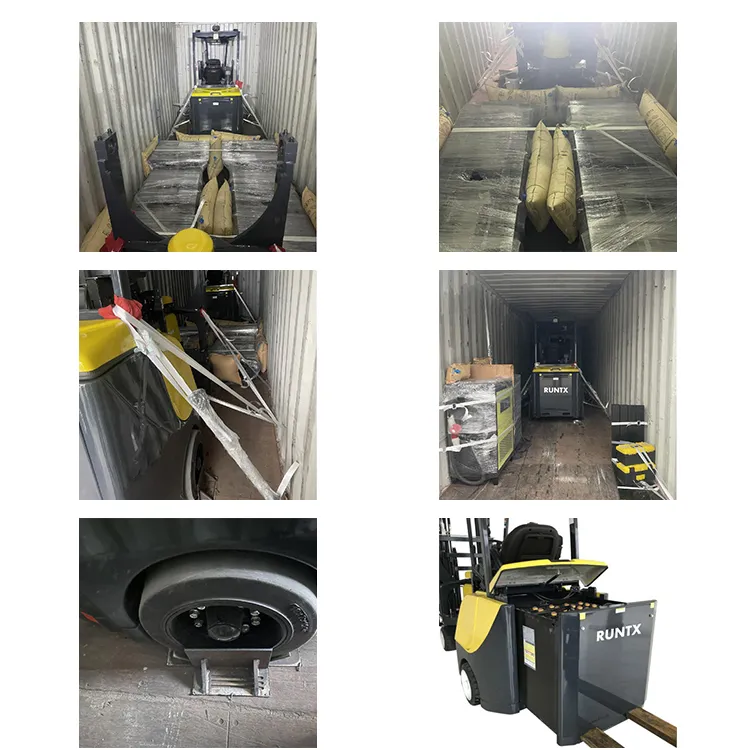

Shipping and Packaging

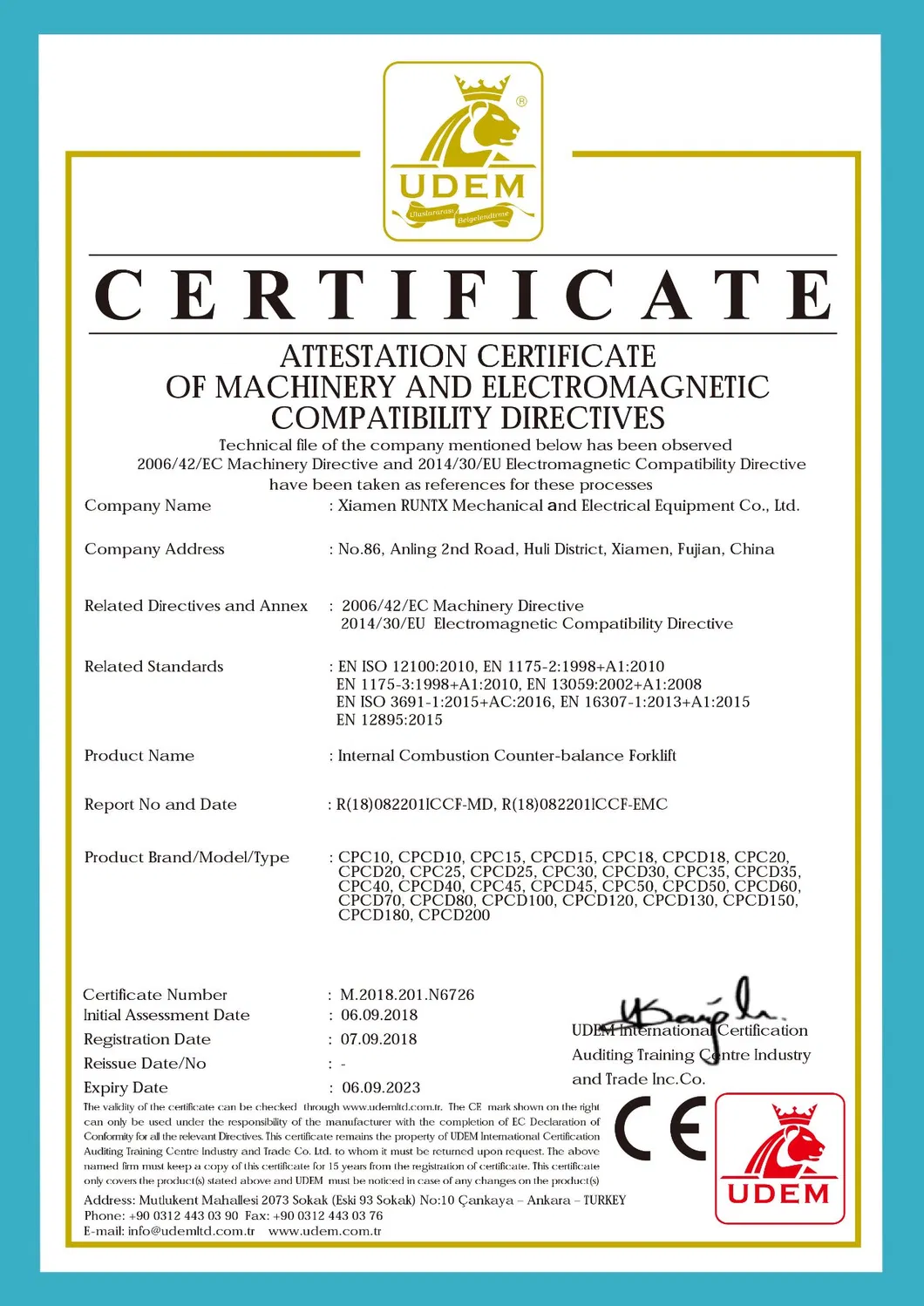

Certifications
Certification 1 Certification 2 Certification 3
After Sales Service

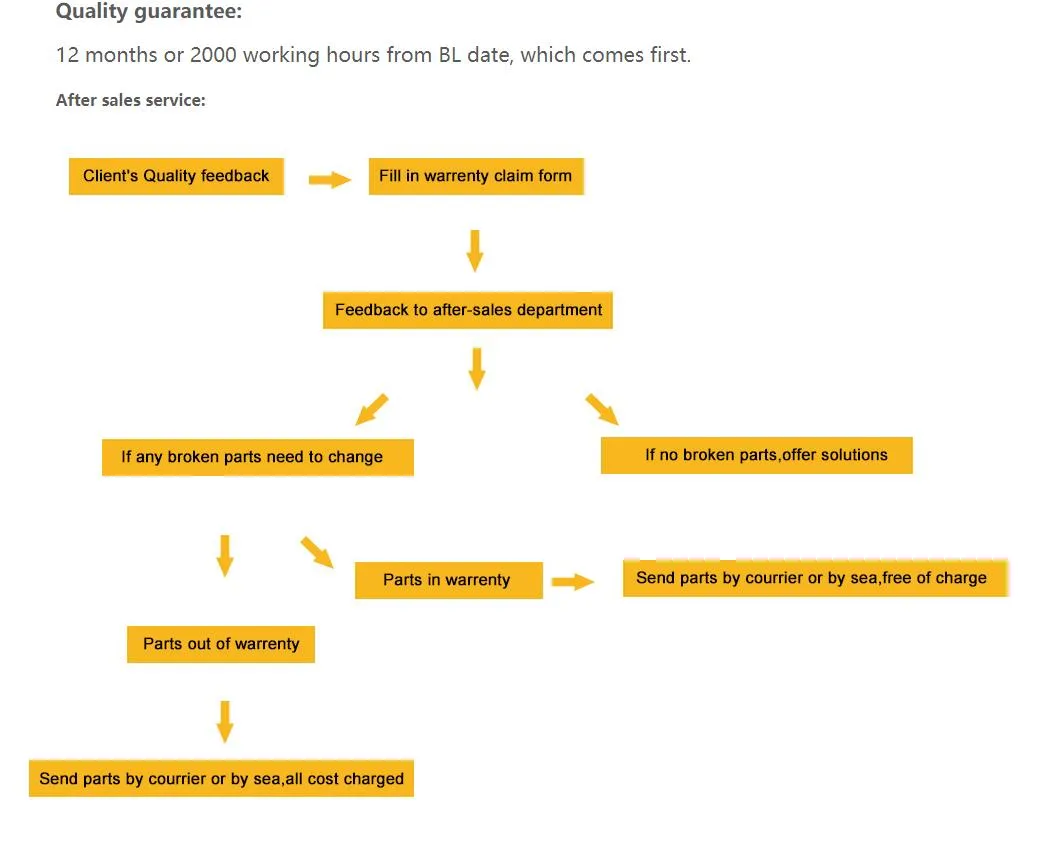

Service Support
Customers & Exhibitions
Exhibition View
Frequently Asked Questions
What is the maximum lifting height of the VNA forklift?
The VNA series offers a wide range of lifting heights, reaching up to 12,400mm (12.4 meters) depending on the specific model.
How much storage space can I save using this equipment?
By operating in narrow aisles of 1700-2200mm, these forklifts can increase your warehouse storage capacity by approximately 30% compared to traditional reach trucks.
Can this forklift be used outdoors?
Yes, the equipment is designed for both indoor and outdoor operations and comes standard with patterned solid tires to handle various working environments.
What safety features are integrated into the design?
Safety features include cornering speed limits, ramp stop and descent protection, high-level travel speed limits, and the OPS (Driver Presence) monitoring system.
What type of battery power does it use?
The forklifts are powered by high-efficiency AC motors and can be configured with either Lead-acid or Lithium battery systems.
Does it require a guidance system for narrow aisles?
These forklifts are designed for high maneuverability and do not necessarily require the installation of a guidance system to operate in narrow aisles.
