Customization: Available
After-sales Service: Available
Warranty: 18 Months
Send Inquiry

Product Description

Basic Specifications
Model NO.XE215SLL
TypeCrawler Excavator
UsageSpecial Excavator, Marine Excavator, Mining Excavator
BucketShovel
TransmissionHydraulic Transmission
Drive TypeInternal Combustion Drive
Bucket Capacity0.5~1.0m³
SizeLarge-Scale
CertificationCE, ISO9001: 2000
ConditionNew
Operation Weight30 Ton
Moving TypeCrawler
Product Description
●

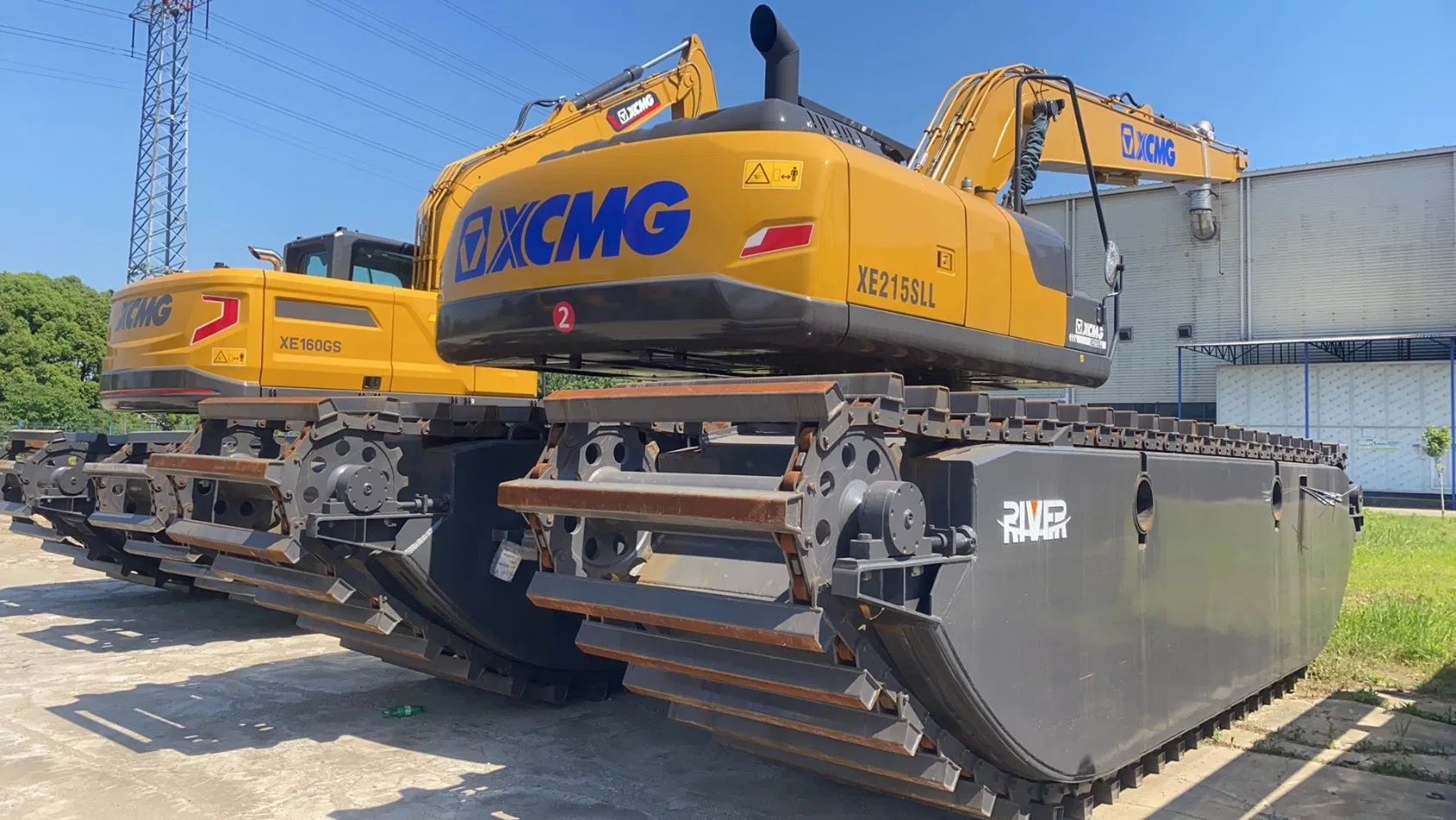

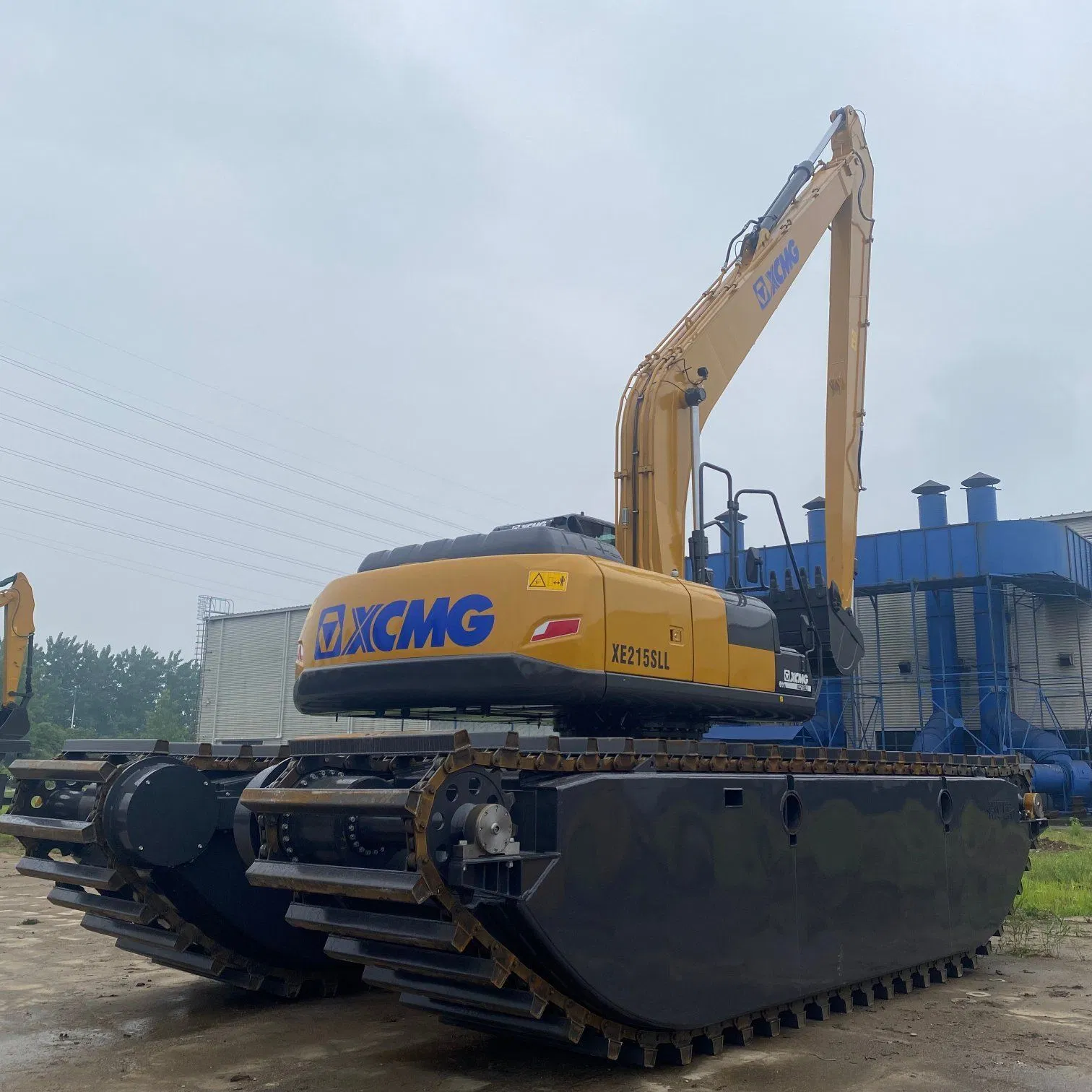

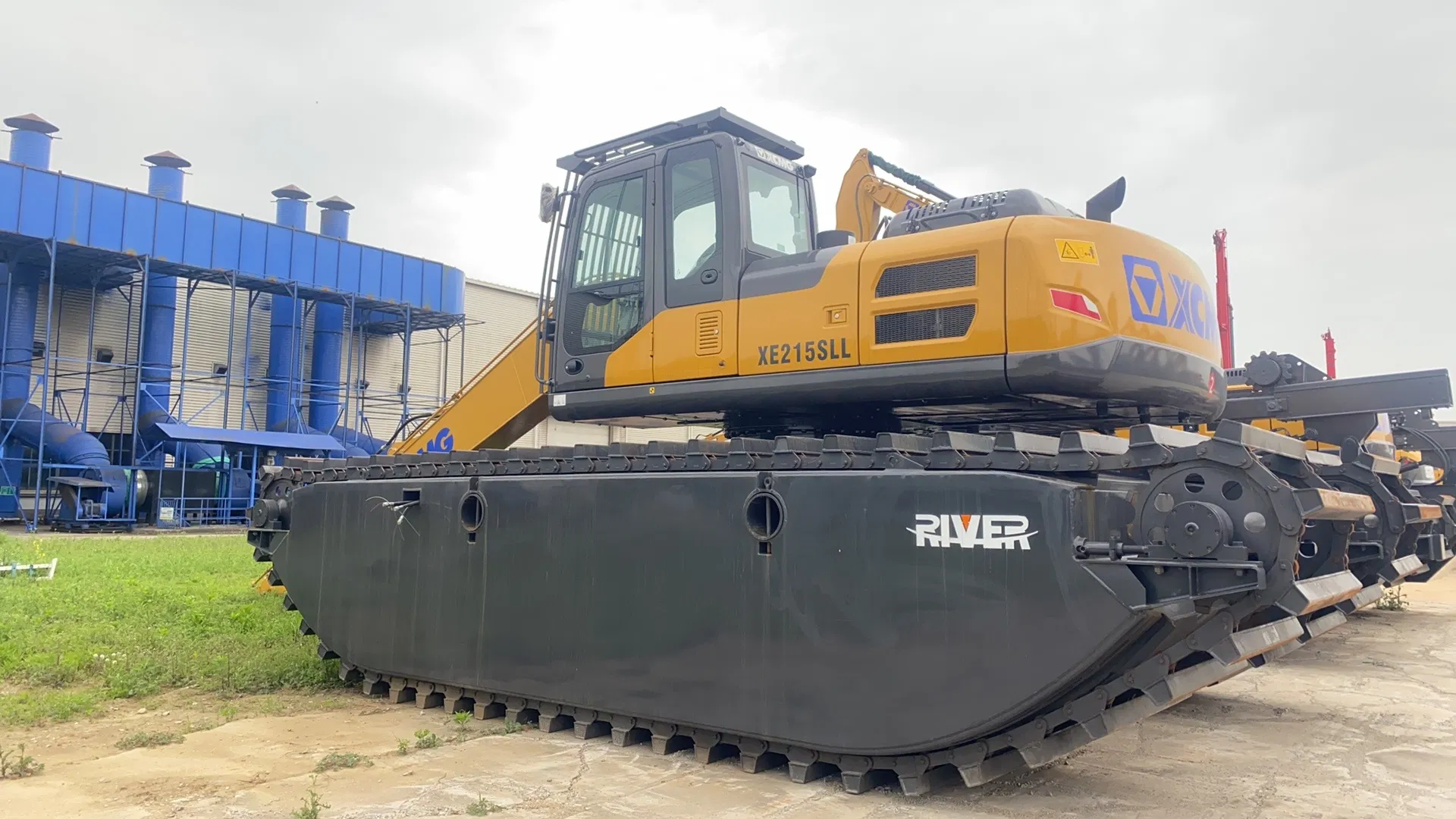

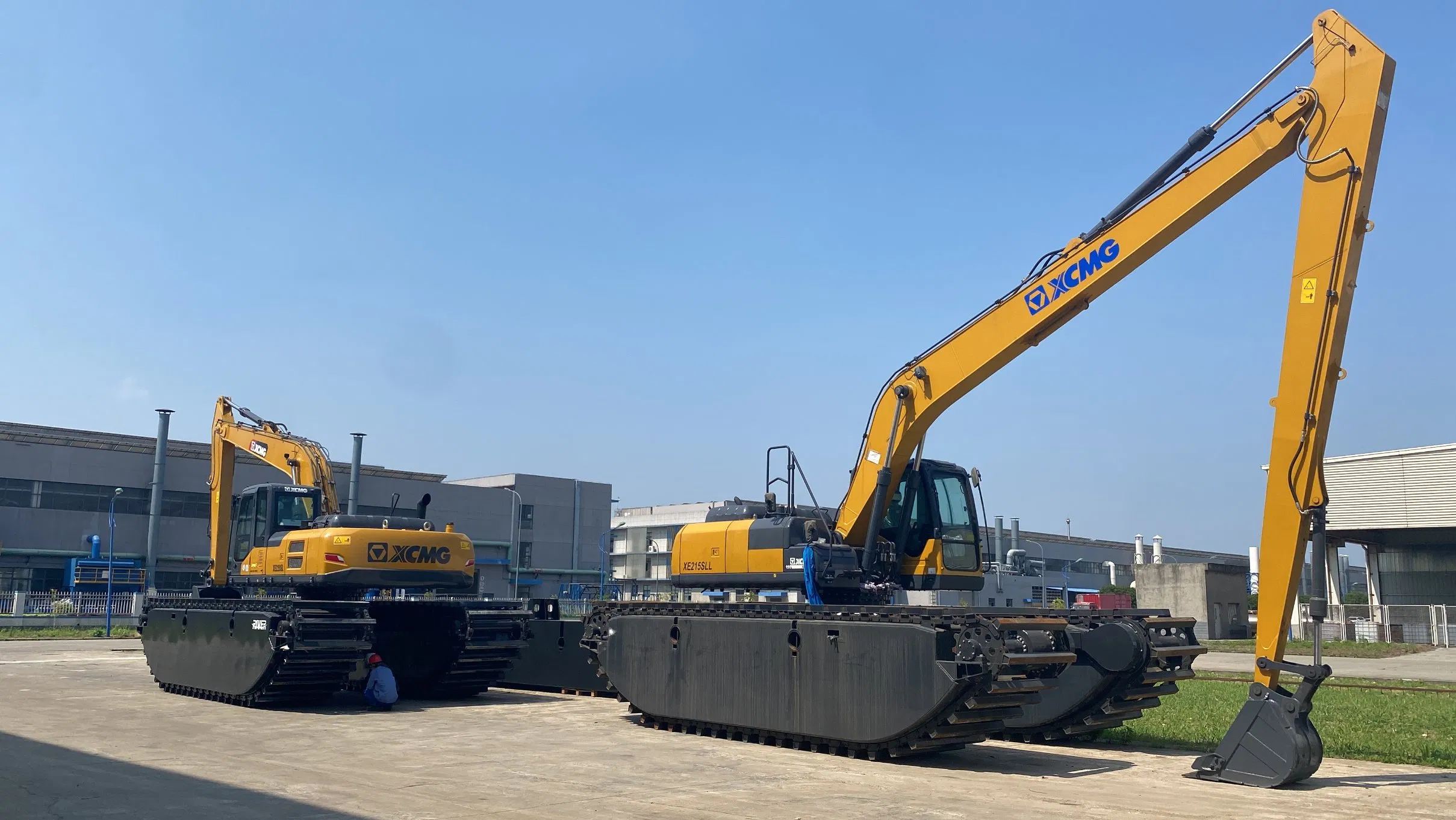

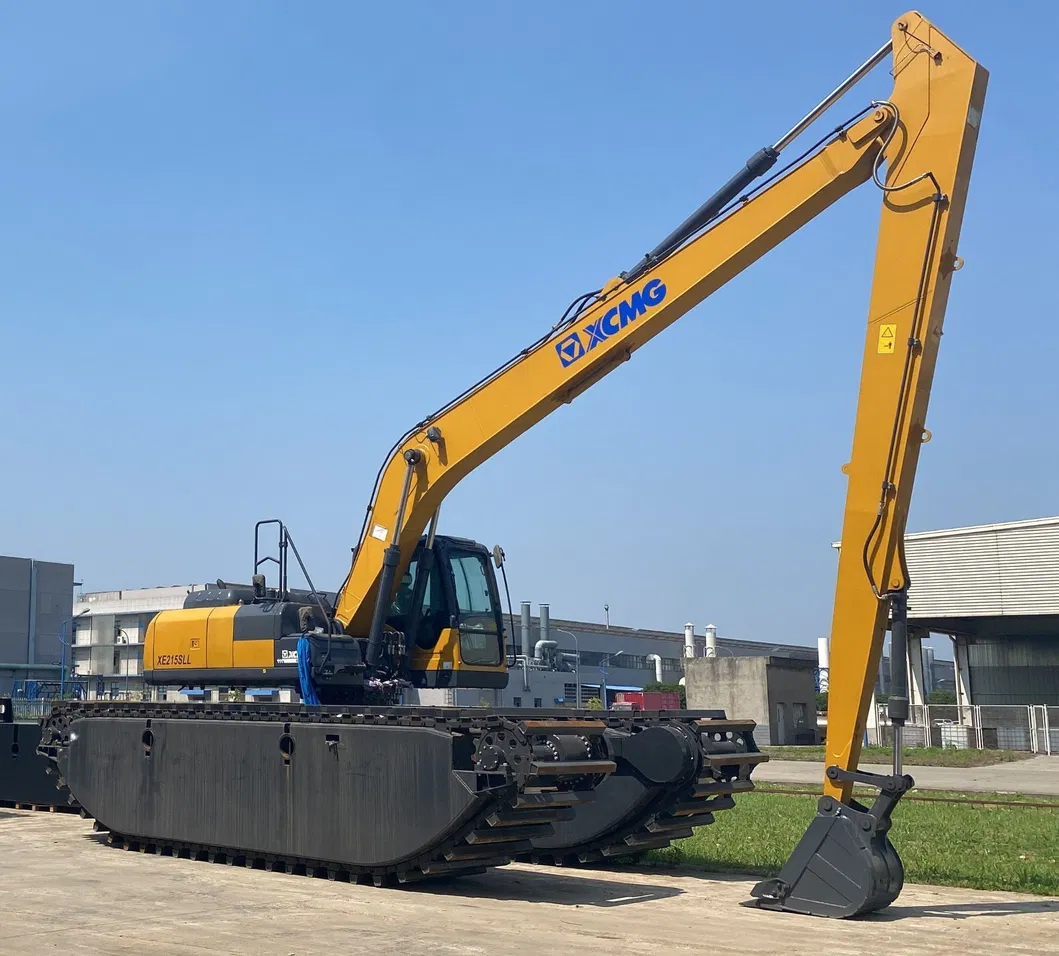

XE215SLL Pontoon Amphibious Excavator with 15m Long Reach Front

Engine Model: CC-6BG1TRP

Amphibious Excavator
Technical Specification of XE215SLL
ModelXE220SLL
Operating weight30500kg
Engine ModelCC-6BG1TRP
Power(kw/rpm)128.5/2100
Displacement6.494L
TypeDirect injection, four-stroke, water-cooled, turbocharged
Long reach front15000mm
Bucket capacity0.4m³
Main pumpPiston pump*2
Maximum digging height14180mm
Maximum digging depth12620mm
Maximum digging radius15395mm
Overall machine width4500mm
Main Applications
  • Wetland Restoration: Ideal for restoring marshy areas and reshaping terrain.
  • Dredging Operations: Efficiently clears sediment from rivers, lakes, and ponds.
  • Aquaculture Construction: Essential for building ponds and creating access channels.
  • Flood Control: Managing water levels and reinforcing embankments.
  • Environmental Remediation: Safely removes contaminated soil from water bodies.

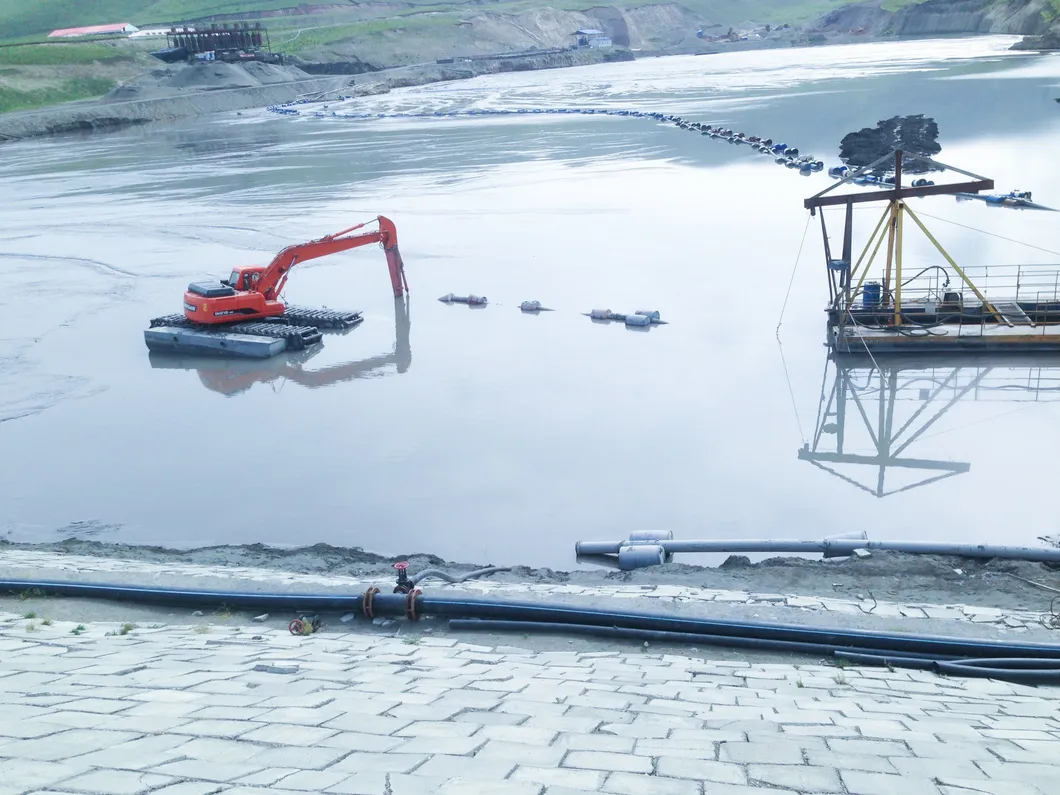

Dredging Operation

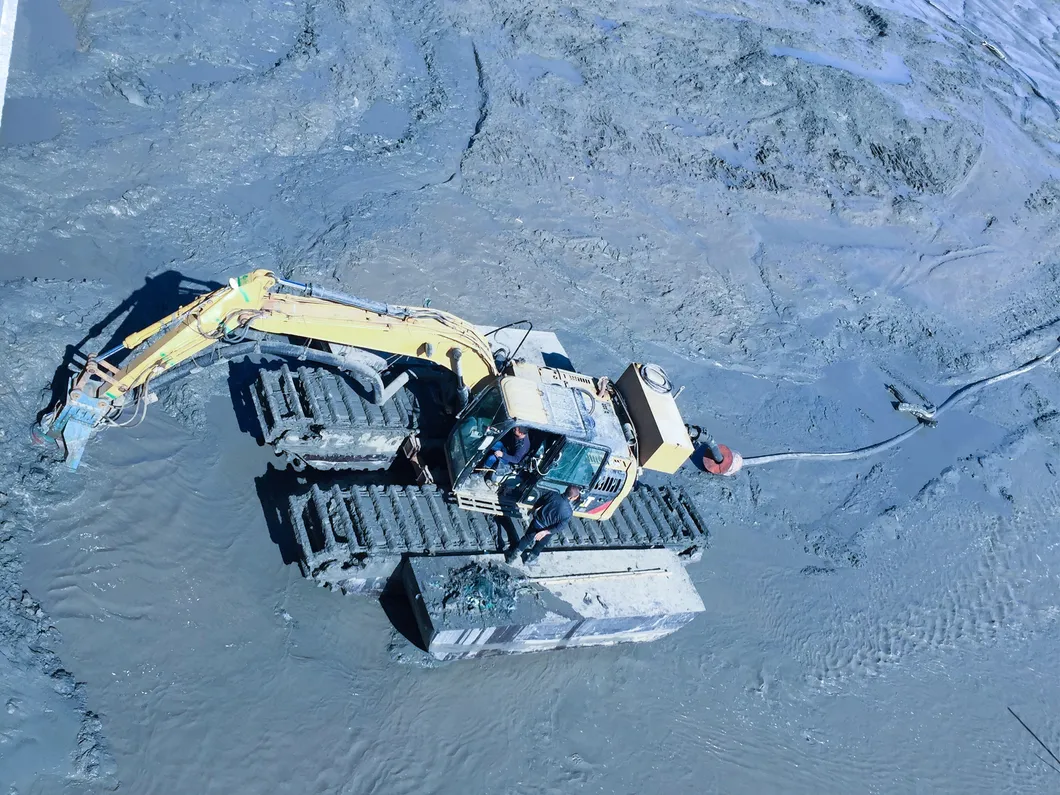

Wetland Construction
Equipment Range & Advantages

A variety of models spanning from 5 to 50 tons are available, along with specialized amphibious undercarriages. Customization for the extension length (11m, 13m, 15m or longer) is supported to meet specific digging requirements.

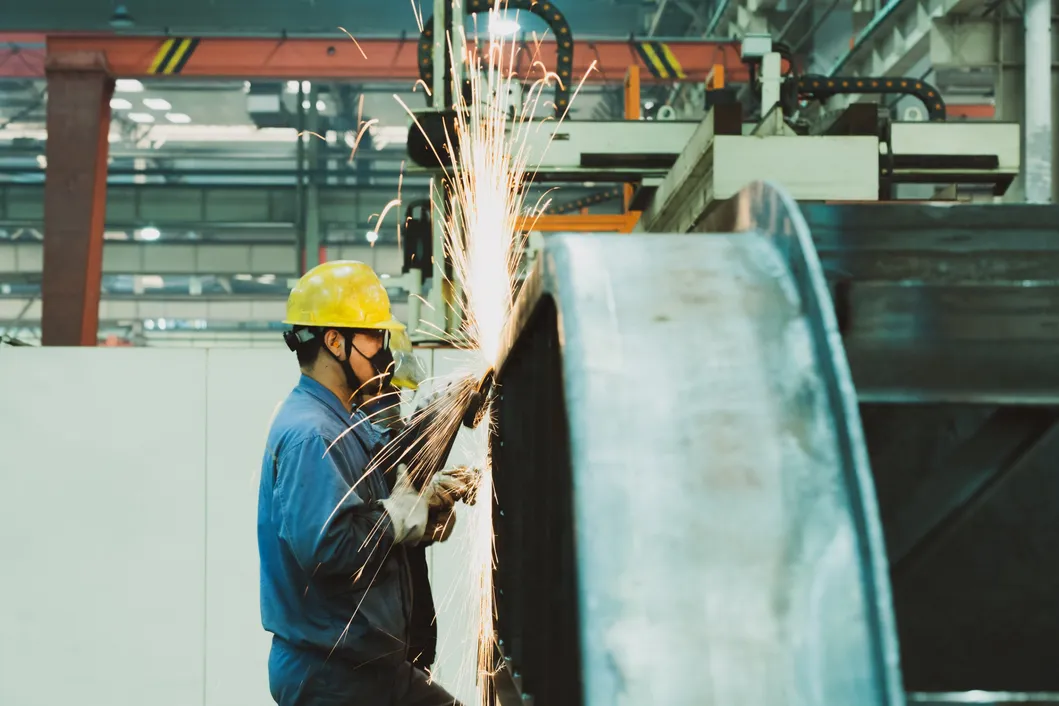

Range of Excavators

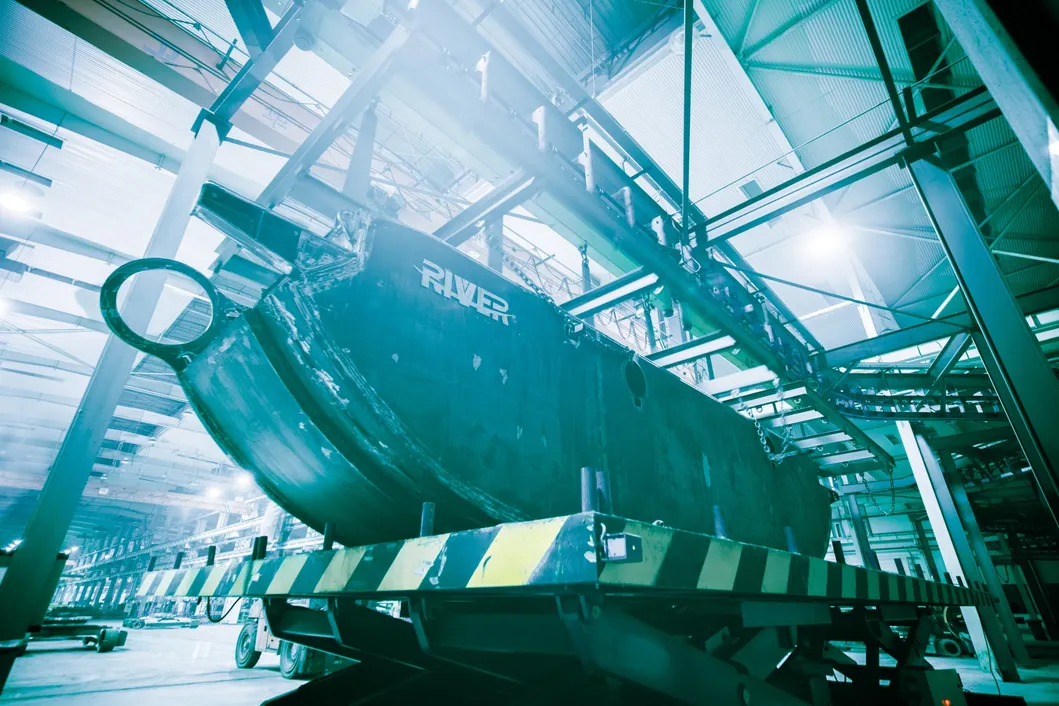

Specialized Undercarriage
★
Lightweight Design Pontoon Undercarriage: Industry-leading standards with rigorous quality control and optimized material sourcing.

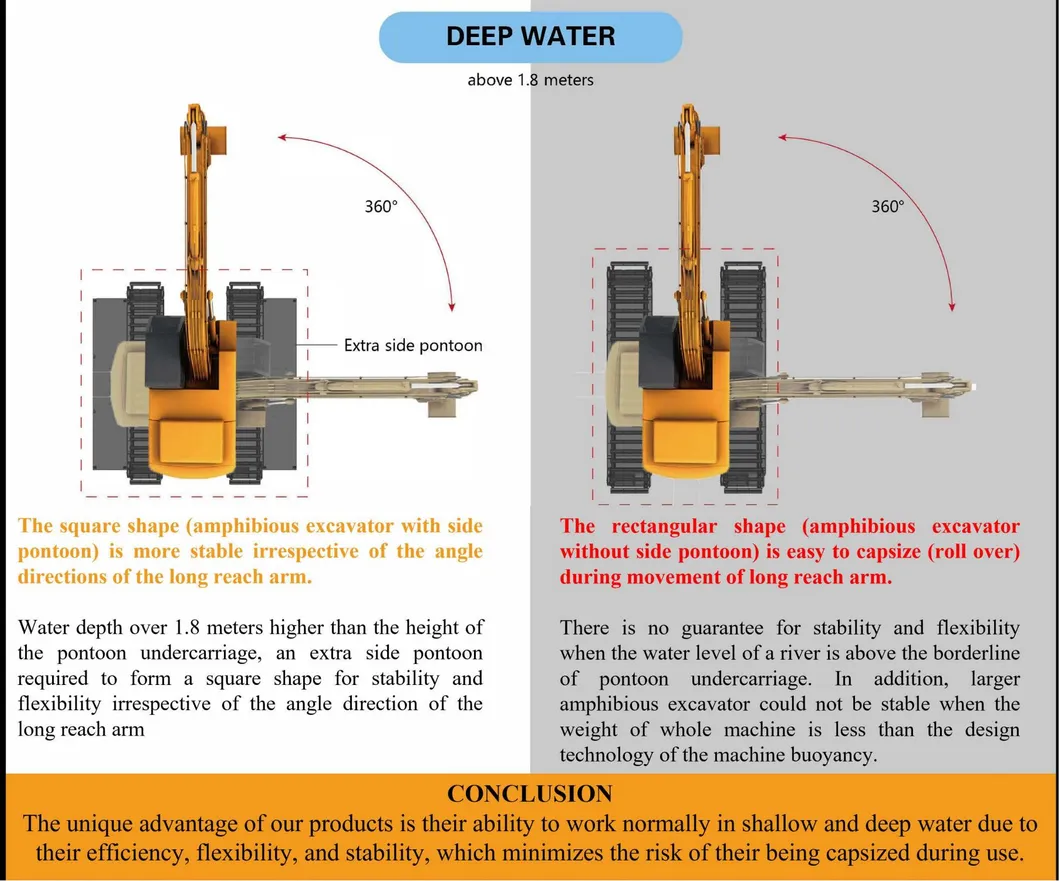

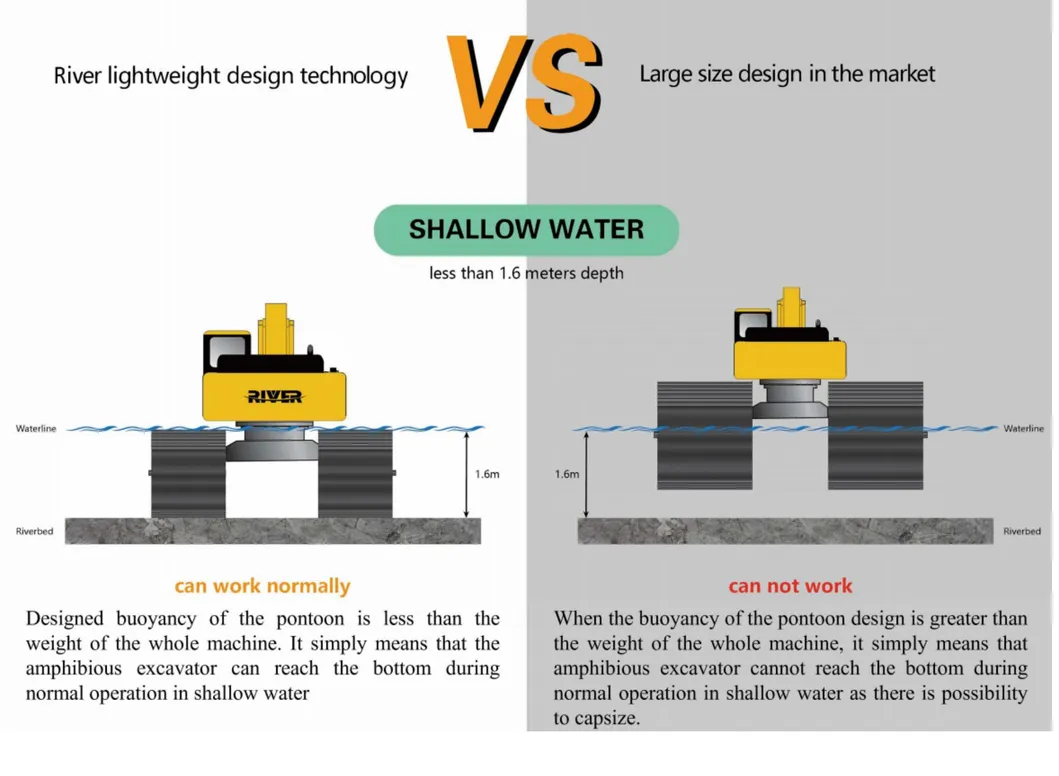

Pontoon Design
Pontoon Structure

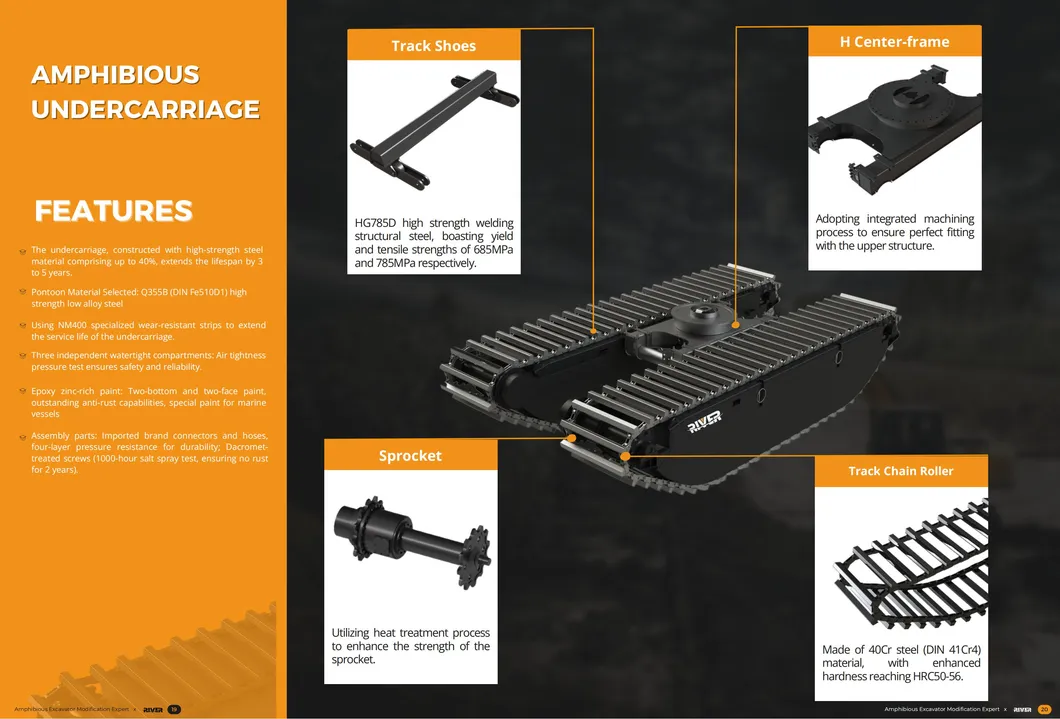

Fabrication & Components

Expertise in river dredging ensures that key components for fabricating amphibious undercarriages meet user requirements perfectly.

Components
Selection & Production

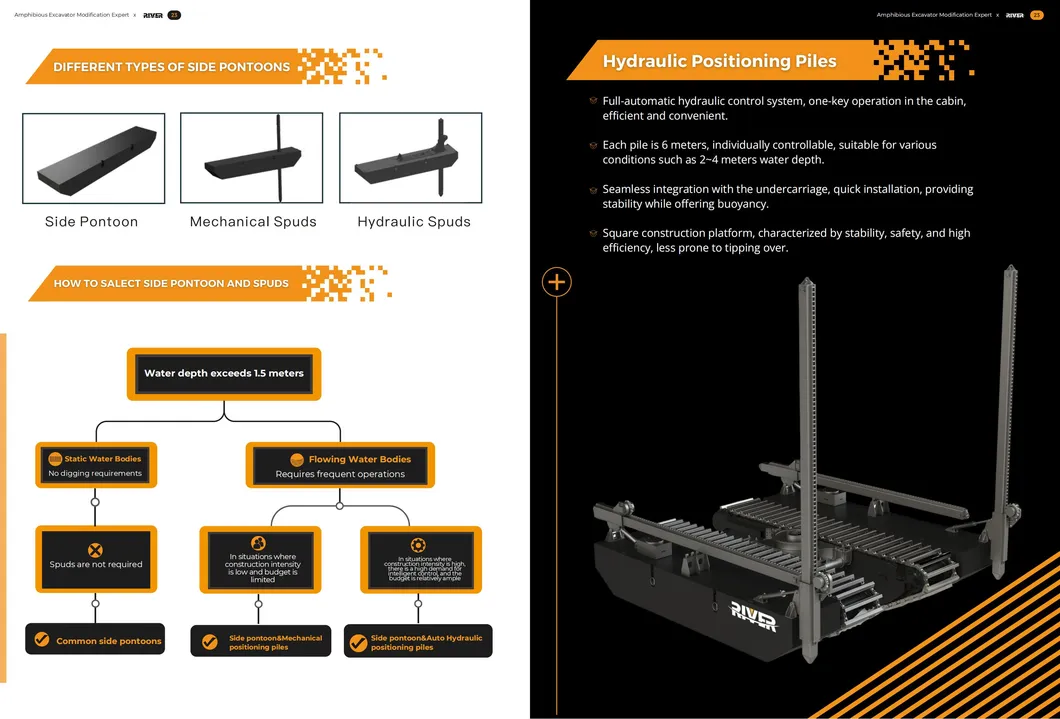

Attachments Brands
Production Process
Process
Global Cooperation
Clients
Frequently Asked Questions
1. What is the maximum reach of the XE215SLL long arm? The standard long reach front is 15 meters, but it can be customized to 11 meters, 13 meters, or even longer depending on the project needs.
2. What are the primary applications for this amphibious excavator? It is primarily used for river dredging, wetland restoration, aquaculture construction, flood control, and environmental remediation in swampy terrains.
3. What is the engine specification for this model? The XE215SLL is equipped with a CC-6BG1TRP engine, featuring a power output of 128.5 kw at 2100 rpm.
4. Can this equipment work in deep water? Yes, the pontoon undercarriage is specifically designed to provide buoyancy and stability in marshes, swamps, and shallow water bodies.
5. What is the production capacity for these units? The production facility maintains a capacity of approximately 300 units per year, ensuring reliable supply and quality control.
6. What certifications does the XE215SLL have? The equipment is certified under CE and ISO9001: 2000 standards, meeting international safety and quality requirements.
