Multidirectional Sideloader Forklift 4WD Electric Forklift Diesel Forklift Rough Terrain Mini Forklift 3-Wheel Chassis Side Loaders with 4-Way Steering
Multidirectional Sideloader Forklift 4WD Electric Forklift Diesel Forklift Rough Terrain Mini Forklift 3-Wheel Chassis Side Loaders with 4-Way Steering
Multidirectional Sideloader Forklift 4WD Electric Forklift Diesel Forklift Rough Terrain Mini Forklift 3-Wheel Chassis Side Loaders with 4-Way Steering
Multidirectional Sideloader Forklift 4WD Electric Forklift Diesel Forklift Rough Terrain Mini Forklift 3-Wheel Chassis Side Loaders with 4-Way Steering
Multidirectional Sideloader Forklift 4WD Electric Forklift Diesel Forklift Rough Terrain Mini Forklift 3-Wheel Chassis Side Loaders with 4-Way Steering
1 / 5
Multidirectional Sideloader Forklift 4WD Electric Forklift Diesel Forklift Rough Terrain Mini Forklift 3-Wheel Chassis Side Loaders with 4-Way Steering
Multidirectional Sideloader Forklift 4WD Electric Forklift Diesel Forklift Rough Terrain Mini Forklift 3-Wheel Chassis Side Loaders with 4-Way Steering
Multidirectional Sideloader Forklift 4WD Electric Forklift Diesel Forklift Rough Terrain Mini Forklift 3-Wheel Chassis Side Loaders with 4-Way Steering
Multidirectional Sideloader Forklift 4WD Electric Forklift Diesel Forklift Rough Terrain Mini Forklift 3-Wheel Chassis Side Loaders with 4-Way Steering
Multidirectional Sideloader Forklift 4WD Electric Forklift Diesel Forklift Rough Terrain Mini Forklift 3-Wheel Chassis Side Loaders with 4-Way Steering

Multidirectional Sideloader Forklift 4WD Electric Forklift Diesel Forklift Rough Terrain Mini Forklift 3-Wheel Chassis Side Loaders with 4-Way Steering

Customization: Available
After-sales Service: One Year Service
Warranty: One Year After Delivery
Send Inquiry

Product Description

Basic Specifications

Type
Electric Forklift
Cab Location
Adjustable
Power
AC Motor
Load Capacity
1T - 5T
Fuel
Electric
Lift Height
>5000mm
Rated Loading
3500kg - 5000kg
Battery Voltage
48V/900ah
Tyre Type
Solid/Polyurethane PU
Origin
China
HS Code
8428909090

Product Introduction

Multi-directional forklift is a specialized solution for long material handling. Featuring straight traveling, side traveling, and in-situ rotating functions, it supports capacities from 1500kg to 5000kg. Equipped with OPS system, EPS steering, and an integrated handle, it is ideal for handling metal profiles, wood, curtain walls, and steel pipes.

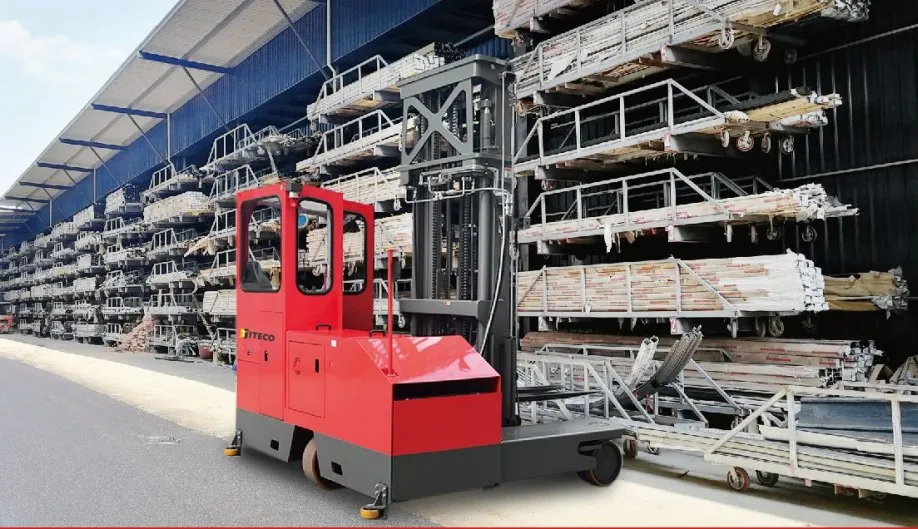

Electric Forklift Main View

Technical Parameters

Major Parameter Model: TFC40/TFC45 Model: MQC50
Power TypeElectricElectric
Driving TypeSeatedSeated
Rated Loading (kg)4000/45005000
Load Center (mm)600600
Wheel Base (mm)18001800
Total Weight (kg)77508100
Tyre TypePolyurethane PU/SolidSolid/Polyurethane PU
Max. Lifting Height (mm)60006000
Total Width (mm)2702/29602710/2960
Driving Motor Power (kw)7.0 AC7 AC
Battery (V/Ah)48/90080/500

Core Features & Details

✓
Versatile Handling: Super wide fork frame and adjustable fork distance to adapt to various long material sizes.
✓
Integrated Control: Imported integrated joystick provides multi-functional control and comfortable operation.
✓
Ergonomic Design: Spacious cab with all-round visibility ensures safety and reduced operator fatigue.
✓
Smooth Performance: Precise proportional hydraulic circuit design ensures smooth and coordinated movements.

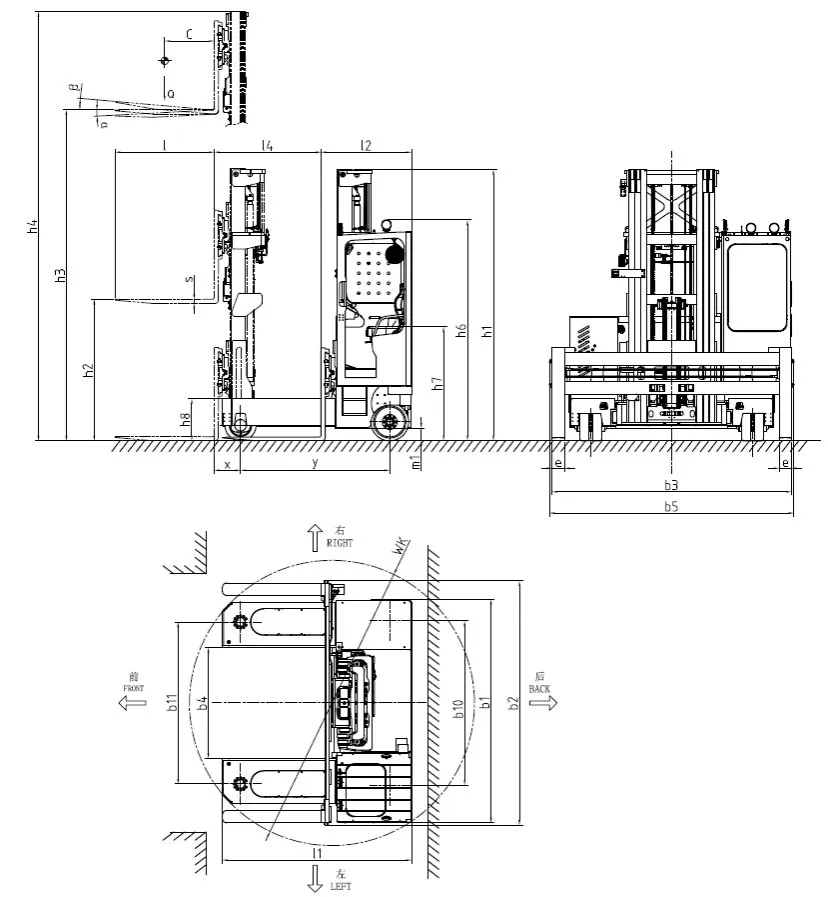

GA Drawing & Dimensions

GA Drawing

Applications & Operations

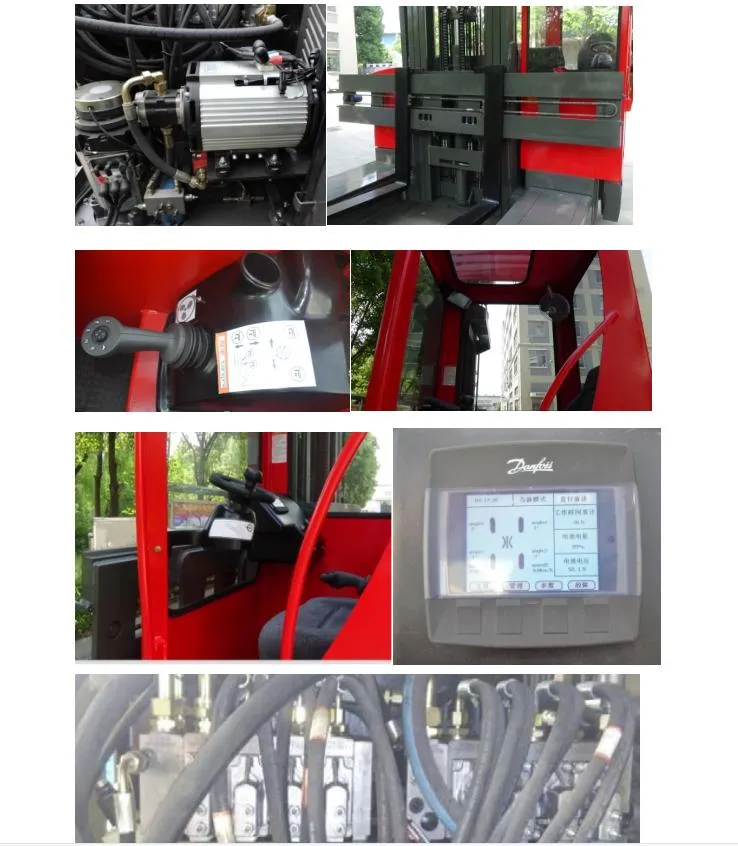

Detail 1

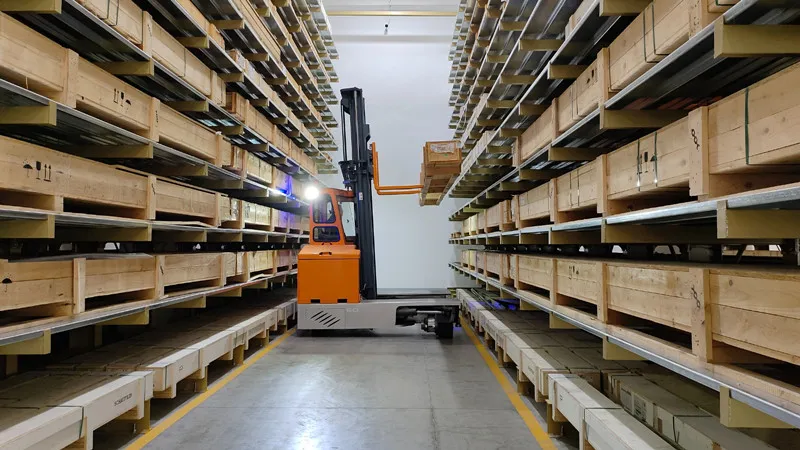

Detail 2

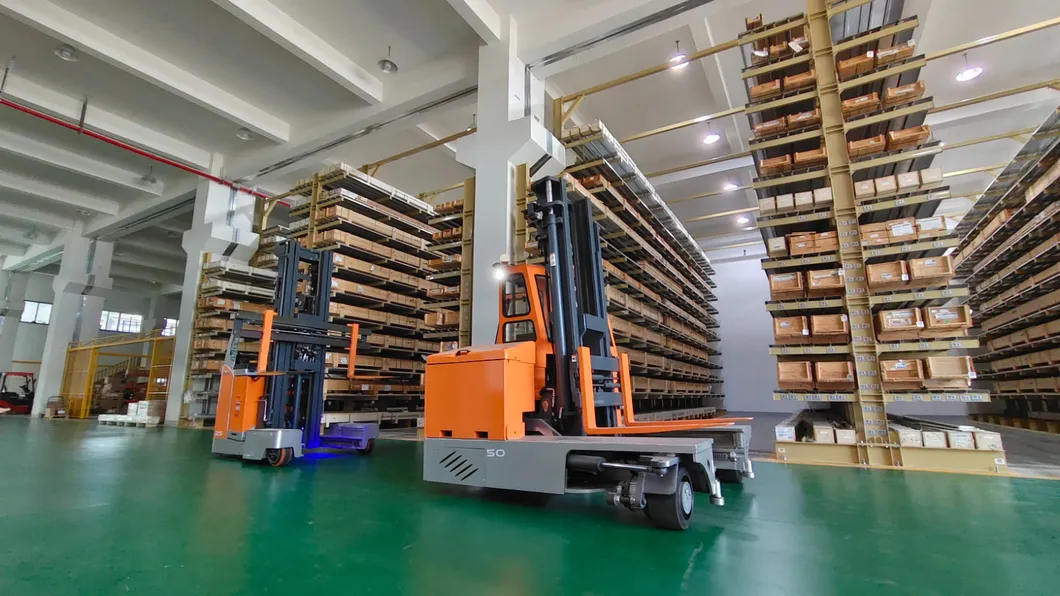

Detail 3

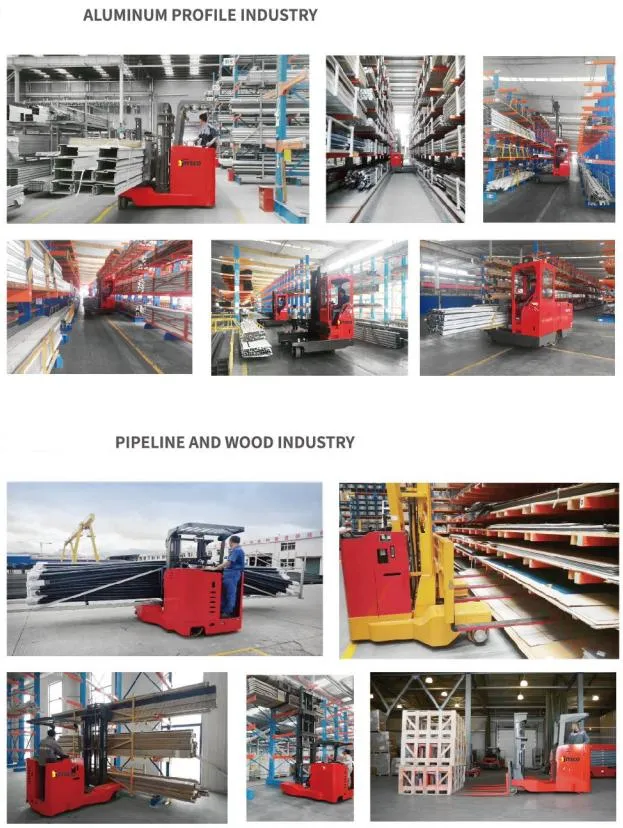

Application 1

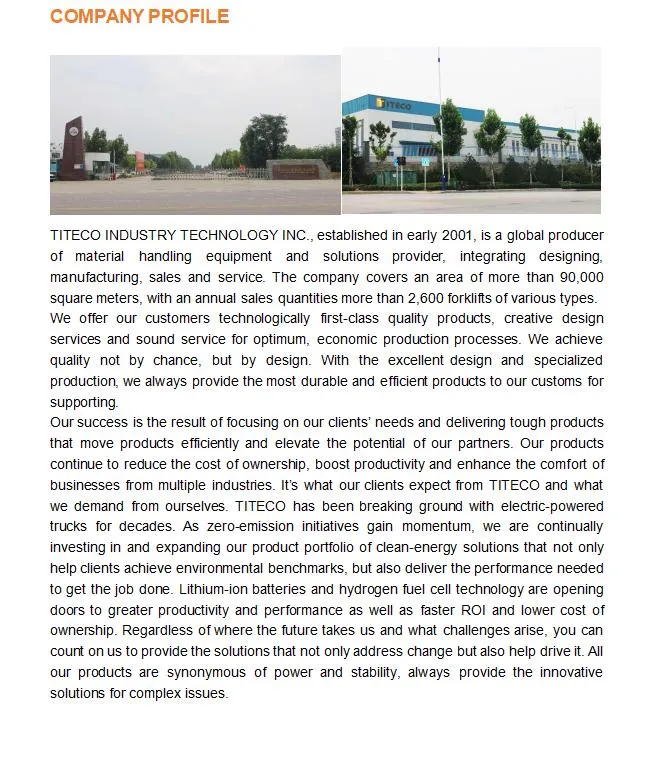

Application 2
Application 3

Packaging & Delivery

Package Size
654cm * 653cm * 668cm
Gross Weight
2000.00kg
Transport Package
Nude

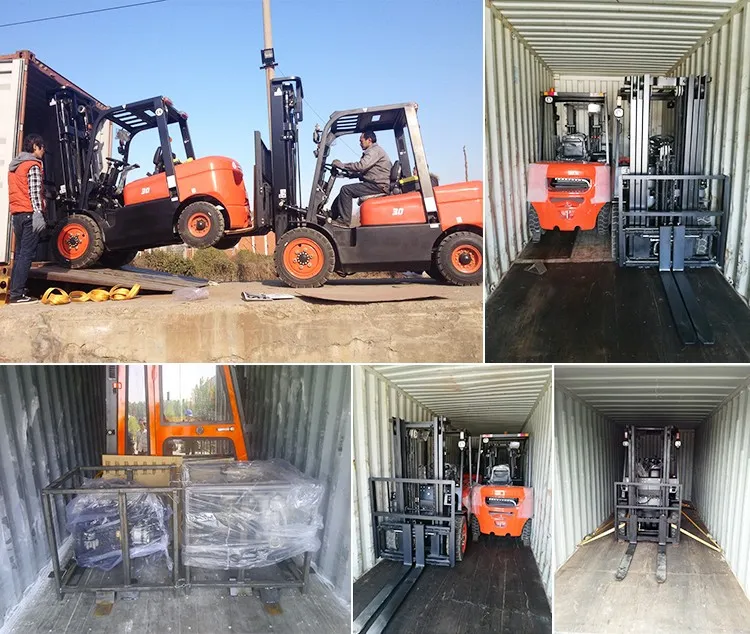

Transportation

Frequently Asked Questions

What materials is this multi-directional forklift best suited for?
It is specifically designed for handling long materials such as metal profiles, timber, steel pipes, and curtain wall components in narrow spaces.
What are the different steering modes available?
The forklift features multi-directional steering, including straight traveling, side traveling (lateral movement), and 360-degree in-situ rotation.
What is the maximum lift height and load capacity?
The lift height can exceed 6000mm, with load capacities ranging from 1000kg up to 5000kg depending on the specific model.
Does the machine come with any safety systems?
Yes, it is equipped with an OPS (Operator Presence System) and EPS (Electric Power Steering) to ensure safe and precise operation.
Is the fork width adjustable for different load sizes?
Yes, it features a super wide fork frame with a fork distance adjustment function to accommodate various material lengths and widths.
What type of battery and motor does the forklift use?
It utilizes a high-capacity AC motor (up to 21kW for lifting) and industrial-grade batteries (typically 48V or 80V) for long-lasting electric performance.
