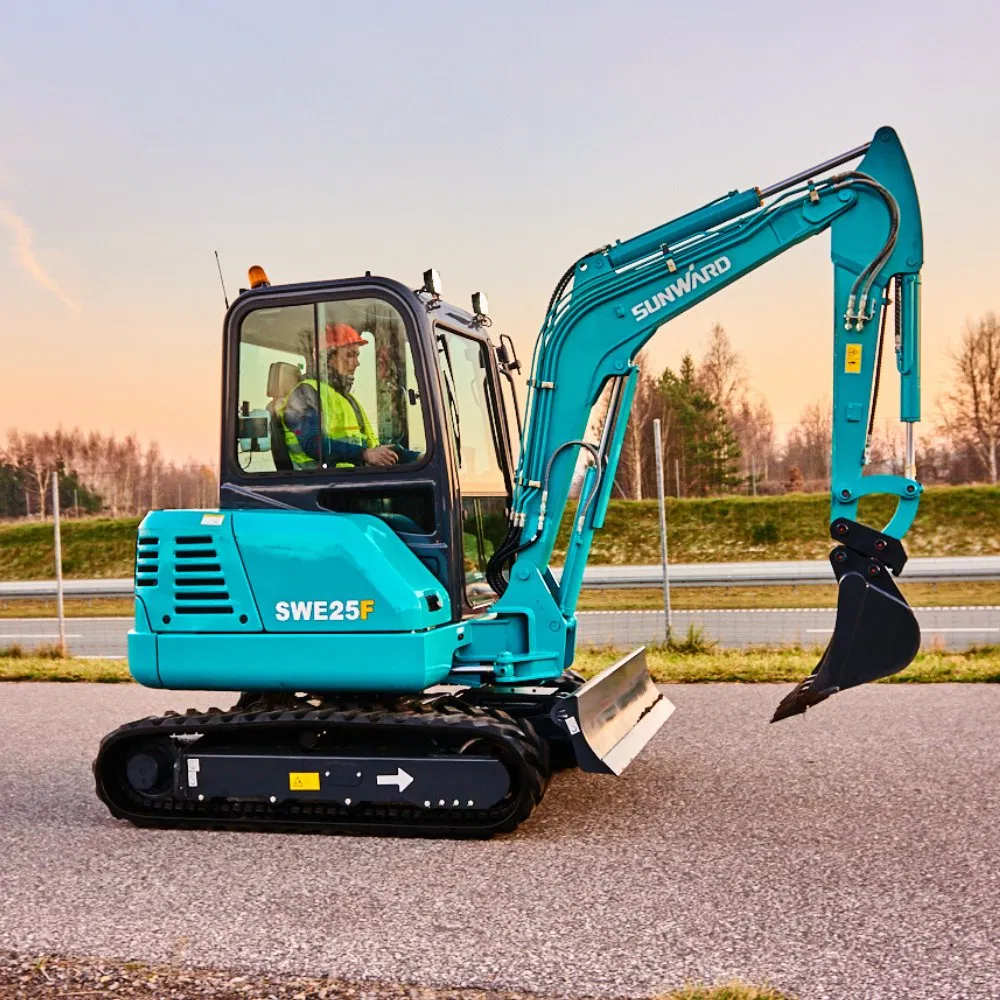

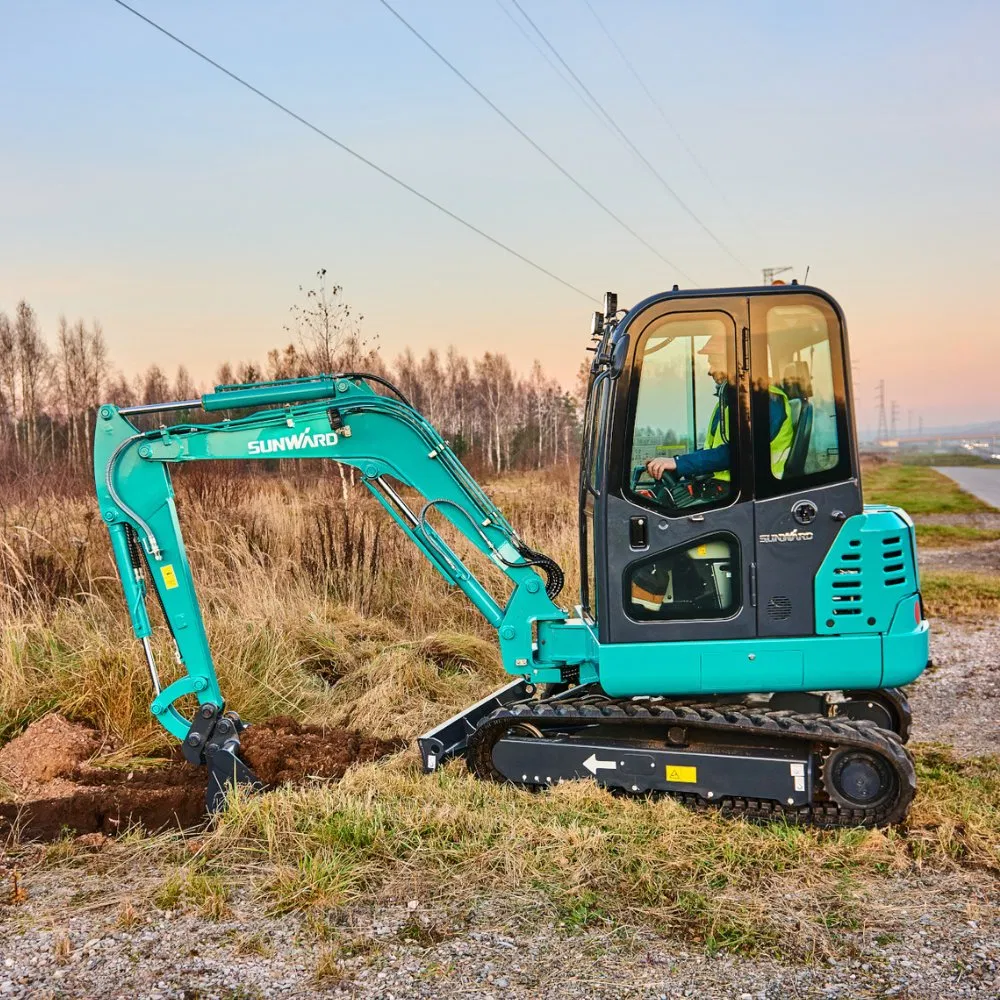

Mini-pelle SWE25F compact excavator zero-tail exceptional digging forces of 24 kN bucket 14 kN arm maximum reach of over 4.6 meters.
The SWE 25F is designed to meet high-performance needs in a compact frame. It is built to ensure durability and efficiency in various working environments.

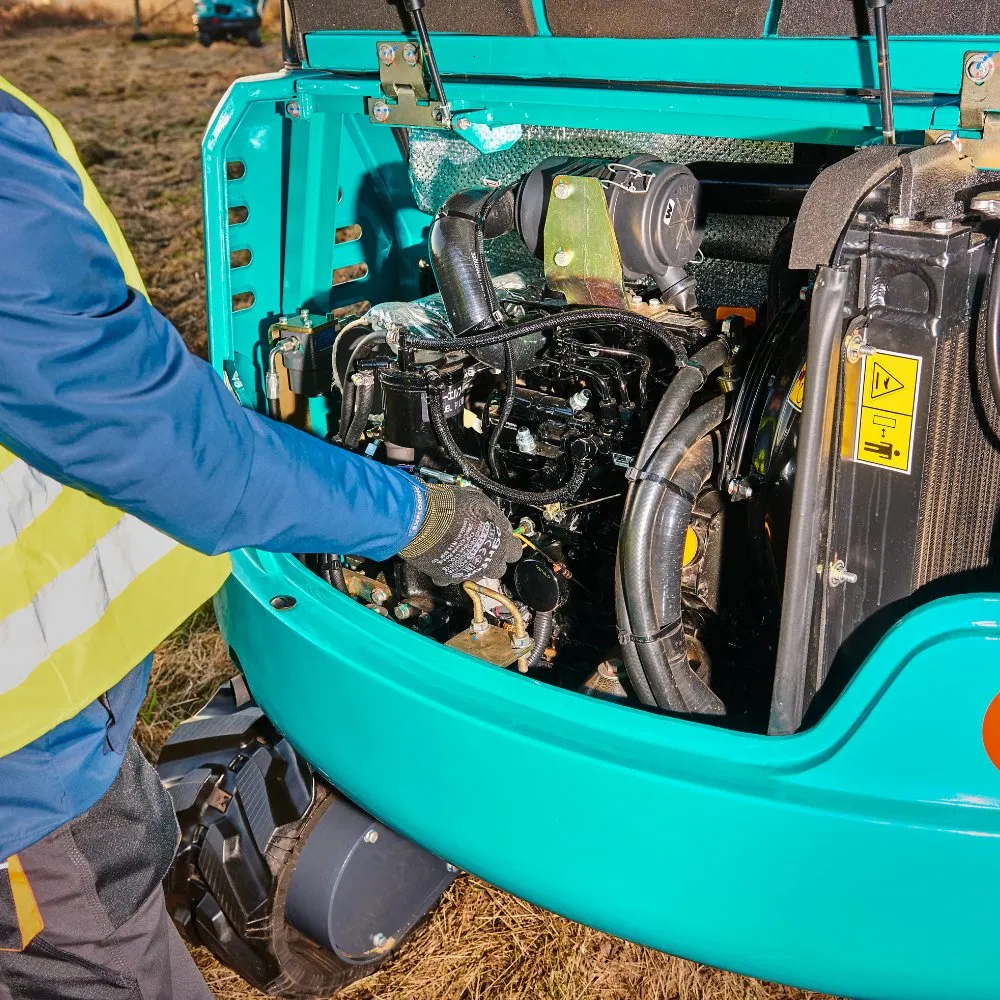

The powerful Yanmar 3TNV80F-SPSU engine features low fuel consumption, low noise, and vibration levels. This 14.6 kW industrial diesel engine is EPA Final Tier 4 and EU Stage V compliant, ensuring smooth operation and reliability in severe environments.
Key components are carefully selected from Japanese premium brands. NACHI and Kayaba pumps and components provide an efficient, reliable, and space-saving hydraulic system, which is the heart of the SWE 25F.
Exceptional digging forces of 24 kN (bucket) and 14 kN (arm) easily rival 2.5-ton competitors. The boom cylinder design provides a maximum reach of over 4.6 meters (4845 mm).
Truly compact (1500 mm width) and lightweight (2640 kg) for easy transport. Includes 3 separate auxiliary lines as standard, allowing for a wide range of attachments like buckets and hydraulic breakers.
| ENGINE | |
| Brand / Model | YANMAR / 3TNV80F-SPSU |
| Type | 3-cylinder 4-stroke water cooled |
| Power | 14.6kW / 2400rpm |
| DIMENSIONS | |
| Shipping Length / Width / Height | 4262mm / 1500mm / 2400mm |
| Tail Swing Radius | 1050mm |
| WORKING RANGES | |
| Max. Digging Depth | 2705mm |
| Max. Digging Reach | 4845mm |
| Bucket Digging Force | 24kN |
| Stick Digging Force | 14kN |
| CAPACITY | |
| Fuel Tank | 42.5L |
| Hydraulic Tank | 30L |
| A(m) / B(m) | MAX Front | MAX Side | 3.0m Front | 3.0m Side |
| 3.0 | 469.00* | 404.30 | 469.00* | 404.30 |
| 1.0 | 555.10* | 280.50 | 703.50* | 396.10 |
| 0 | 612.60* | 276.40 | 813.60* | 358.90 |
| -1.0 | 679.60* | 363.10 | 679.60* | 375.40 |
