New Mini Electric Powered Power Battery Industrial Hydraulic Hand Manual Forklift Fork Lift Pallet Stacker Truck Jack

Basic Info.

Model NO.

SDC-A

Type

Manual Pallet Truck

Power

Hand

Load Capacity

1T - 5T

Lift Height

85mm-195mm

Load Center

500mm

Condition

New

Certificate

CE and ISO

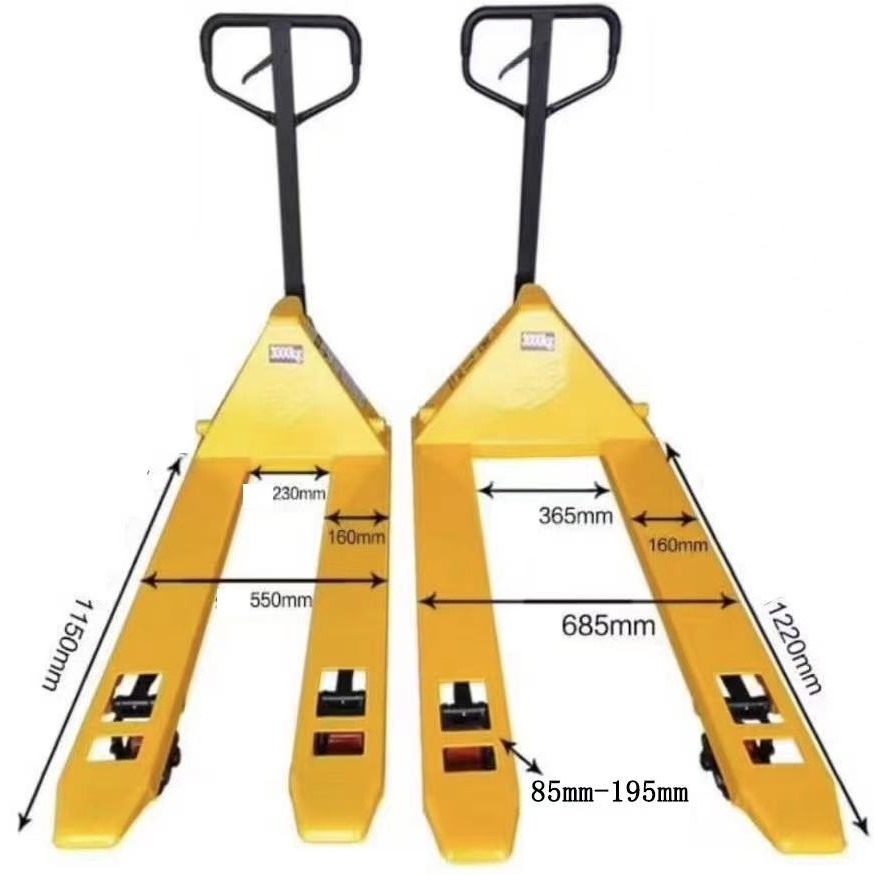

Specification

Fork width 550mm/685mm

HS Code

8427900000

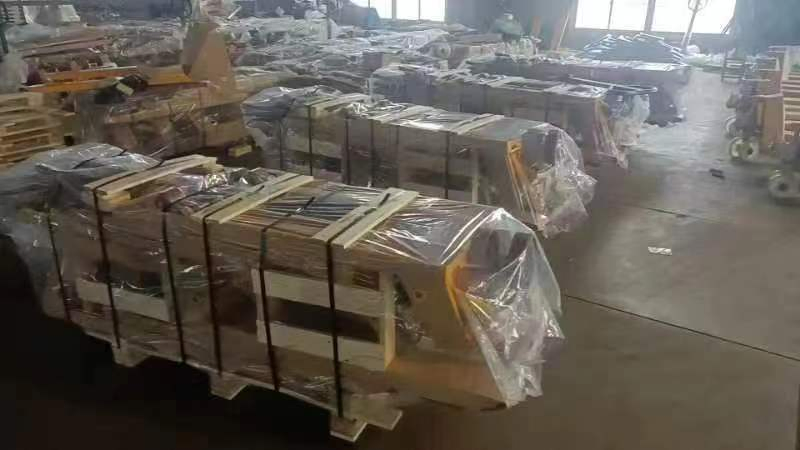

Packaging & Delivery

Package Size

220.00cm * 70.00cm * 70.00cm

Gross Weight

420.000kg

Technology Characteristics

1

Economical design for efficient warehouse operations.

2

Standard epoxy resin powder coating, anti-fragmentation and anti-corrosion for long-term use.

3

Extremely strong lightweight steel structure, with a body weight of only 70kg.

4

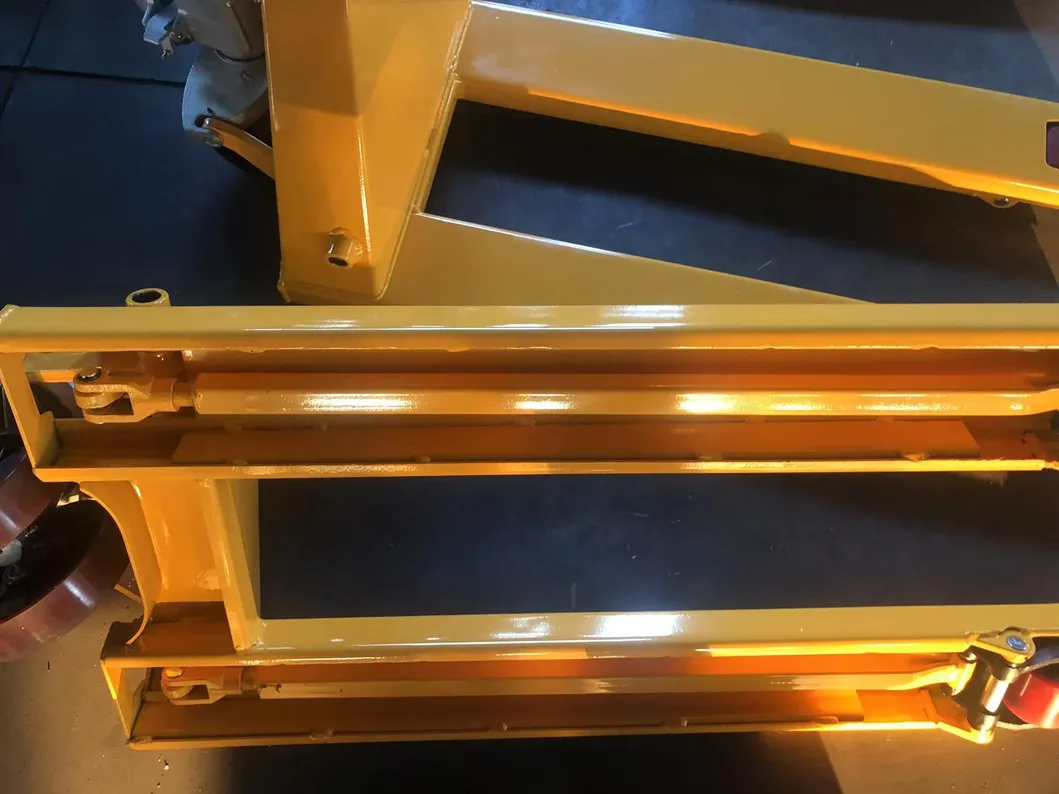

Precision solder joints and reinforced fork tips ensure maximum durability.

5

Ergonomic three-stage handle for lifting, lowering, and neutral positioning.

6

High-quality 190-degree corner setting for superior maneuverability.

7

Efficient oil pump with only 8 strokes to reach full height; each stroke lifts up to 11 mm.

8

Reliable hydraulic system designed to prevent oil leakage.

Technology Parameter

Model	Unit	SDC-A20	SDC-A25	SDC-A30	SDC-A50
Load Capacity	kg	2000	2500	3000	5000

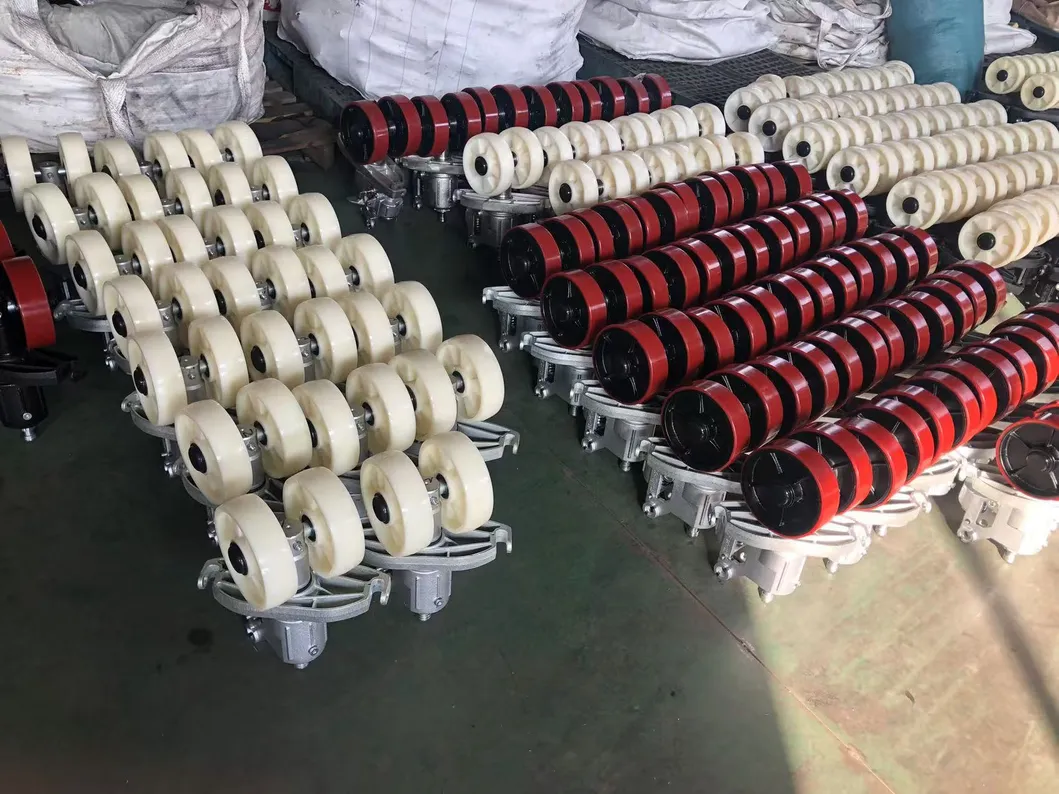

Front Wheel Size	mm	φ180*50	φ180*50	φ180*50	φ180*50
Rear Wheel Size	mm	φ80*70	φ80*70	φ80*70	φ80*70
Lifting Height	mm	85-195	85-195	85-195	85-195
Total Height	mm	1250	1250	1250	1250
Overall Length	mm	1480/1580	1480/1580	1480/1580	1480/1580
Fork Length	mm	1150/1220	1150/1220	1150/1220	1150/1220
Outer Width of Fork	mm	550/685	550/685	550/685	550/685
Turning Radius	mm	1265/1335	1265/1335	1265/1335	1265/1335
Net Weight	kg	60-68	64-71	68-75	132-140

Product Showcase

FAQ

How long is the warranty of your products?

Equipment typically provides a 12-month or 2000 working hours warranty as standard, whichever comes first.

What payment terms do you accept?

Our standard payment term is 30% in advance and 70% balance by TT before delivery or against the original B/L copy.

How long can I get my order finished?

15-20 days for classic forklifts, pallet trucks, and stackers; 5-10 days for spare parts.

Can you customize the configuration, logo, or color?

Yes, we provide customization services according to your specific requirements.

Do you accept small orders?

Yes, the MOQ is 1 unit for most products. For very small handling equipment, we can check on a case-by-case basis.
