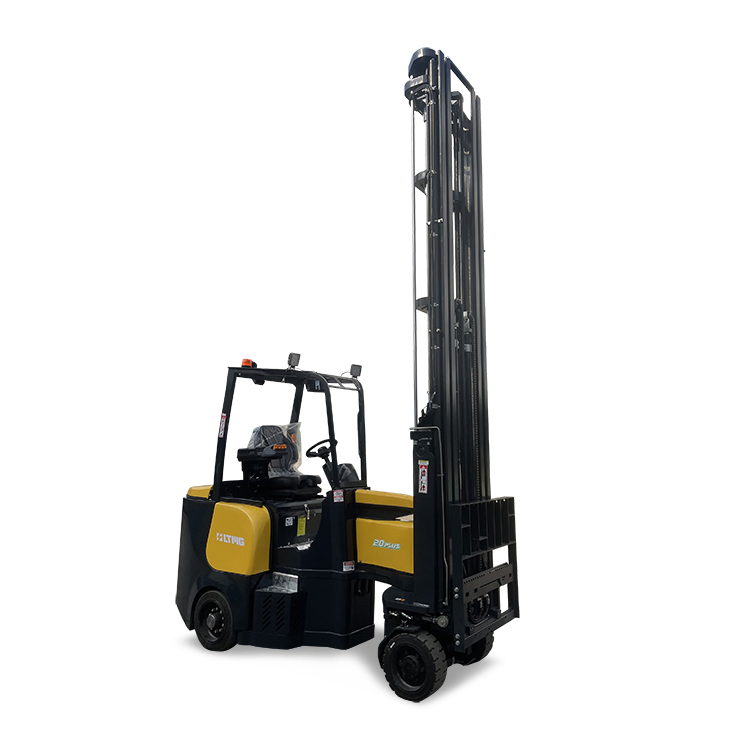

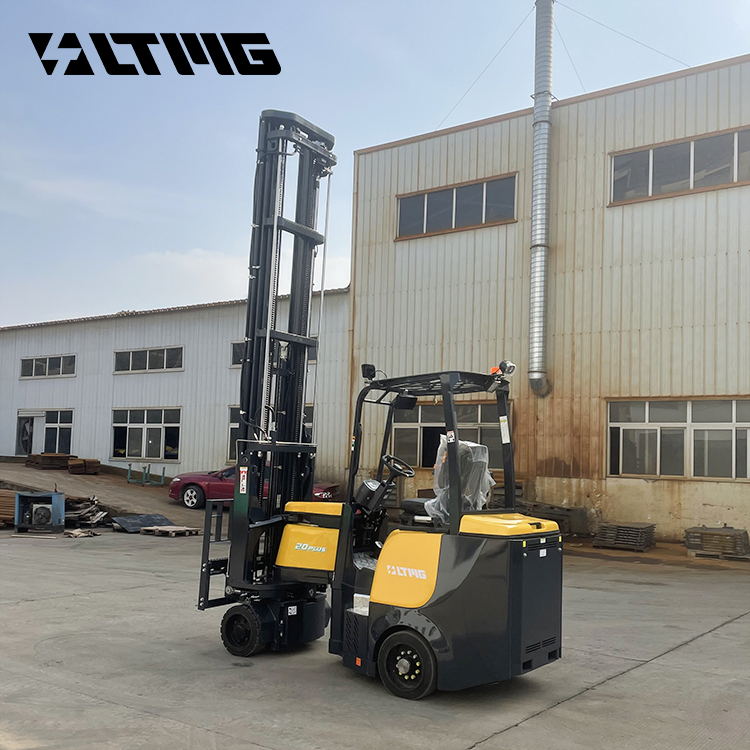

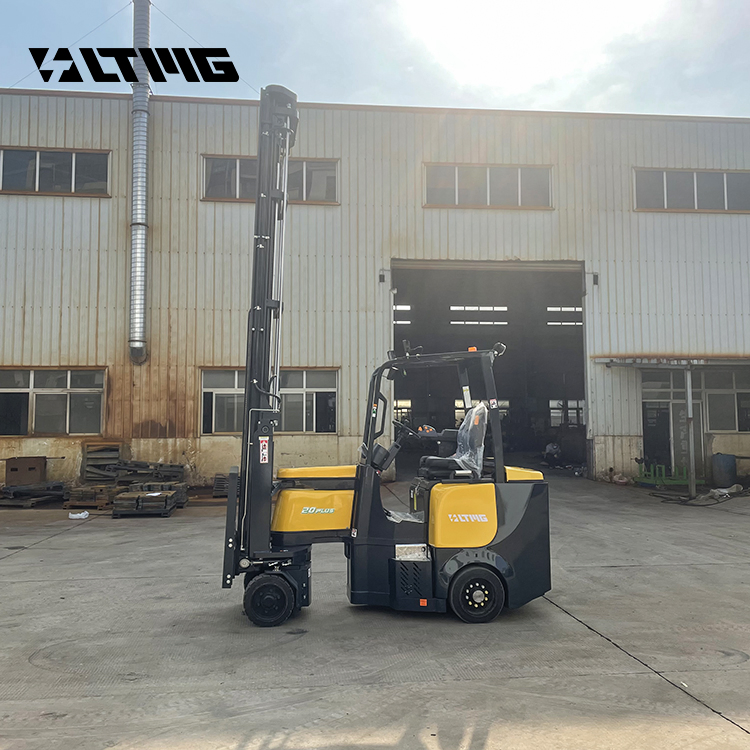

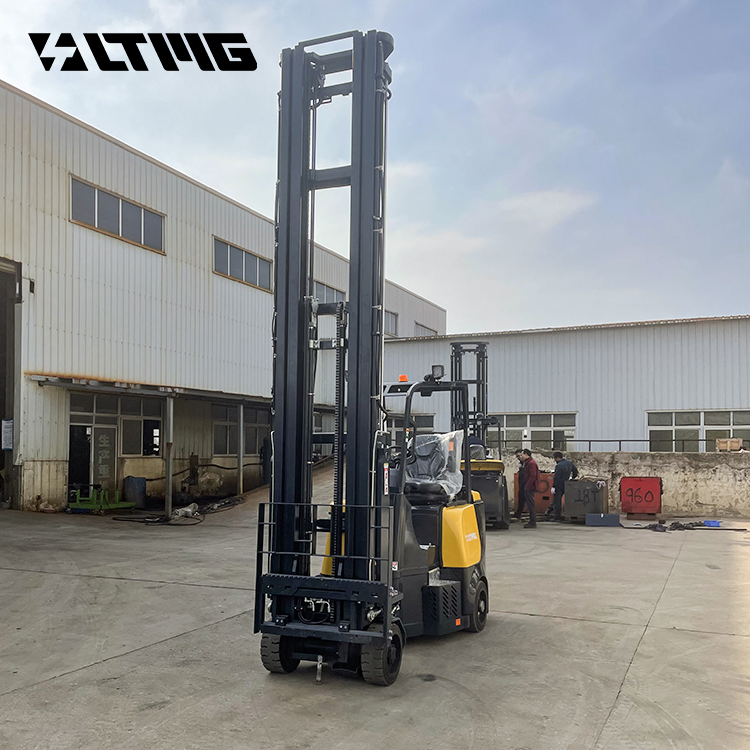

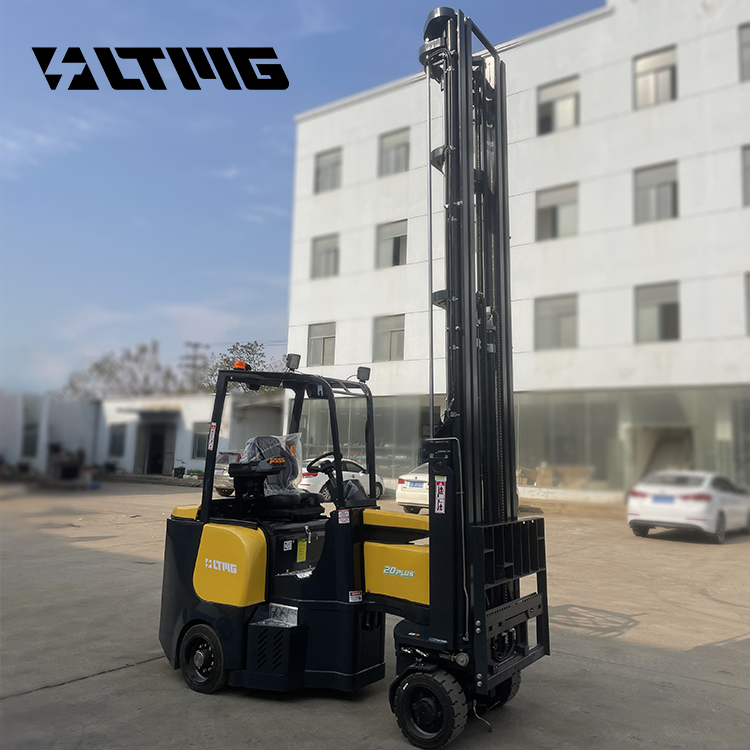

Ltmg Multidirectional Forklift Very Narrow Aisle 2ton 2000kg Vna Forklift Truck Price with 10m Mast

1 / 5

Ltmg Multidirectional Forklift Very Narrow Aisle 2ton 2000kg Vna Forklift Truck Price with 10m Mast

Customization:	Available
After-sales Service:	Provide
Warranty:	1 Year/2000 Working Hours

Send Inquiry

Product Description

Basic Specifications

Model NO.

FBZ20

Type

Stacker

Power

AC Motor

Load Capacity

1T - 5T

Fuel

Electric

Lift Height

3000~5000mm

Controller

Curtis

Battery Capacity

24ah

Packaging & Delivery

Package Size

300.00cm * 300.00cm * 300.00cm

Gross Weight

500.000kg

Product Description

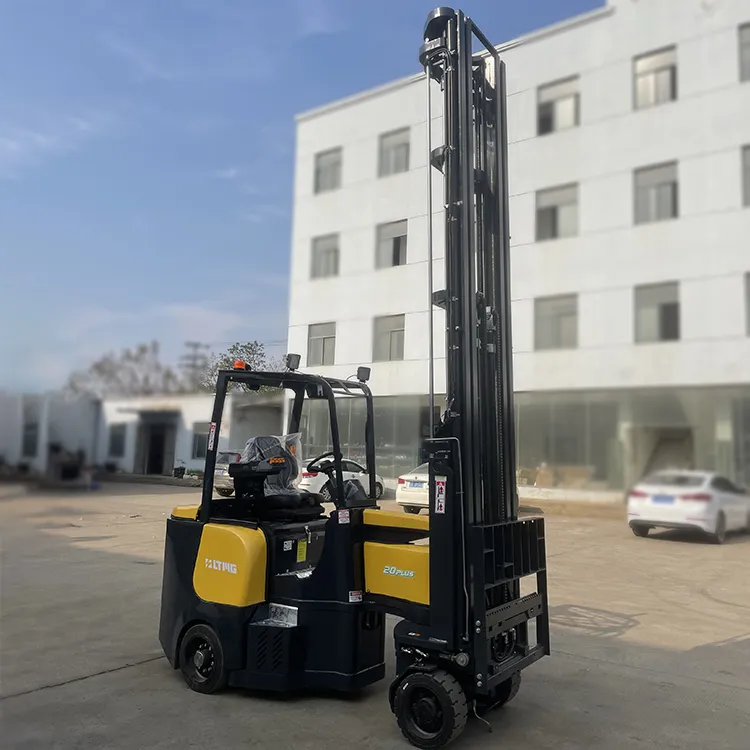

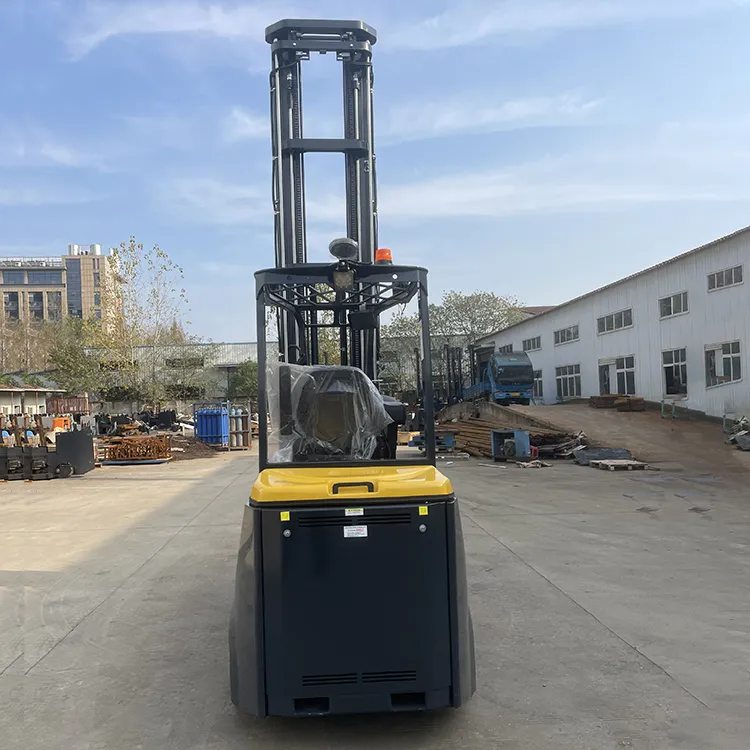

Multidirectional Forklift Very Narrow Aisle 2ton 2000kg VNA Forklift Truck with 10m Mast

Technical Specification of 2 Ton VNA Forklift
Model		FBZ20
Energy type		Battery
Operation Type		Seated
Rated Capacity	Q(kg)	2000
Load Center	C(mm)	600
Wheelbase	y(mm)	1720
Service weight (incl. battery)	kg	7460
Tyre size, load side	mm	Φ457×178
Rated Capacity Lifting height	h3(mm)	3300
Lifting height range	h3(mm)	4600~10000
Overall length	L1(mm)	3830
Min Stacking aisle width	Ast(mm)	1900
Drive speed, load/unload	km/h	13
Driving motor power	kw	AC18.5
Battery voltage/capacity	V/Ah	48/900

Frequently Asked Questions

What is the maximum lift height of this VNA forklift?

This model supports a wide range of lifting heights, from 3,000mm up to a maximum of 10,000mm (10 meters) depending on the mast configuration.

What is the advantage of a multi-directional forklift?

Multi-directional capability allows the truck to travel sideways, making it ideal for handling long loads and operating in very narrow aisles where traditional forklifts cannot turn.

What type of battery and motor does the FBZ20 use?

The FBZ20 is powered by a high-capacity 48V/900Ah battery and utilizes efficient AC motors for both driving (18.5kw) and lifting (15kw).

What is the minimum aisle width required for stacking?

The FBZ20 is designed for space efficiency, requiring a minimum stacking aisle width (Ast) of only 1,900mm for standard 800x1200 pallets.

Does this forklift come with a specific controller?

Yes, this forklift is equipped with a world-renowned Curtis controller, ensuring precise movement and reliable performance.

Is the seat adjustable and what is the operation type?

The FBZ20 is a seated-operation forklift designed for operator comfort during long shifts in warehouse environments.
