Customization: Available
After-sales Service: Available
Warranty: One Year
Send Inquiry

Product Description

Basic Specifications

Model NO.
SWEA260
Type
Crawler Excavator
Usage
Special, Marine, Mining Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
1.0~1.5m³
Size
Large-Scale
Certification
ISO9001: 2000, ISO14001
Condition
New
Engine
Doosan/Cummins
Operating Weight
41.5 Ton

Packaging & Delivery

Package Size
1250.00cm * 500.00cm * 390.00cm
Package Gross Weight
40000.000kg

Product Description

The amphibious excavator, also known as a swamp buggy or a marsh buggy, is a specially designed excavator for traveling on swamps, wetlands, soft terrain, and shallow water areas. This is possible by its unique pontoons structure and hydraulic system, which enable it to float in shallow water while performing dredging operations. The pontoons are constructed from high tensile steel and are corrosion and seawater resistant.

Amphibious Swamp Excavator Overview

Main Features

◈
Pontoons & Buoyancy: Large, sealed pontoons provide buoyancy, allowing the machine to float in shallow water and maintain stability on soft or unstable terrain.
◈
Low Ground Pressure: Its vast surface area distributes the weight, significantly reducing the ground pressure ratio and preventing the equipment from sinking.
◈
Self-propulsion: Heavy-duty track chain system with slippers that act as paddles to propel the machine through mud and water.
◈
Stability System: Hydraulically extendable pontoons and vertical "pile legs" for securing the excavator in deeper waters (up to 4 meters).
◈
Modular Design: Adaptable to deep water operations and compatible with various auxiliaries for easy disassembly and transportation.

Primary Applications

  • ✔ Dredging & Waterway Maintenance: Removing silt from rivers, canals, and lakes.
  • ✔ Environmental Restoration: Managing aquatic vegetation and wetland habitats.
  • ✔ Infrastructure & Utilities: Installing pipelines in swampy or intertidal zones.
  • ✔ Disaster Recovery: Clearing debris in flooded zones.

Product Show

Excavator Show 1

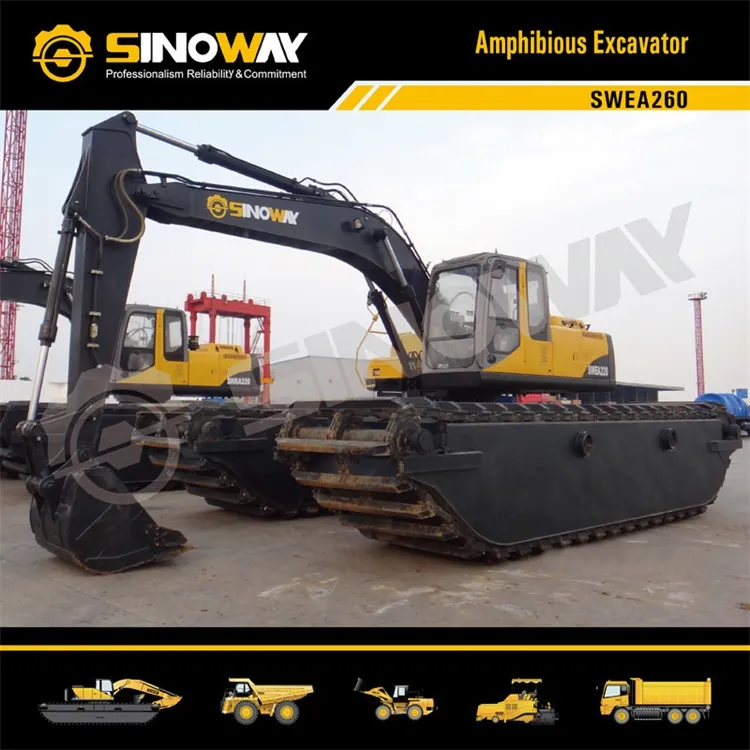

Excavator Show 2

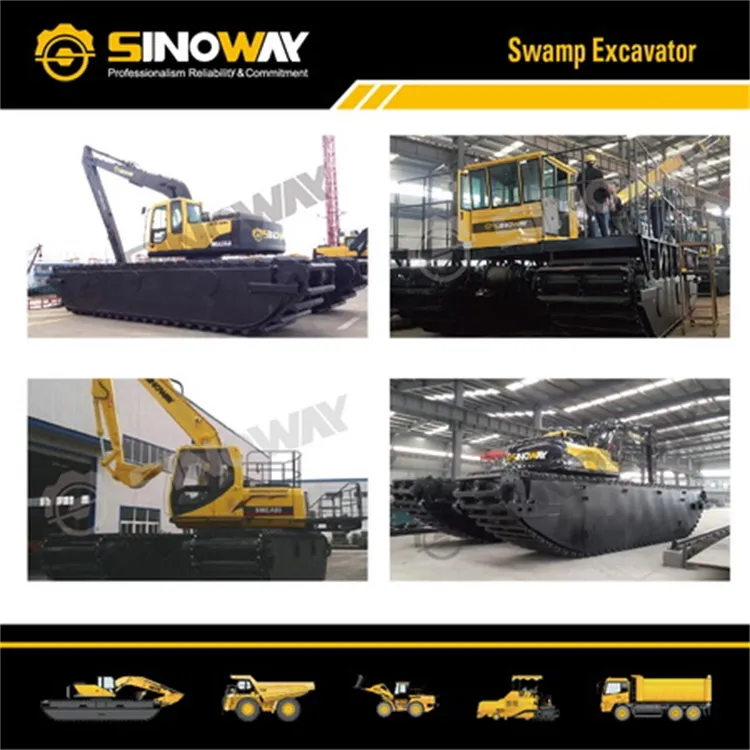

Excavator Show 3

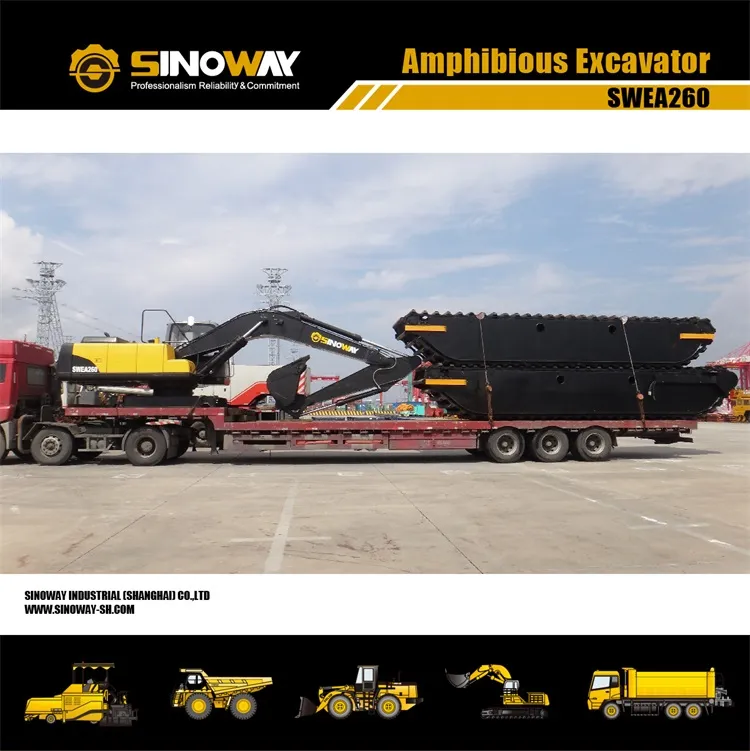

Excavator Show 4

Machine Introduction

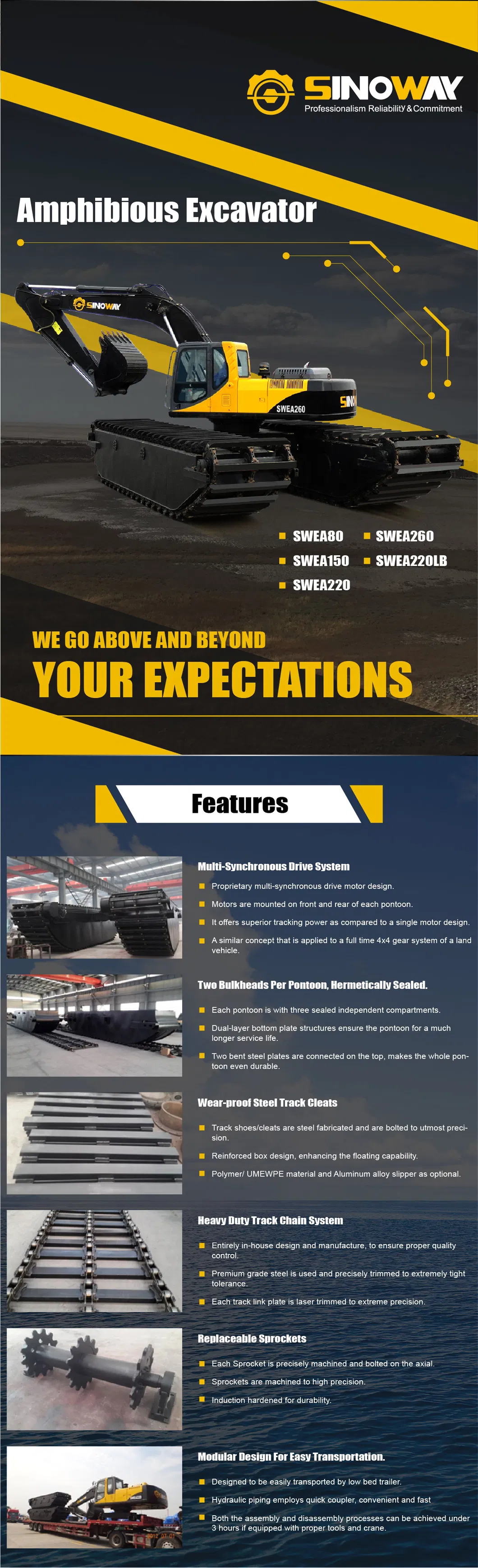

Machine Detail 1
Machine Detail 2

Detailed Specifications

Engine System
ModelCummins/Isuzu
TypeSix-cylinder, water-cooled turbocharged
Rated power / Speed106~125KW / 2100rpm
Main Technical Specs
Operating weight30000~42000Kg
Standard bucket capacity0.5~1.1m³
Digging force (Stick/Bucket)110KN / 150KN
Travelling System
Travelling speed0~5.4km/h
Grade ability65%
Ground pressure0.0135MPa
Dimensions
Overall (L*W*H)11200mm * 5350mm * 3900mm
Pontoon Size (L*W*H)8500~10200mm * 1760mm * 1700mm
Operating Scope
Max. Cutting Height10980mm
Max. Digging Depth6940mm
Max. Reach10290mm

Why Choose Our Solutions

Advantages and Service

Frequently Asked Questions

Q: What is an amphibious excavator mainly used for?
A: It is specifically designed for working in swamps, wetlands, shallow water, and soft terrains where standard excavators would sink. Common uses include river dredging and environmental restoration.
Q: How does the machine float in water?
A: The machine utilizes large, sealed airtight pontoons instead of standard tracks. These pontoons provide the necessary buoyancy to keep the machine afloat in shallow water.
Q: What engines are available for these excavators?
A: Our equipment is typically powered by high-performance Cummins, Doosan, or Isuzu engines, depending on the specific model and requirements.
Q: Can it operate in deep water?
A: While it floats in shallow water, for deeper operations (up to 4 meters), it can be equipped with vertical "pile legs" or anchor legs to secure it to the seabed for stability.
Q: Why is the ground pressure so low?
A: The large surface area of the pontoons distributes the weight of the machine across a much wider footprint, resulting in a ground pressure as low as 0.0135MPa.
Q: Is the equipment resistant to corrosion?
A: Yes, the pontoons are constructed from high tensile steel specifically treated to be resistant to corrosion and seawater for long-term marine use.
