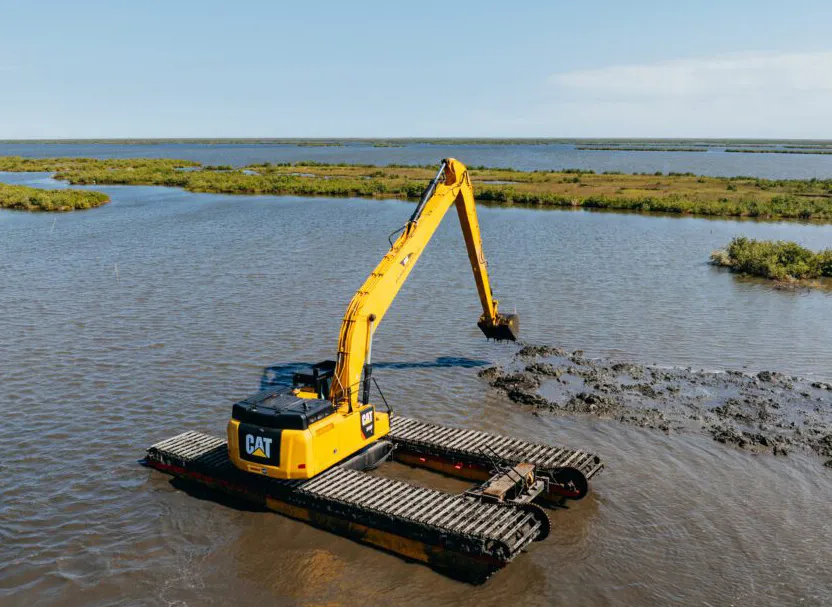

This amphibious excavator is designed for applications in waters, muddy and swamp areas. With a pair of large steel pontoons with several compartments built inside as an undercarriage, it is able to work in very soft terrain with much lower ground pressure than normal land hydraulic crawler excavators. It can even float in the water like a boat and self-propel with its own power on the waterway. Built with special grade materials and workmanship, it is a trusted piece of equipment designed to last.
| ENGINE SYSTEM | |
|---|---|
| Engine Model | CAT C7.1 (Tier III Compliant) |
| Net Power | 117 Kw / 223.5 Kw Options |
| Displacement | 7.1 L |
| UNDERCARRIAGE & DIMENSIONS | |
| Pontoon Size | 11200 × 2100 × 2440 mm |
| Operating Weight | 25,300 kg |
| Track Cleat | 2000 mm Heavy Duty Steel |
| Overall Width | 6900 mm (Extended) |
| HYDRAULIC SYSTEM | |
| Max Flow - Implement | 560 L/min |
| Max Pressure - Travel | 35,000 kPa |
| Swing Speed | 11.3 rpm |

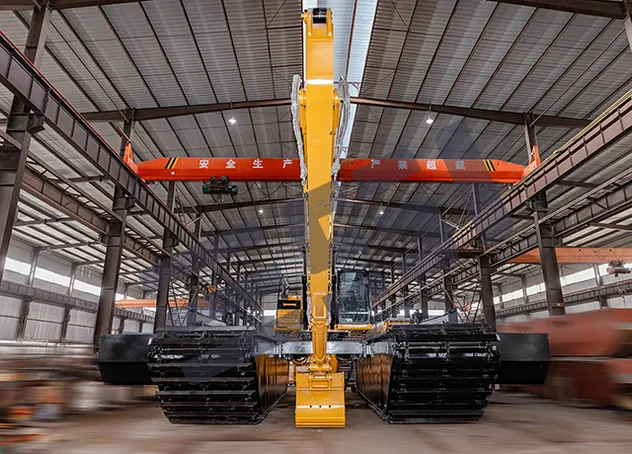

Front View

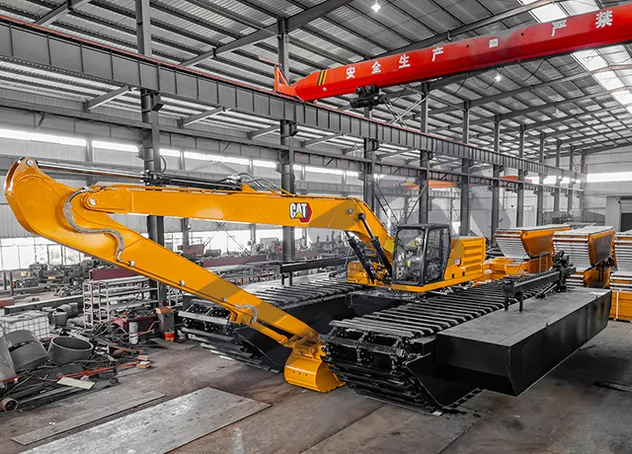

Left Front View

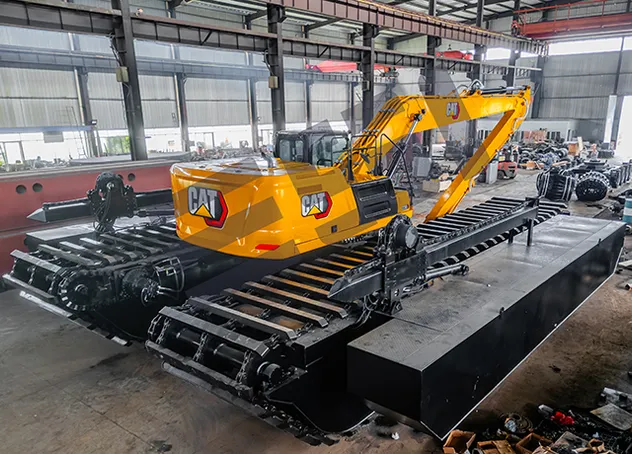

Rear View

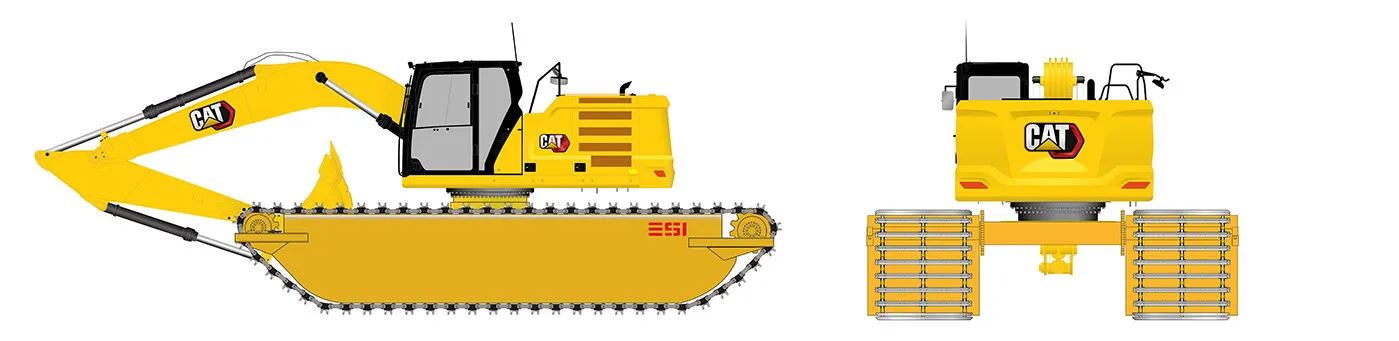

*Dimensional diagrams and CAD drawings are available upon request.
