🏗️Product Overview
Established in 1980, our group is a large construction engineering equipment enterprise. With a manufacturing area of 50,000 square meters and a dedicated workforce of 2,000 people, we cover critical economic fields including excavators, road rollers, loader machines, backhoe loaders, and small transport vehicles. Our production facilities hold ISO9001 international quality system certification, European Union CE certification, SGS certification, and Russian GOST certification.
Scientific innovation drives our power. Through collaboration with leading technology universities and research centers, we have established testing laboratories to enhance product impact resistance and mechanical force for high-performance construction machinery.

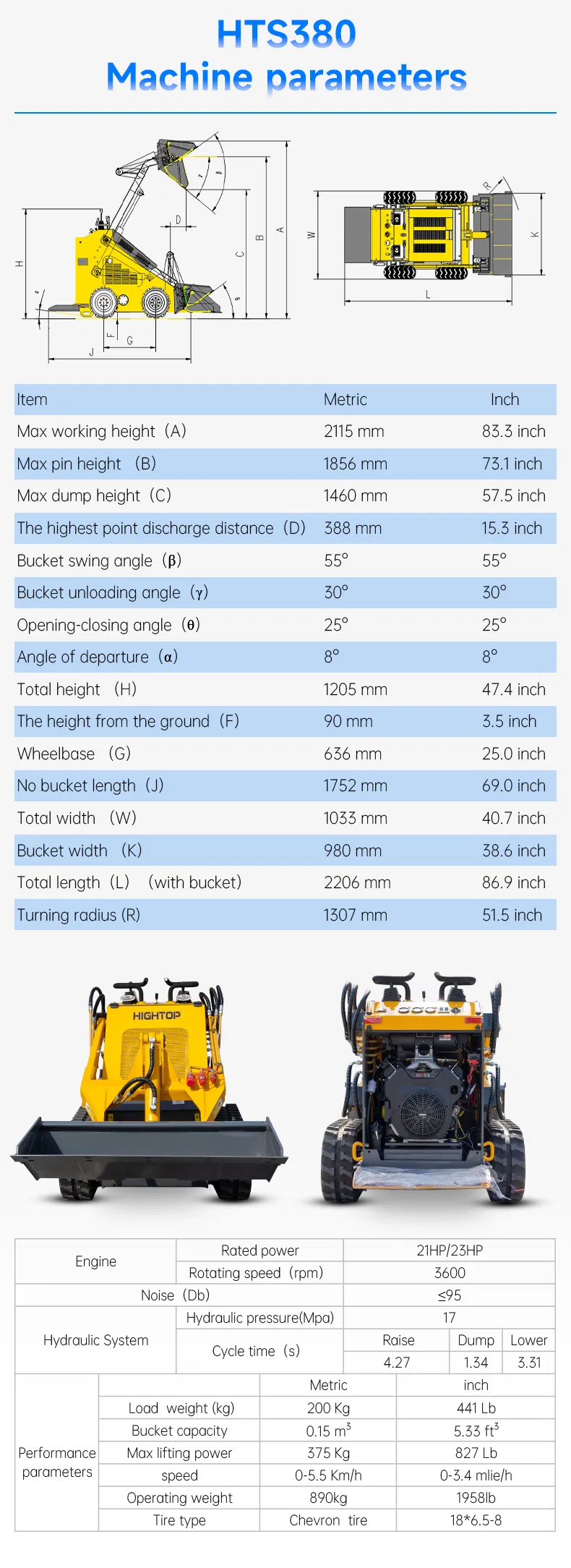

⚙️Technical Parameters
Max working height2115 mm
Max pin height1856 mm
Max dump height1460 mm
Highest point discharge distance388 mm
Bucket swing angle55°
Bucket unloading angle30°
Opening-closing angle25°
Angle of departure8°
Total height1205 mm
Height from the ground90 mm
Wheelbase636 mm
No bucket length1752 mm
Total width1033 mm
Bucket width980 mm
Total length (with bucket)2206 mm
Turning radius1307 mm
❓Frequently Asked Questions
Q: What is the maximum dump height of the HTS-380?
A: The maximum dump height for the HTS-380 model is 1460mm, with a maximum pin height of 1856mm.
Q: What type of walking mode does this loader use?
A: This model uses a Crawler walking mode, providing excellent stability and traction on various terrains.
Q: Is the HTS-380 certified for international markets?
A: Yes, our production facilities and products are certified with ISO9001, CE, SGS, and GOST certifications.
Q: What are the transport dimensions for shipping?
A: The package size is approximately 290cm * 180cm * 150cm, and it is typically shipped in a secure wooden case.
Q: What is the bucket width and turning radius?
A: The bucket width is 980mm, and the machine features a compact turning radius of 1307mm.
Q: What is the transmission system used in this model?
A: The HTS-380 utilizes a Hydraulic-Mechanical transmission for efficient power delivery and control.
