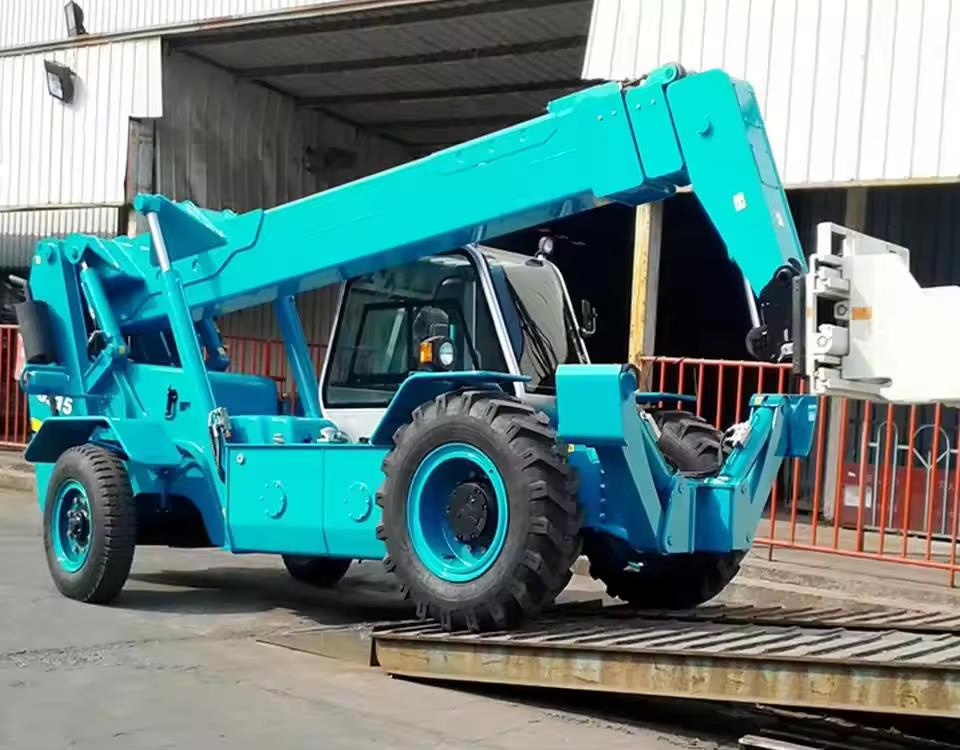

Empty Container Handler 2.7 Ton Capacity Telescopic Handler Swth2710

Customization: Available
After-sales Service: Provided
Warranty: 1 Year

Product Description

i

Basic Info.

Model NO.
SWTH2710
Type
Diesel Forklift
Power
Diesel Engine
Load Capacity
2.5ton
Lift height
3000~5000mm
Machine Weight
7500kg
Rated Load
2722kg
Max. Lifting Height
10.5m
Max. Overhang
7m
Turning Radius
3.8m
Traction
64kN
Origin
China
!

Products Description

China Famous Brand 2.7 Ton Diesel Telescopic Handler SWTH2710

The SWTH2710 telescopic forklift truck is equipped with a three-section boom and a torque limiter. The maximum load capacity is 2722kg, the maximum lift is 10.5m, and the maximum forward extension is 7m (the distance from the front end of the front wheel to the center of the load).

With excellent off-road performance and driving comfort, the frame can be leveled by 10° left and right, and the fork has an automatic leveling function, which can ensure that the fork is lifted when the arm is raised or when the vehicle is driving on uneven roads and slopes. Keep the working surface level. Three steering modes (four-wheel steering, front-wheel steering, crab steering) can be switched at will, bringing excellent maneuverability and flexibility to the vehicle.

It adopts hydraulic transmission, and the original imported engine, axle and gearbox provide strong power for the vehicle. At the same time, the intelligent electronically controlled throttle and the superior performance pilot joystick make various actions have good stability and reduce the operator's difficulty in operation.

Different work attachments can be changed quickly, and operations such as "forking, hoisting, mounting, grabbing, lifting, clamping, and moving" can be completed, which truly realizes one machine with multiple functions. At the same time, it also has the advantages of large operating distance, high operating height, ability to load and unload cargo across obstacles, wide field of vision and better operating safety performance.

T

Product Parameters

Model SWTH2710 SWTH3509 SWTH3513 SWTH3910 SWTH3915
Dimensions (LxWxH) 5970×2320×2400 6464×2320×2550 7530×2320×2550 7215×2320×2450 7366×2320×2450
Machine Weight 7500kg 9472kg 10650kg 10600kg 12800kg
Rated Load 2722kg 3500kg 3500kg 4000kg 4000kg
Max. Lifting Height 10.5m 9m 13.75m 10.2m 14.46m
Max. Overhang Length 7m 4.9m 9.7m 5.2m 9.7m
Max. Overhang Load 408kg 2000kg 1000kg 2000kg 1000kg
Ground Clearance 350mm 420mm 420mm 300mm 300mm
Turning Radius 3.8m 4.2m 4.2m 5.06m 5.06m
P

Product Pictures

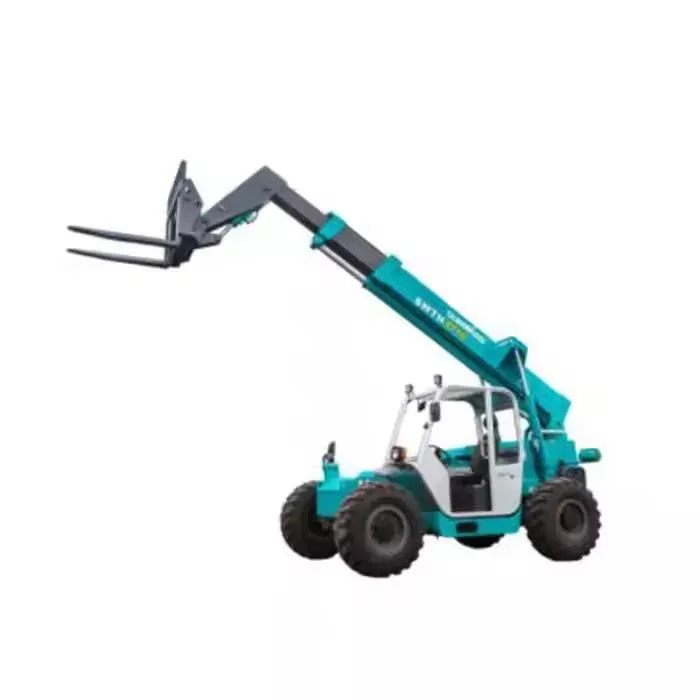

Telescopic Handler SWTH2710
Telescopic Handler SWTH2710 Side View

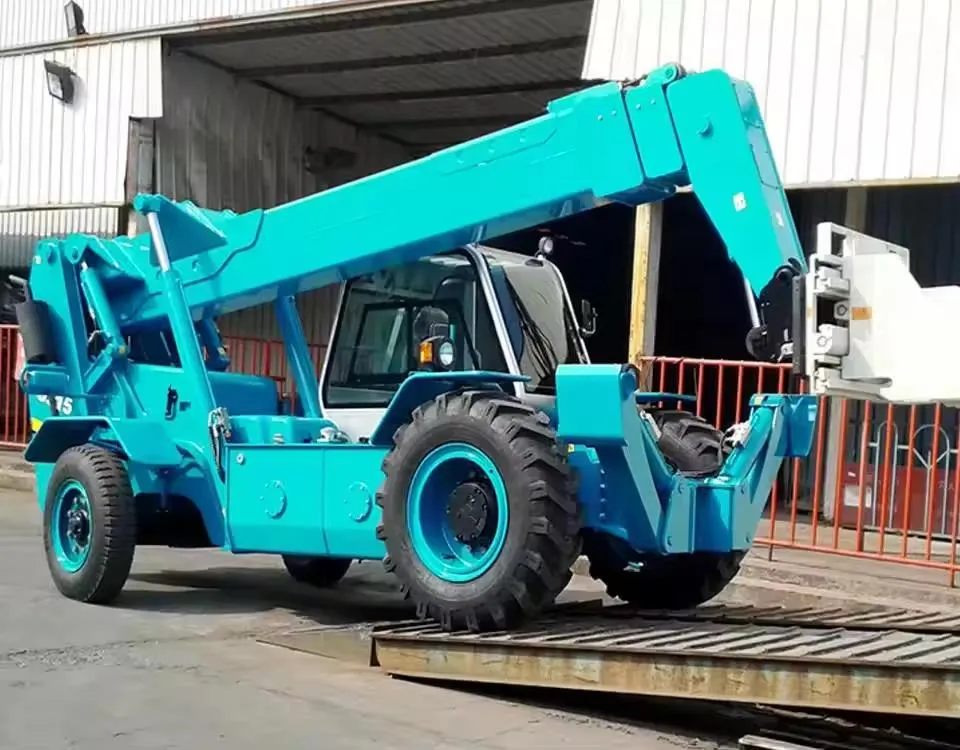

Telescopic Handler Work Action

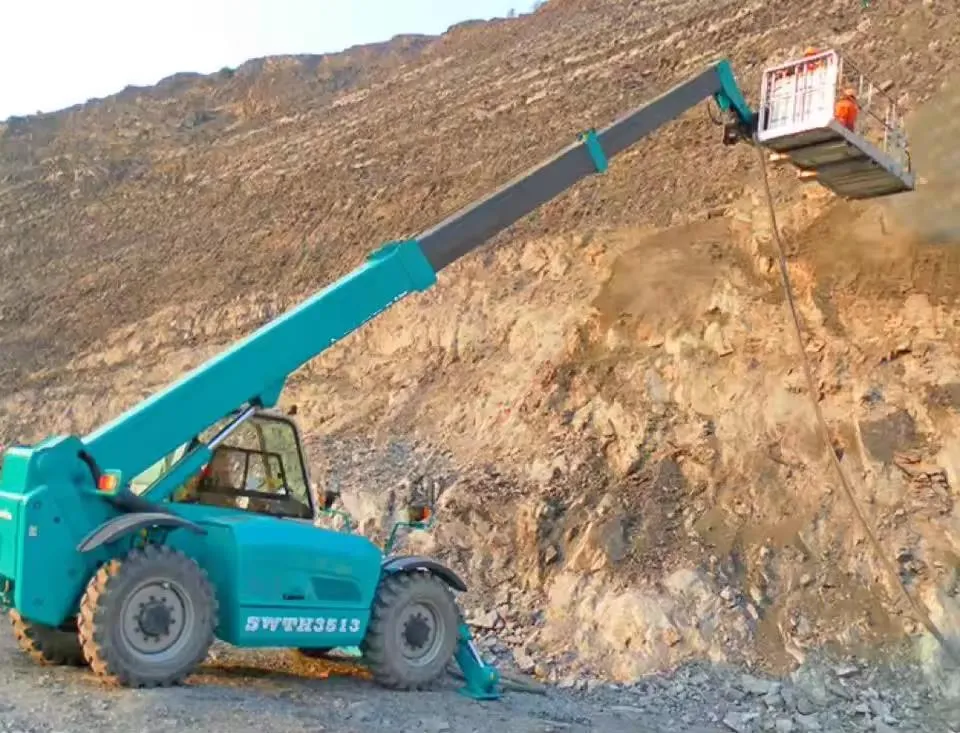

Telescopic Handler Operating
Telescopic Handler Rear View

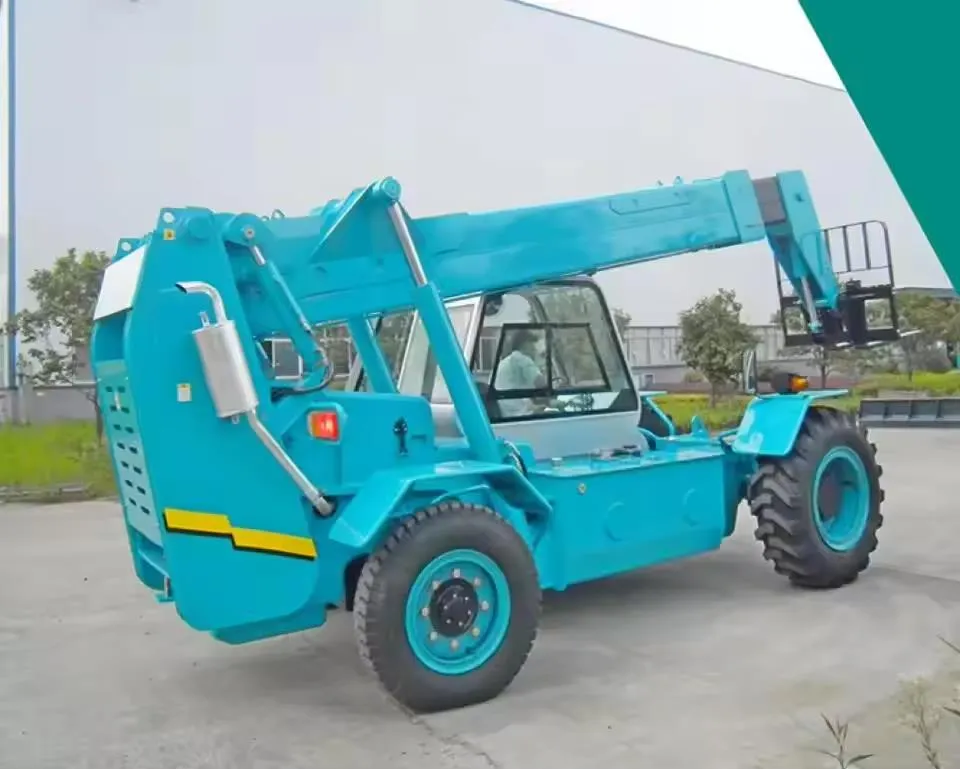

Telescopic Handler Detail
Boom Detail
Engine and Components
Chassis and Axle
Control System
Tire and Wheel
Hydraulic System
Cabin Interior
Lighting and Safety
Attachment Detail
?

Frequently Asked Questions

What is the maximum lifting height and load capacity of the SWTH2710?
The SWTH2710 has a maximum lifting height of 10.5 meters and a rated load capacity of 2722kg (approximately 2.7 tons).
Does this telescopic handler support different steering modes?
Yes, the vehicle features three steering modes: four-wheel steering, front-wheel steering, and crab steering, which can be switched to provide excellent maneuverability.
Can the frame be adjusted for uneven ground?
Yes, the frame can be leveled by 10° left and right, and the forks include an automatic leveling function to ensure stability on slopes and uneven roads.
What kind of engine and transmission does it use?
It is powered by an original imported diesel engine and utilizes a hydraulic transmission system for stable and powerful performance.
What tasks can the SWTH2710 perform with different attachments?
With quick-change attachments, it can perform forking, hoisting, mounting, grabbing, lifting, clamping, and moving, making it a highly versatile multi-functional machine.
What is the maximum forward extension of the boom?
The three-section boom provides a maximum forward extension of up to 7 meters from the front wheel end to the center of the load.
