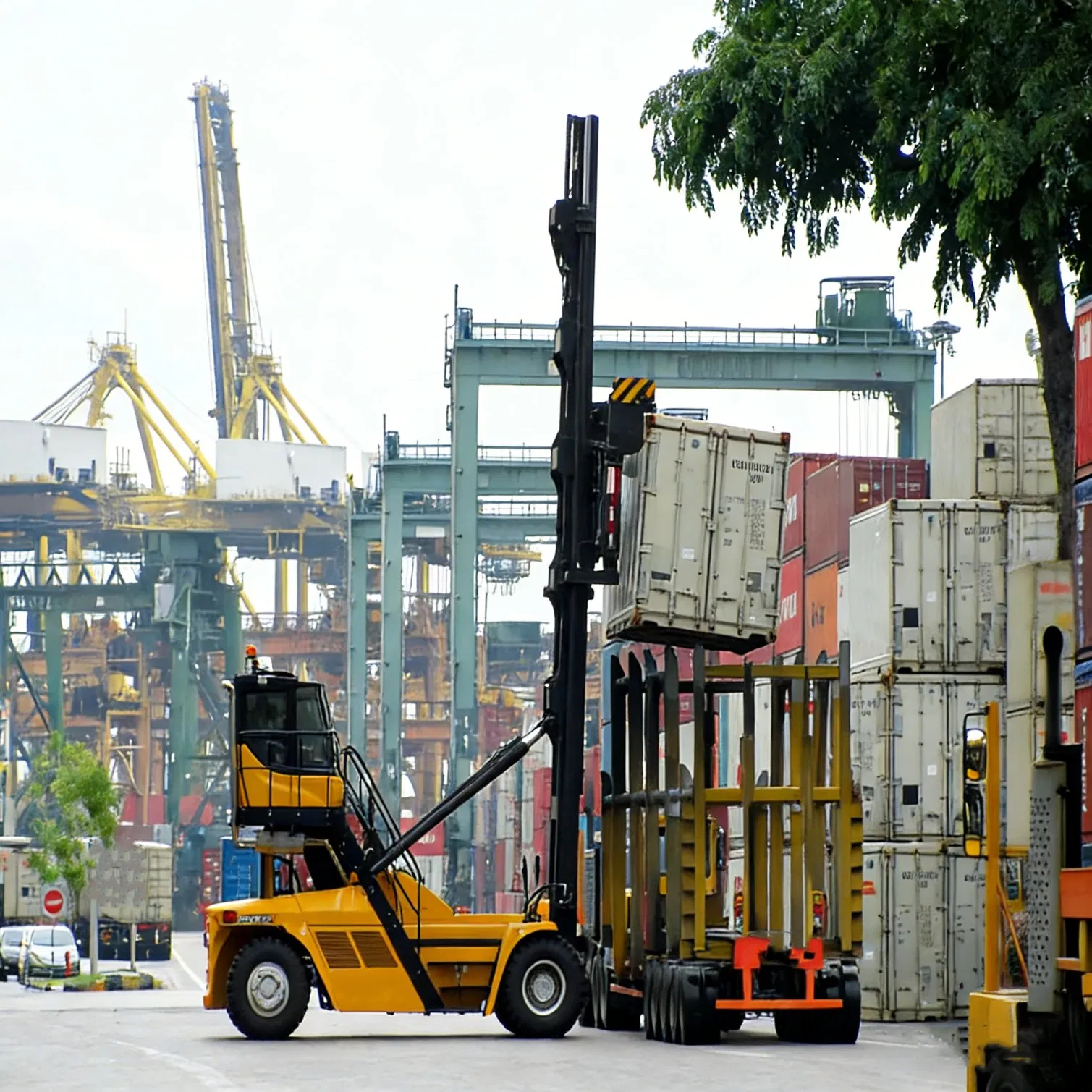

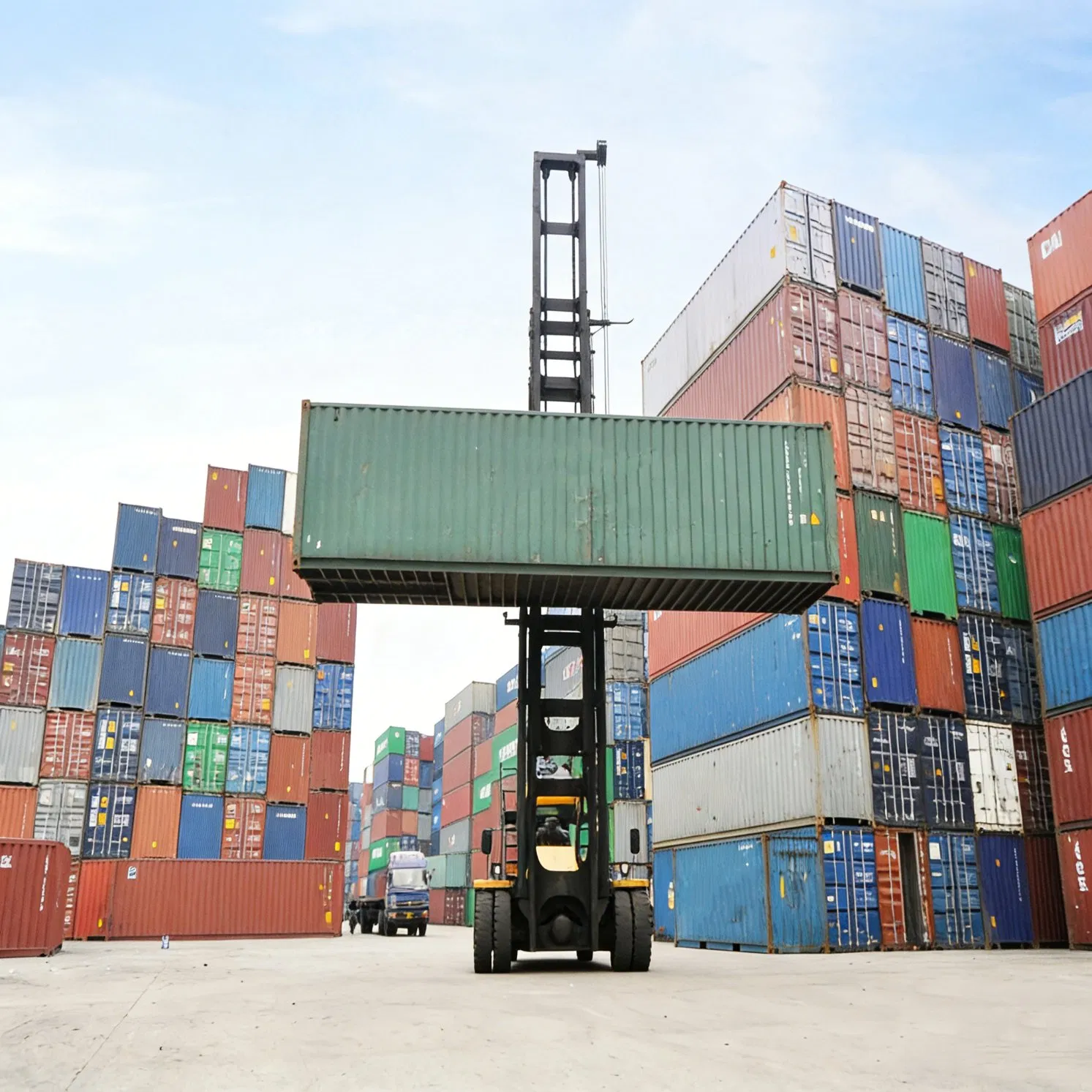

Empty Container Handler 9 Ton Sdcy90K7V5b for Container Ports

Customization:	Available
After-sales Service:	One Year Warranty
Warranty:	One Year Warranty

Send Inquiry

Product Description

Overview & Basic Info

Model NO.	SDCY90K7V5B	Cab Location	Not Adjustable
Type	Container Forklift	Power	Diesel Engine
Load Capacity	18T - 42T	Fuel	Diesel
Load center	500mm	Lift height	3000~5000mm
Condition	New	Vehicle Mass	39t
Rated Load	9t	Max. Lifting Speed	600/550mm/S
Max. Traveling Speed	26/28km/H	Climbing Capacity	35/25%
Overall Length	6900mm	Min. Turning Radius	6000mm
Min. Ground Clearance	280mm	Production Capacity	1000pieces/Year

★

Product Description

Top Brand Empty Container 185kw Handler Reach Stacker XCH907K

K series empty container handler is a fist product combined with advanced design concepts, mature and reliable technology, and top-level supporting systems, which has a higher level of lifting and lowering speed in the industry, as well as super stability and high reliability.

1. Efficient Hydraulic Technology Using double-pump hydraulic system and double-pump confluence technology, the lifting speed is higher than that of industry standards.

2. Dynamic Power Matching Controller, handle, pump, and valve combined with dynamic power matching system for sensitive and efficient response.

3. Dynamic Anti-Tipping Stability is monitored in real-time, limiting speed automatically to ensure operational safety.

4. Energy-Saving Technology Actively adjusts engine speed based on demand, reducing system fuel consumption by up to 16%.

5. Comfortable Operation Suspension seat for shock absorption, high-power air conditioning, and a panoramic cab for a great view.

⚙

Technical Indicators

Technical Indicators	Unit	SDCY9OK7V5B
Vehicle mass	t	39
Rated load	t	9
Stacking layers	--	7
Max. lifting speed (empty/full)	mm/s	600/550
Max. descending speed (unladen/full load)	mm/s	550/600
Max. traveling speed (unladen/full load)	km/h	26/28
Overall length L	mm	6900
Wheelbase L1	mm	4550
Overall height H (contracted/extended)	mm	10870/19240
Max. lifting height of gantry	mm	18750
Min. turning radius R	mm	6000
20' container aisle width A1	mm	10000
40' container aisle width A2	mm	14700

📷

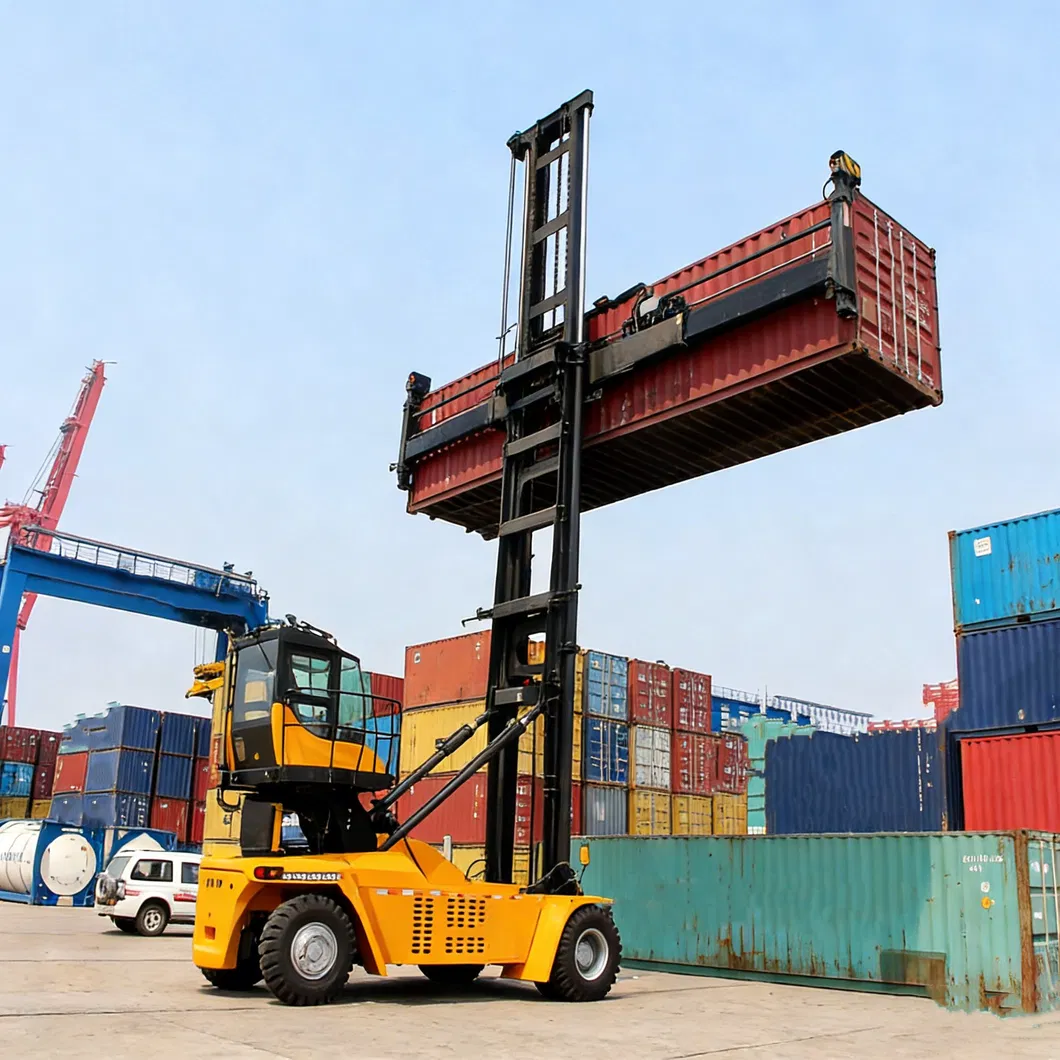

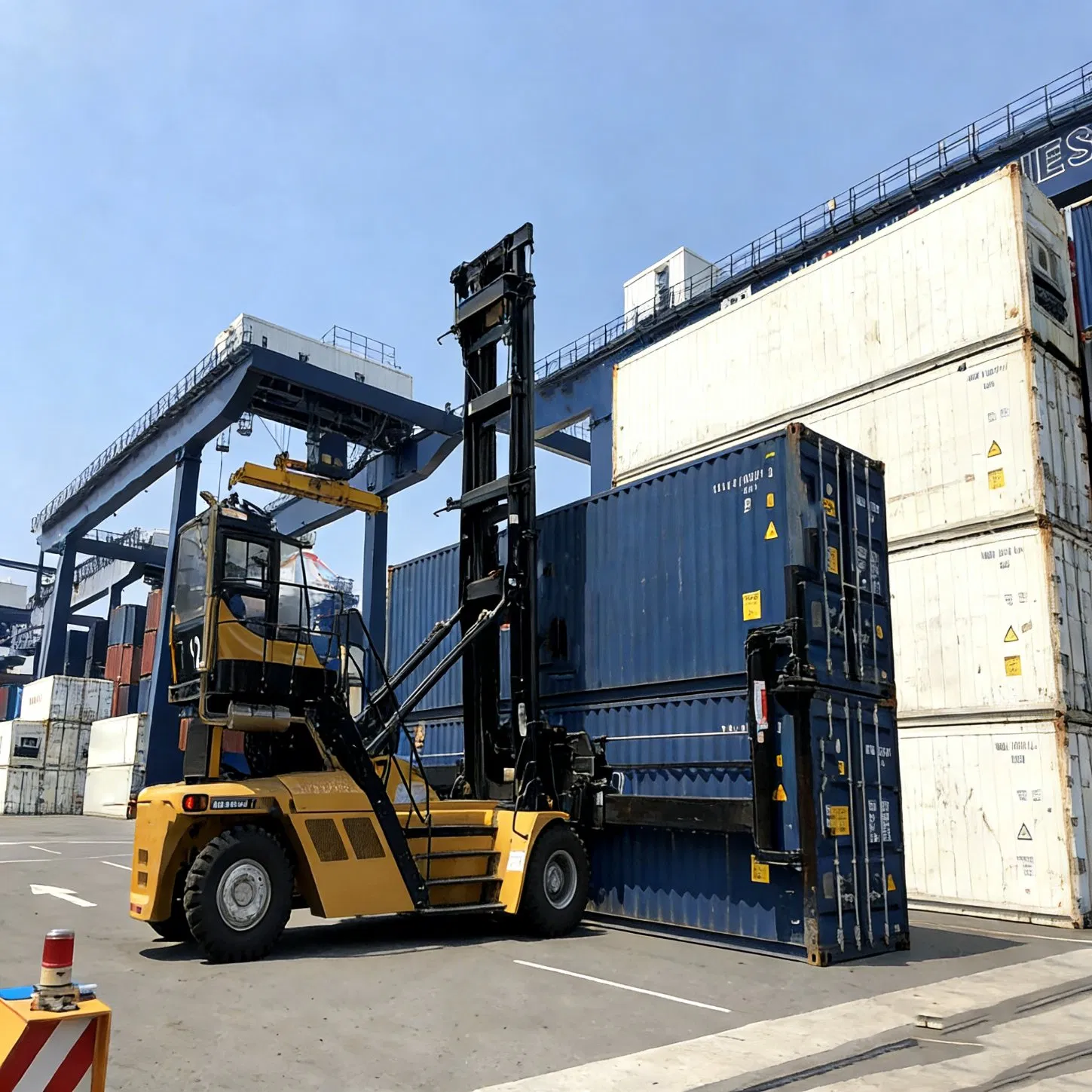

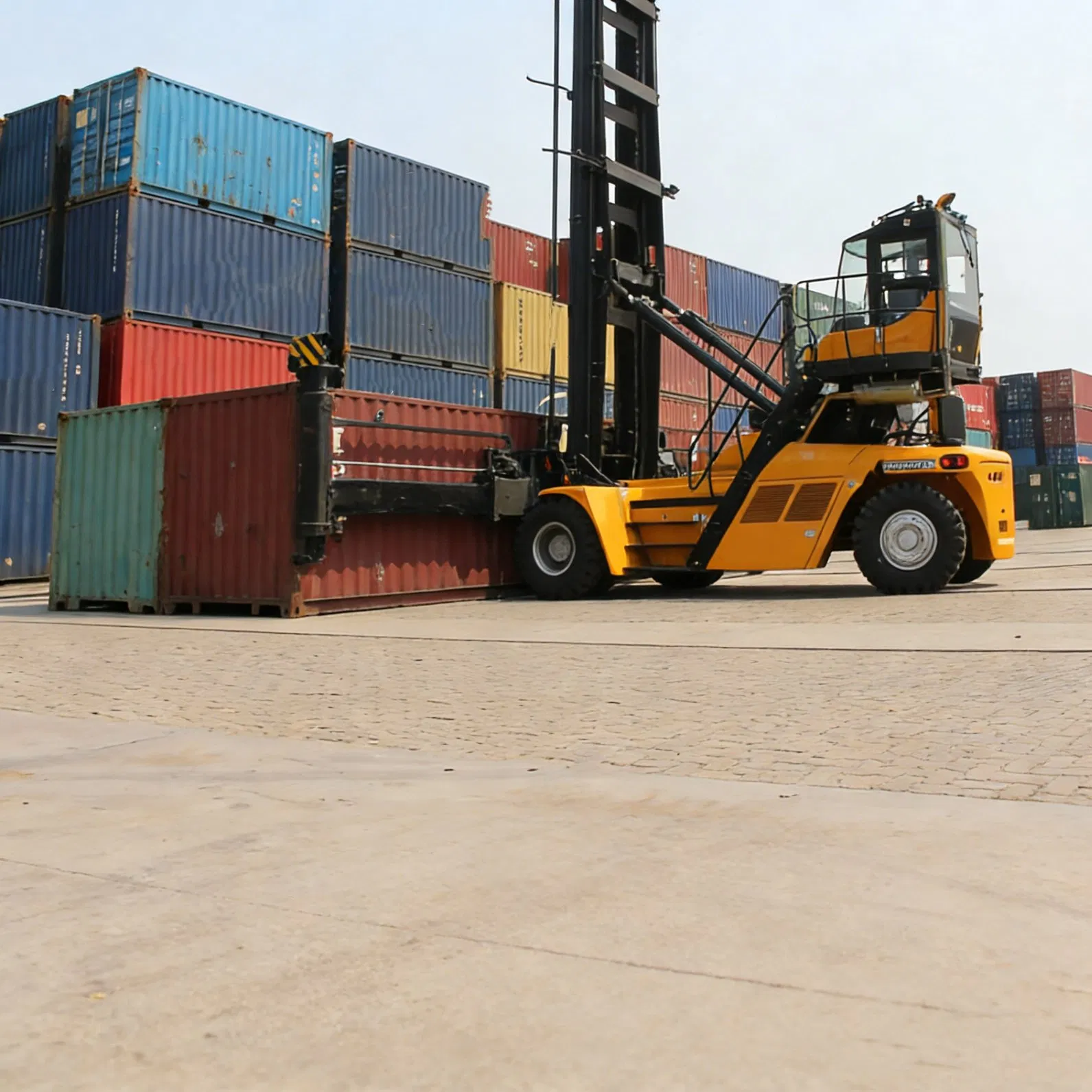

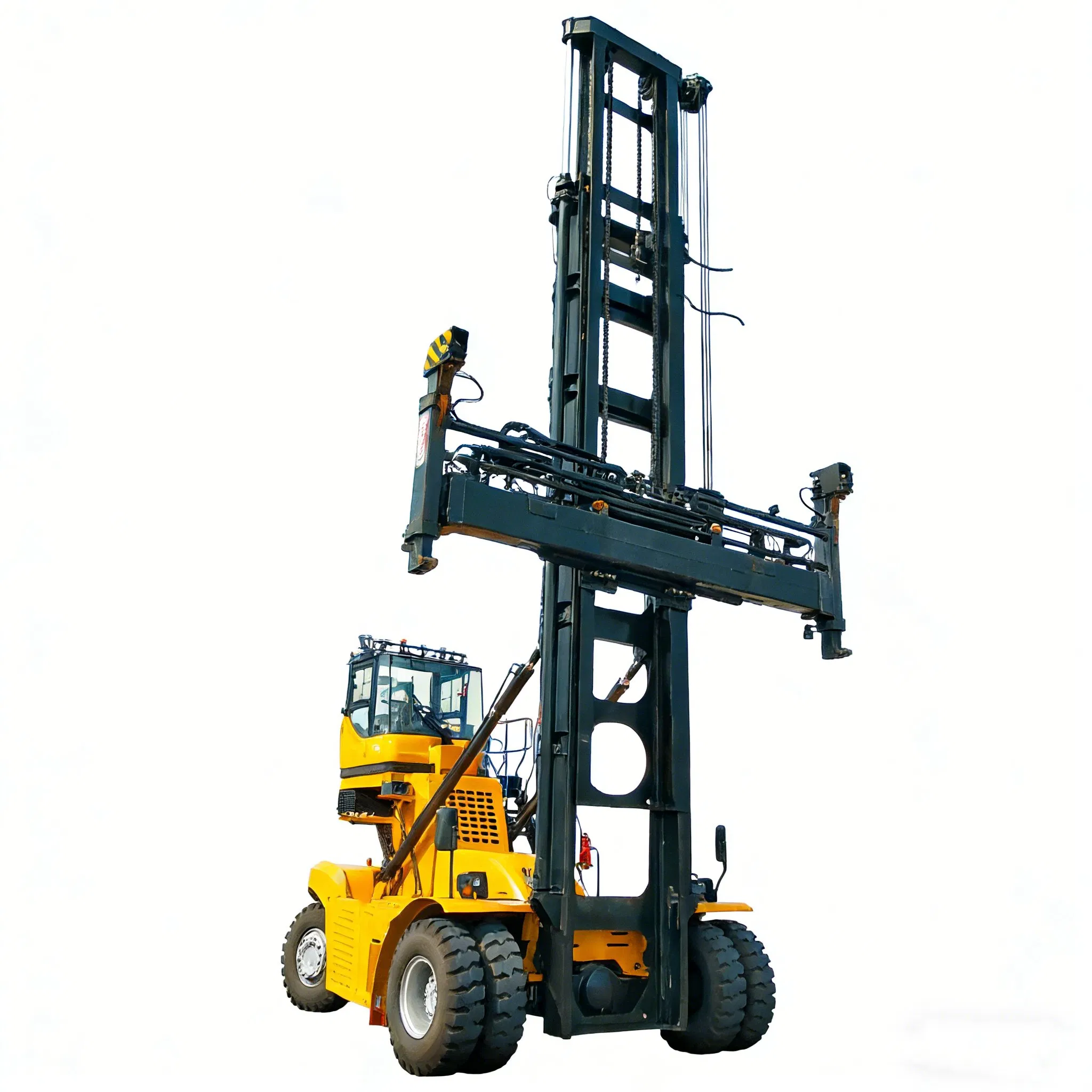

Detailed Photos

🏢

Profile & Production

Frequently Asked Questions

What is the maximum load capacity of the SDCY90K7V5B?

The SDCY90K7V5B empty container handler has a rated load capacity of 9 tons, suitable for handling a variety of empty containers.

How many layers can this container handler stack?

This model is designed to support stacking up to 7 layers high, maximizing storage efficiency in container ports.

Does it have energy-saving features?

Yes, it utilizes dynamic power matching technology and adjusts engine speed based on operational demand, reducing fuel consumption by approximately 16%.

What safety systems are integrated into the vehicle?

It includes a dynamic anti-tipping system that monitors stability in real-time and limits speeds to prevent accidents during lifting or traveling.

What are the lifting and traveling speeds?

The maximum lifting speed is 600mm/s (unladen), and the maximum traveling speed is 28km/h (full load), ensuring high operational efficiency.

Is the operator cabin comfortable for long shifts?

Absolutely. The vehicle features a panoramic cab with a suspension seat for shock absorption and a high-power HVAC system that reaches comfort levels within 5 minutes.
