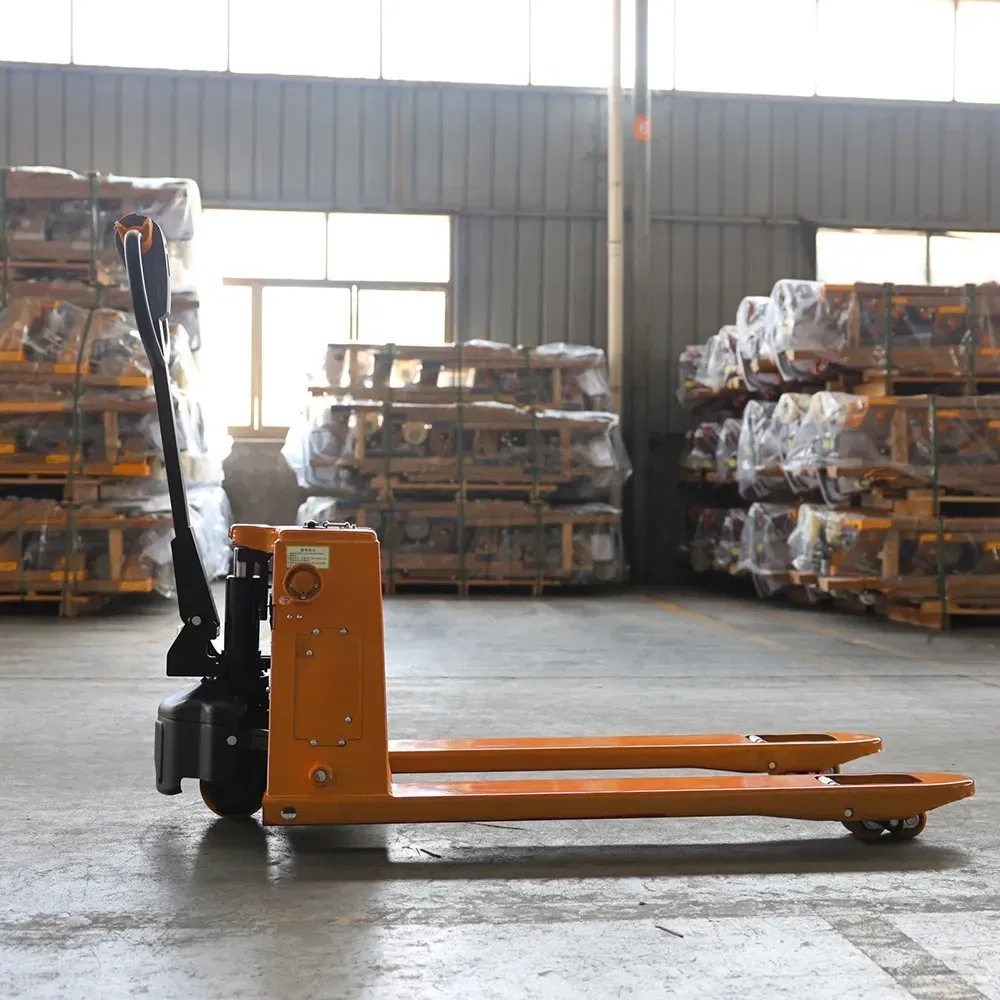

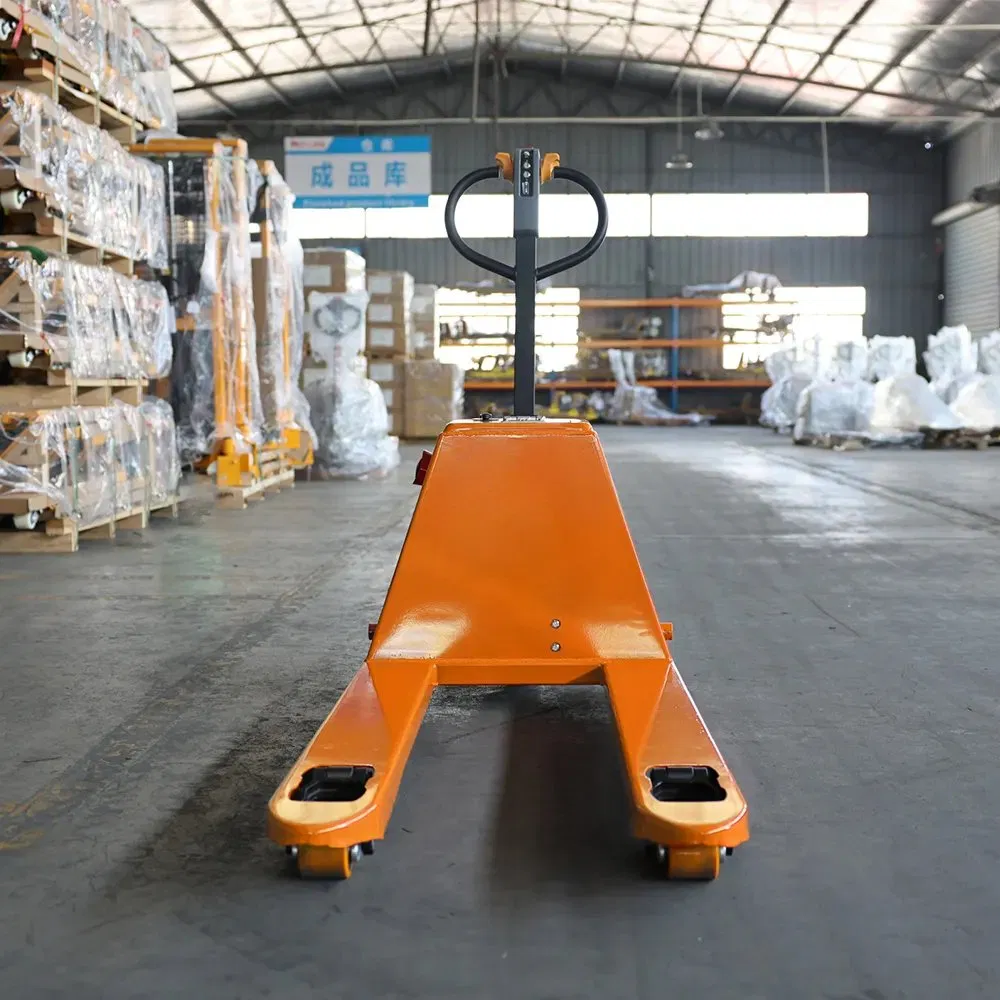

Walking Electric Pallet Truck Factory Electrique 2ton-3ton Duty High Lift Pallet Jack

1 / 5

Walking Electric Pallet Truck Factory Electrique 2ton-3ton Duty High Lift Pallet Jack

Customization:	Available
After-sales Service:	24 Hours Online
Warranty:	24 Hours Online

Send Inquiry

Product Description

📦 Basic Specification

Model NO.

NB20L01HM

Type

Powered Pallet Truck

Power

AC Motor

Load Capacity

2-3t

Fuel

Electric

Load center

600mm

Lift height

85mm

Condition

New

Specification

Customizable

HS Code

8427109000

⚡ Product Features & Overview

This high-performance electric pallet truck is designed for heavy-duty material handling. Equipped with a powerful AC motor and lithium battery technology, it ensures efficient operations with minimal maintenance. The compact design and turning radius make it ideal for narrow aisle warehouses.

📊 Technical Parameters

Item	NB20L01HM (2T)	NB30L01HM (3T)
Rated load	2000kg	3000kg
Vehicle length	1640mm	1710mm
Vehicle width	560/680mm	560/680mm
Fork size	73x160x1150mm	73x160x1150mm
Load center distance	600mm	600mm
Lifting height up to	110mm	110mm
Fork height from ground	85(65)mm	85(65)mm
Travel speed (Full/Empty)	4/4.2km/h	4/4.2km/h
Turning radius	1445mm	1515mm
Weight (incl. battery)	155kg	165kg
Lithium battery	48V/20(30)Ah	48V/20(30)Ah

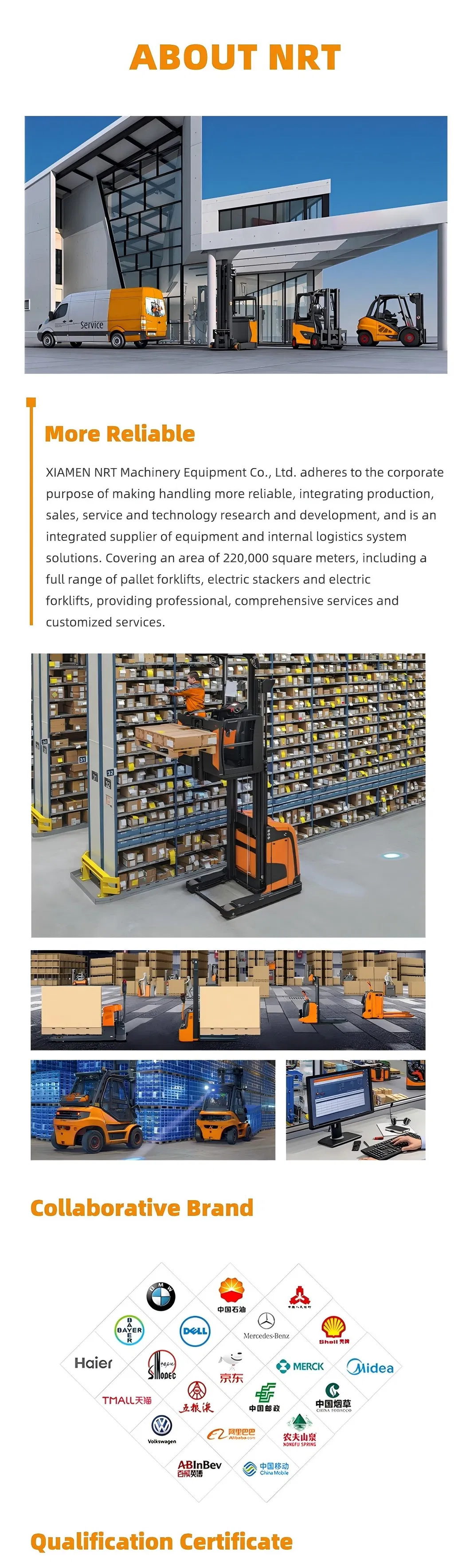

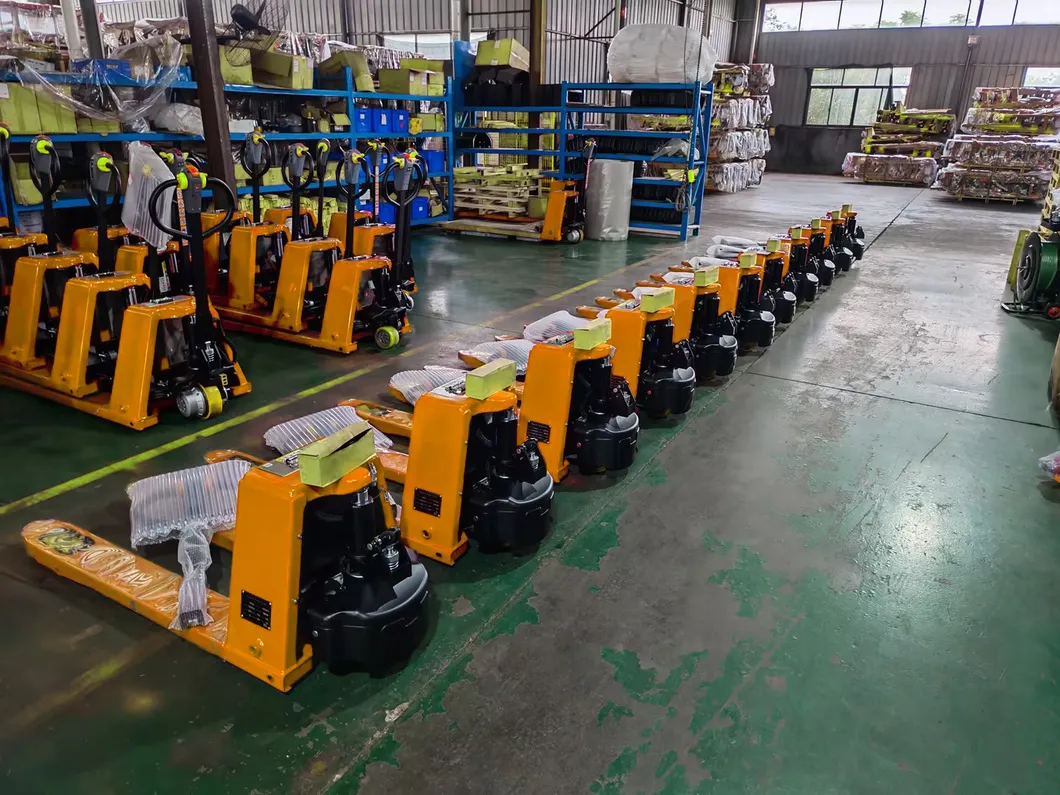

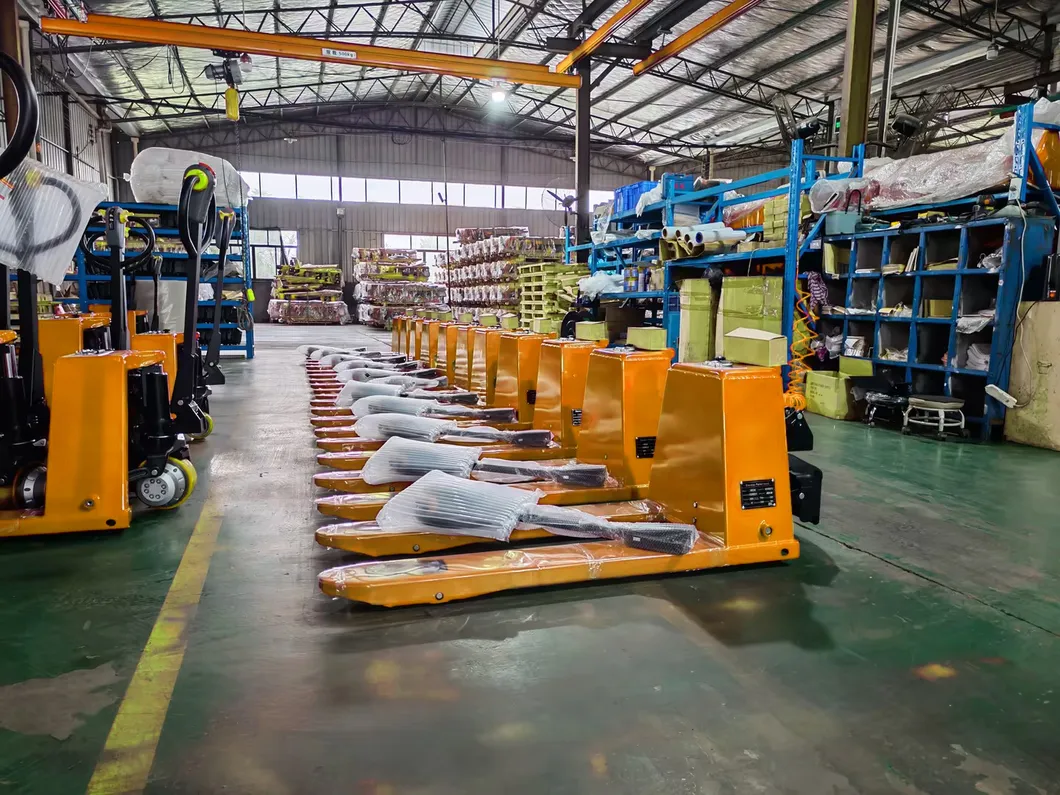

🏭 Manufacturing Excellence

❓ Frequently Asked Questions

How long is the warranty for these products?

We provide a warranty of 12 months or 1000 hours, whichever comes first, from the date of shipment.

What is the typical delivery time?

For standard products, we often have stock available for immediate delivery. Typically, the production time is 15-20 days after receiving the advance payment.

How long does the battery last and how long to charge?

The continuous working time is approximately 3-6 hours depending on capacity. It usually takes 8-12 hours for a full charge. Chargers are automatic and stop once fully charged.

Do you offer customization or OEM/ODM services?

Yes, we can provide customized products based on your specific requirements. Both OEM and ODM options are available to meet your special requests.

What are the electrical specifications for the chargers?

Our chargers support various voltages (110V, 220V, 240V, 380V, 415V) with single-phase or three-phase options. Plugs can be customized to USA, UK, Australia, or European standards.

Can we request a specific color for the equipment?

Yes, we can accommodate requests for specific colors to match your branding or preference.
