Electric High Lift Pallet Jack-HL.E series

Customization: Available
After-sales Service: Yes
Warranty: 1 Year

Product Description

i

Basic Specifications

Model NO.
HL-540E, HL-680E
Type
Manual Pallet Truck
Load Capacity
1T - 5T
Load Center
500mm
Lift Height
800mm
Condition
New
Material
Steel
Delivery Time
20 Days
Transport Package
4PCS/Pallet
HS Code
8427900000
Production Capacity
10000 Pieces Per Month

Product Description

Electric Lift Features
  • ✓ Capacity: 1000kg (2200lbs)
  • ✓ High quality hydraulic motor
  • ✓ Confirms to EN 1757-4 safety standards

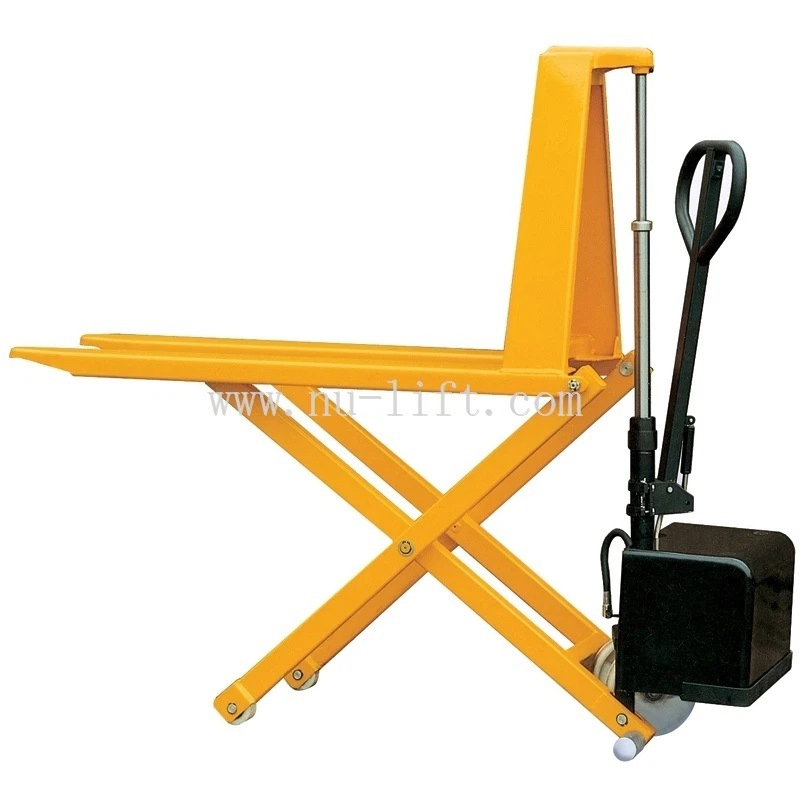

Electric High Lift Pallet Jack-HL.E series
Type Model Capacity kg(lbs) Max. Fork Height mm(inch) Fork Length mm(inch) Overall Fork Width(B) mm(inch) Battery V-Ah Charger V-A Net Weight kg(lbs)
Electric HL-540E 1000(2200) 800(31.5) 1165(45.3) 540(21.3) 12-54 12-10 150(330)
HL-680E 1000(2200) 800(31.5) 1165(45.3) 540(21.3) 12-54 12-10 165(363)

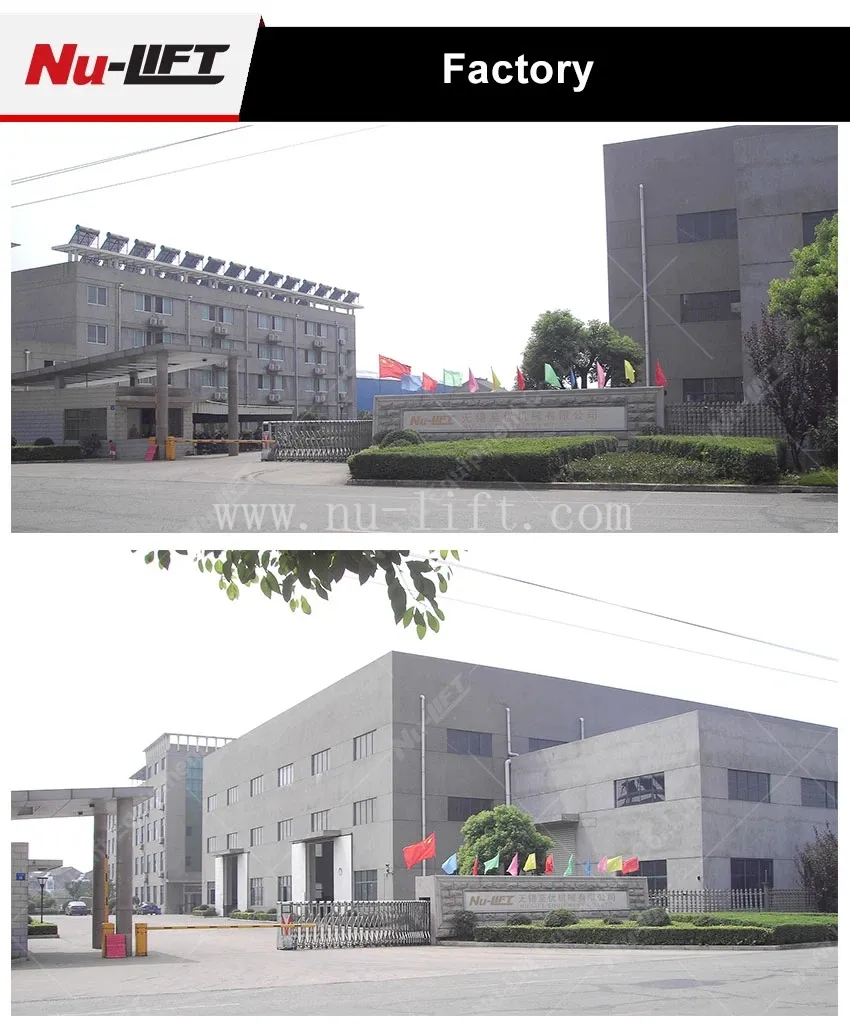

Electric High Lift Pallet Jack Details 1
Electric High Lift Pallet Jack Details 2

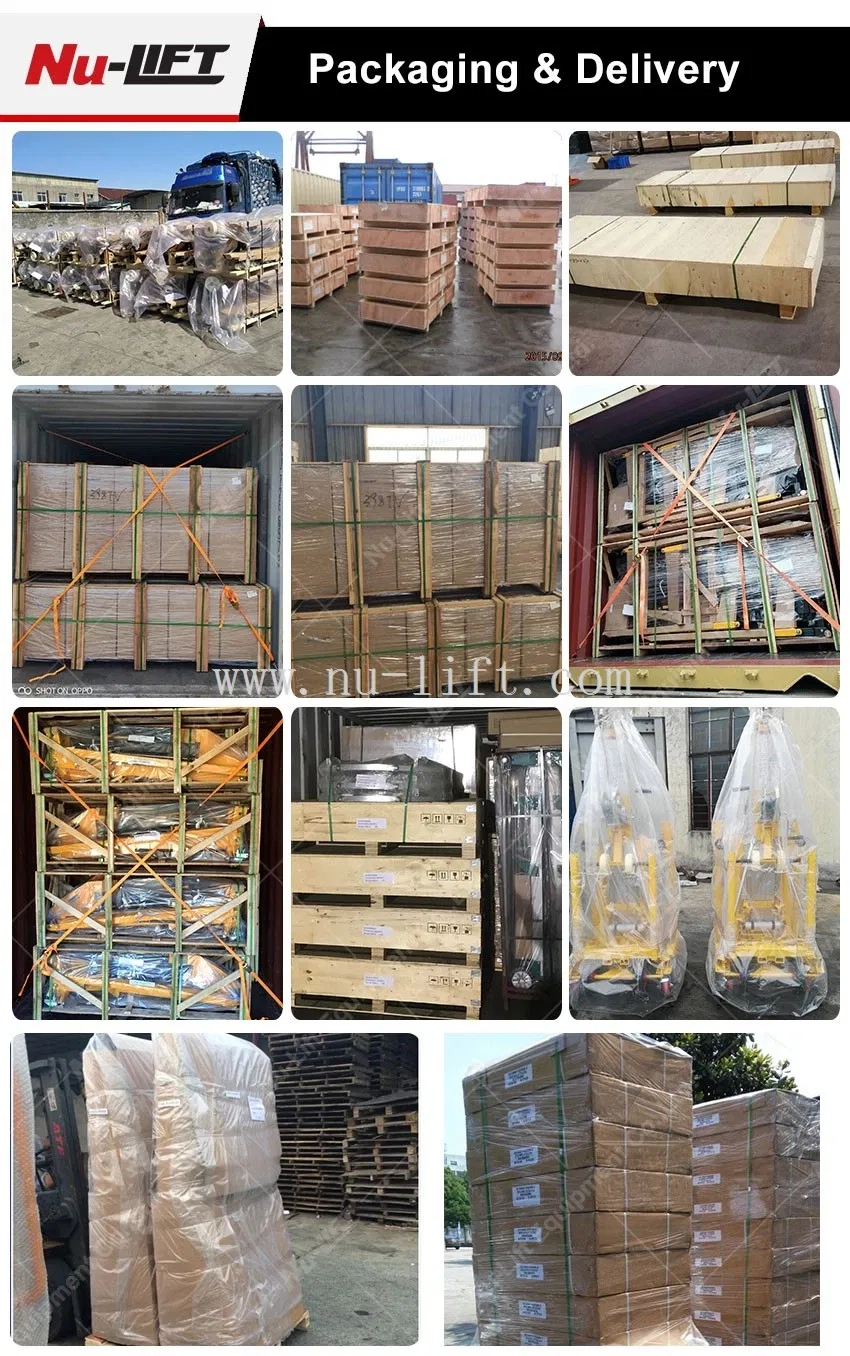

Electric High Lift Pallet Jack Details 3

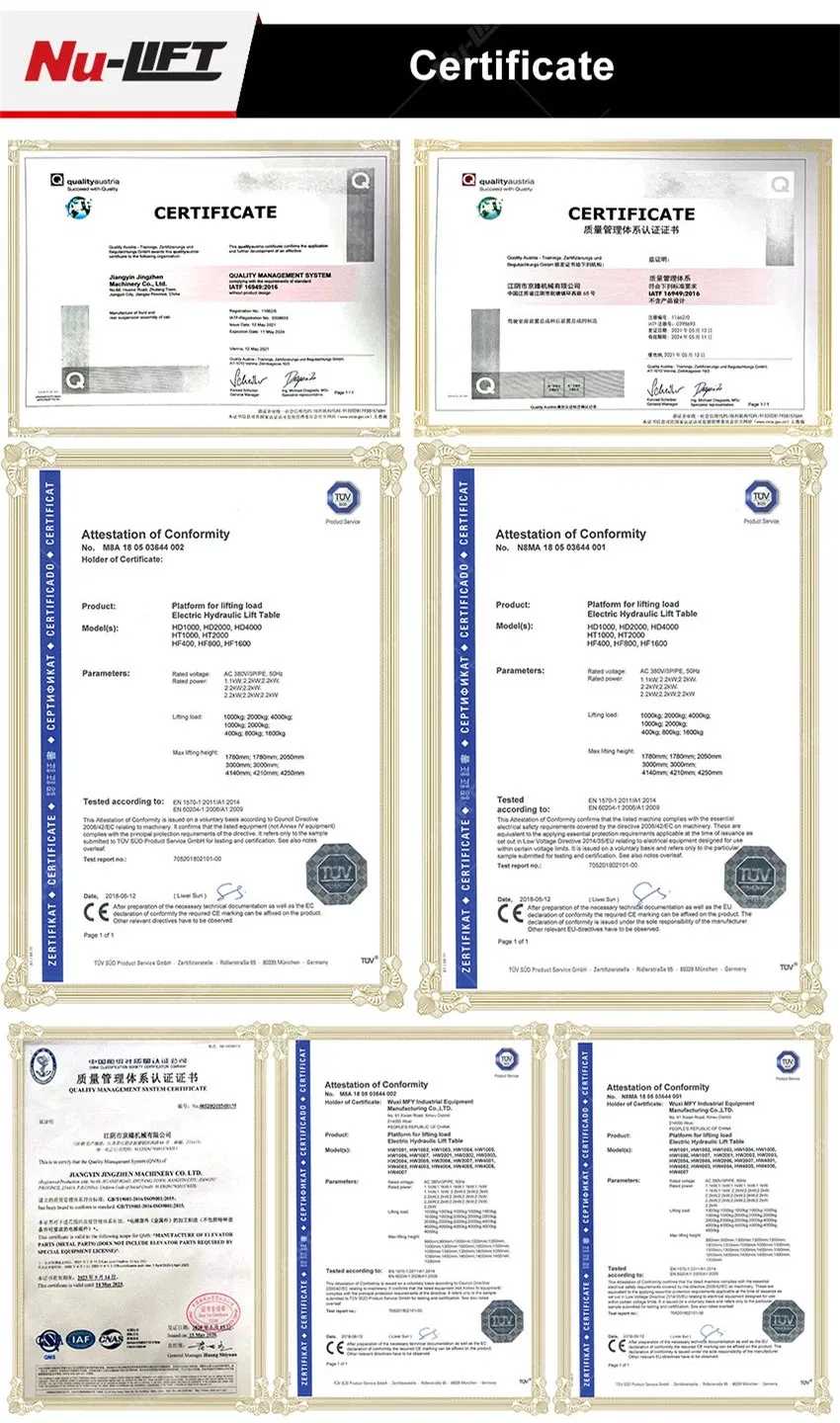

Electric High Lift Pallet Jack Details 4
?

Frequently Asked Questions

What is the load capacity of the HL-E series?
The HL-E series electric high lift pallet jack has a rated capacity of 1000kg (2200lbs).
What is the maximum lift height available?
These models can lift forks to a maximum height of 800mm (approximately 31.5 inches).
Does this equipment meet international safety standards?
Yes, the product is CE certified and conforms to the EN 1757-4 safety requirements.
What type of battery and charger are included?
The unit is equipped with a 12V-54Ah battery and comes with a 12V-10A battery charger.
What is the standard fork length?
The standard fork length for both the HL-540E and HL-680E models is 1165mm (45.3 inches).
What material is the pallet truck made of?
The equipment is constructed from high-quality steel to ensure durability and long-term industrial use.
