Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

Basic Info

Model NO.
MCC1615
Type
Electric Forklift
Power
AC Motor
Load Capacity
1T - 5T
Fuel
Electric
Load center
500mm
Lift height
3000-9000mm
Condition
New
Width
1450mm
Fork Dimension
1000/125/50mm
Turning Radius
1880mm
Origin
China
HS Code
8427109000
Capacity
1000 PCS/Year

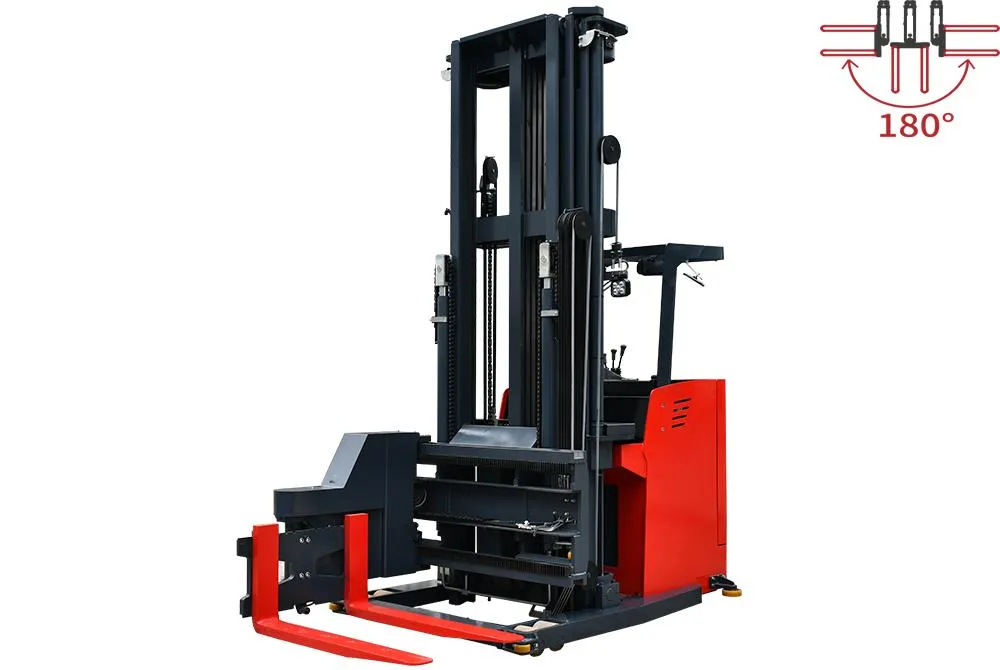

Electric Articulated Forklifts

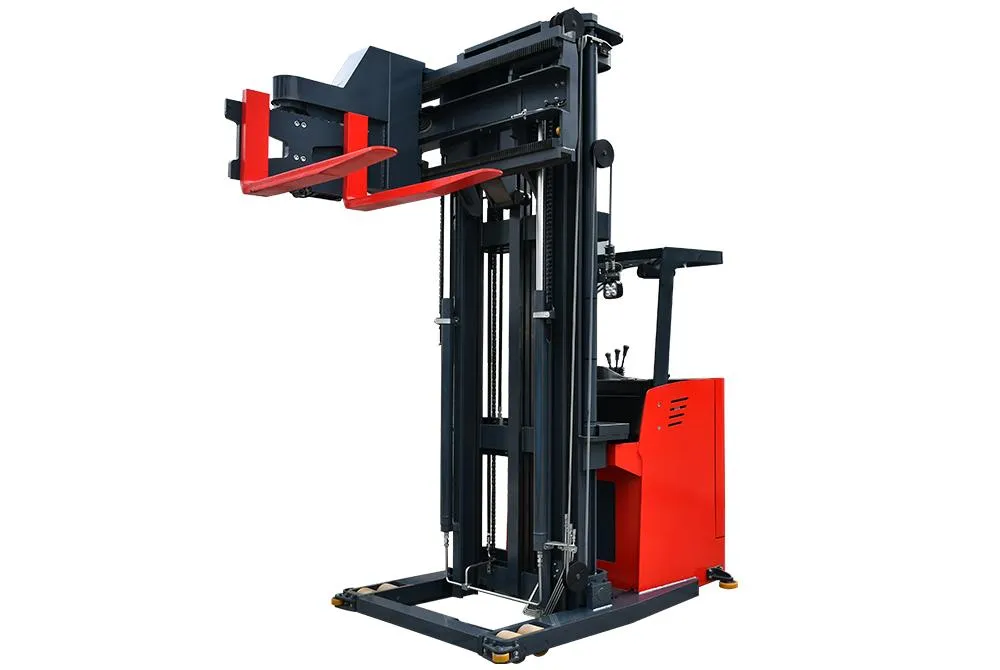

Very Narrow Aisle Forklift

Product Description

Model MC10 MC10SQ MC15 MC15SQ
Power type Battery Battery Battery Battery
Service weight (kg) 4260 4800 4690 5520
Rated capacity (kg) 1000 1000 1500 1500
Lift height (mm) 3000 4500 3000 4500
Turning radius (mm) 1880 1880 1980 1980
Travelling speed (km/h) 7.5/8 7.5/8 7.5/8 7.5/8

APPLICATIONS

MC Series 1.0-1.5T 3-way pallet stacker (Stand-on Driving type) features a 3-way stacking function: forks can rotate 180° and perform left-right side shifts without body turning. It is the primary choice for intensive storage in logistics, medicine, food, and low-temperature cold storage.

  • Stacking in ultra-narrow roadways and high shelf designs
  • Efficient horizontal handling
  • Rapid load/unload cargo operations

MAIN FEATURES

  • Forks rotate 180° for side shifting without body turning; Min. net channel: 1500mm.
  • Advanced Curtis controller with a stable, safe whole-AC system.
  • Maintenance-free AC driving system for quick and accurate reaction.
  • Electric power steering for safe and comfortable operation.
  • Large section mast structure to ensure rigidity and high loading performance.
  • Imported hydraulic parts for system stability.
  • Side-pull type battery for convenient charging.
1Gantry channel steel: imported from Germany with shock absorption.
2Maintenance-free AC drive motor.
3Imported AC controller.
4Danfoss or Eaton side shift and rotary motors.
5Japan Tokai Rubber Pipe and Tianjin Shimadzu Gear Oil Pump.
6American AMP waterproof and dustproof plug-ins.
7Japanese NOK seals and German SICK brand steering sensor switches.
8H-shaped channel steel and central guide rail for stability.
9High gantry video color display and battery side pull rack.

OUR SERVICE

Pre-Sales Service

  • Inquiry and consulting support.
  • Photos & Videos for your order before shipment.
  • Factory visiting availability.

After-Sales Service & Warranty

  • Comprehensive training on machine operation.
  • Lifetime supply for spare parts.
  • One year guarantee for whole machine main parts.
  • 24 hours technical support via email.

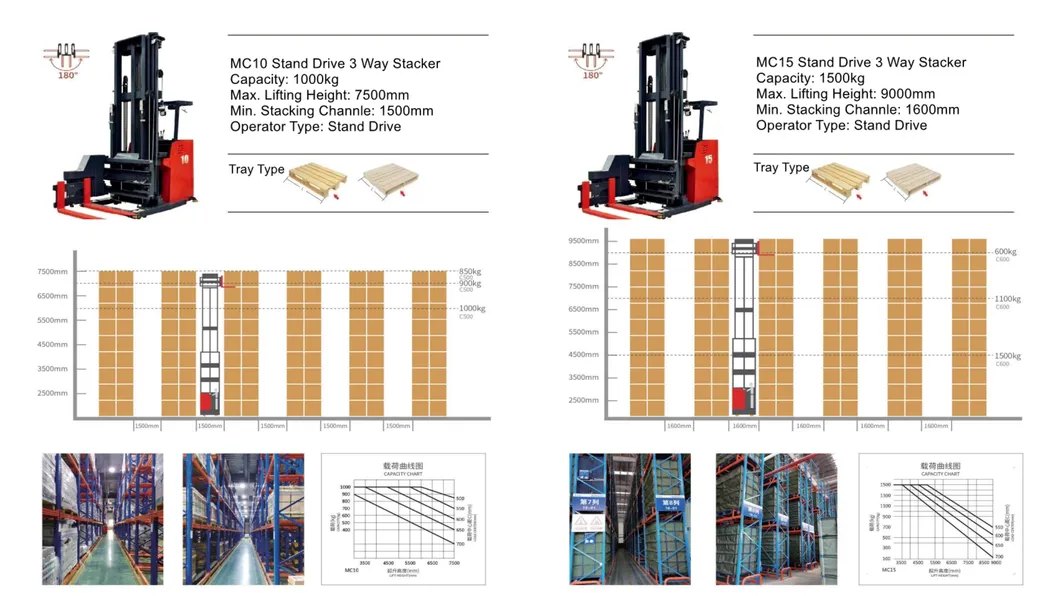

Articulated Narrow Aisle Forklift

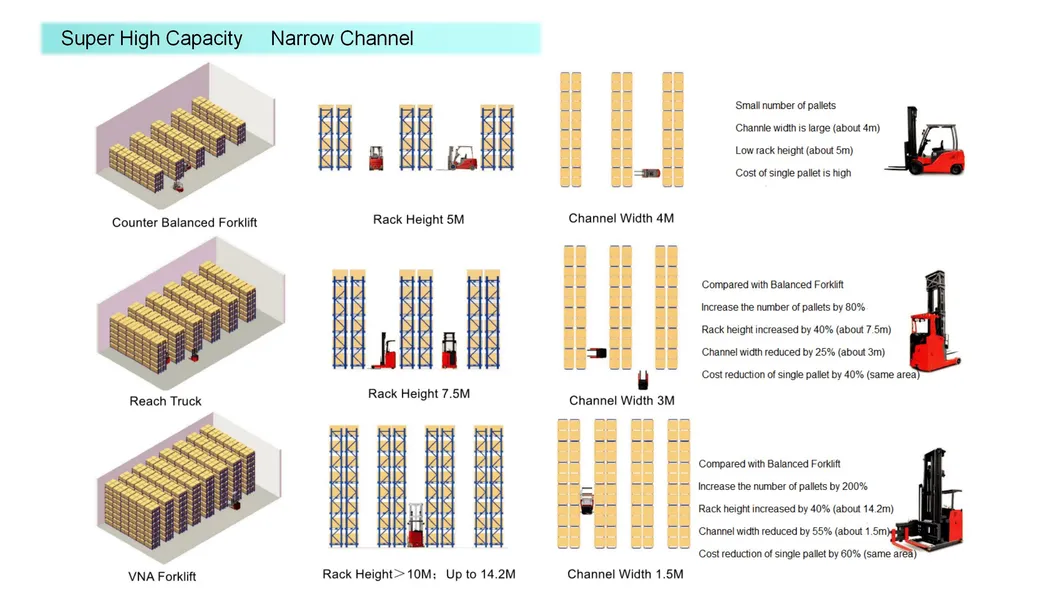

VNA Forklift Truck

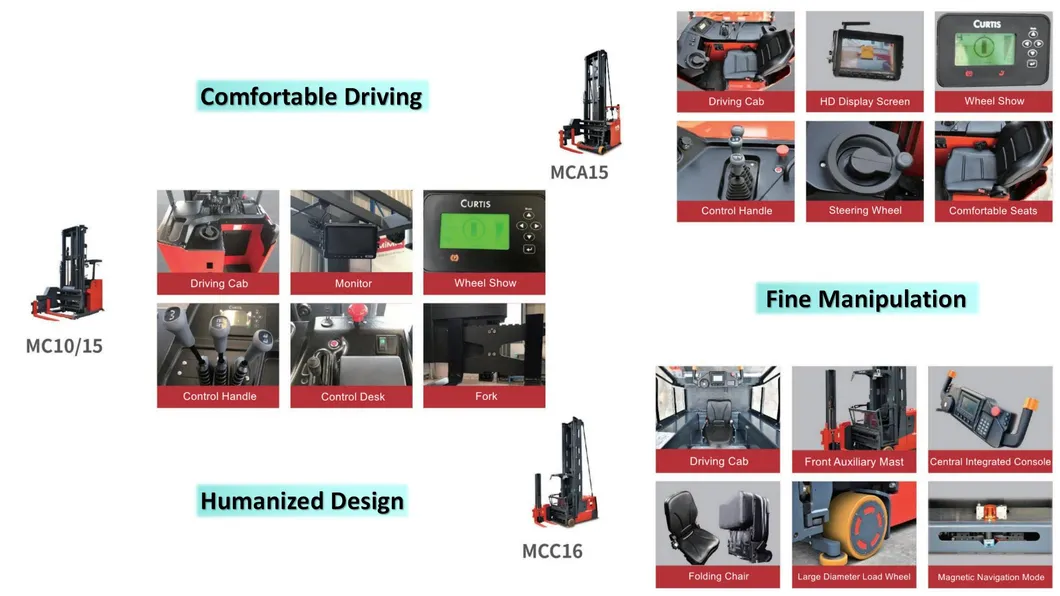

Very Narrow Aisle Turret Truck
Electric Forklift Technical View
Articulated Forklift Dimensions

Frequently Asked Questions

Q1: What makes the 3-way pallet stacker ideal for narrow aisles?
The forks can rotate 180° and shift left or right without turning the vehicle body. This allows it to operate in aisles as narrow as 1500mm, significantly increasing storage density.
Q2: What is the maximum lifting height of this equipment?
The MC series offers a versatile lifting range, with a maximum lifting height reaching up to 9000mm, suitable for high-shelf warehouse environments.
Q3: Are the motors maintenance-free?
Yes, the unit utilizes a whole-AC driving system with maintenance-free motors, ensuring low noise, high efficiency, and significantly reduced maintenance costs.
Q4: How long is the warranty period for this forklift?
We provide a one-year guarantee for the main parts of the whole machine, along with lifetime technical support and spare parts supply.
Q5: Can this forklift be used in cold storage environments?
Yes, the 3-way pallet stacker is commonly used in logistics, medicine, food sectors, and specifically designed for low-temperature cold storage operations.
