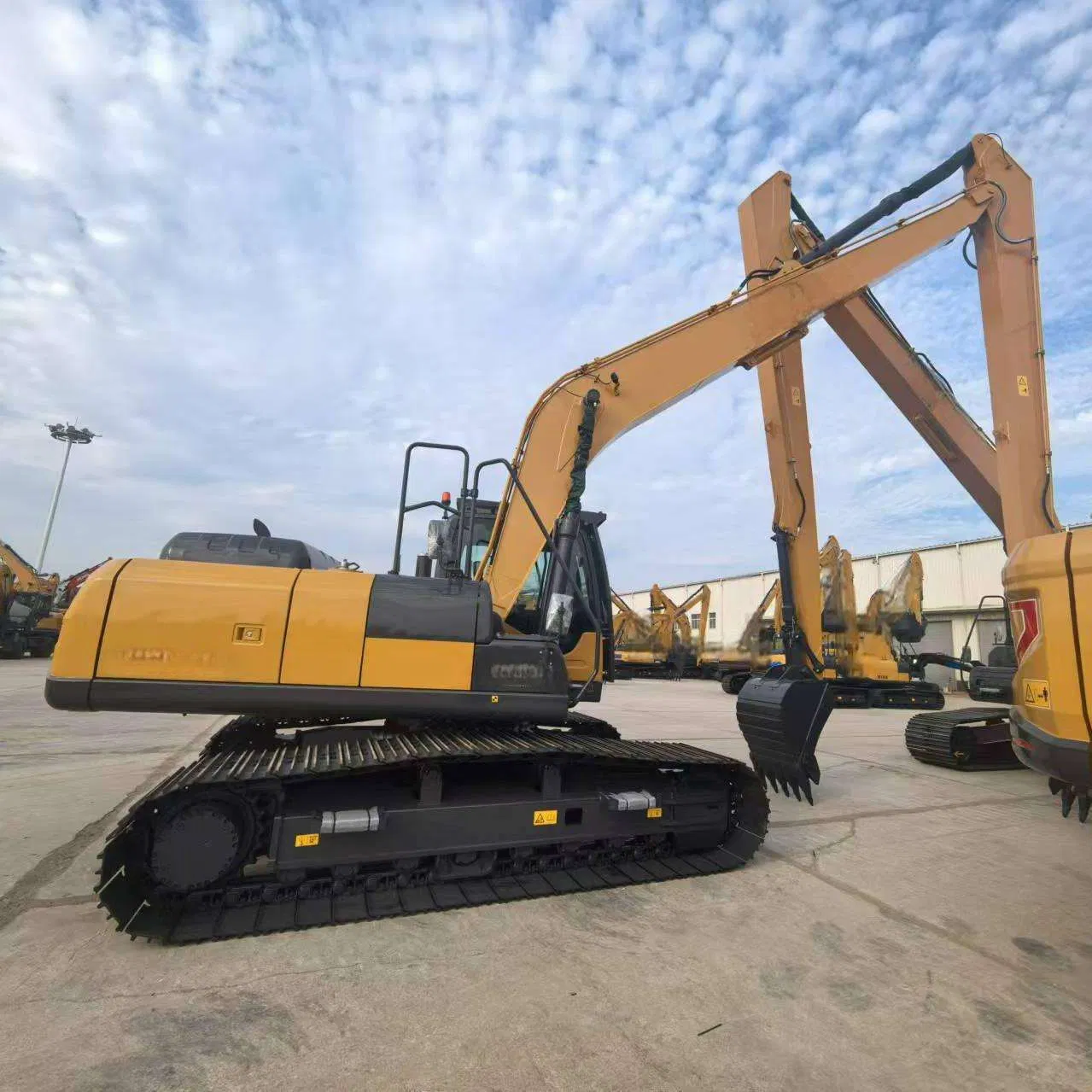

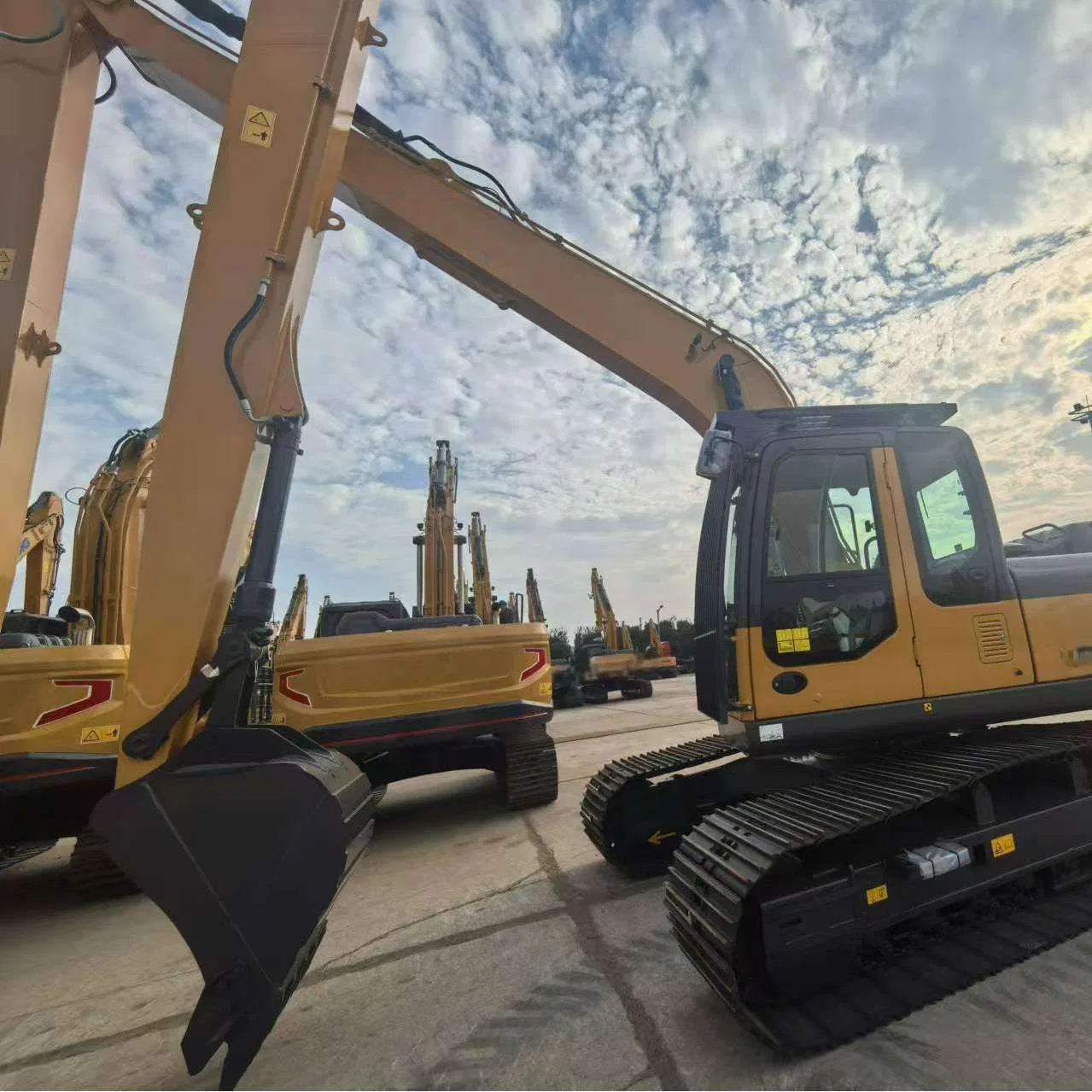

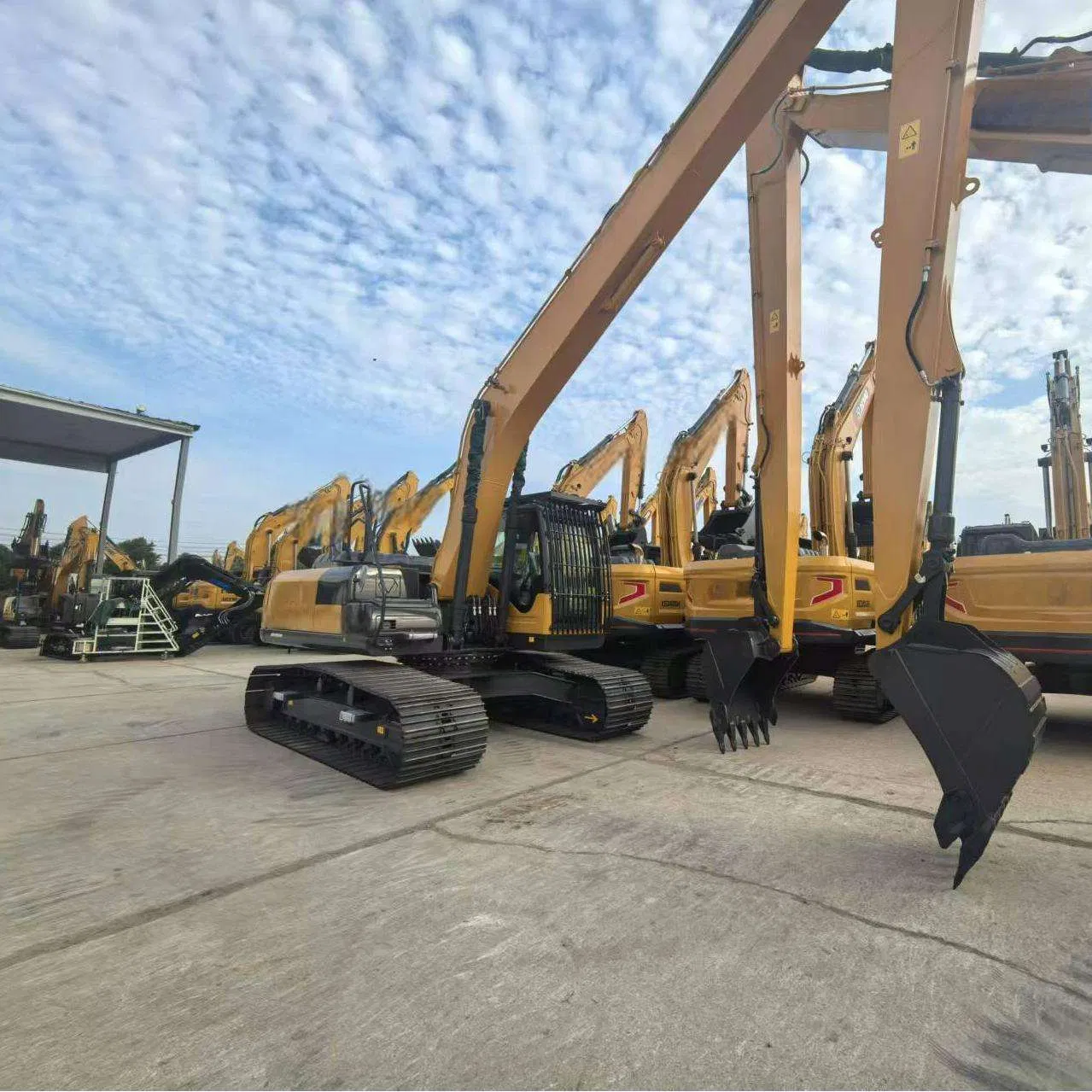

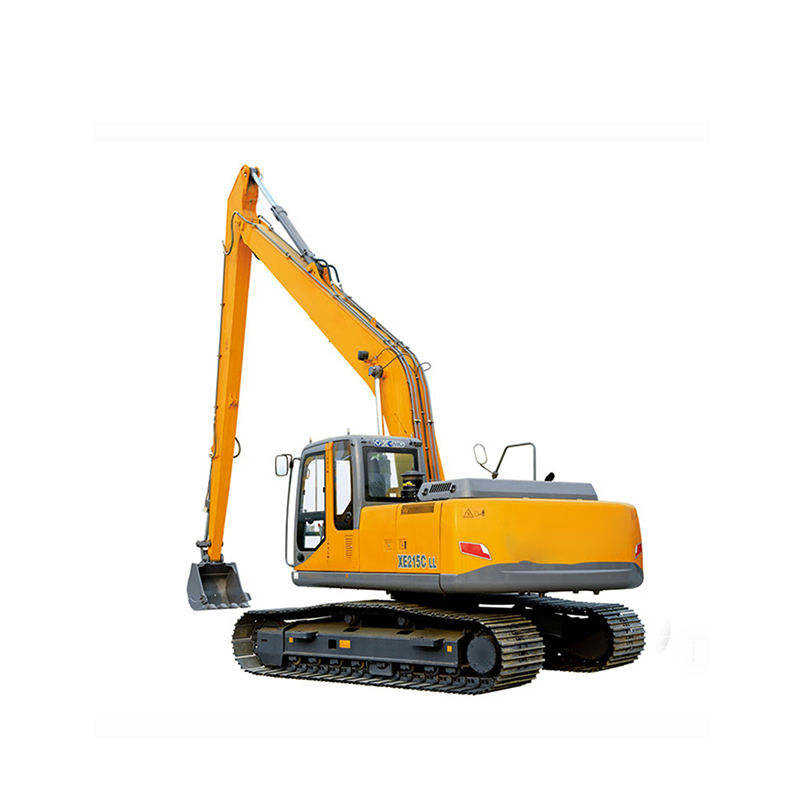

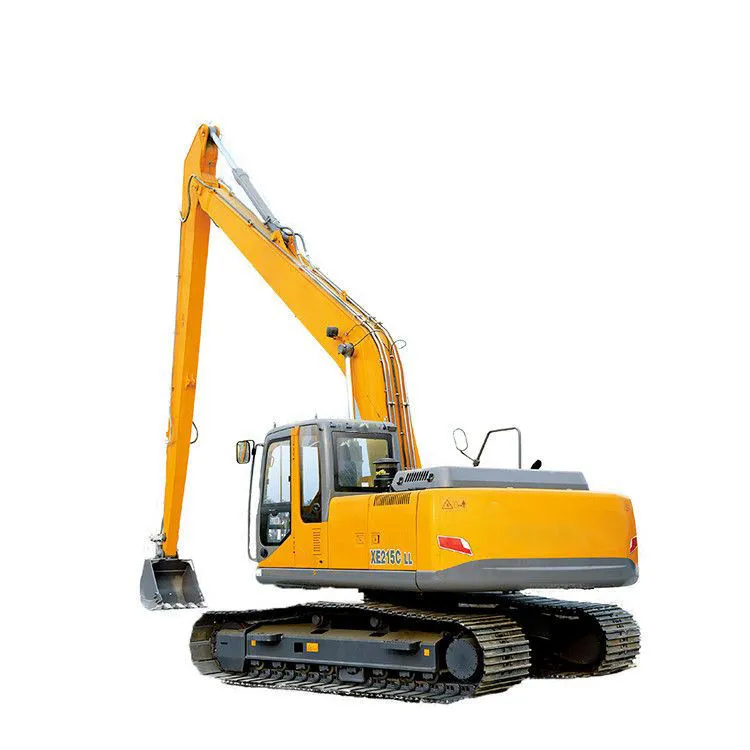

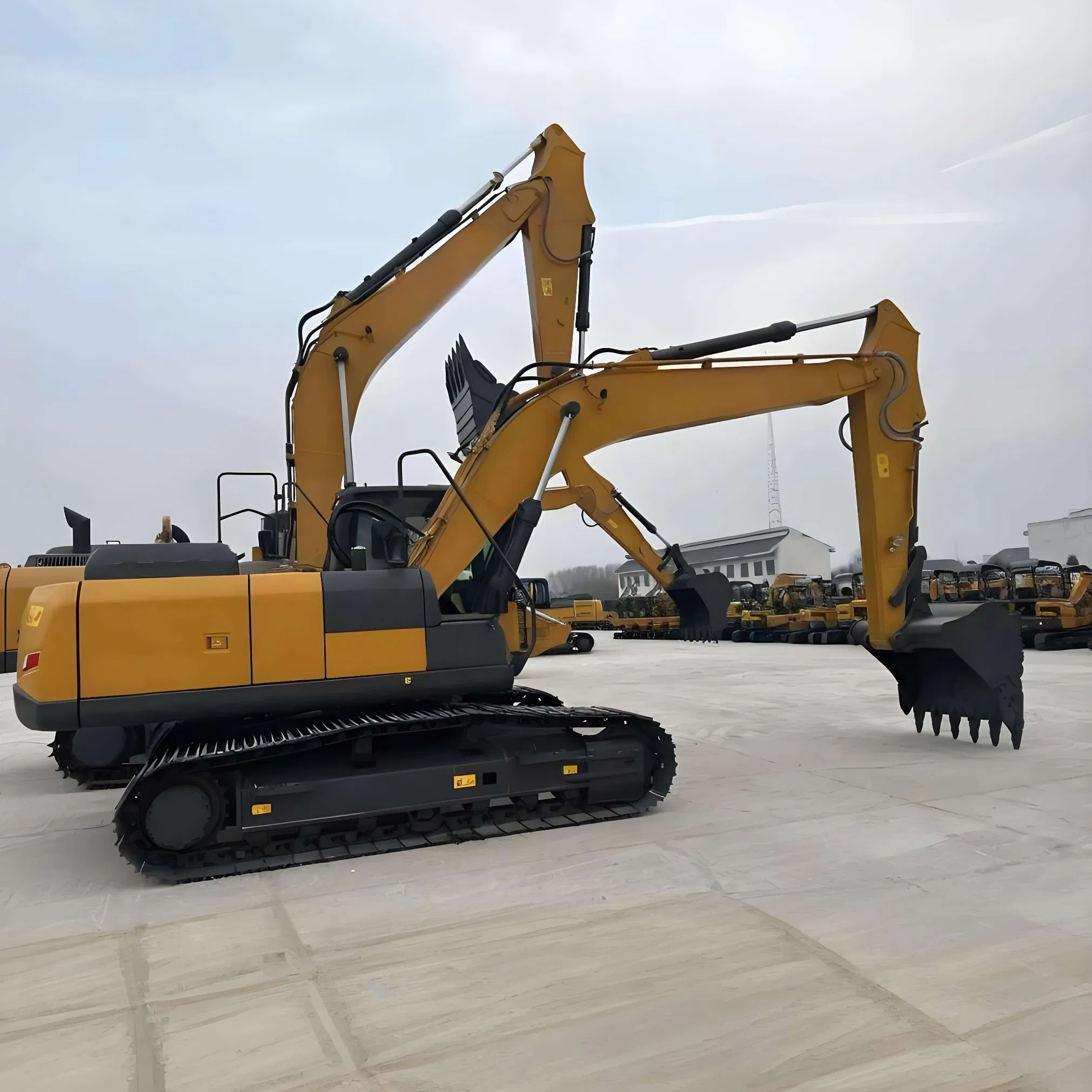

XE215CLL hydraulic excavator with super long reach is a self-developed product adopting the latest technology and advanced standards. It is an efficient machine focused on safety, environmental performance, and high production efficiency.
Featuring a 15-meter-long working mechanism, the XE215CLL is primarily applied to water conservancy works, port construction, river and lake dredging, and other specialized engineering tasks. Its standard 800mm tracks reduce ground specific pressure, increasing applicability in various working conditions.
| Performance & Weight | ||
| Operating Weight | kg | 21900 |
| Standard Bucket Capacity | m³ | 0.8~1.0 |
| Engine System | ||

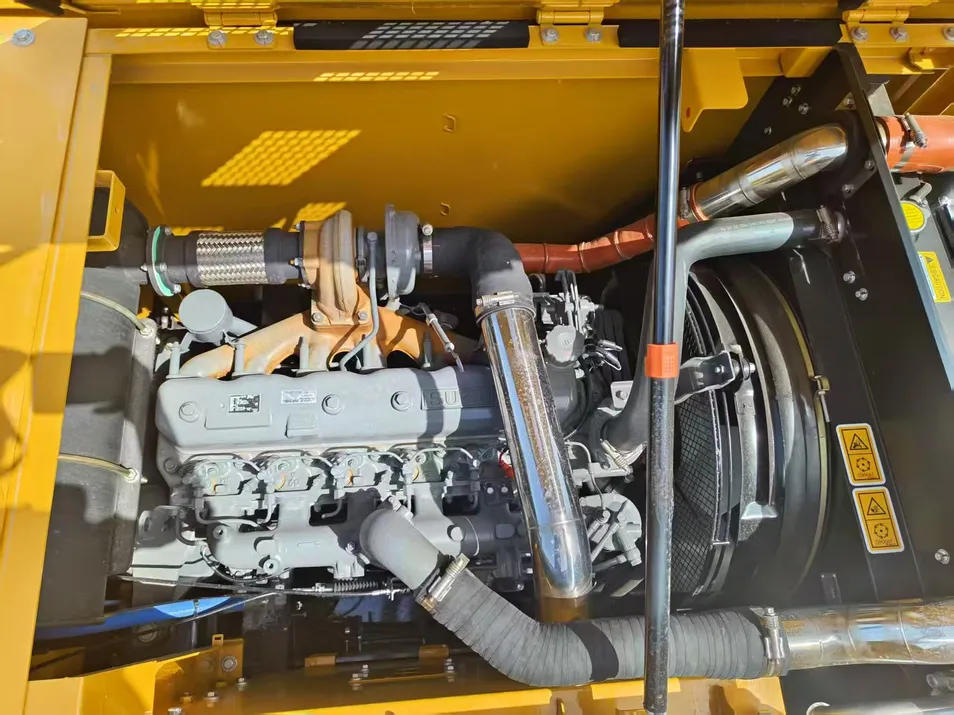

| Engine Model | / | BB-6BG1TRP |
| Type | / | Direct injection, 4-stroke, Water cooling, Turbocharged |
| Rated Power/Speed | kw/rpm | 106.5/1950 |
| Max. Torque/Speed | N.m | 551/1600 |
| Displacement | L | 6.494 |
| Working Range | ||
| Max. Digging Height | mm | 9640 |
| Max. Dumping Height | mm | 6800 |
| Max. Digging Depth | mm | 6655 |
| Max. Digging Reach | mm | 9925 |
| Dimensions | ||
| Overall Length | mm | 9525 |
| Overall Width | mm | 2990 |
| Overall Height | mm | 3000 |
| Track Width | mm | 600 |
