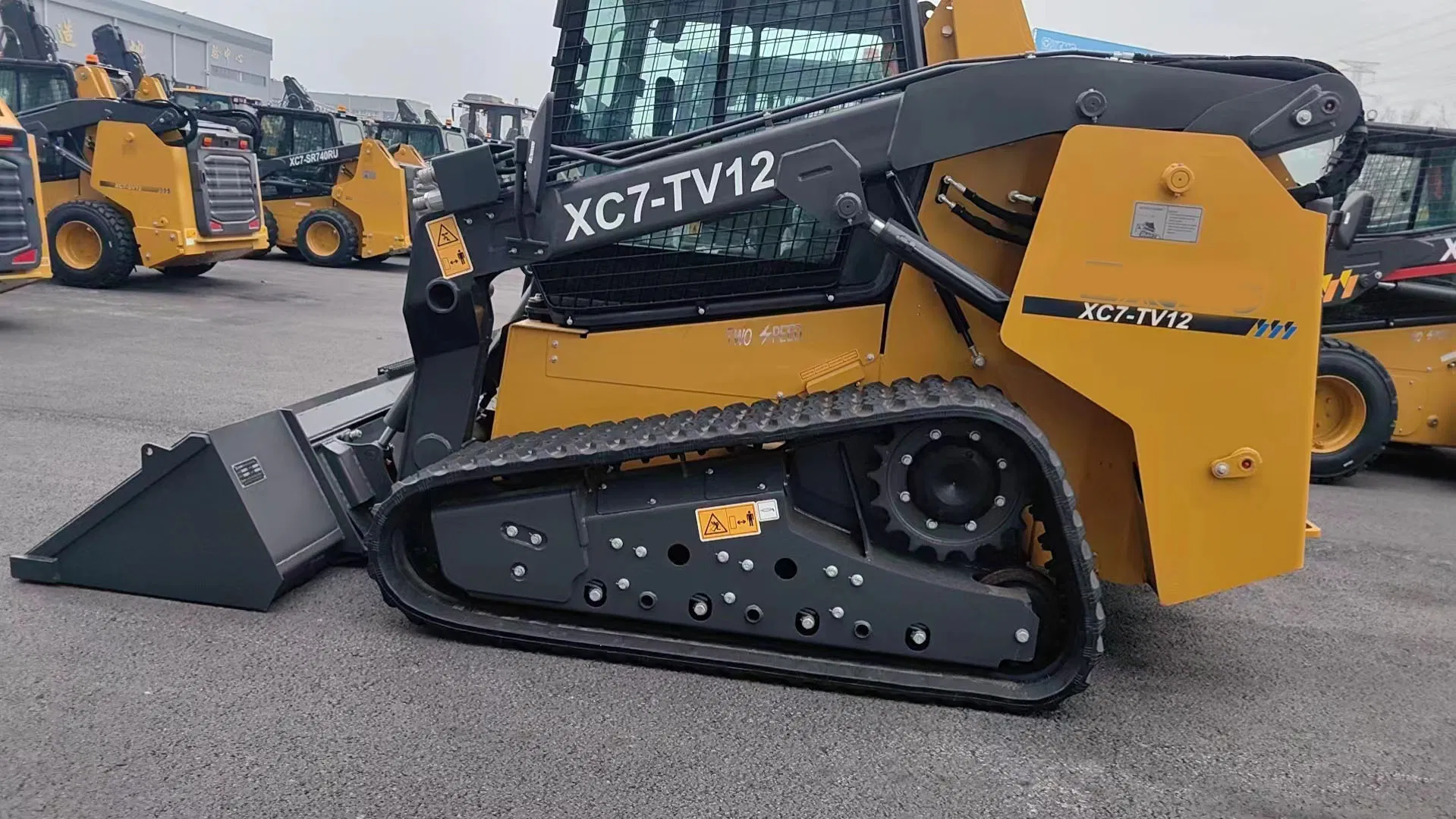

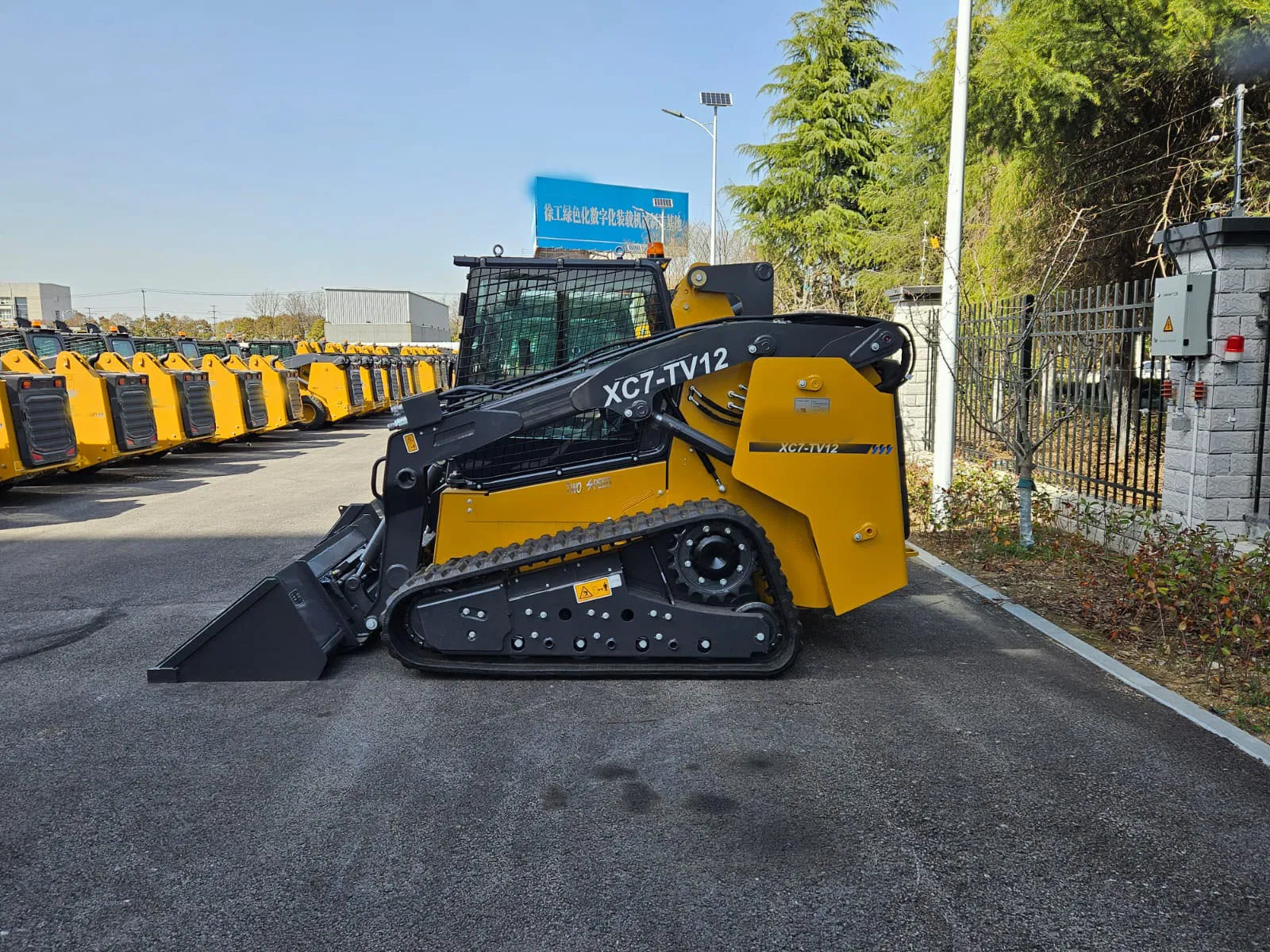

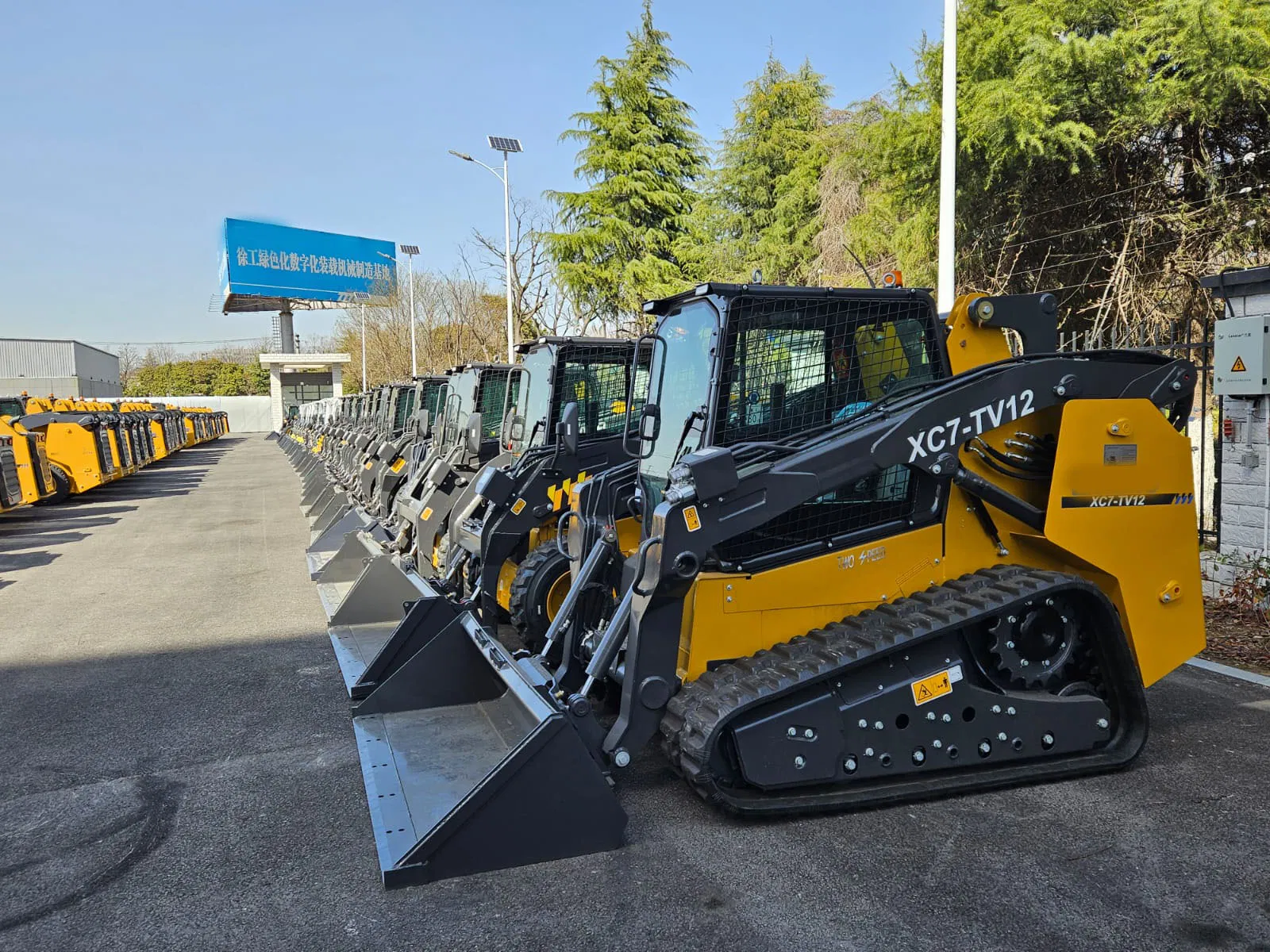

Compact Track Loader Xc7-TV12 Mini Skid Steer Loader with Quick Coupler

📊 Basic Information

Model NO.

XC7-TV12

Certification

TUV, ISO, RoHS, CE

Condition

New

Rated Load

<1t

Transmission

Hydraulic - Mechanical

Load/Unload Mode

Front Discharge

Walking Mode

Crawler

Type

Small Loader

Engine Model

4tnv98CT-Nty

Quick Coupler

Standard

Specification

3.786*2*2.1m

HS Code

8429510000

🏗️ Product Description

COMPACT TRACK LOADER XC7-TV12 Mini Skid Steer Loader With Quick Coupler

Strong and Efficient Power Transmission System The renowned brand engine equipped features strong power, ultra-low emission, and higher fuel efficiency. The static hydraulic drive technology adopted features stable drive, high efficiency and reliability. Fully-sealed sprocket case and high strength chains feature automatic lubrication and maintenance-free.

Flexible Operations Compact structure, low turning radius, and strong site adaptability. The quick-change coupling can change attachments rapidly. The bucket automatically maintains level status during lifting to prevent scattering of material.

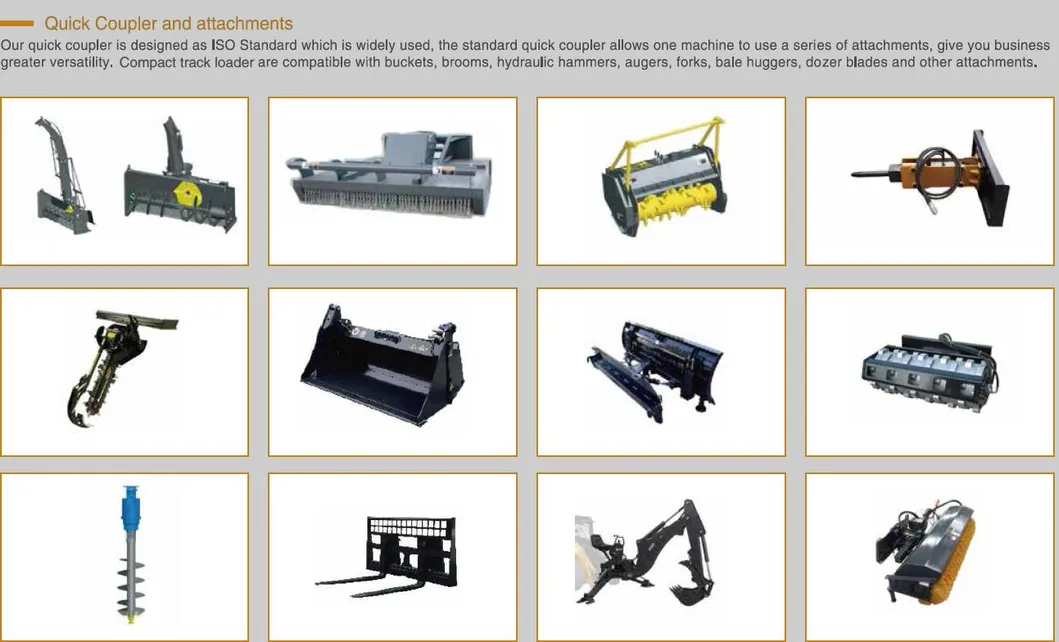

Incomparable Multi-functionality The international interchangeable quick-change coupling enables the change of tens of attachments, including sweeper, planer, breaking hammer, and ditcher, rapidly and conveniently.

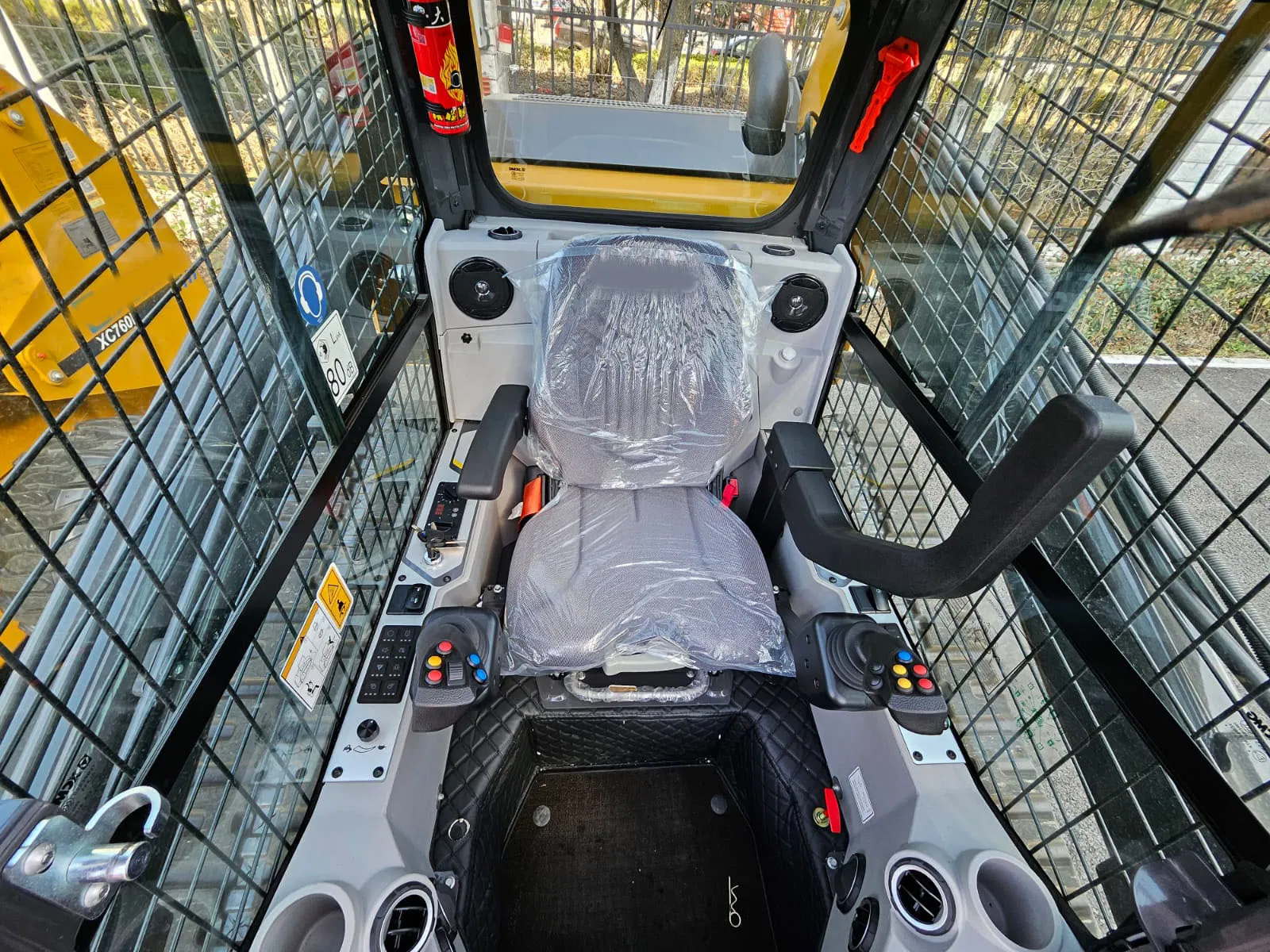

Safe and Comfortable Operating Environment ROPS&FOPS cab, seat belt, bumper, fire extinguisher, and safety hammer guarantee operator safety. The cab features large space and adjustable seats. Standard double-accelerator control (pedal or preset constant power) saves labor.

Convenient Maintenance The cab can be tilted backward at a large angle for easy repair. The rear and upper hoods open conveniently for access to all units and pipelines.

📐 Technical Parameters

A: Maximum overall height
B: Height to hinge pin at maximum lift
C: Height to top of cab
D: Clearance bucket bottom to ground
E: Length without bucket
F: Length with bucket
G: Dump angle (full lift height)
H: Dump height at maximum lift and dump
K: Bucket rollback at ground level
L: Full rotation angle of bucket at the highest point
J: Reach at maximum lift and dump

4153mm
3300 mm
2100 mm
3136 mm
2915 mm
3786 mm
40°
2615 mm
26°
84°
1025 mm

🖼️ Product Gallery

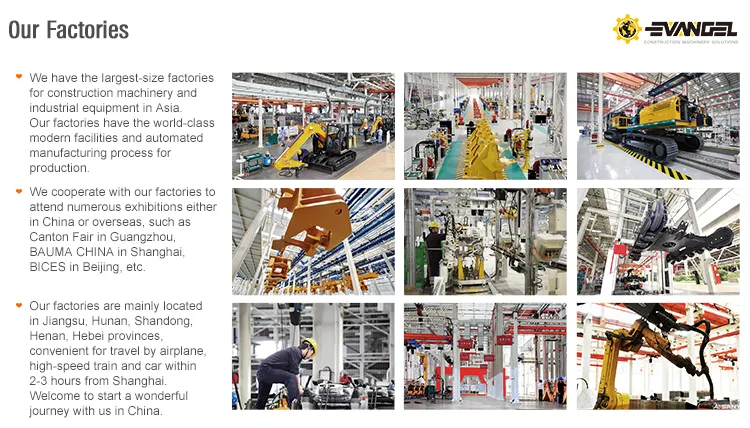

🏭 Our Factory

❓ Frequently Asked Questions

Q1: What is the rated load capacity of the XC7-TV12?

The XC7-TV12 is designed as a small loader with a rated load capacity of less than 1 ton, making it ideal for compact construction sites.

Q2: Can the XC7-TV12 operate with different attachments?

Yes, it features an international interchangeable quick-change coupling that supports dozens of attachments like sweepers, breaking hammers, and ditchers.

Q3: What kind of engine does this skid steer loader use?

This model is equipped with a 4tnv98CT-Nty engine, known for its strong power, fuel efficiency, and ultra-low emissions.

Q4: Is the operator's cabin safe and comfortable?

Absolutely. It comes standard with a ROPS&FOPS certified cabin, adjustable seats, seat belts, and safety hammers to ensure maximum operator safety.

Q5: How is the maintenance handled for this crawler loader?

Maintenance is made easy by a cab that tilts backward at a large angle and a rear/upper hood that opens conveniently to access all internal pipelines and units.

Q6: What is the walking mode of this loader?

The XC7-TV12 uses a crawler walking mode, providing excellent stability and traction on various terrains.
