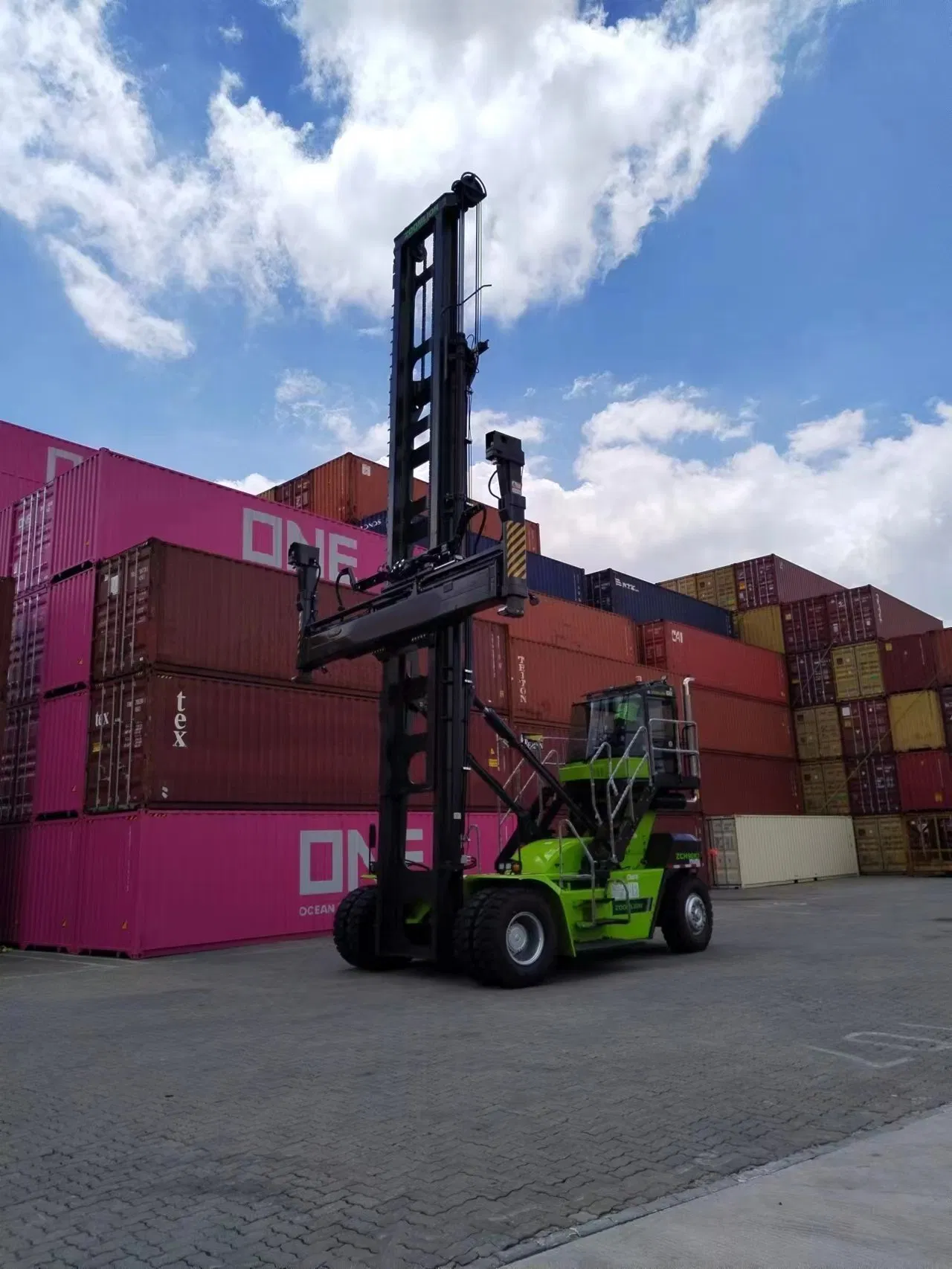

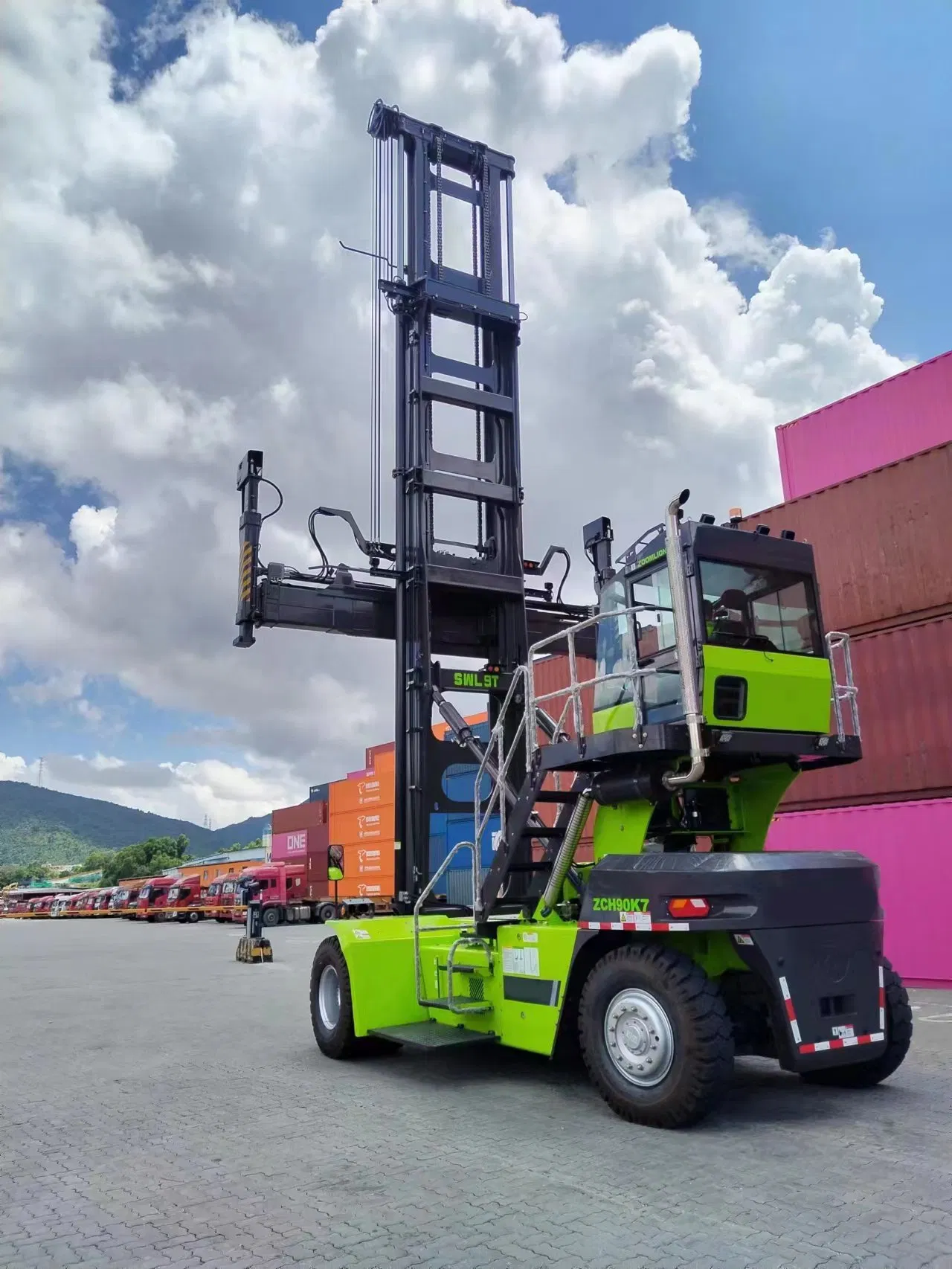

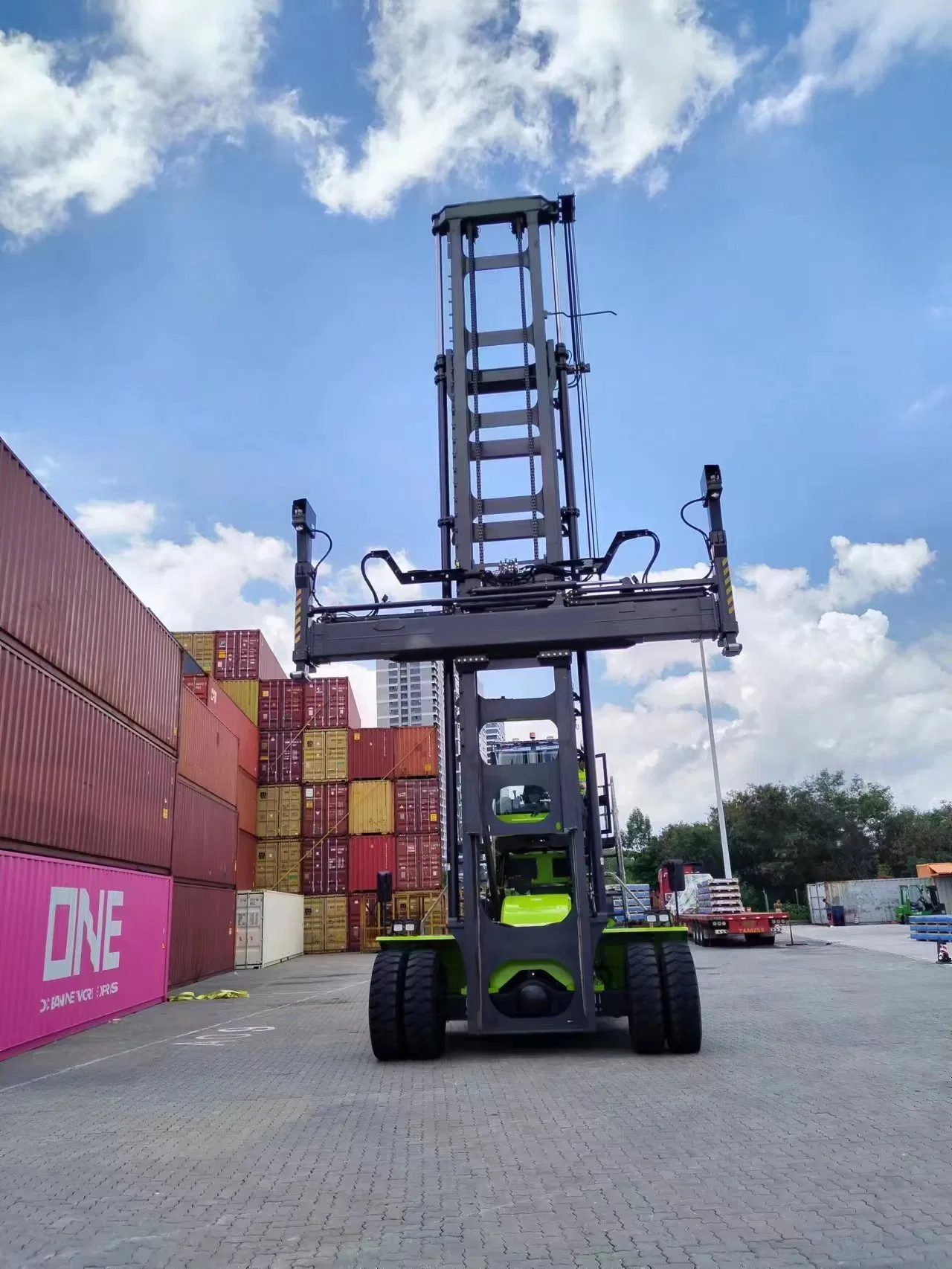

China Top Brand 9ton Empty Container Handler Zch90K7 Zch90K8
China Top Brand 9ton Empty Container Handler Zch90K7 Zch90K8
China Top Brand 9ton Empty Container Handler Zch90K7 Zch90K8
China Top Brand 9ton Empty Container Handler Zch90K7 Zch90K8
China Top Brand 9ton Empty Container Handler Zch90K7 Zch90K8
1 / 5
China Top Brand 9ton Empty Container Handler Zch90K7 Zch90K8
China Top Brand 9ton Empty Container Handler Zch90K7 Zch90K8
China Top Brand 9ton Empty Container Handler Zch90K7 Zch90K8
China Top Brand 9ton Empty Container Handler Zch90K7 Zch90K8
China Top Brand 9ton Empty Container Handler Zch90K7 Zch90K8

China Top Brand 9ton Empty Container Handler Zch90K7 Zch90K8

Customization: Available
After-sales Service: One-Year After-Sales Guarantee
Warranty: One-Year After-Sales Guarantee
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
ZCH90K7/ZCH90K8
Type
Container Forklift
Power
Diesel Engine
Load Capacity
5T - 10T
Lift height
>5000mm
Engine Model
Cum-Mins Qsc8.3-C260
Engine Power
194kw/2200rpm
Max. Loading
9000kg
📦

Packaging & Delivery

Package Size
699.00cm * 1221.00cm * 1092.00cm
Gross Weight
39000.000kg
🏗️

Product Description

9ton Empty Container Handler ZCH90K7 ZCH90K8
9ton Empty Container Handler
KEY TECHNICAL DATA

Engine model: Cum-mins QSC8.3-C260
Engine power: 194kw/2200rpm
Spreader: HDJ90/HDJ100D
Max. loading weight: 9000kg
Stacking layer: 7/8
Max. lifting height: 18705mm/21205mm

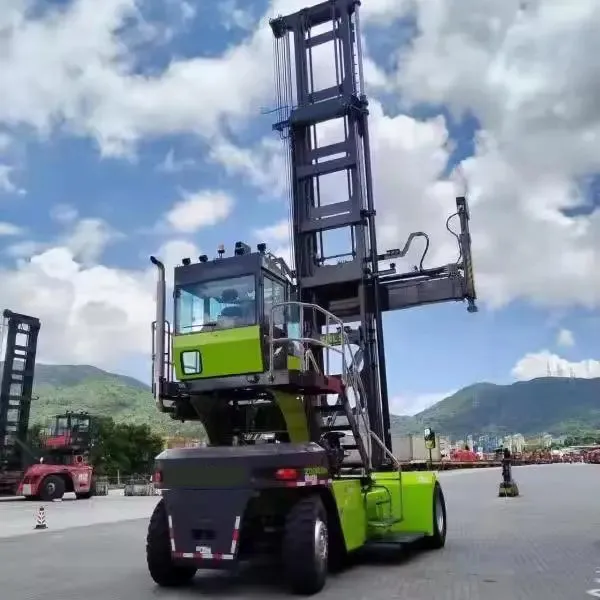

Container Handler Feature
Domestic leading energy saving efficiency

The container handler has more efficient walking, lighter steering and lower fuel consumption, reaching the leading level.

Comfortable operating environment

Operator-centric control design layout, comfortable environment to relieve fatigue and improve work efficiency.

CAN bus communication technology

International advanced CAN bus data transmission for fast response, strong anti-interference, and stable system reliability.

Electronic heat dissipation technology

Independent electronic radiator ensures excellent cooling effect even when engine is idle or door frame drops.

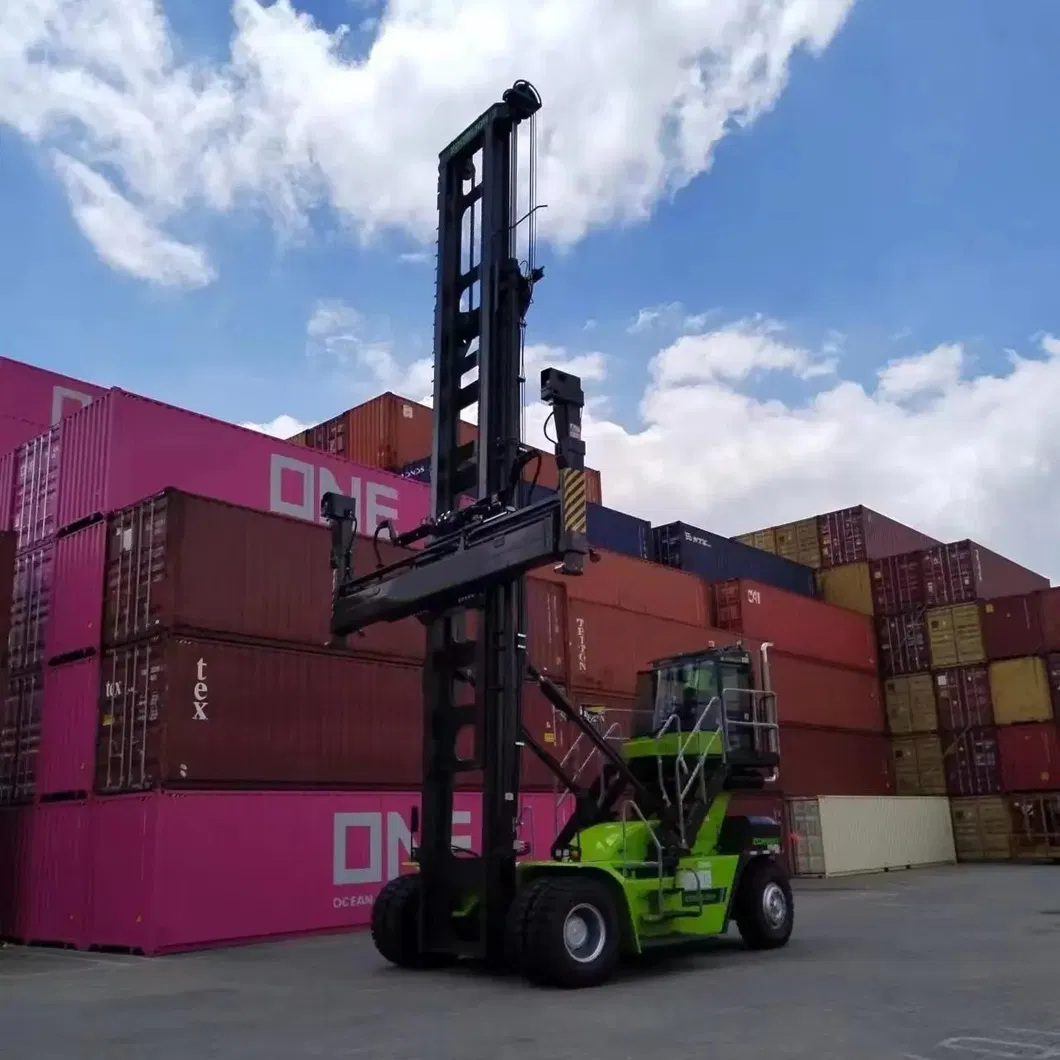

Hydraulic System
📊

Product Parameters

Main Parameter ZCH90K7 ZCH90K8
Engine modelCum-mins QSC8.3-C260Cum-mins QSC8.3-C260
Engine power194kw/2200rpm194kw/2200rpm
Max. torque1135Nm/1350rpm1135Nm/1350rpm
Drive axleDA NA 145P524/KESSLER D81DA NA 145P524/KESSLER D81
Max. loading weight9000kg9000kg
Max. lifting height18705mm21205mm
Stacking layer78
Total weight39000kg39000kg
Wheelbase4550mm4550mm
Overall size6990*12215*10920mm6990*12215*10920mm
🖼️

Detailed Images

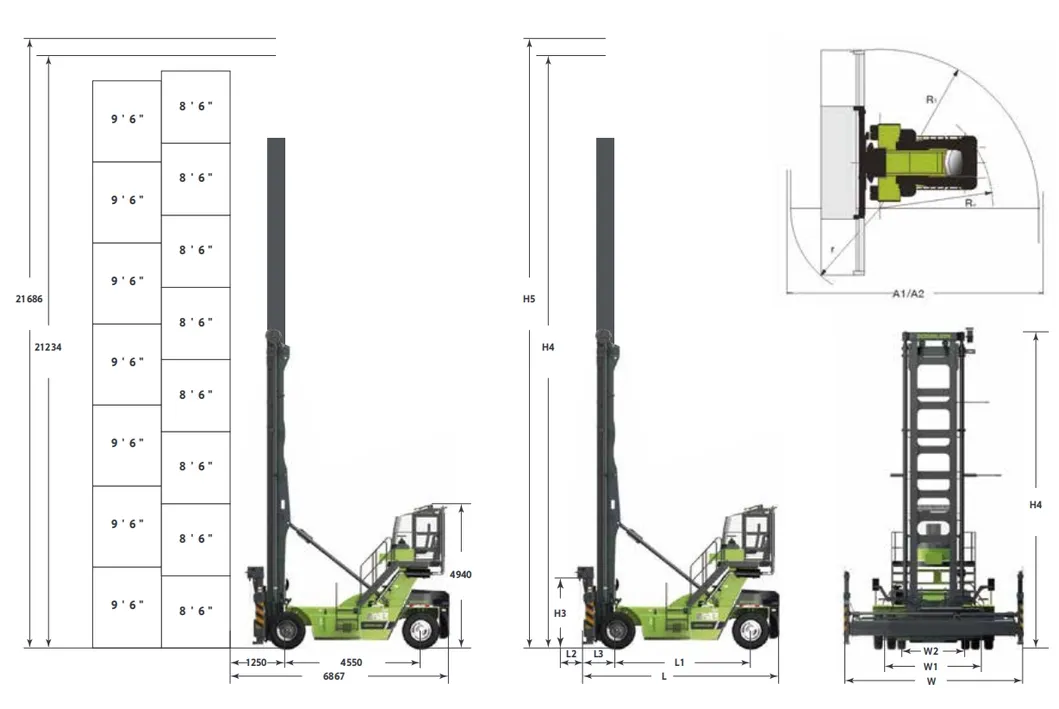

Handler View 1

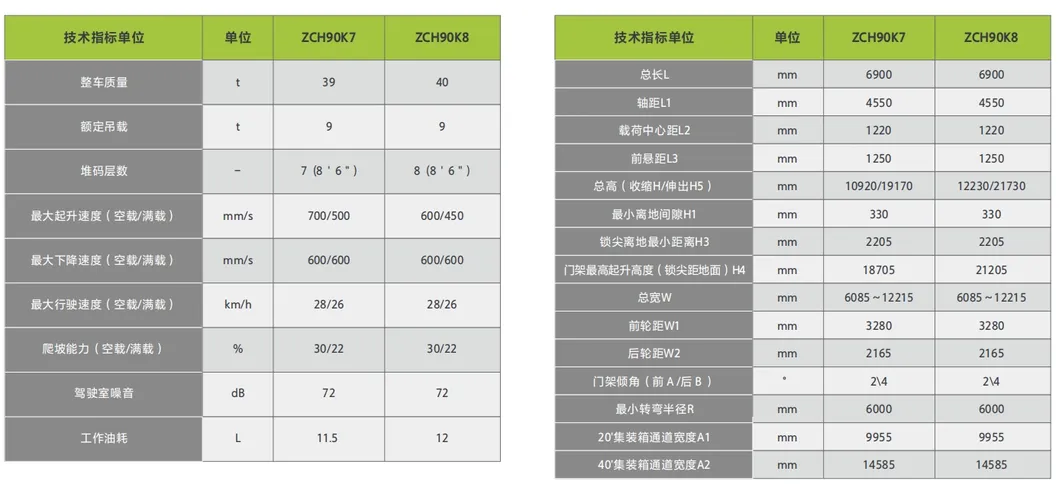

Handler View 2
Detail 1
Detail 2
Detail 3
⭐

Why Choose Us

Advantage 1
Advantage 2
Advantage 3
Advantage 4
Advantage 5
Advantage 6
❓

Frequently Asked Questions

Q1: What is the maximum loading capacity of the ZCH90K series?
The ZCH90K7 and ZCH90K8 empty container handlers have a maximum loading capacity of 9,000kg.
Q2: What is the difference between ZCH90K7 and ZCH90K8?
The main difference is the stacking capability: the ZCH90K7 is designed for 7 layers, while the ZCH90K8 can stack up to 8 layers with a lifting height of 21,205mm.
Q3: Which engine powers these container handlers?
Both models are equipped with the high-performance Cum-mins QSC8.3-C260 engine, providing 194kw of power.
Q4: How does the CAN bus technology benefit operations?
The CAN bus technology ensures fast data transmission, strong anti-interference capabilities, and a stable network system for more precise and reliable machine control.
Q5: What is the fuel efficiency of these machines?
The ZCH90K7 has a work fuel consumption of approximately 11.5L, while the ZCH90K8 consumes about 12L, both offering leading energy-saving efficiency.
Q6: Are the operating environments designed for long shifts?
Yes, the handlers feature an operator-centric control layout and a comfortable environment designed to relieve fatigue and improve driver efficiency during extended work hours.
