| Model NO. | JC60 |
| Certification | TUV, ISO, RoHS, CE |
| Condition | New |
| Rated Load | <1t |
| Transmission | Hydraulic |
| Load and Unload Mode | Rear Dump |
| Walking Mode | Wheeled |
| Type | Medium-sized Loader |
| Bucket Capacity | 0.45m3 |
| Tipping Load (Kg) | 1700 |
| Machine Running Mass (Kg) | 3200 |
| Travel Speed (Km/H) | 12 |
| Working Flow Rate(L/Min) | 75 |
| Fuel Tank Capacity (L) | 90 |
| Maximum Operating Height(mm) | 4000 |
| Wheelbase(mm) | 1500 |
| Specification | 3490mm*1800mm*2150mm |
| Package Size | 350.00cm * 188.00cm * 215.00cm |
| Package Gross Weight | 3200.000kg |

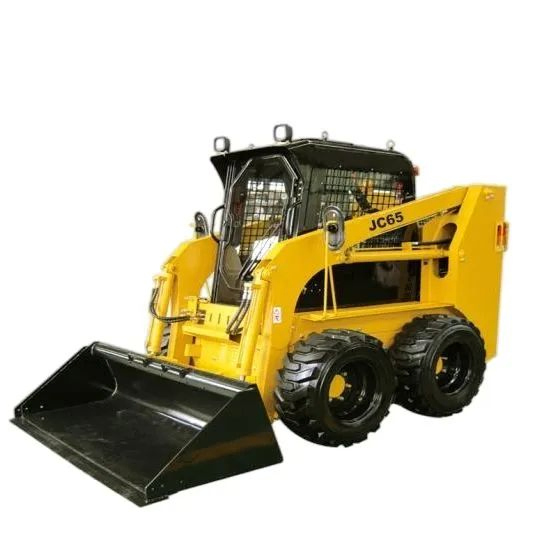

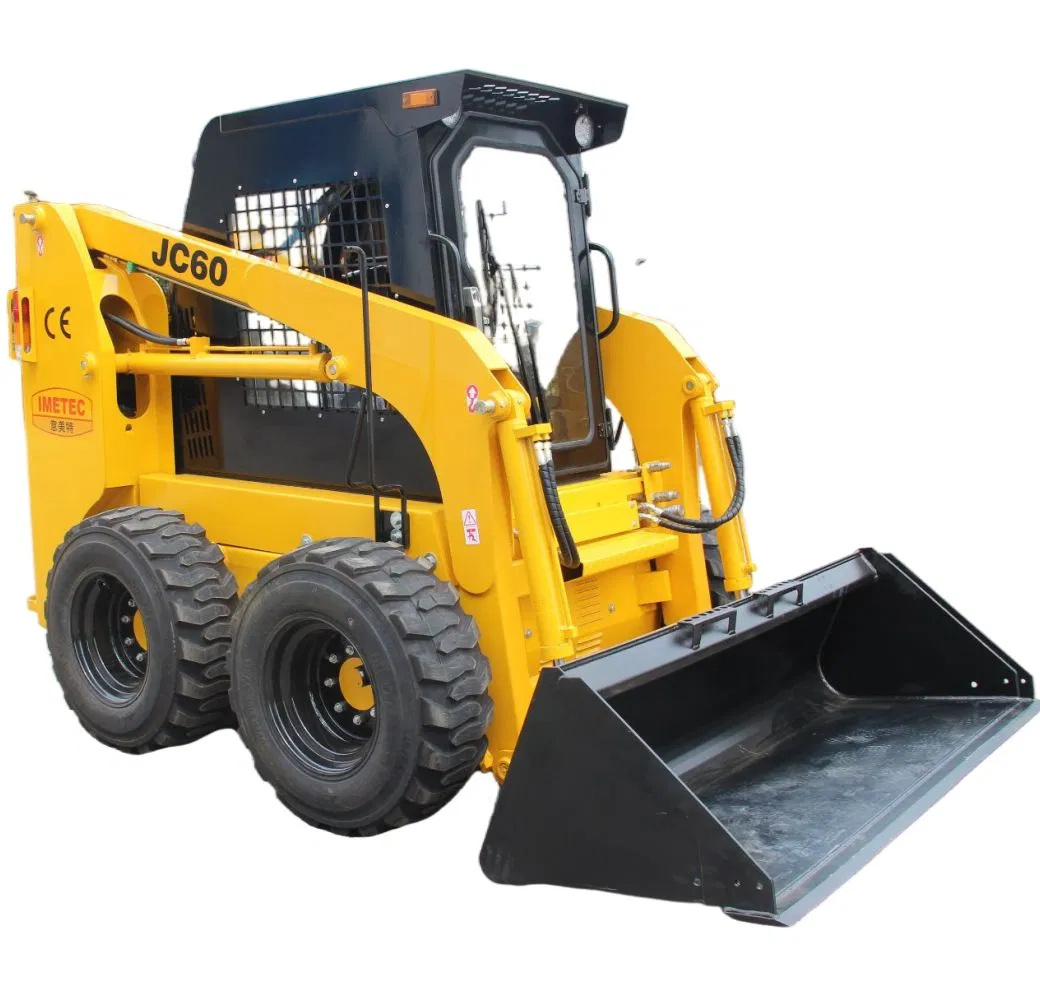

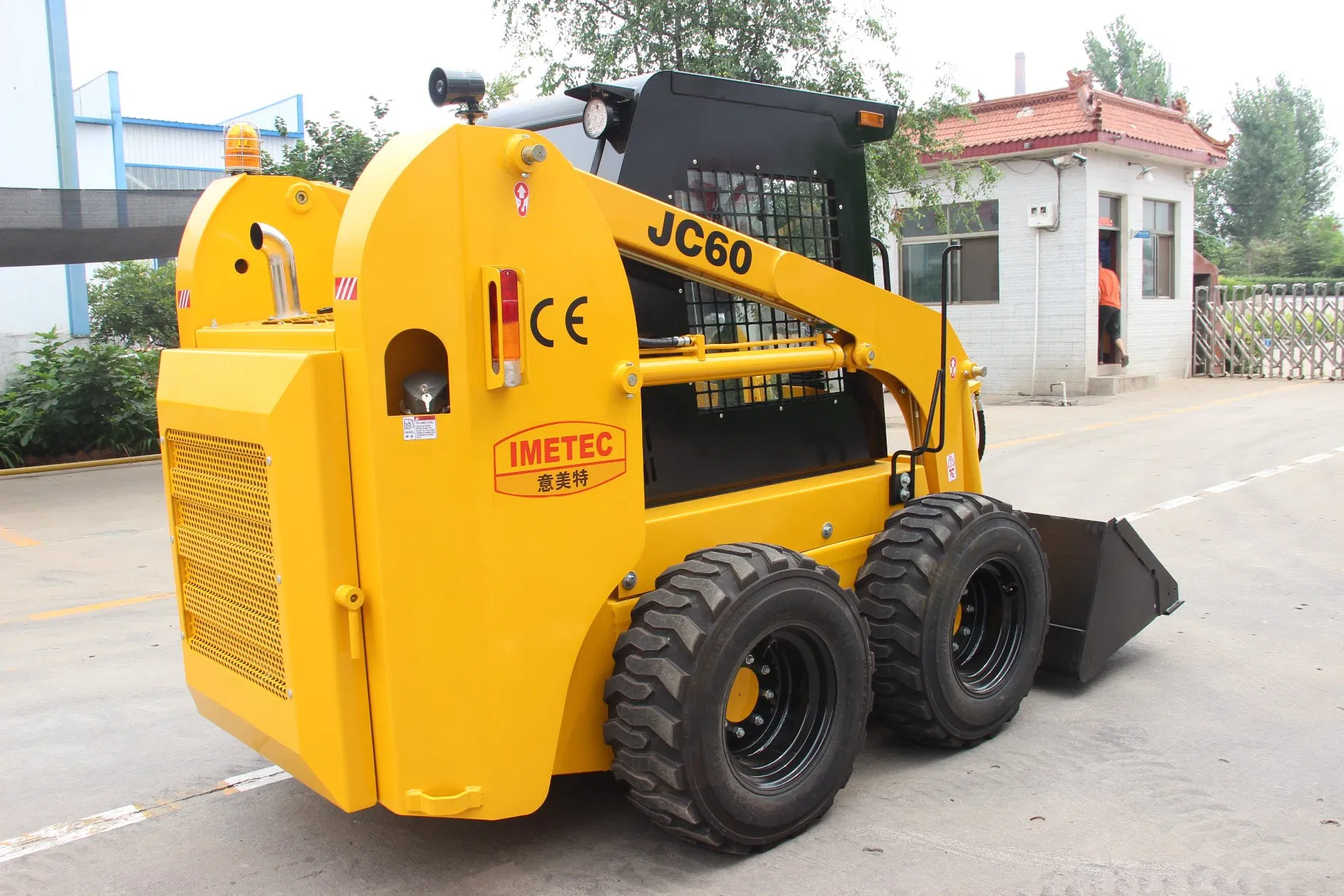

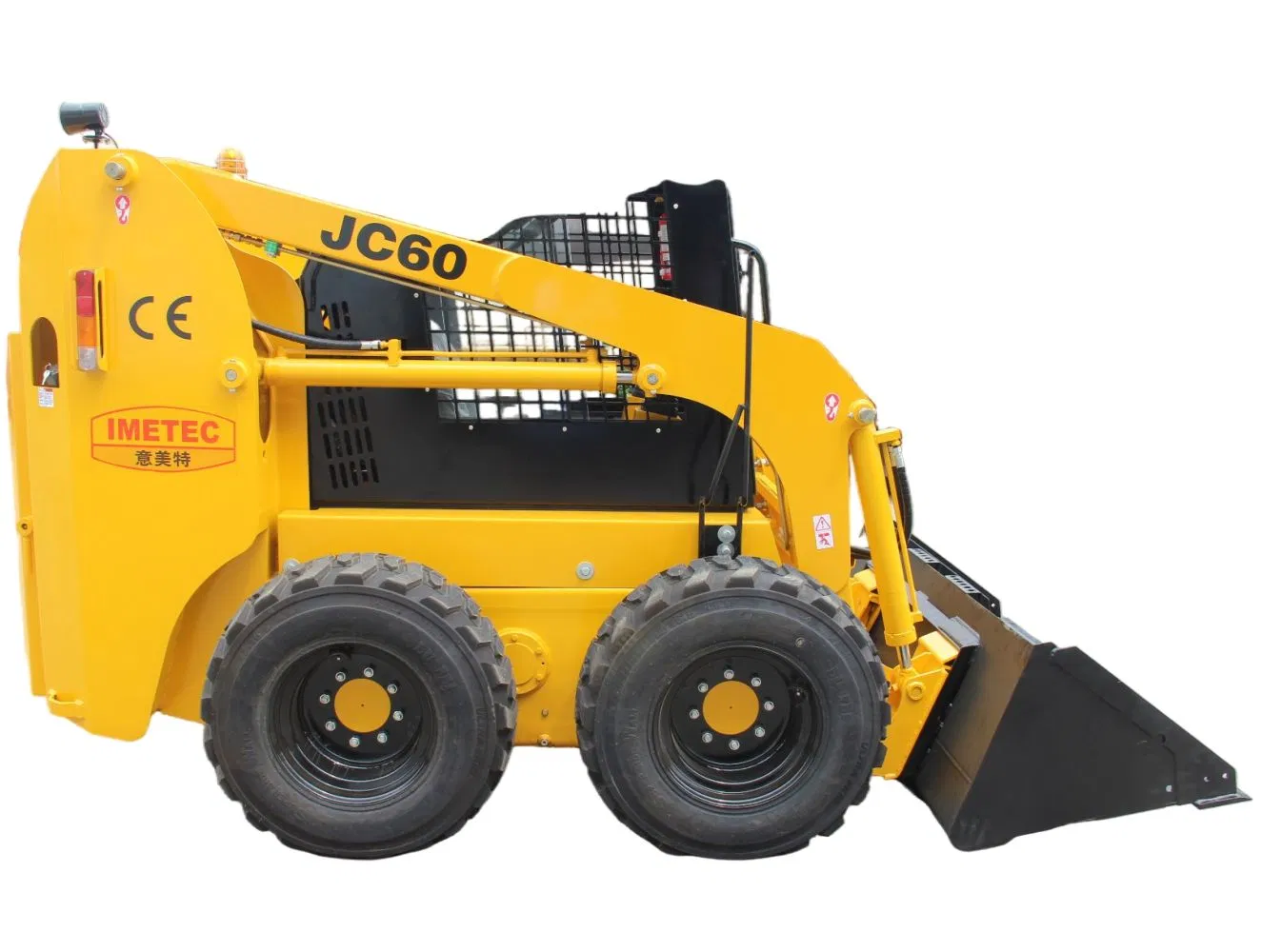

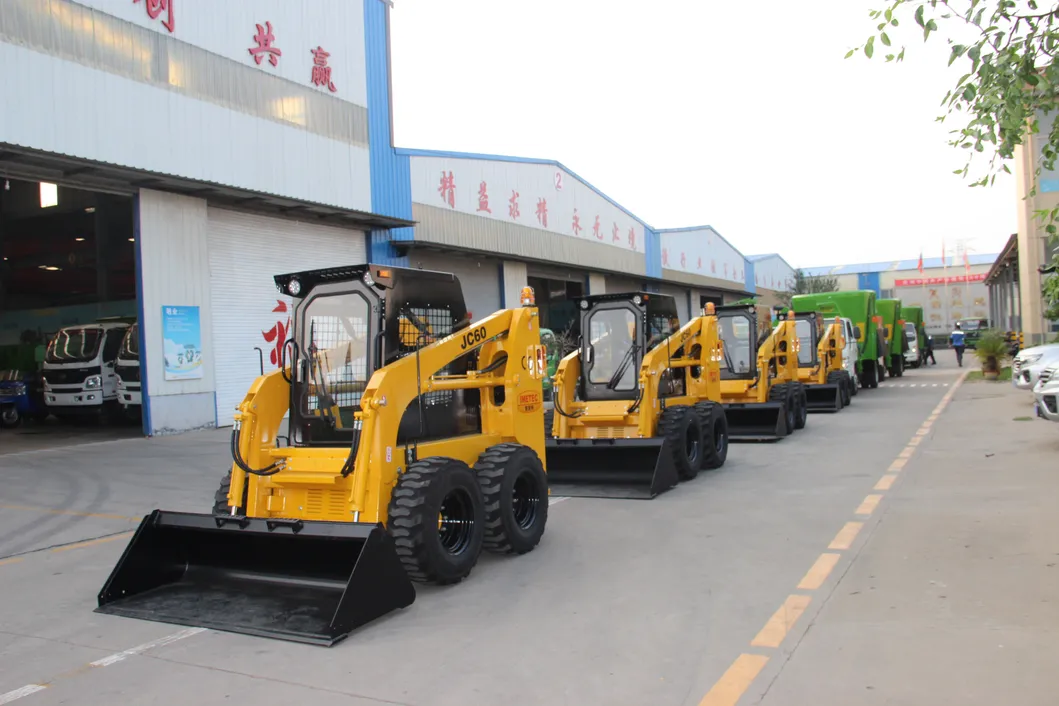

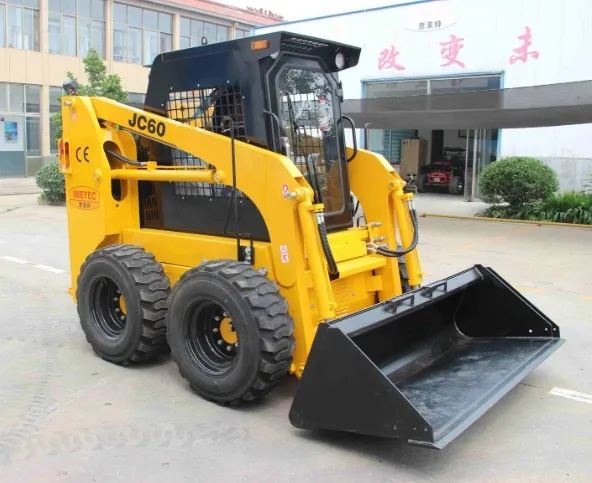

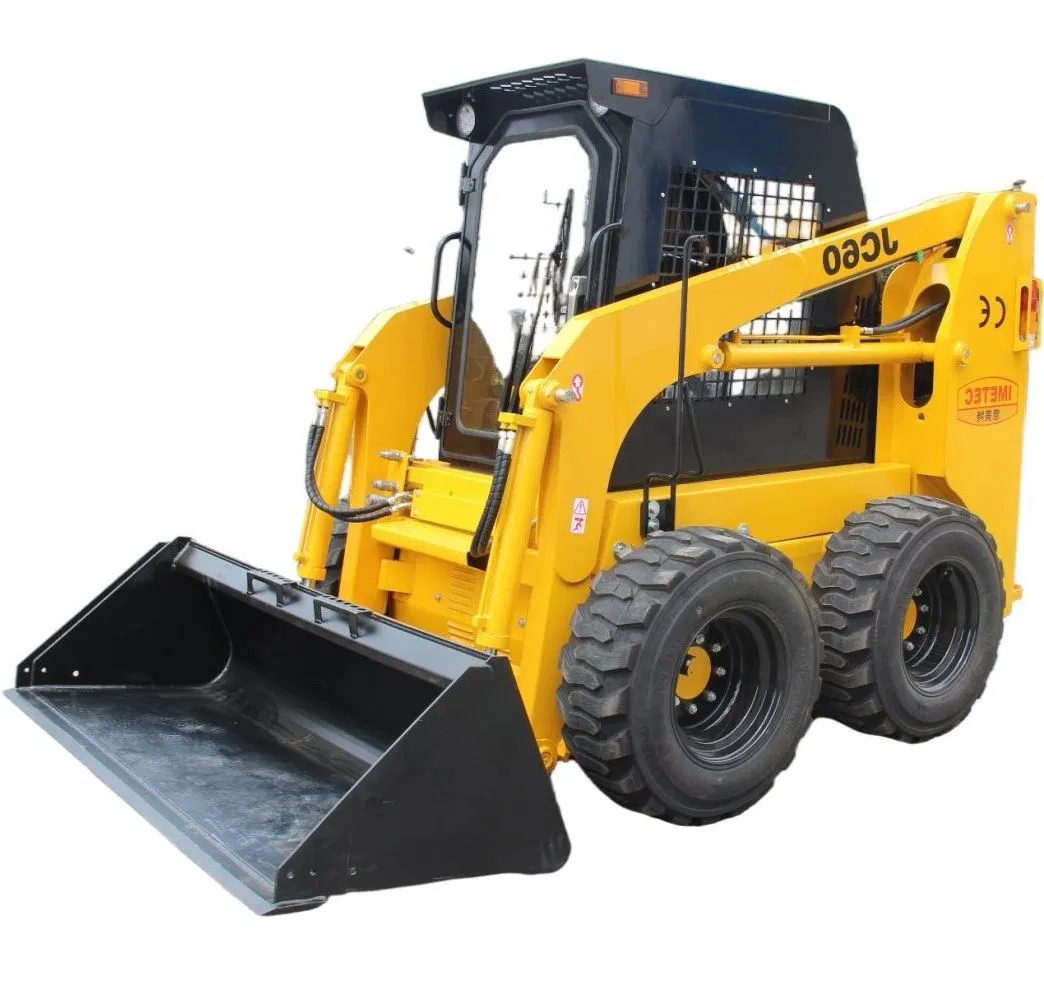

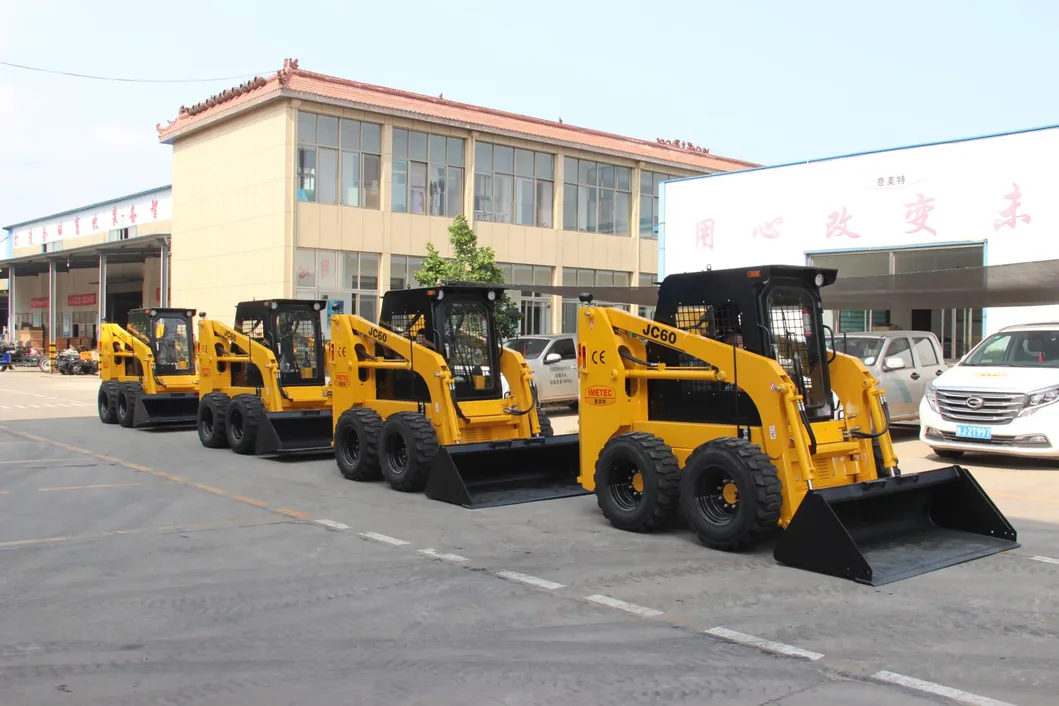

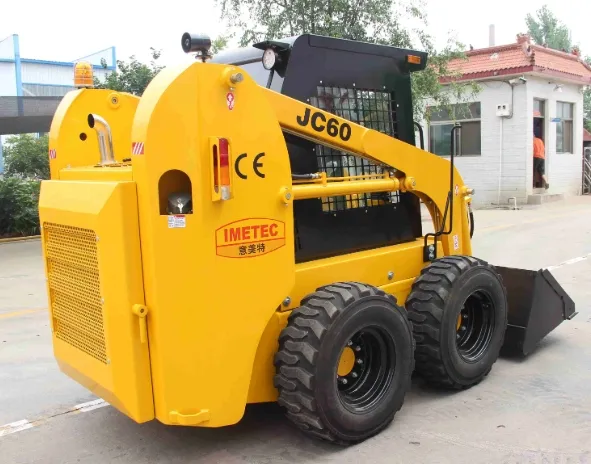

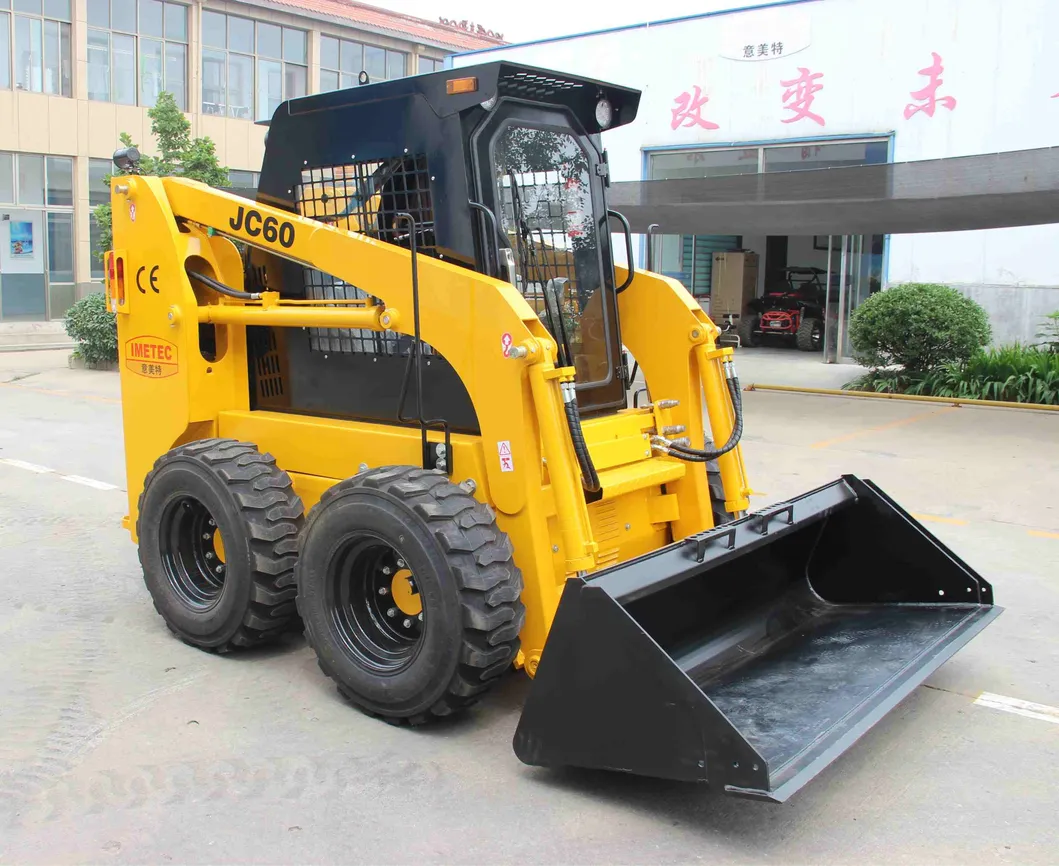

Factory CE 400kgs 1400kgs EPA Diesel Small/Mini Compact Wheel Track Skid Steer Loader
Skid steer loaders are also known as multi-functional engineering vehicles and machines. It is a wheel-type special chassis equipment that uses the linear speed difference between the two wheels to realize the steering of the vehicle. It is mainly used in narrow work sites, undulating ground, and frequent changes of work content.
A compact skid steer, sometimes called a skid loader or wheel loader, is a compact multipurpose piece of construction equipment often used for digging or loading. It's maneuverable, lightweight and its arms can attach to different tools for various construction, landscaping and farming jobs.
| Model | JC60G |
|---|---|
| Overall operating height (mm) | 4000 |
| Height to bucket hinge pin (mm) | 3100 |
| Height to top of cab (mm) | 2160 |
| Height to bottom of level bucket(mm) | 2933 |
| Overall length with bucket(mm) | 3490 |
| Dumping angle at maximum height(°) | 40 |
| Dumping height(mm) | 2400 |
| Dumping reach(mm) | 750 |
| Rollback of bucket at full height(°) | 104 |
| Ground clearance(mm) | 205 |
| Front tuning radius(mm) | 1958 |
| Bucket width (mm) | 1880 |
Small Footprint: Agility in small spaces with a minimum turning radius less than half of articulated loaders.
Multi-function: Quick replacement of various working devices for different engineering tasks.
Safety Design: Center-positioned cab ensures operator safety and machine stability.
All-Wheel Drive: Conducive to operations on uneven sites without inter-wheel differentials.

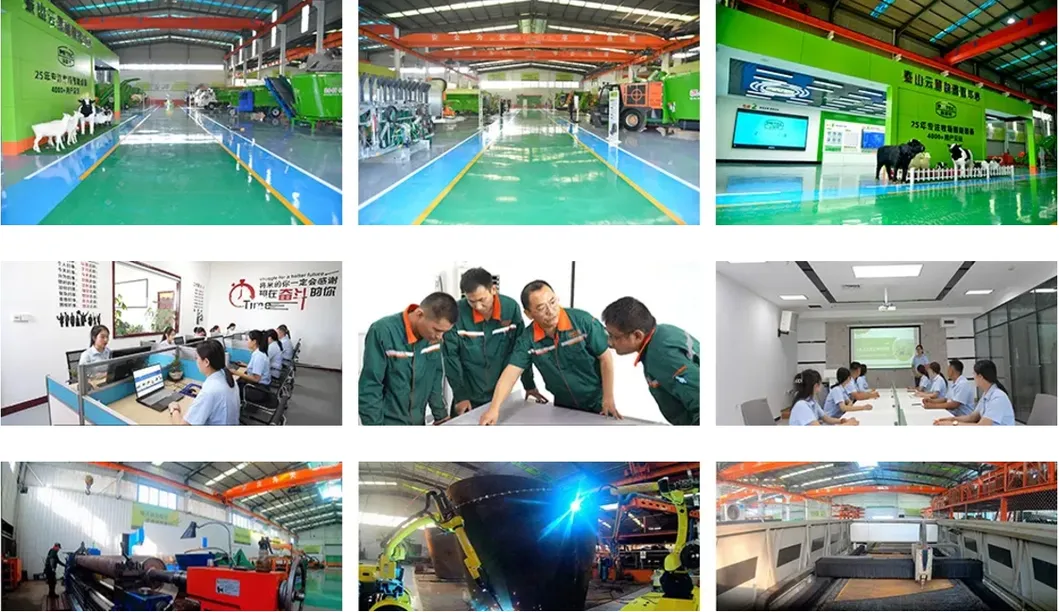

Specializing in intelligent equipment production and R&D for 25 years. The factory has earned IS09001:2015 international quality management certification and European Union CE certification. Currently holding over 100 patents for invention, utility models, and designs.
Products cover 8 categories of more than 200 models, including self-propelled feed mixing, material pushing, manure return, and palletizing equipment. Market reach extends across dozens of countries including Russia, Southeast Asia, and South Korea.

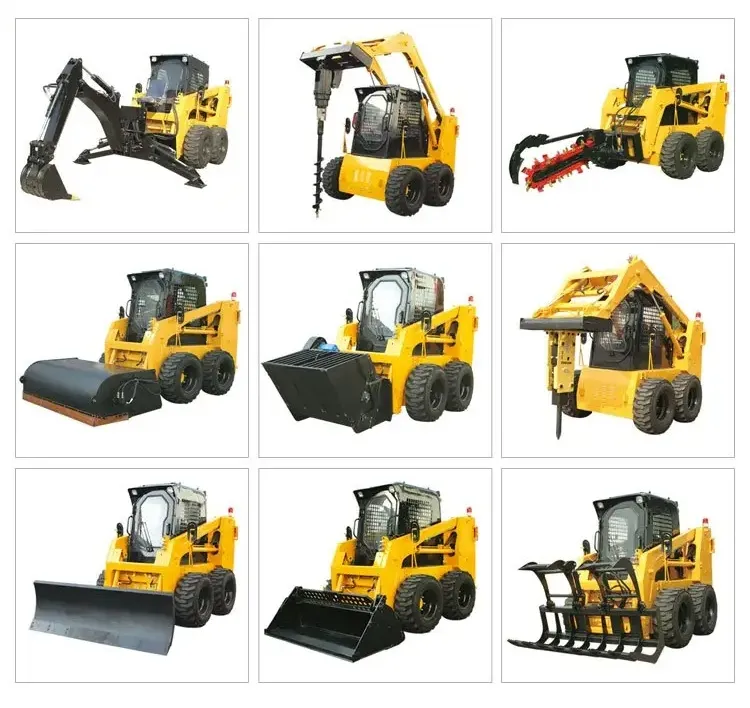

Versatile working capabilities through attachments:
