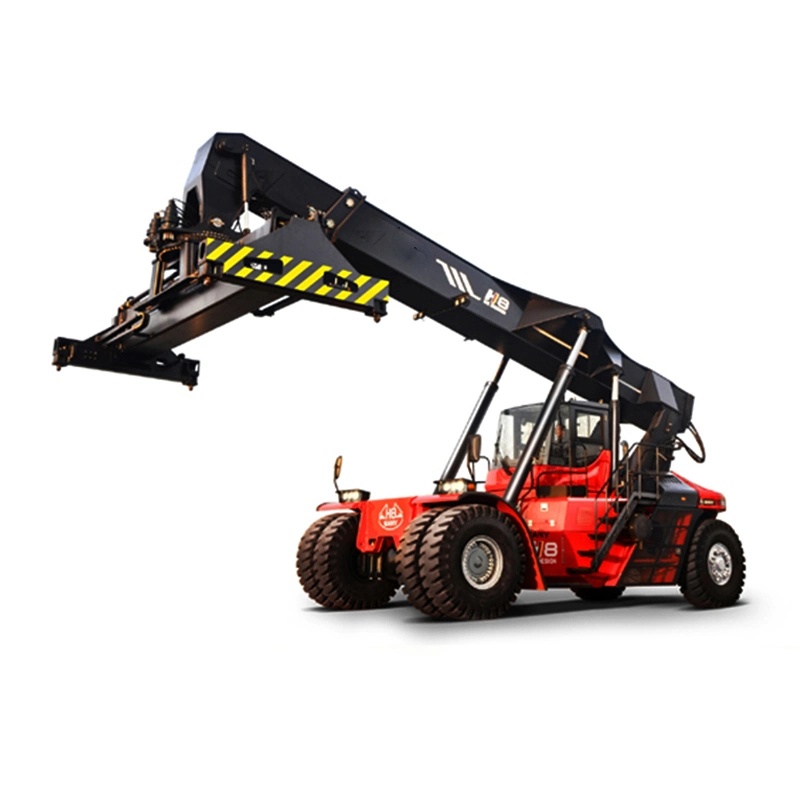

9ton Empty Container Handler Sdcy90K6h1
9ton Empty Container Handler Sdcy90K6h1
9ton Empty Container Handler Sdcy90K6h1
9ton Empty Container Handler Sdcy90K6h1
9ton Empty Container Handler Sdcy90K6h1
1 / 5
9ton Empty Container Handler Sdcy90K6h1
9ton Empty Container Handler Sdcy90K6h1
9ton Empty Container Handler Sdcy90K6h1
9ton Empty Container Handler Sdcy90K6h1
9ton Empty Container Handler Sdcy90K6h1

9ton Empty Container Handler Sdcy90K6h1

Customization: Available
After-sales Service: Spare Parts Available
Warranty: One Year
Send Inquiry

Product Description

Basic Info

Model NO.
SDCY90K6H1
Cab Location
Not Adjustable
Type
Stacker
Power
Diesel Engine
Load Capacity
5T - 10T
Fuel
Diesel
Load center
>500mm
Lift height
>5000mm
Condition
New
Engine
Tad851ve
Spreader
Sdj9II
Application
ISO20'/40'/45' Containers
Stacker Layer
6
Transport Package
Nude Packing
Specification
6900x(6038-12170)x10870mm
Origin
China
HS Code
87051091
Production Capacity
20units/ Month

Product Description

9 ton Empty Container Handler SDCY90K6H1
Max. Loading Capacity: 9t
Wheel Base: 4550mm

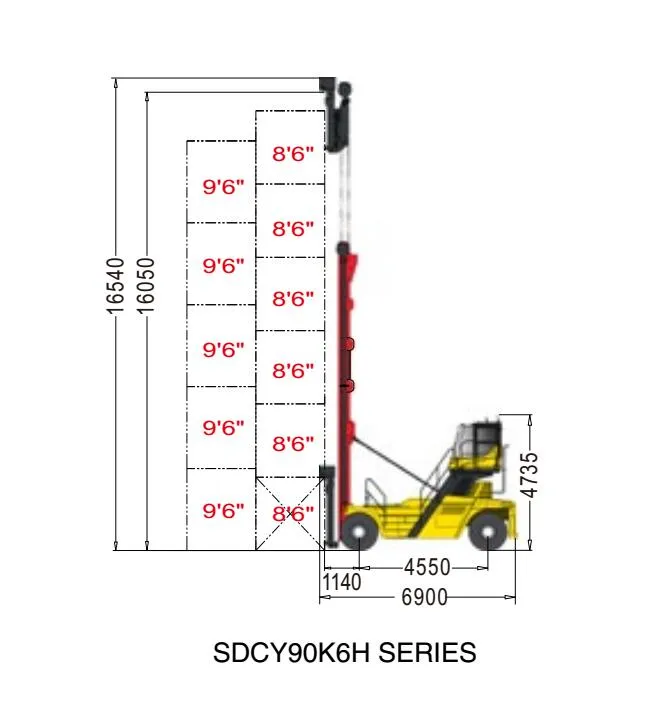

Stacking Height: 6 layer (8'6")

The empty container handler SDCY90K6H1 is mainly used in ports, wharfs and storage yards to transfer and stack standard, twin, hurdling and LNG empty containers of various specifications. With loading capacity of 9 tons, the joint design container handler is reliable and convenient.

Engine manufacturer TAD851VE Gradeability (non-load/load) 30/22%
Rated power 185/2200kW/rpm Overall length 6900mm
Max.torque 1160/1350Nm/rpm Load center 1220mm
Emission standard Tier 3 Wheel base 4550mm
Transmission 13.7HR32000 Front overhang 1140mm
Drive axle D81 PL488 Mast height (retracted/extended) 9520/16540mm
Spreader model SDJ90 Min.ground clearance 320mm
Side shift range ±600 mm Min.lifting height 2250 mm
Application ISO20'/40' container Max.lifting height 16050mm
Tire 14.00-24 28PR Min.turning radius 6000mm
Overall weight 38.5t 20" container aisle width 10000mm
Max.loading capacity 9t 40" container aisle width 14000mm
Stacking height 6 (8'6") Overall width 6038-12170mm
Max lifting speed (non-load/load) 600/550mm/s Front wheel width 3280mm
Max lowering speed (non-load/load) 550/600mm/s Rear wheel width 2150mm
Max.travel speed (non-load/load) 28/26km/h Sloping angle (front/rear) 2/4°
Empty Container Handler
Container Handler Operation

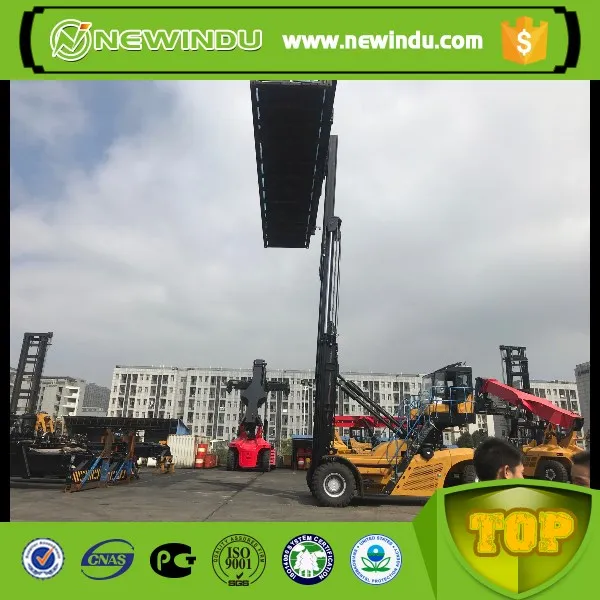

Container Handler Parts

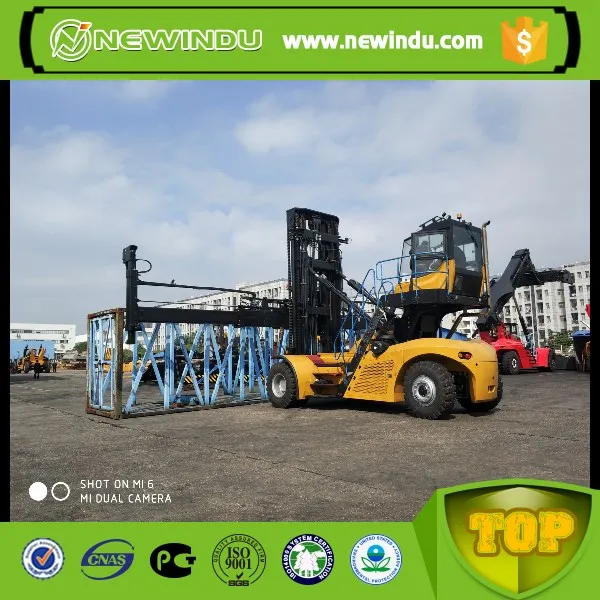

Empty Container Handler Design

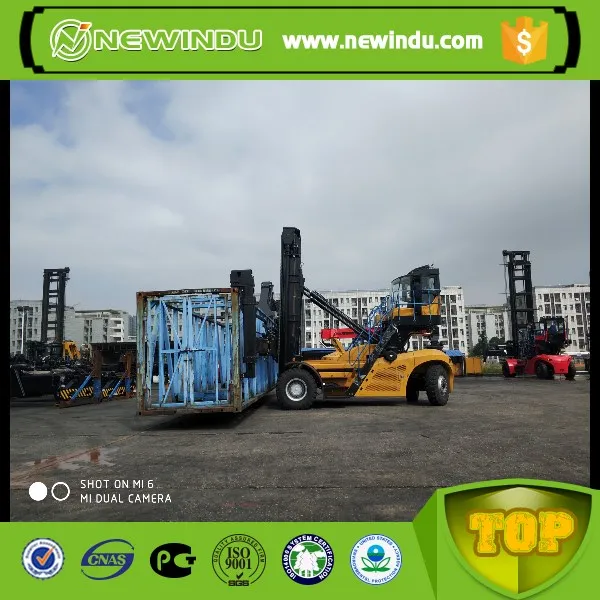

Container Stacker Detail
Industrial Stacker
Container Handler Specification
Heavy Equipment Stacker
Logistics Equipment
Port Container Handler
Container Handler Mast
Full View Container Handler

FAQ

What is the maximum loading capacity of the SDCY90K6H1?
The maximum loading capacity of this empty container handler is 9 tons.
How many layers can this machine stack containers?
It is designed to stack empty containers up to 6 layers high (8'6").
What type of engine is installed in the SDCY90K6H1?
The unit is equipped with a powerful TAD851VE engine, meeting Tier 3 emission standards.
Which container sizes are compatible with this handler?
It is suitable for handling ISO 20', 40', and 45' standard empty containers.
What is the maximum travel speed of the vehicle?
The maximum travel speed is 28 km/h when non-loaded and 26 km/h under load.
What is the minimum turning radius for this model?
The minimum turning radius is 6000mm, allowing for efficient maneuverability in container yards.
