Customization: Available
After-sales Service: 12 Months
Warranty: 12 Months
Send Inquiry

Product Description

Basic Specifications

Model NO.
HTHY382T
Certification
ISO, CE, EPA
Condition
New
Rated Load
200 Kg
Transmission
Hydraulic
Type
Small Loader
Max Working Height
2435 mm (95.87 Inch)
Max Pin Height
2000 mm (78.7 Inch)
Rated Power
17.1kw(23HP) 'Briggs&Stratton' Engine
Bucket Capacity
0.15 M³(5.33 FT³)
Operating Weight
830 Kg
Package Size
100cm * 100cm * 100cm

Product Key Features

01Bucket automatic leveling system.
02Standard configuration with three pumps and three valves.
03International standard quick-change plug for various attachments.
04Large flow rate (up to 55 L/min) to support demanding attachments.
05Interchangeable design between wheeled and tracked models.
06Anti-skid rear standing pedal with shock absorption buffer.
07Full-time four-wheel drive powered by four high-torque motors.

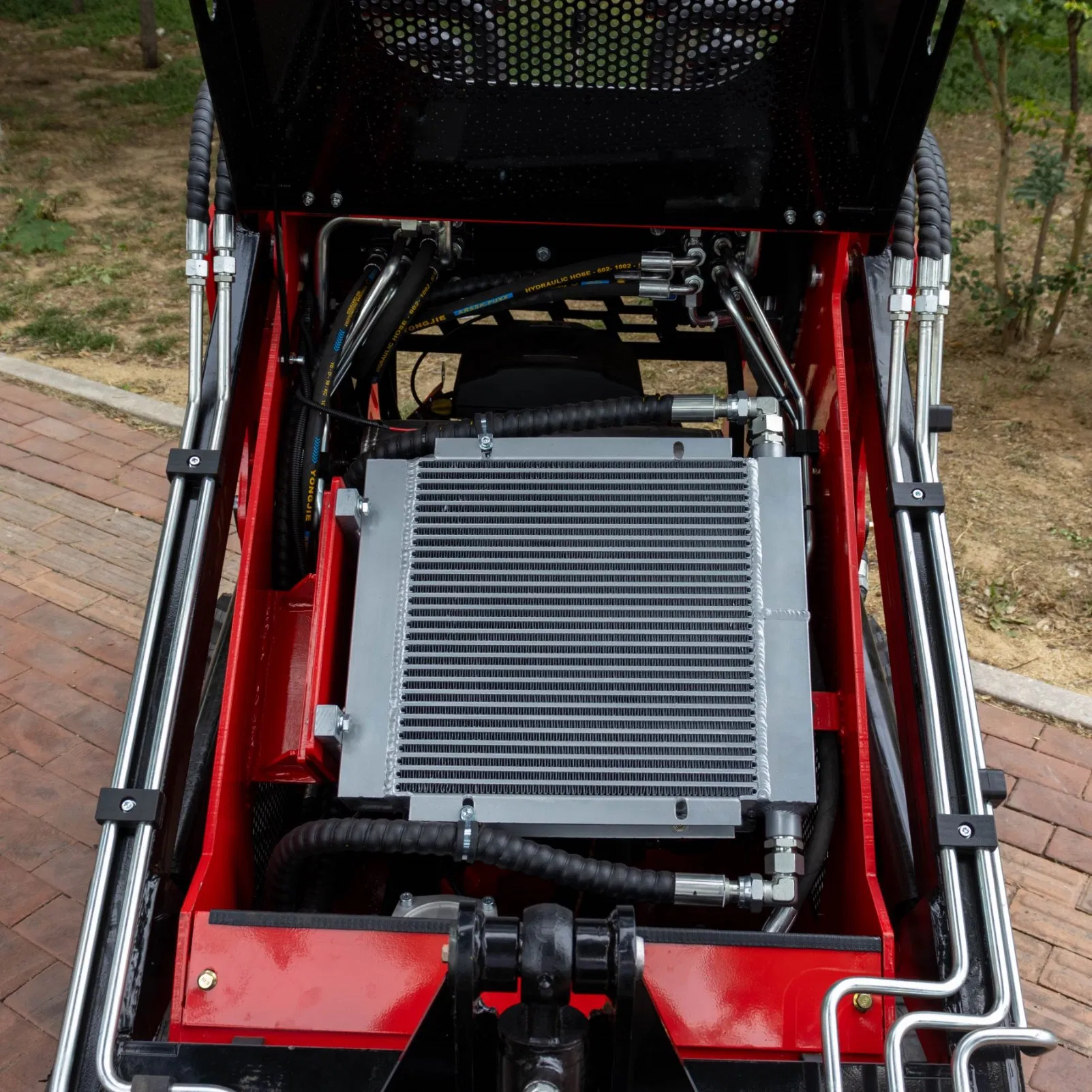

08Hydraulic oil temperature sensor for optimized heat dissipation.
09Power system: Briggs & Stratton 23 HP with EPA certificate.

Technical Parameters

Category Parameter Value
EngineRated Power17.1KW (23HP)
EngineRotating Speed3600 rpm
HydraulicPressure17 Mpa
PerformanceOperating Load200 Kg / 441 Lb
PerformanceMax Lifting Force375 Kg / 827 Lb
PerformanceTravel Speed0-6 Km/h
Work CycleRaise / Dump / Lower4s / 1.3s / 3.2s

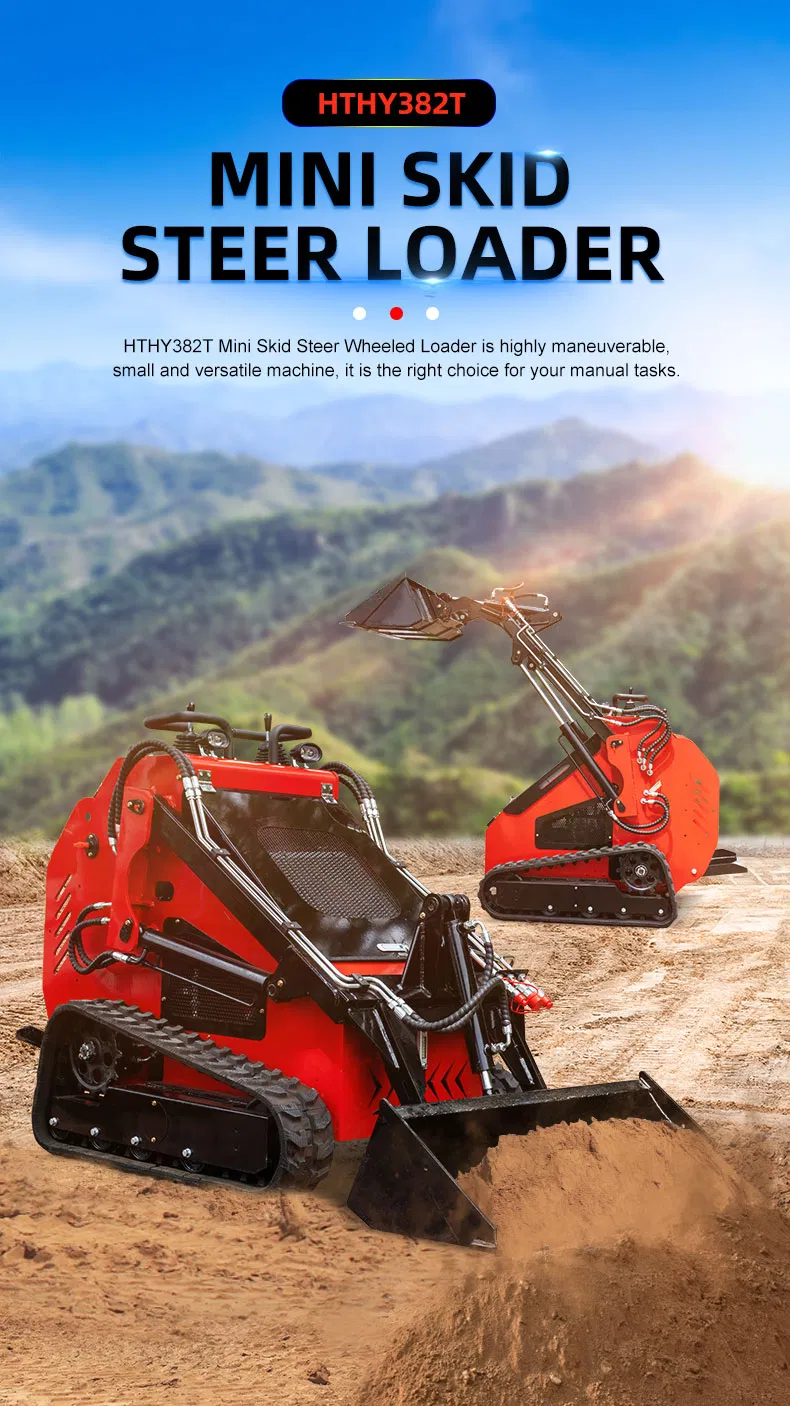

Skid Steer Loader View 1
Skid Steer Loader View 2

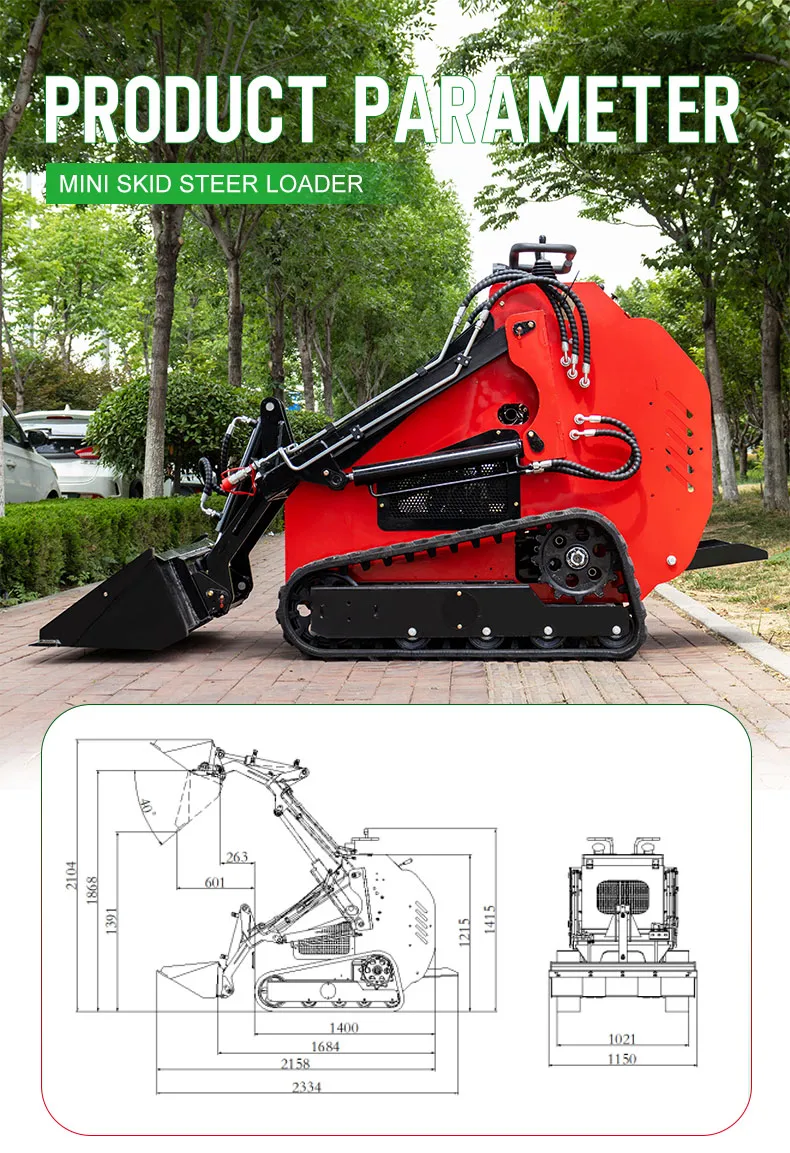

Skid Steer Loader View 3

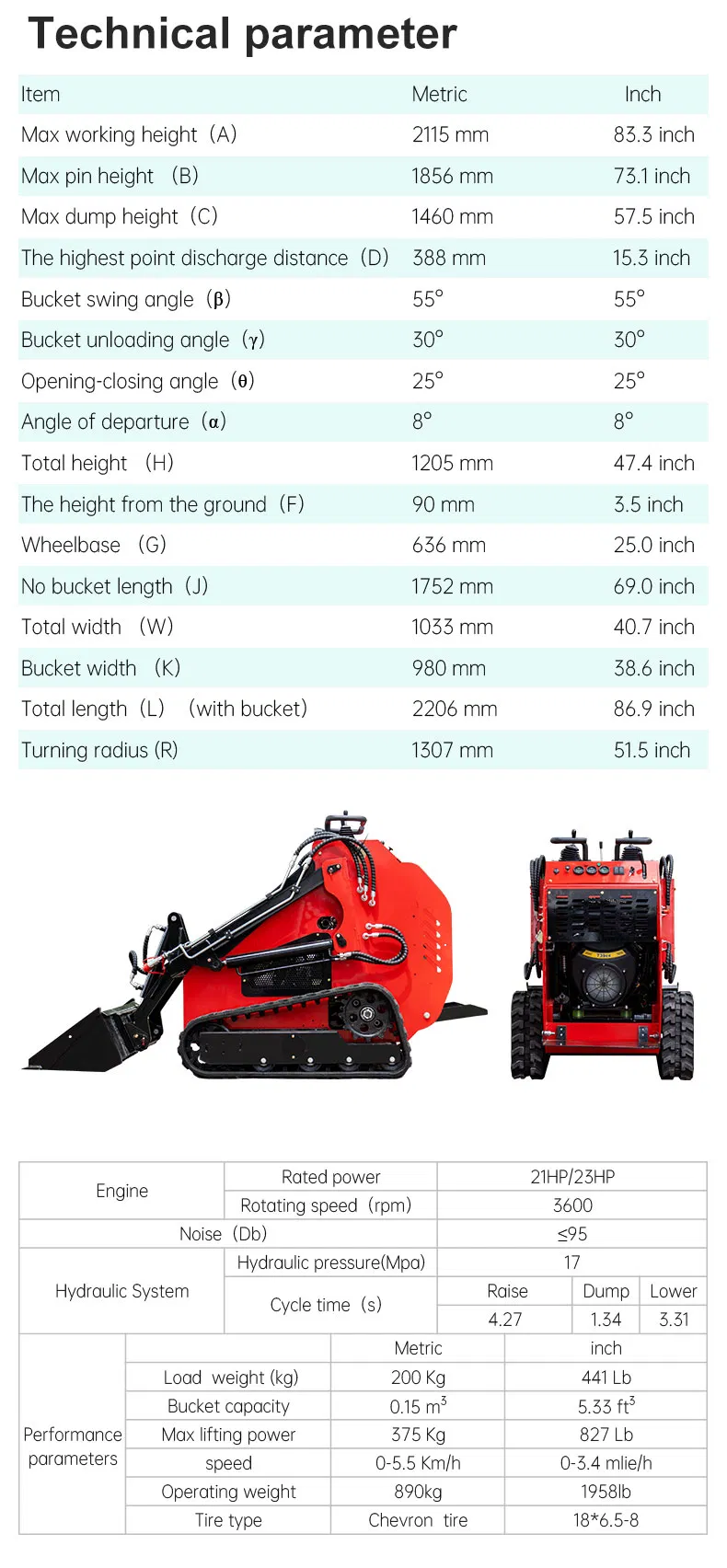

Skid Steer Loader View 4

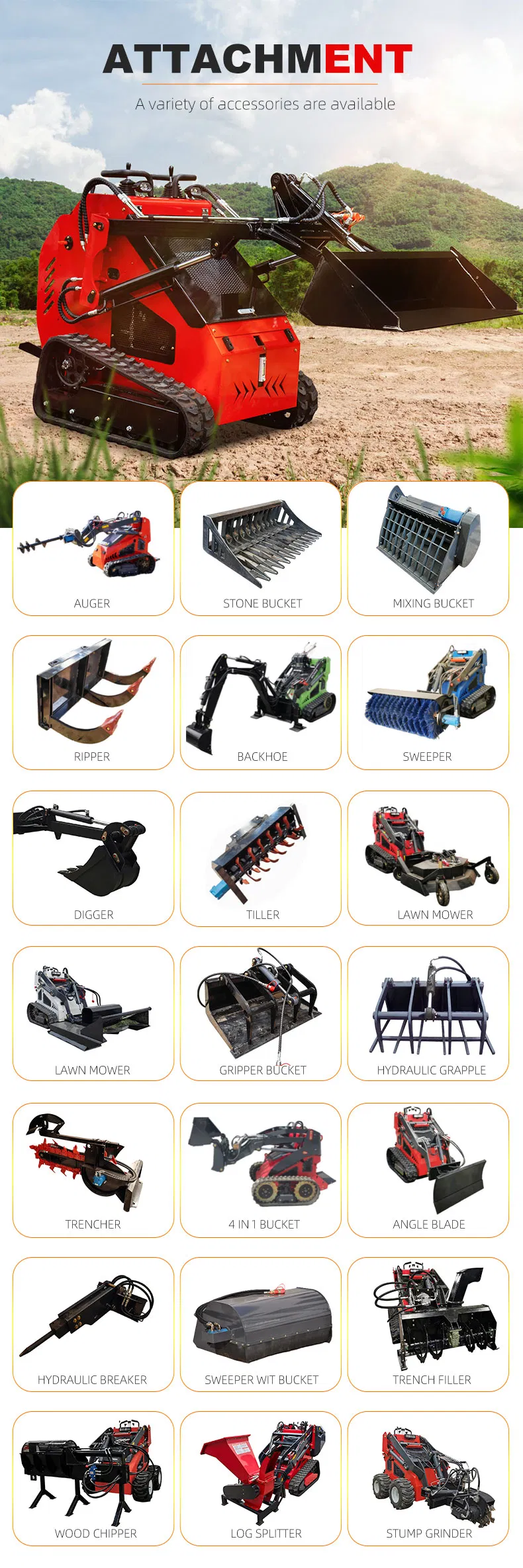

Skid Steer Loader View 5

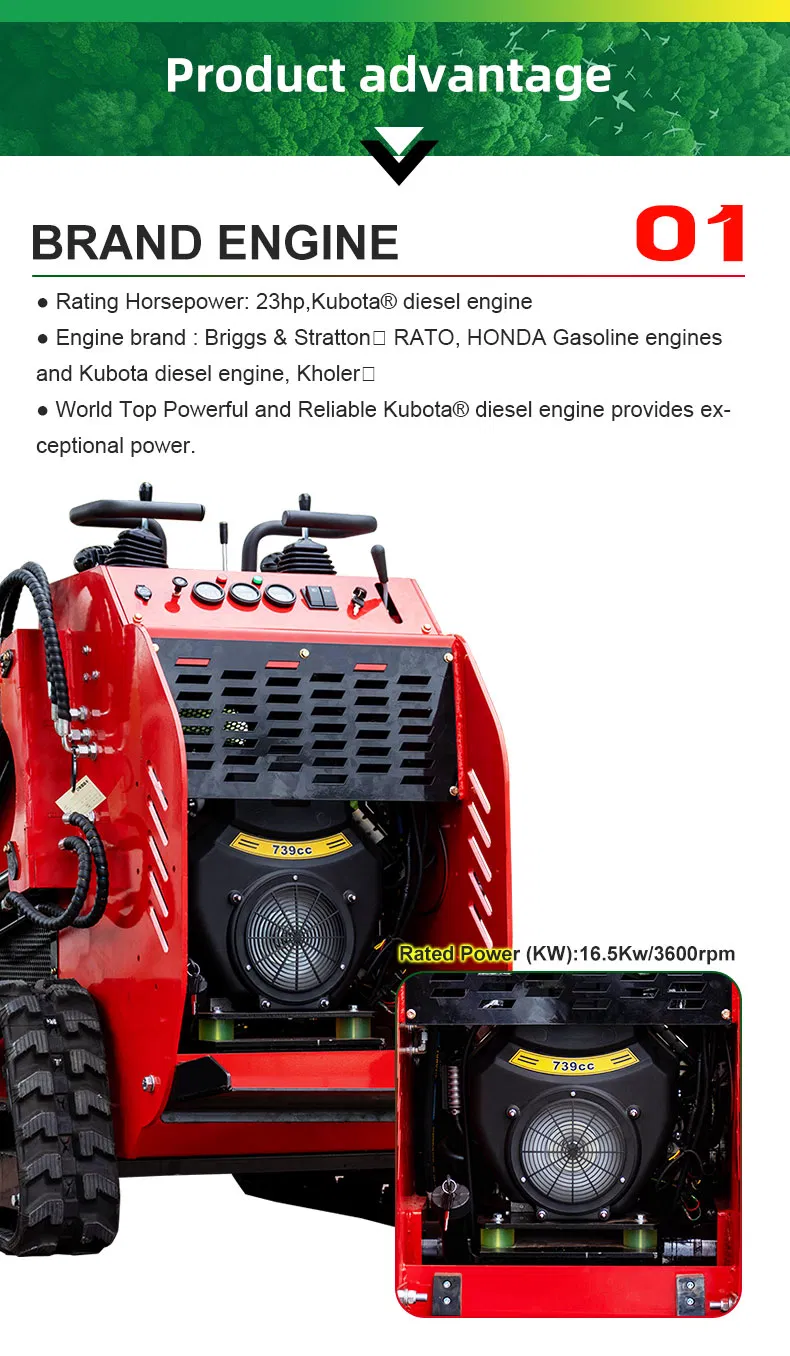

Skid Steer Loader View 6

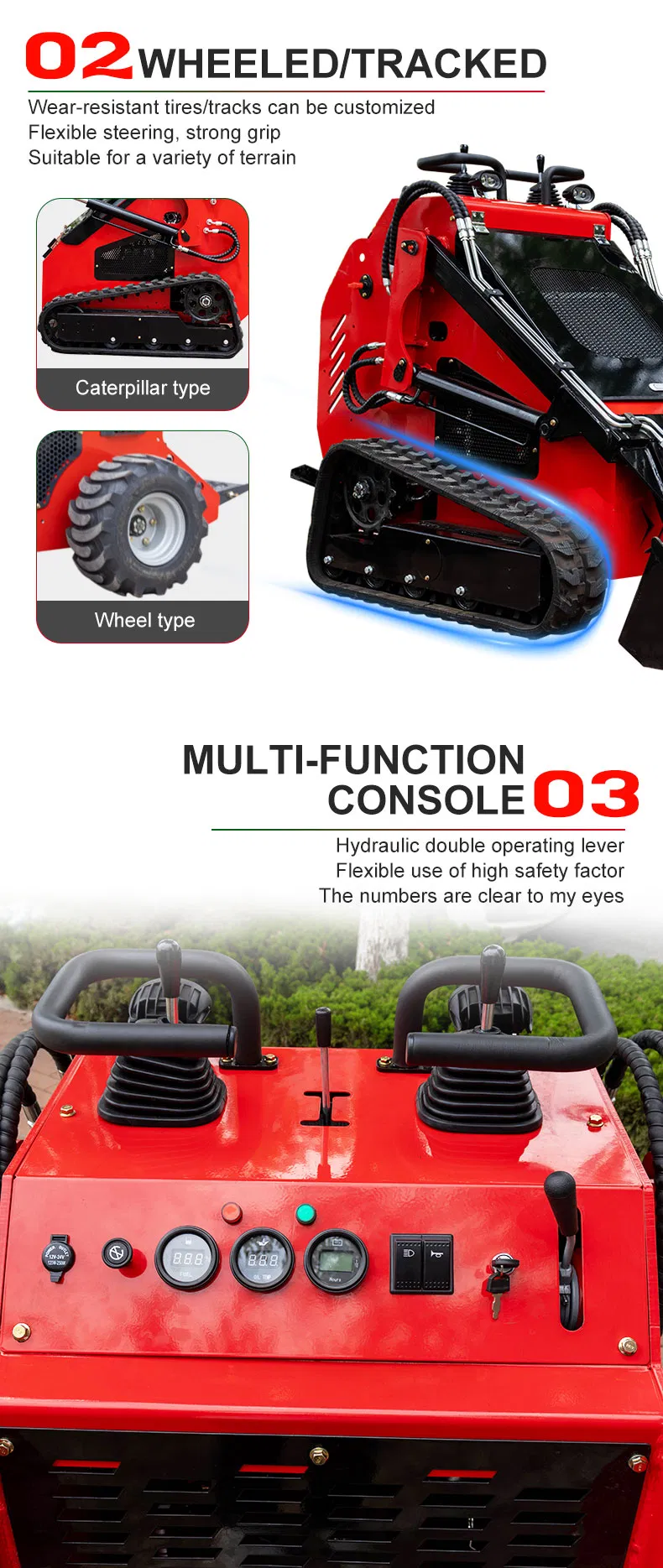

Skid Steer Loader View 7

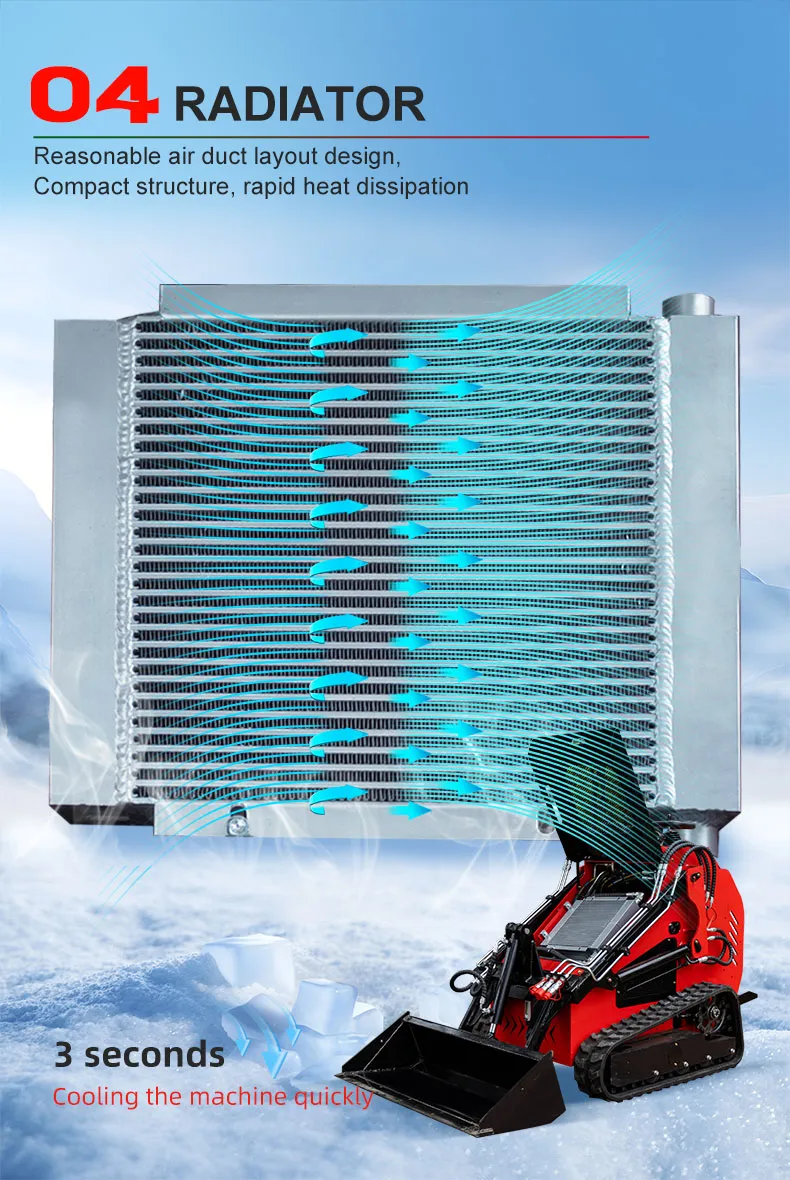

Skid Steer Loader View 8

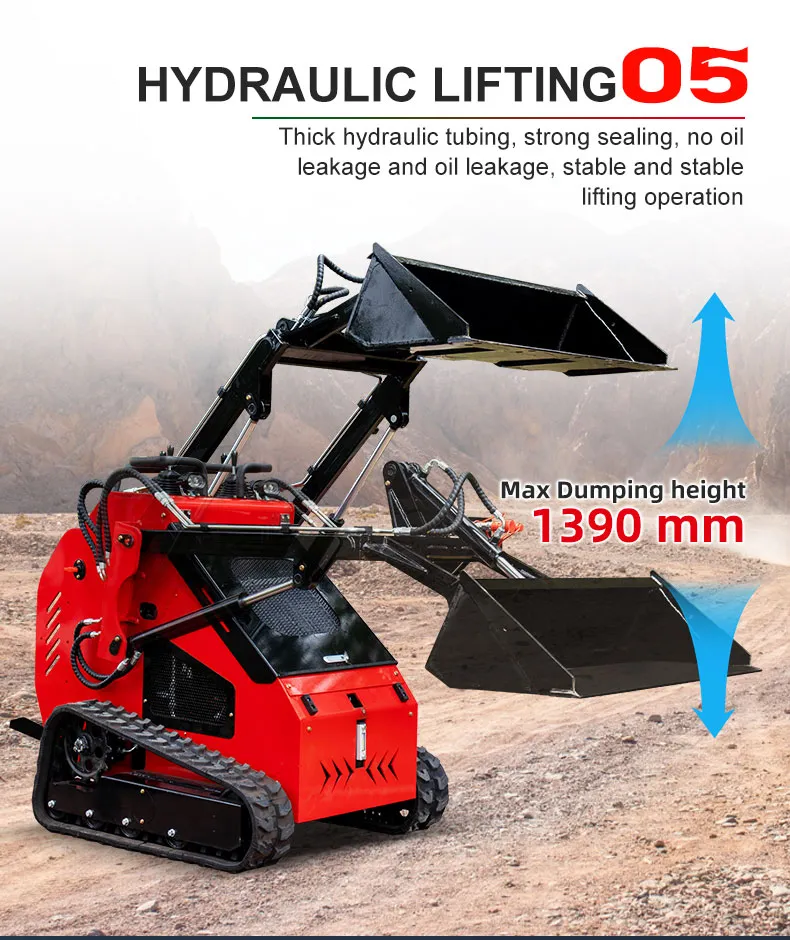

Skid Steer Loader View 9

Frequently Asked Questions

What kind of engine powers this mini loader?
It is equipped with a high-performance Briggs & Stratton 23 Horsepower engine, which comes with an EPA certificate.
Is the machine compatible with different attachments?
Yes, it features an international standard quick-change coupling (Italian FASTER brand) that supports excavators, augers, trenchers, sweepers, and more.
Can I switch between tracks and wheels?
Yes, the machine is designed so that wheeled and tracked models can be switched back and forth depending on your terrain requirements.
What is the hydraulic flow capacity?
The attachment interface provides a large flow rate of up to 55 liters per minute, satisfying the requirements of most industrial attachments.
What are the safety and comfort features for the operator?
The loader includes an anti-skid rear standing pedal with a shock absorption buffer and a bucket automatic leveling system for easier operation.
What is the maximum lifting capacity?
The machine has a maximum lifting force of 375 Kg (827 Lb) and a rated operating load of 200 Kg.
