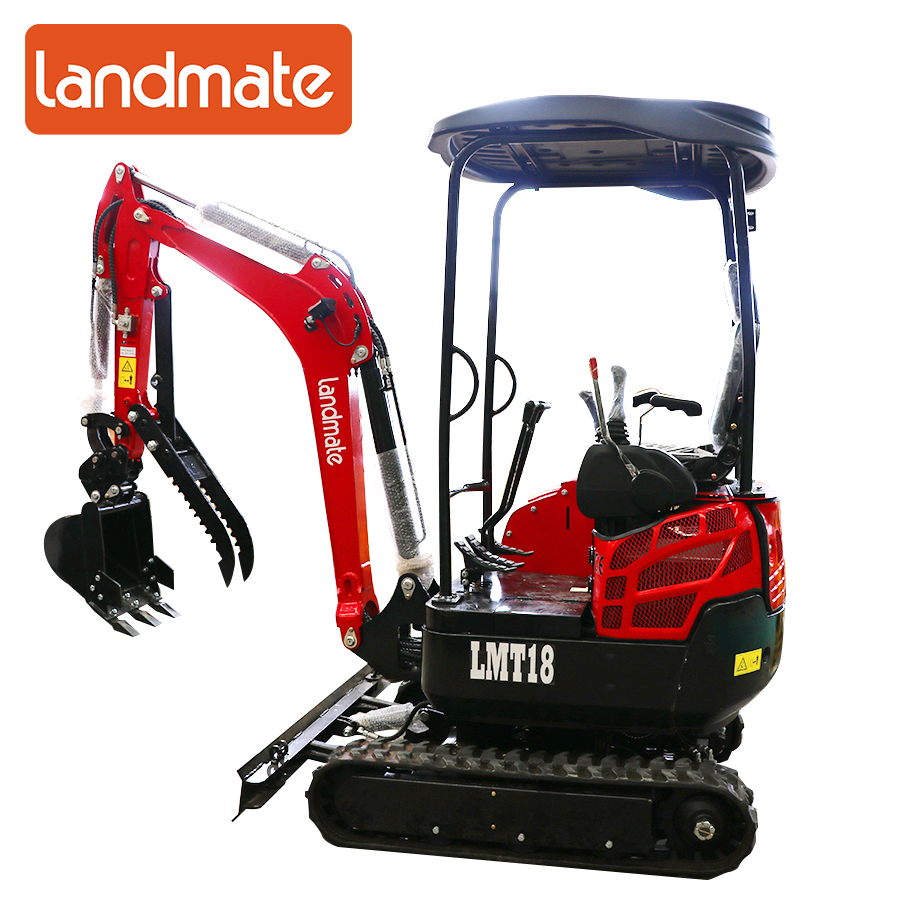

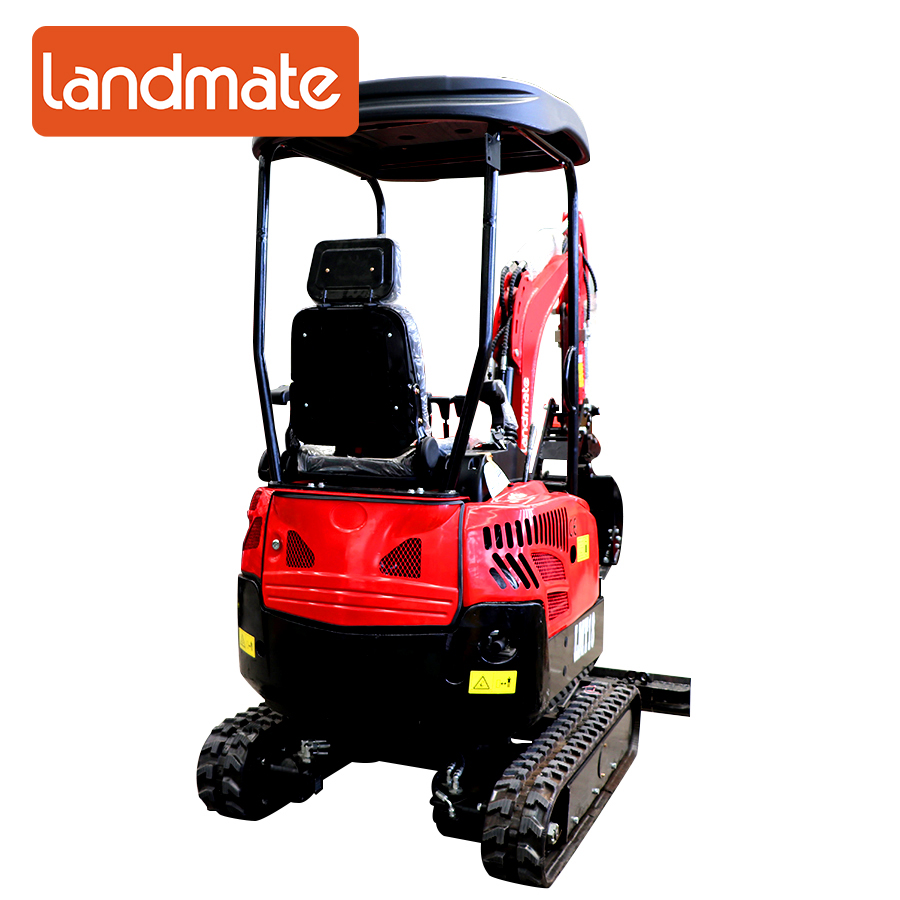

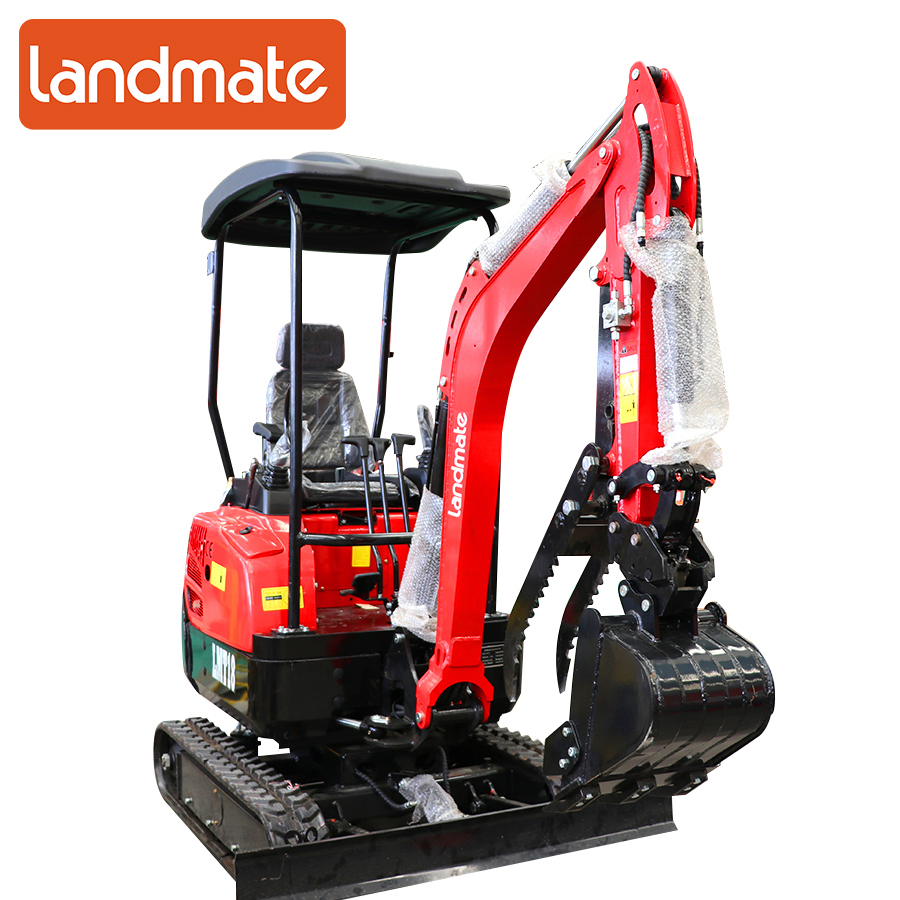

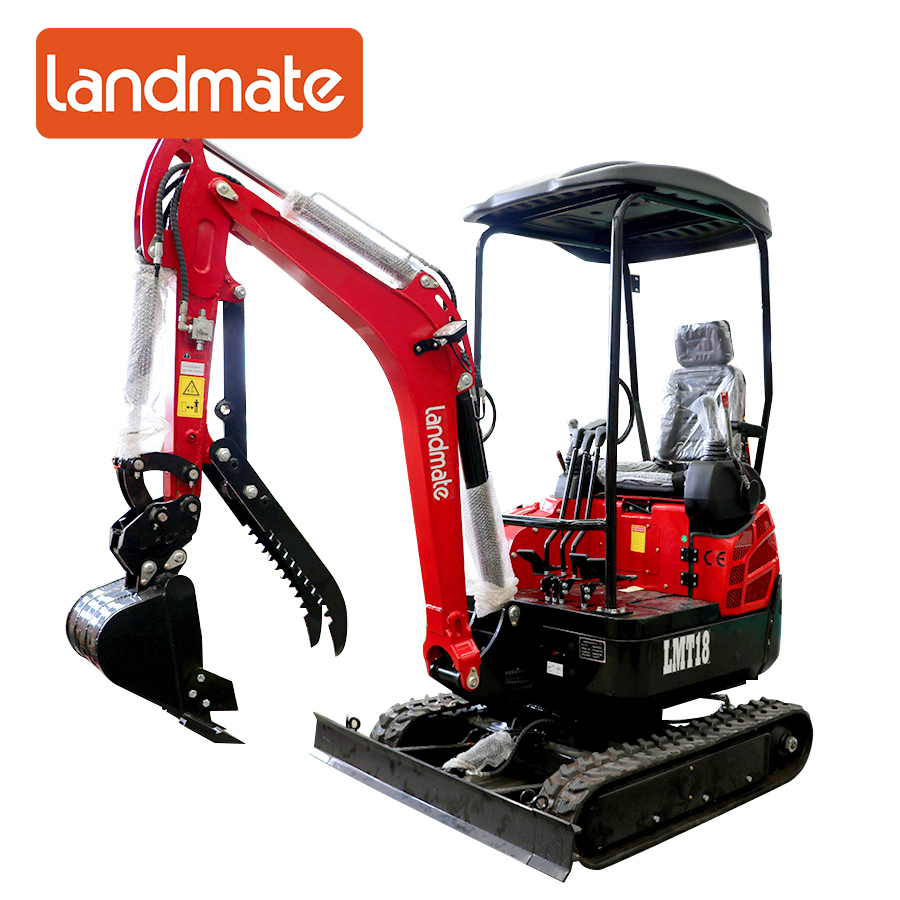

The mini excavator has capabilities similar to an excavator, with the added benefit of being able to work in small spaces. It goes by many names including the mini excavator, small excavator, mini digger, mini hoe and compact excavator. The small compact excavator is small enough to get any type of precise digging done.
Our designs include 6 kinds of mini excavators, including 0.8 ton, 1 ton, 1.2 tons, 1.5 tons, 1.8 tons and 2.0 tons. Used for installing pools & hot tubs, repairing sewer lines, tree harvesting, light demo, material handling, stump removal, construction projects or landscaping.

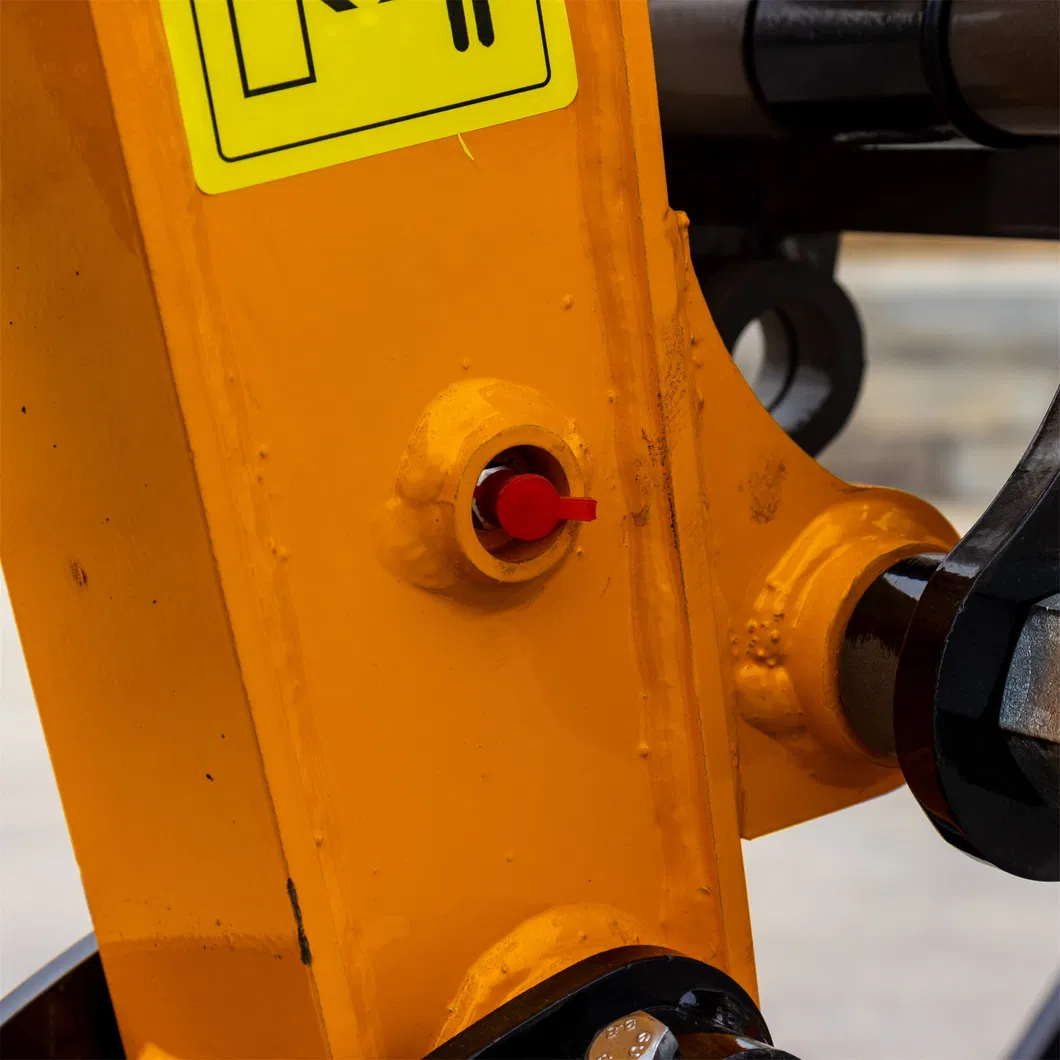

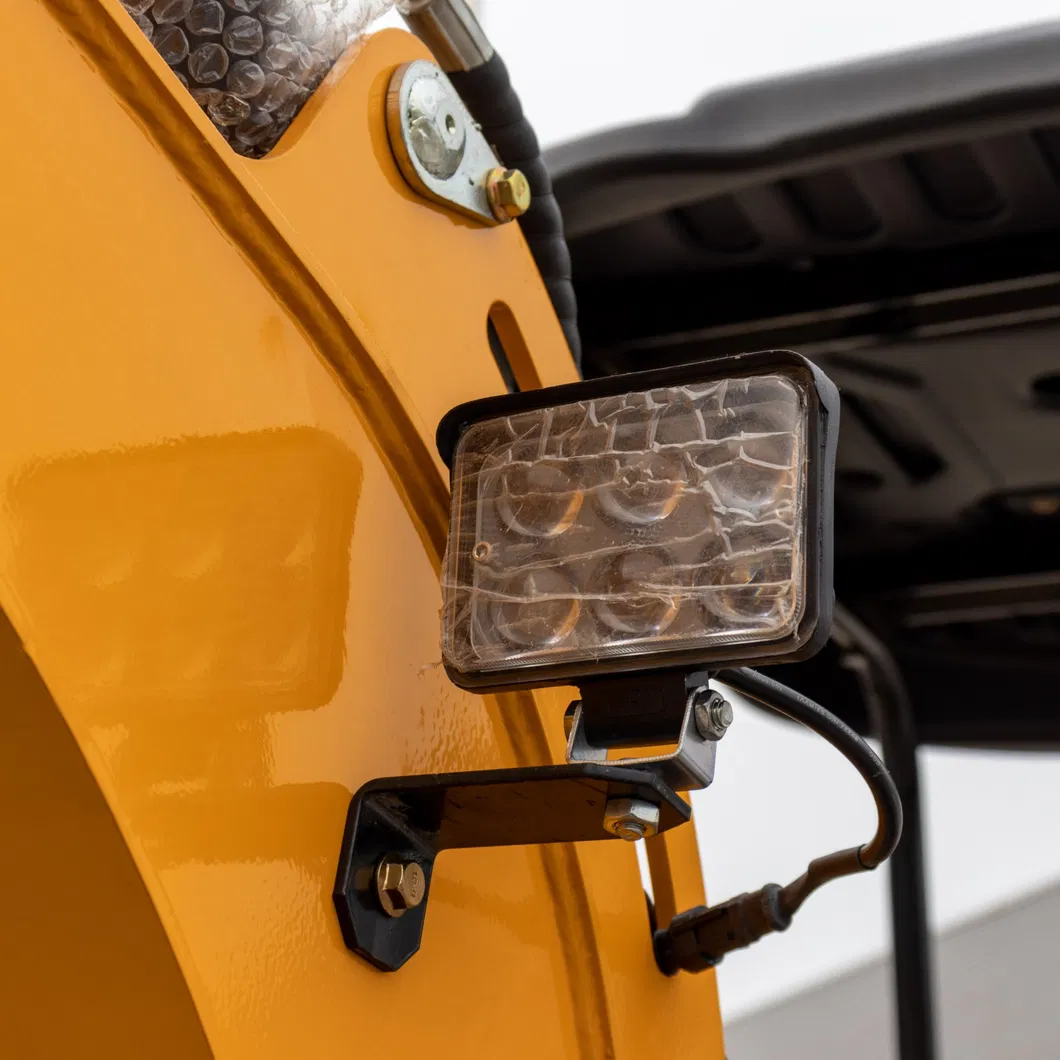

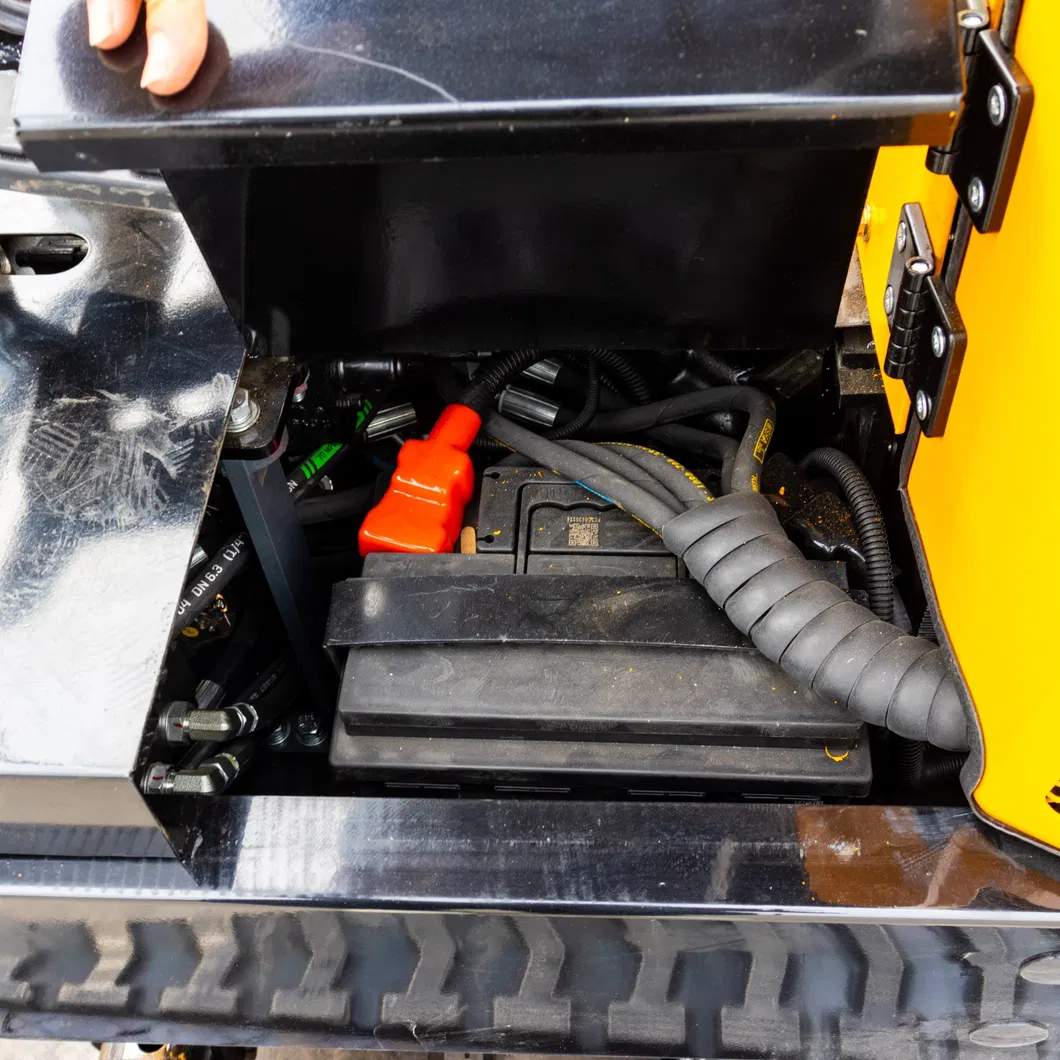

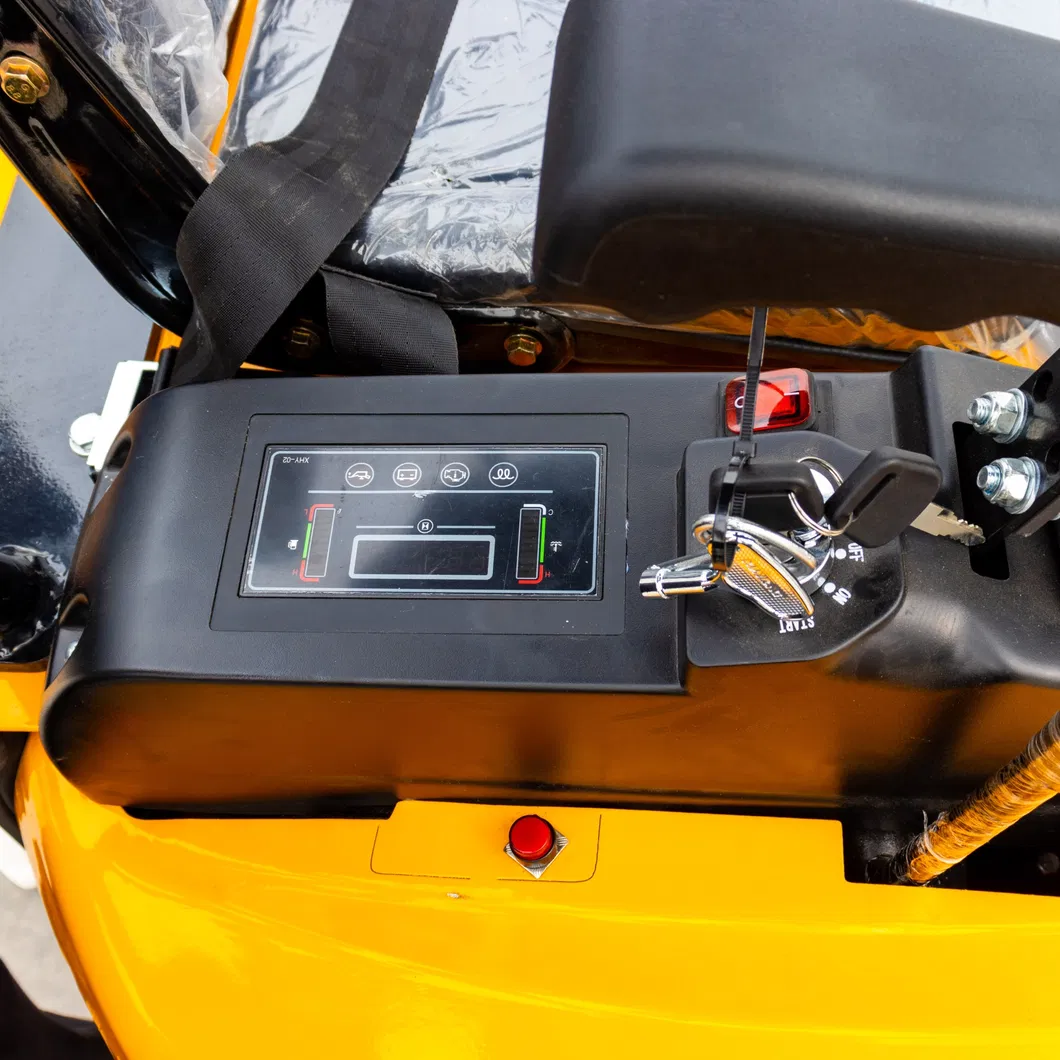

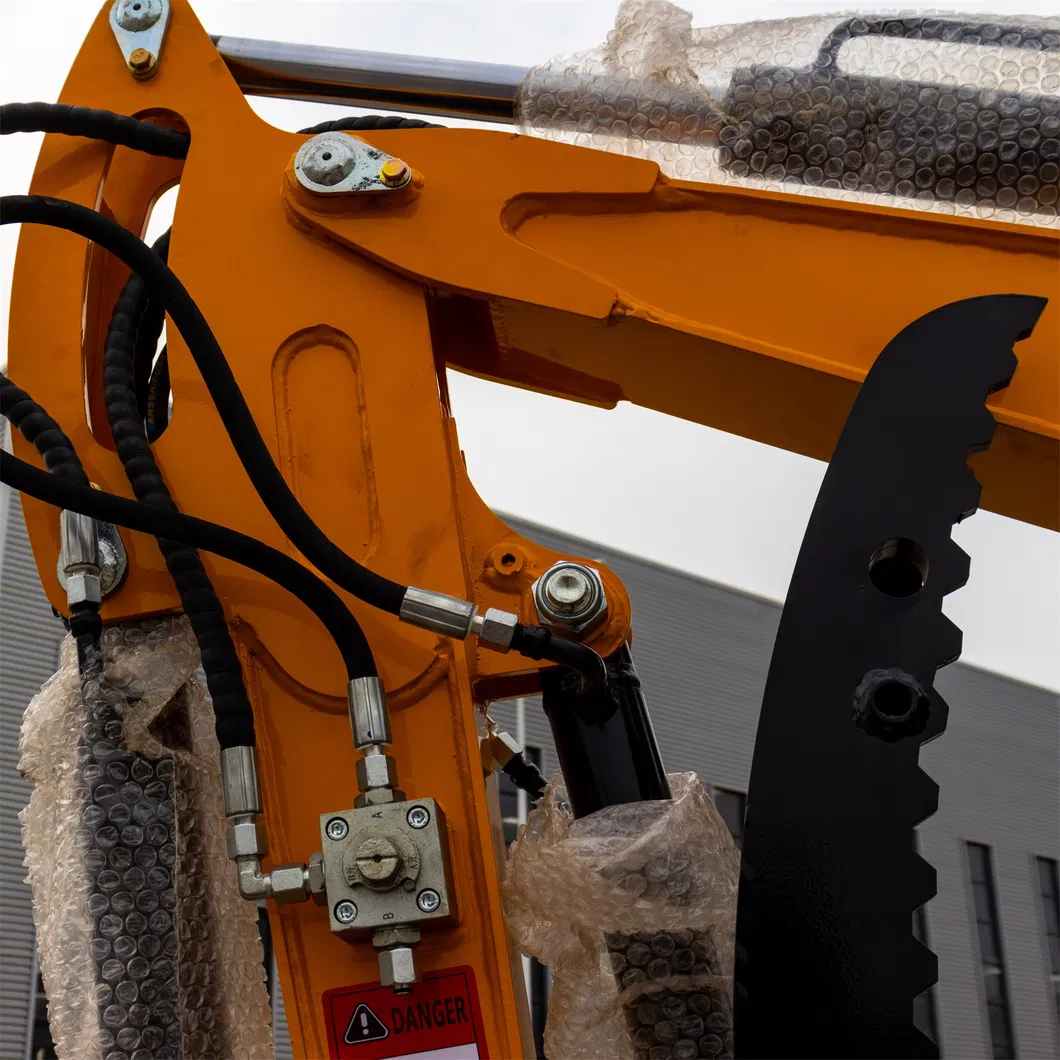

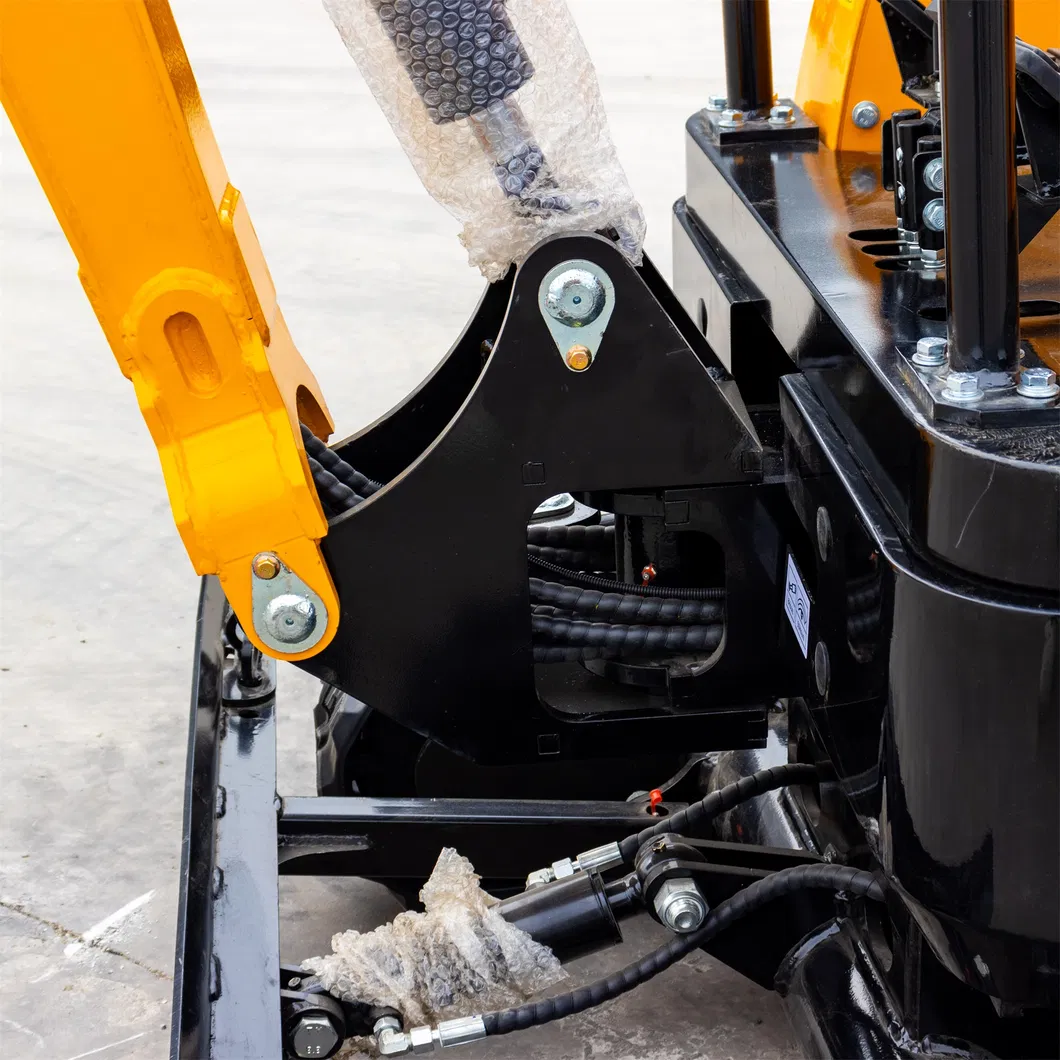

Optional attachments:
| Machine size (mm) | |
|---|---|
| Overall dimension (L*W*H) | 3,865*1,050*2,270 |
| Axle base (Track length on ground) | 1,230 |
| Track gauge | 820 |
| Min. ground clearance | 210 |
| Swing radius at tail | 1,125 |
| Track system | |
| Maximum travel speed | 3.5 km/h |
| Width of track shoe (Rubber & steel track) | 230 mm |
| Number of track shoe per side | 38 pcs |
| Working Range (mm) | |
| Max. digging height | 3,365 |
| Max. dumping height | 2,385 |
| Max. digging depth | 2,050 |
| Max. digging radius | 3,860 |
| Engine Performance | |
| Emission standard | Euro 5 / EPA |

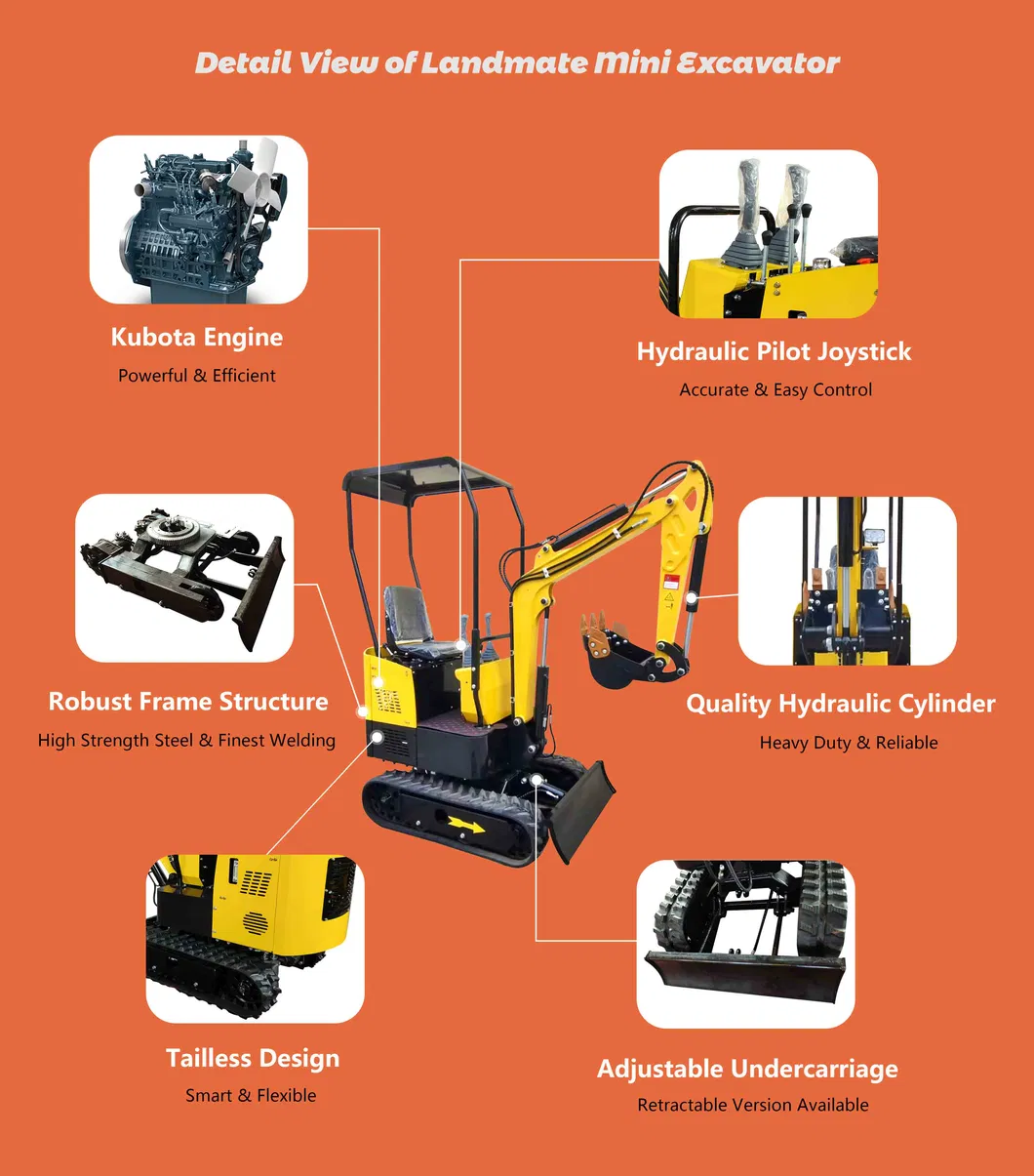

| Engine brand / power | KUBOTA D722 / 10.2KW |
| Working weight | 1,800kg |
| Bucket digging force | 14KN |
