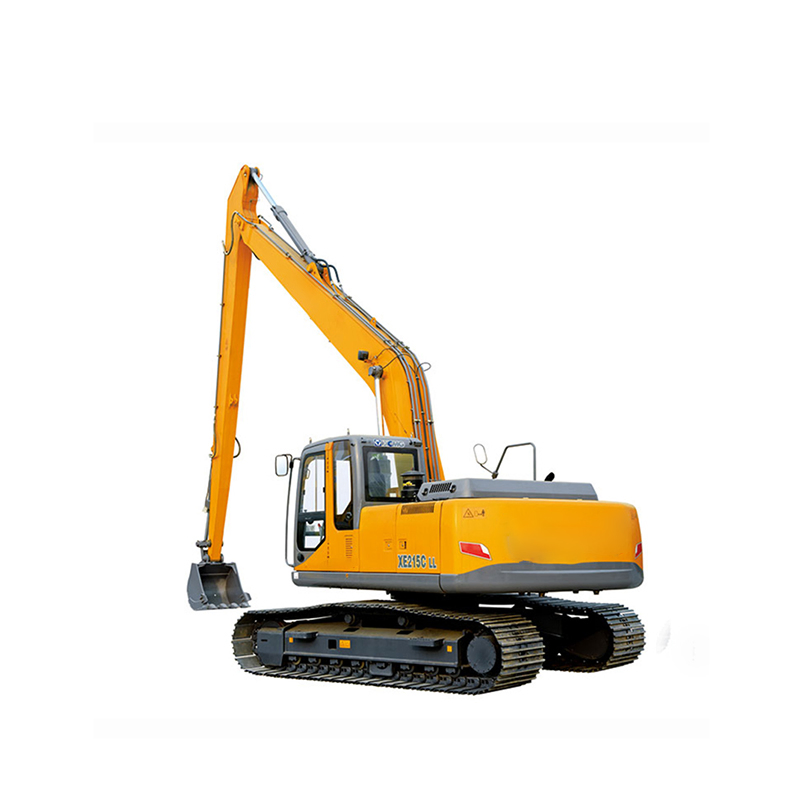

New 15m Long Reach Hydraulic Excavator Xe215dll Weight 24 Tons
New 15m Long Reach Hydraulic Excavator Xe215dll Weight 24 Tons
New 15m Long Reach Hydraulic Excavator Xe215dll Weight 24 Tons
New 15m Long Reach Hydraulic Excavator Xe215dll Weight 24 Tons
New 15m Long Reach Hydraulic Excavator Xe215dll Weight 24 Tons
1 / 5
New 15m Long Reach Hydraulic Excavator Xe215dll Weight 24 Tons
New 15m Long Reach Hydraulic Excavator Xe215dll Weight 24 Tons
New 15m Long Reach Hydraulic Excavator Xe215dll Weight 24 Tons
New 15m Long Reach Hydraulic Excavator Xe215dll Weight 24 Tons
New 15m Long Reach Hydraulic Excavator Xe215dll Weight 24 Tons

New 15m Long Reach Hydraulic Excavator Xe215dll Weight 24 Tons

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

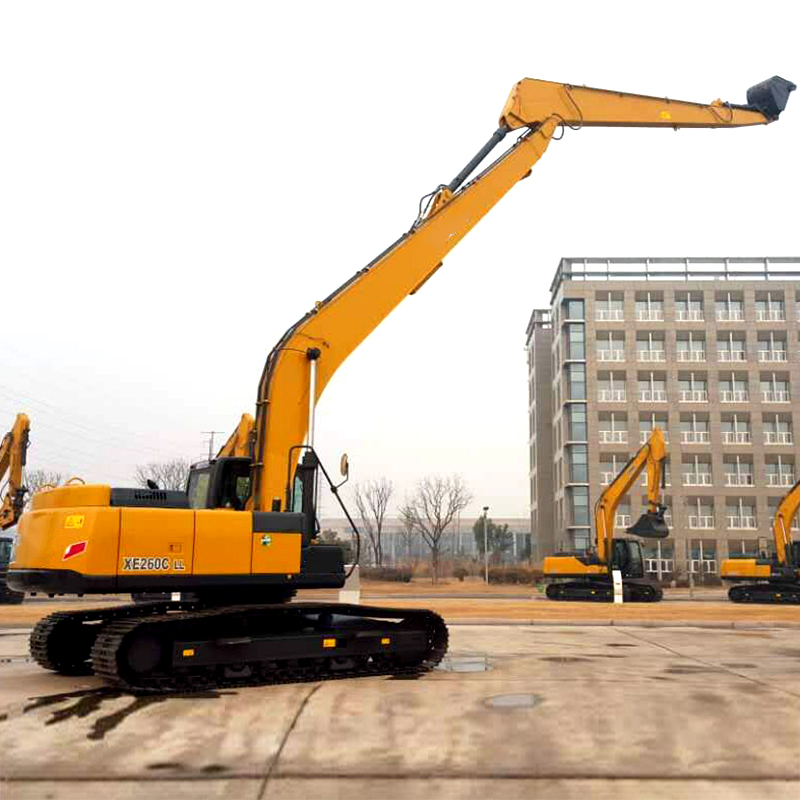

New 15m Long Reach Hydraulic Excavator XE215DLL

The XE215DLL is a specialized crawler excavator designed for extended reach operations, featuring a 24-ton operating weight and a high-efficiency 0.4m³ bucket.

Basic Specifications
Model NO.
XE215DLL
Type
Crawler Excavator
Usage
Long Reach Excavator
Bucket Capacity
0.40 M3
Operating Weight
23,900 Kg
Engine Brand
Imported QSB7
Output Power
135/2,050 Kw/Rpm
Certification
CE, ISO9001
Condition
New
Drive Type
Internal Combustion
Technical Parameters
Parameter Item Unit Details
Operating weightKg23900
Bucket capacitym³0.4
Engine Details
Engine Model-QSB7
Type-Electronic fuel injection, Water-cooling, Turbo
Rated powerkW/rpm135/2050
Maximum torque / speedN.m/rpm740/1250
DisplacementL6.7
Performance
Walking speedkm/h5.4/3.1
Rotary speedr/min11.8
Bucket digging forceKN103
Maximum tractionKN184
Outline Dimensions
Total lengthmm12140
Total widthmm3190
Total heightmm3130
Track widthmm800
Working Scope
Maximum digging heightmm13500
Maximum digging depthmm11610
Maximum digging radiusmm15430
Boom / Arm lengthmm8140 / 6335
Product Gallery

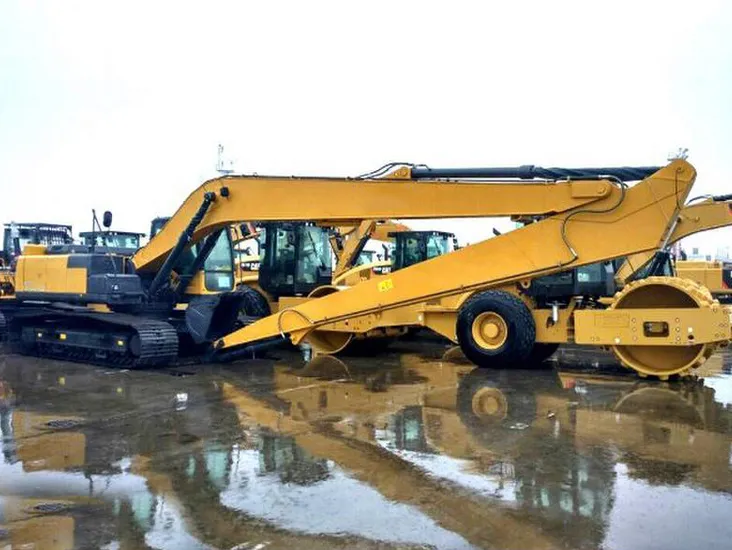

XE215DLL Long Reach Excavator

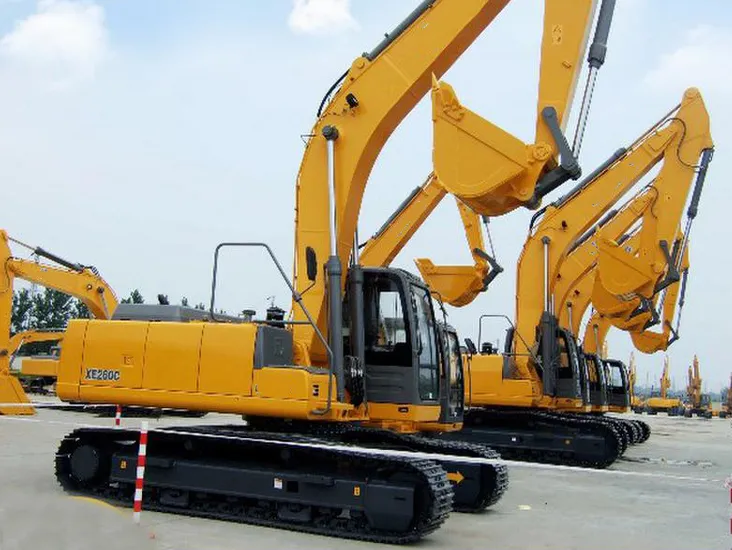

XE215DLL Hydraulic System

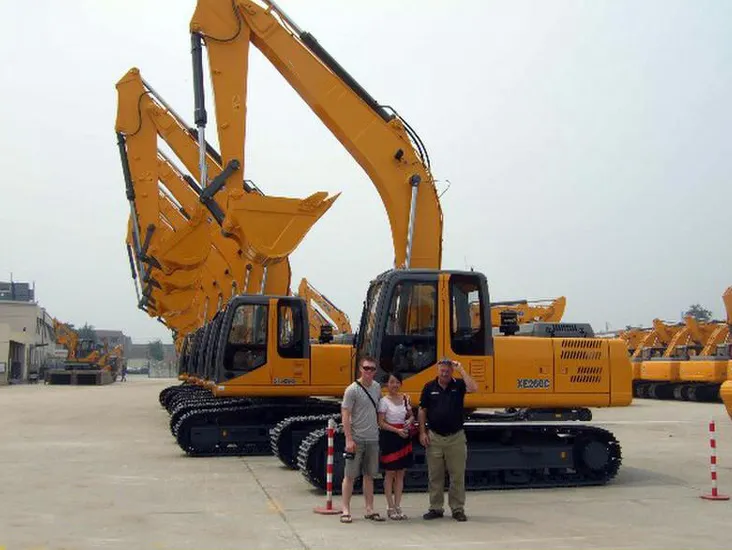

XE215DLL Side View

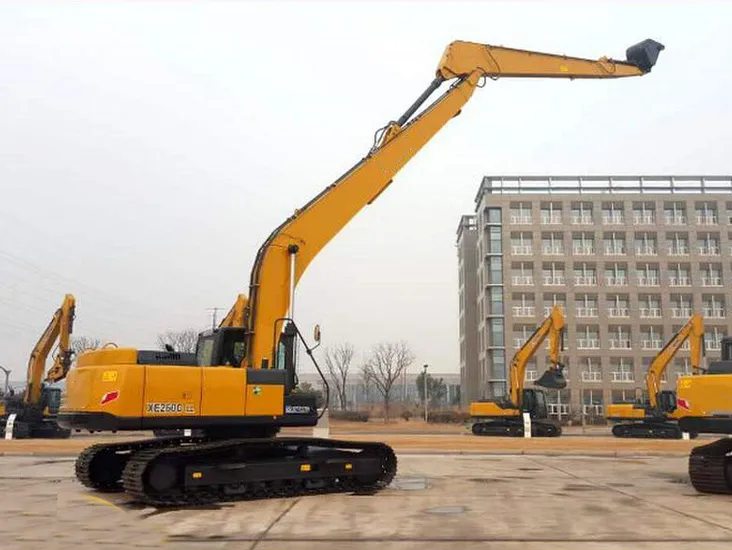

XE215DLL Operational View
XE215DLL Chassis Detail

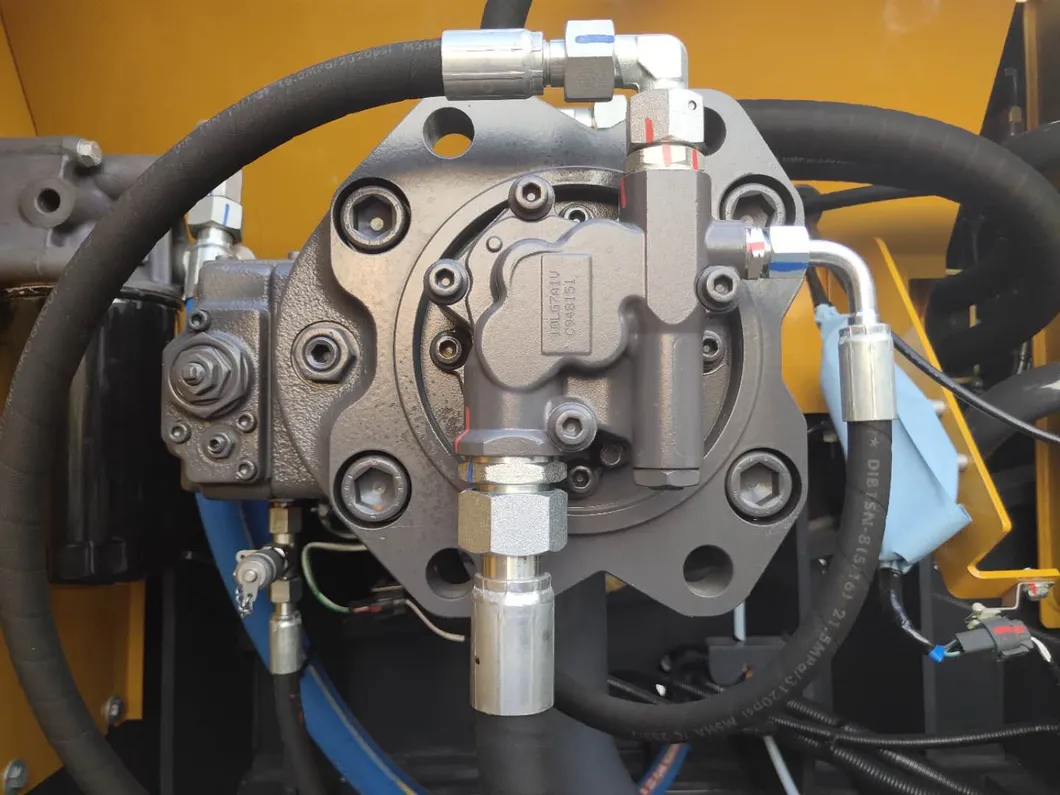

XE215DLL Boom Detail

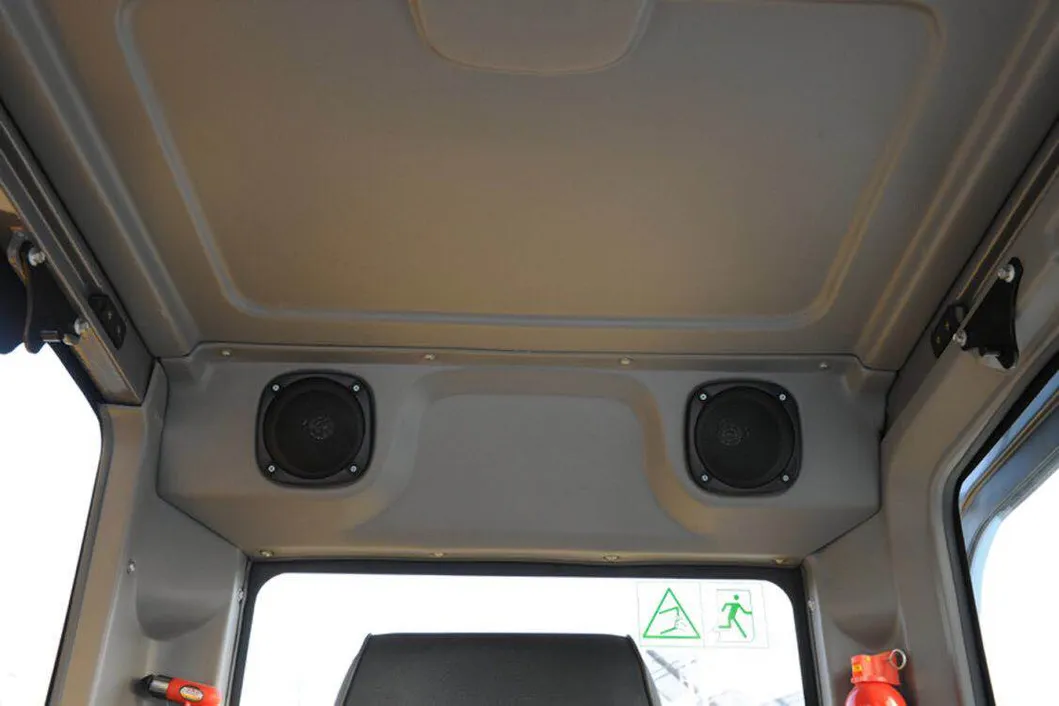

XE215DLL Working Range

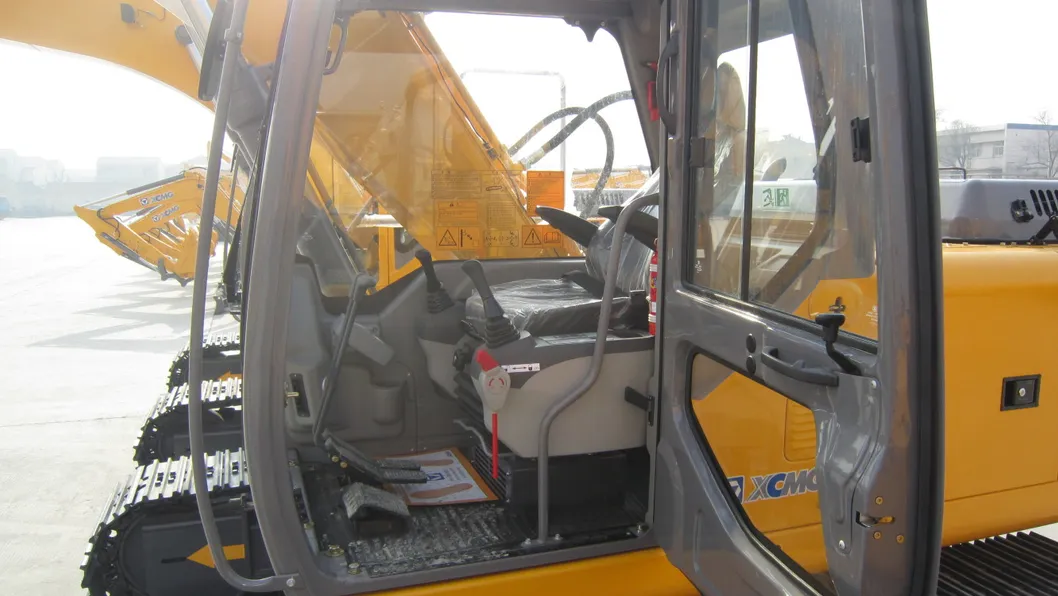

XE215DLL Control Cabin
XE215DLL Engine Components
XE215DLL Maintenance Point

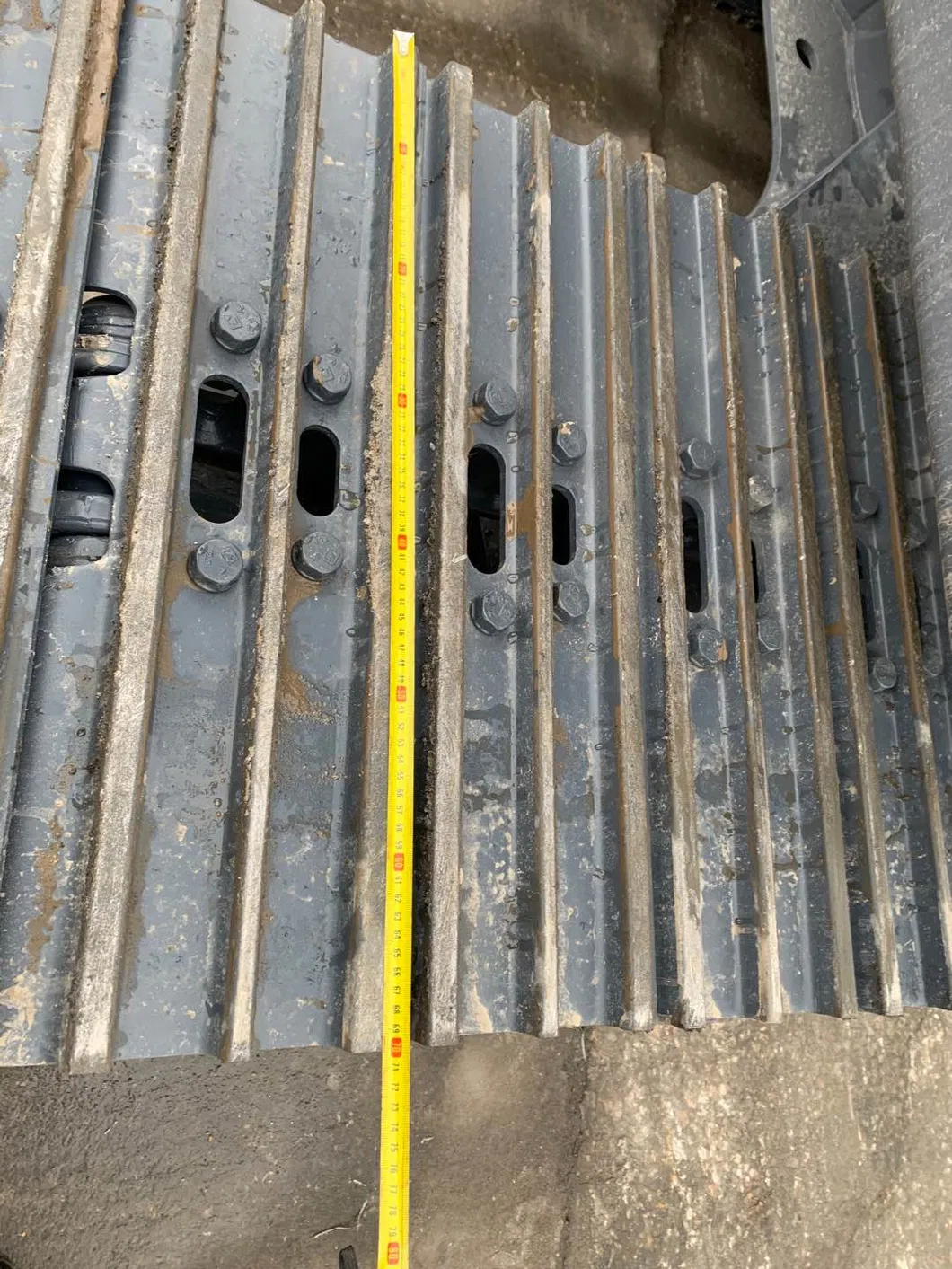

XE215DLL Track System

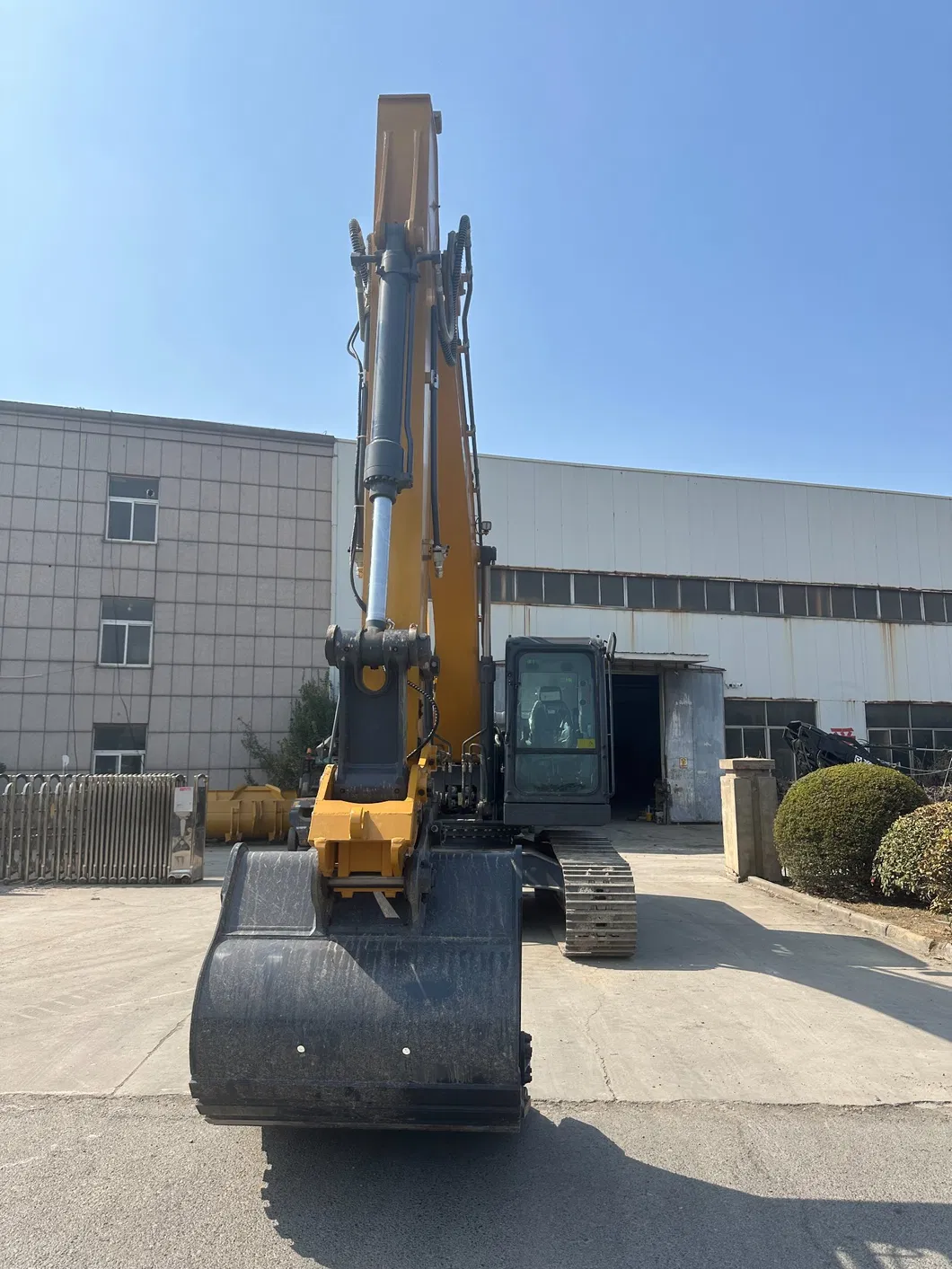

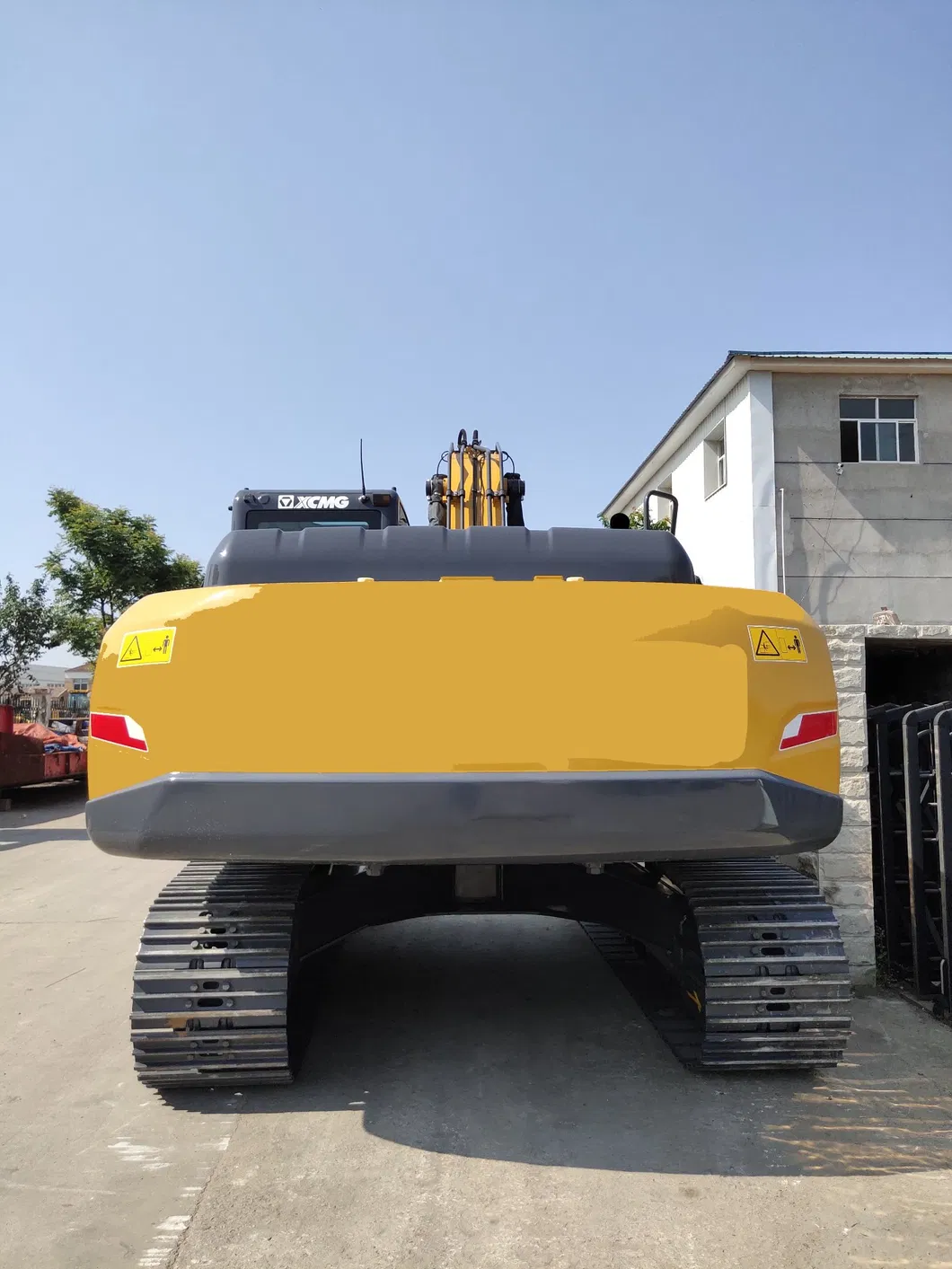

XE215DLL Rear View
XE215DLL Excavator Bucket
XE215DLL Attachment View
XE215DLL Hydraulic Pump
Frequently Asked Questions
What is the maximum reach of the XE215DLL excavator?
The XE215DLL is a long-reach model with a maximum digging radius of 15,430 mm and a maximum digging height of 13,500 mm, making it ideal for deep excavation and dredging tasks.
What kind of engine powers this machine?
It is equipped with a high-performance QSB7 engine featuring electronic fuel injection, water cooling, and turbocharging, providing 135 kW of power at 2,050 rpm.
What is the bucket capacity and digging force?
The standard bucket capacity is 0.4 m³, and the machine delivers a powerful bucket digging force of 103 KN, ensuring efficient operation in various soil conditions.
What is the operating weight and transport size?
The operating weight is 23,900 kg. Its transport dimensions are approximately 12,140 mm in length, 3,190 mm in width, and 3,130 mm in height.
What are the main applications for the XE215DLL?
Due to its 15m long reach capability, it is specifically used for river cleaning, pond dredging, slope finishing, and other specialized construction projects where standard excavators cannot reach.
