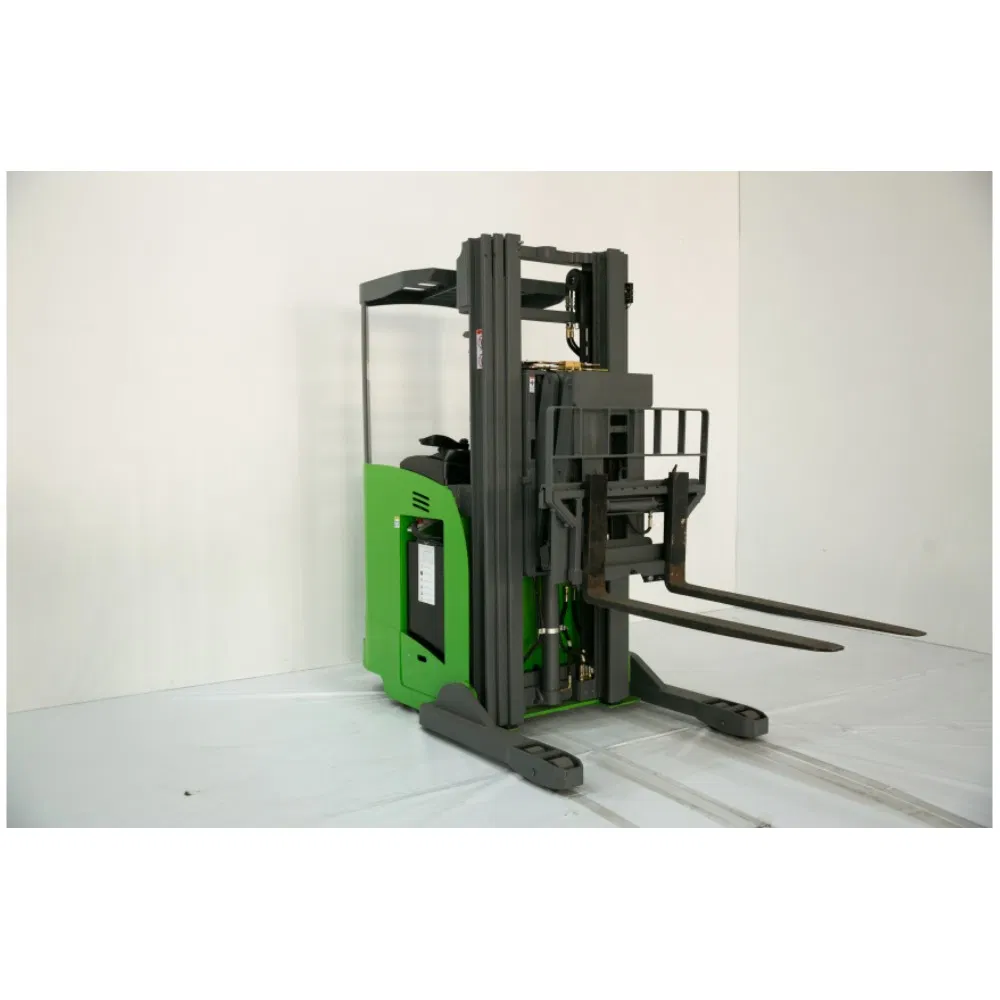

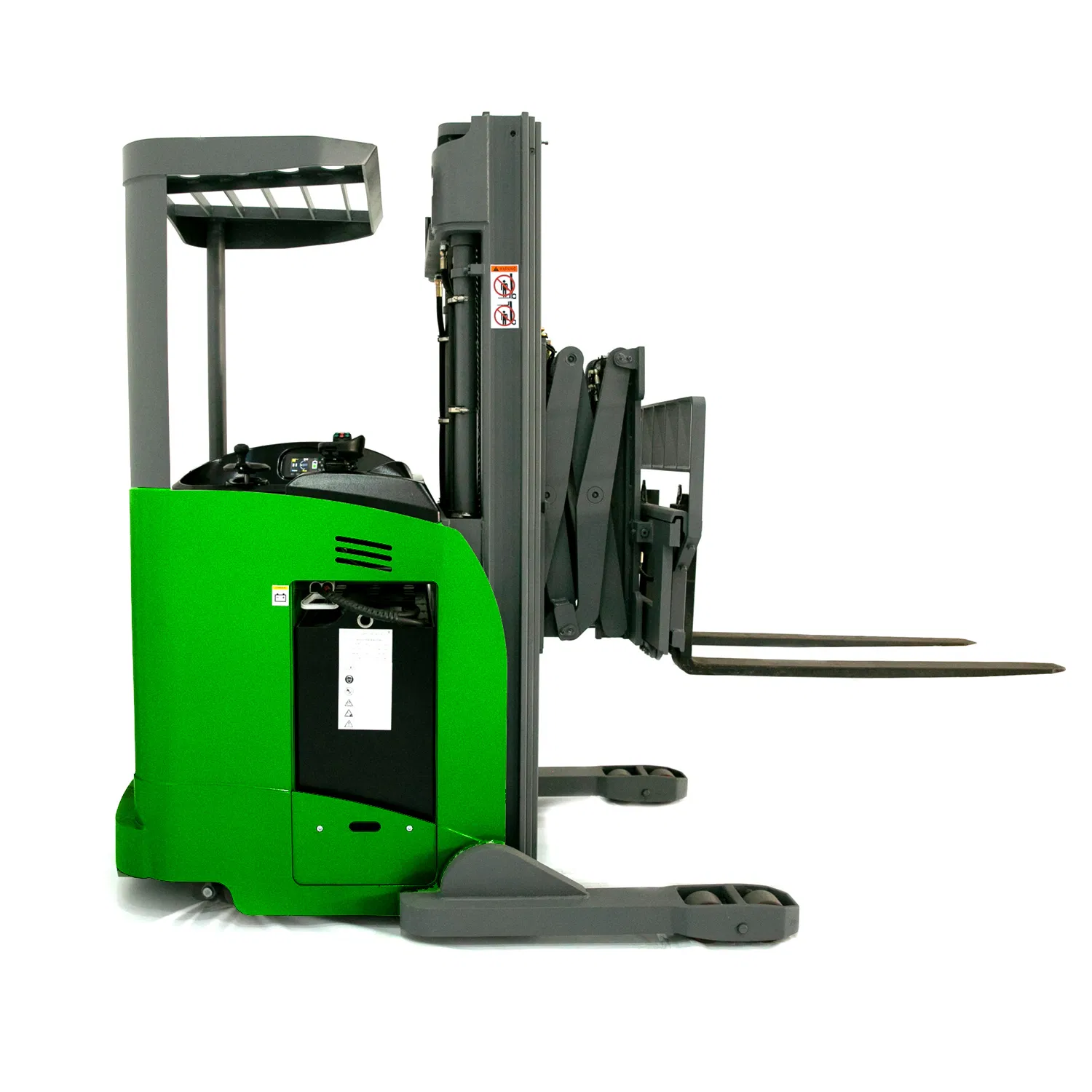

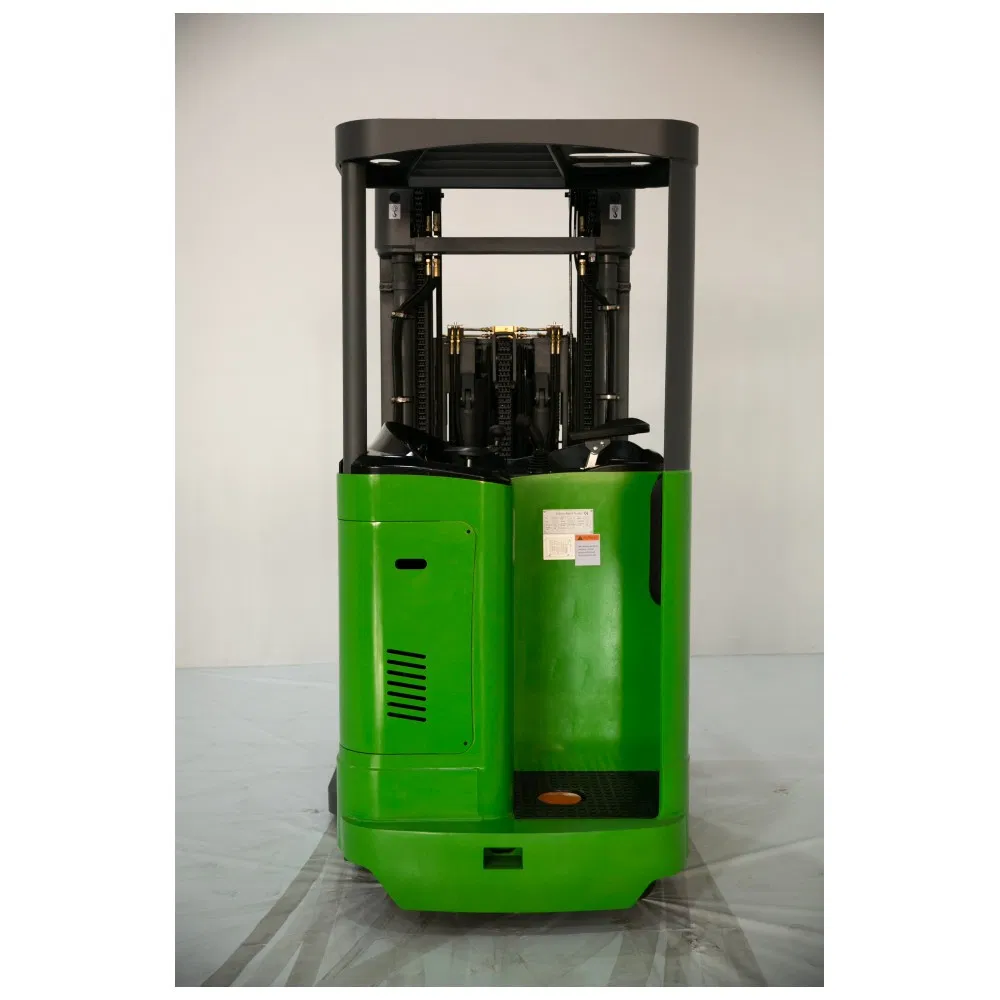

1.5/1.6/2t Vna 3 Ways Order Picker Electric Diesel LPG Very Narrow Aisle Reach Pallet Fork Lift Truck

1 / 4

1.5/1.6/2t Vna 3 Ways Order Picker Electric Diesel LPG Very Narrow Aisle Reach Pallet Fork Lift Truck

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Information

Type

Reach Forklift

Power

AC Motor

Load Capacity

1.0 - 2.0 Ton

Fuel

Electric

Load center

500 - 600 mm

Lift height

3000 to 8000 mm

Condition

New

Turning Radius

1718 - 1780 mm

Battery Voltage

24V / 48V

HS Code

8427109000

🏗️ Product Description

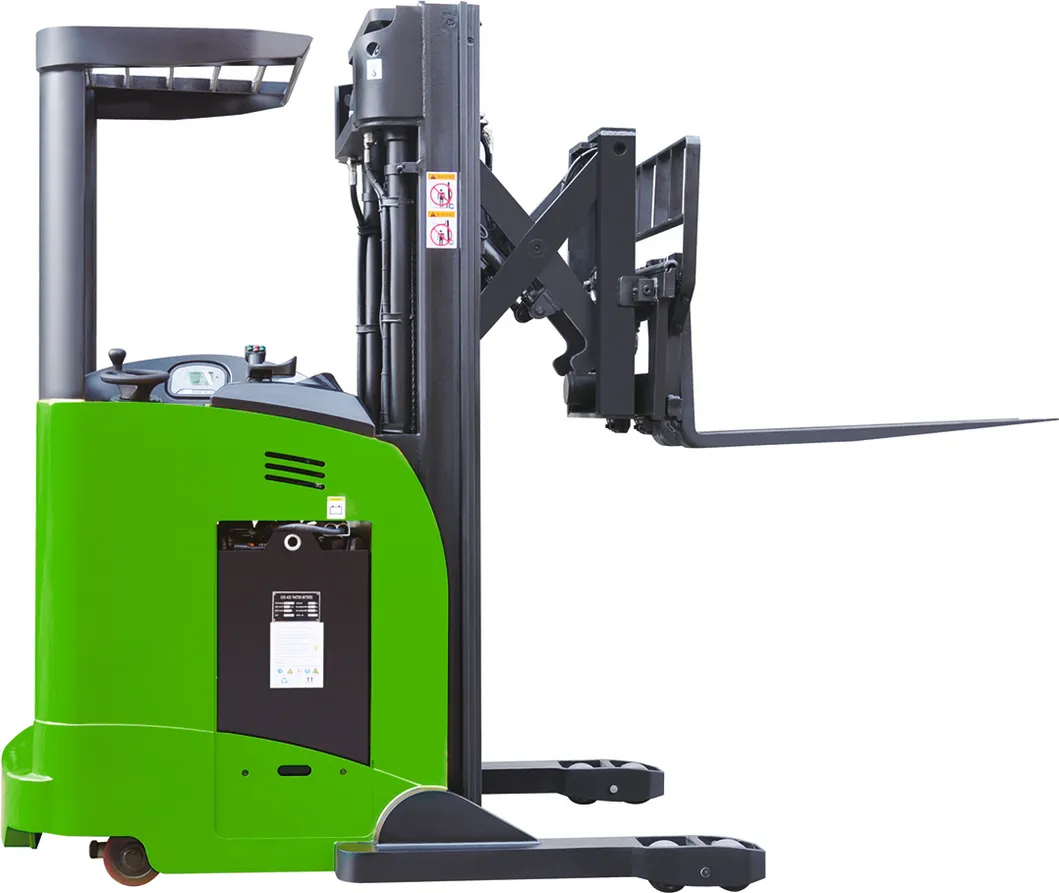

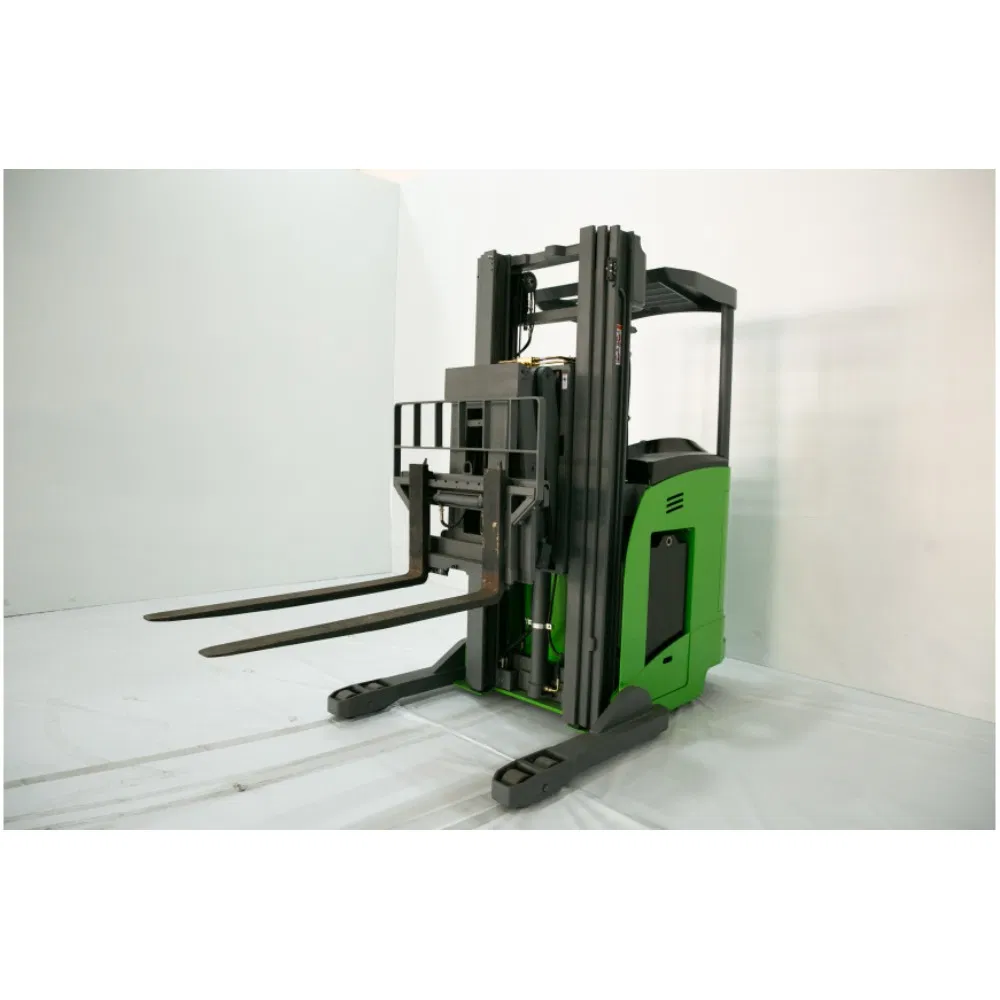

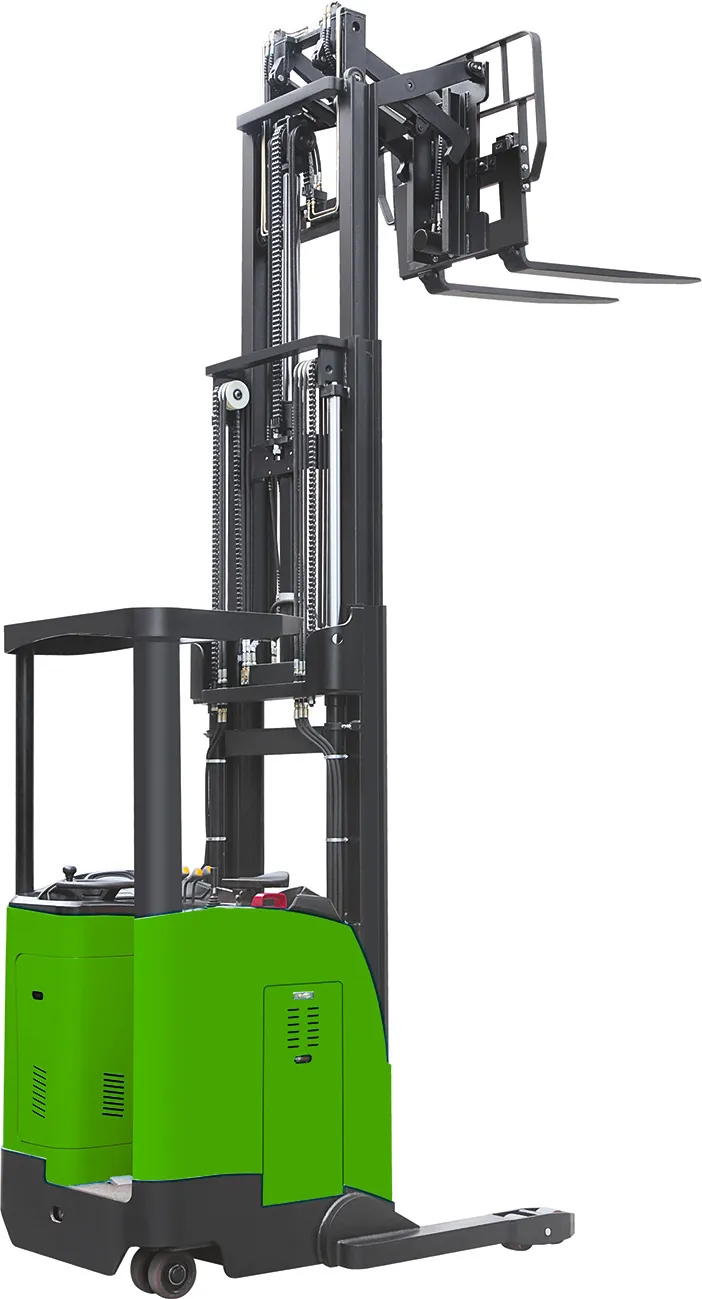

1.5/1.6/2t VNA 3-Way Order Picker Electric Reach Truck

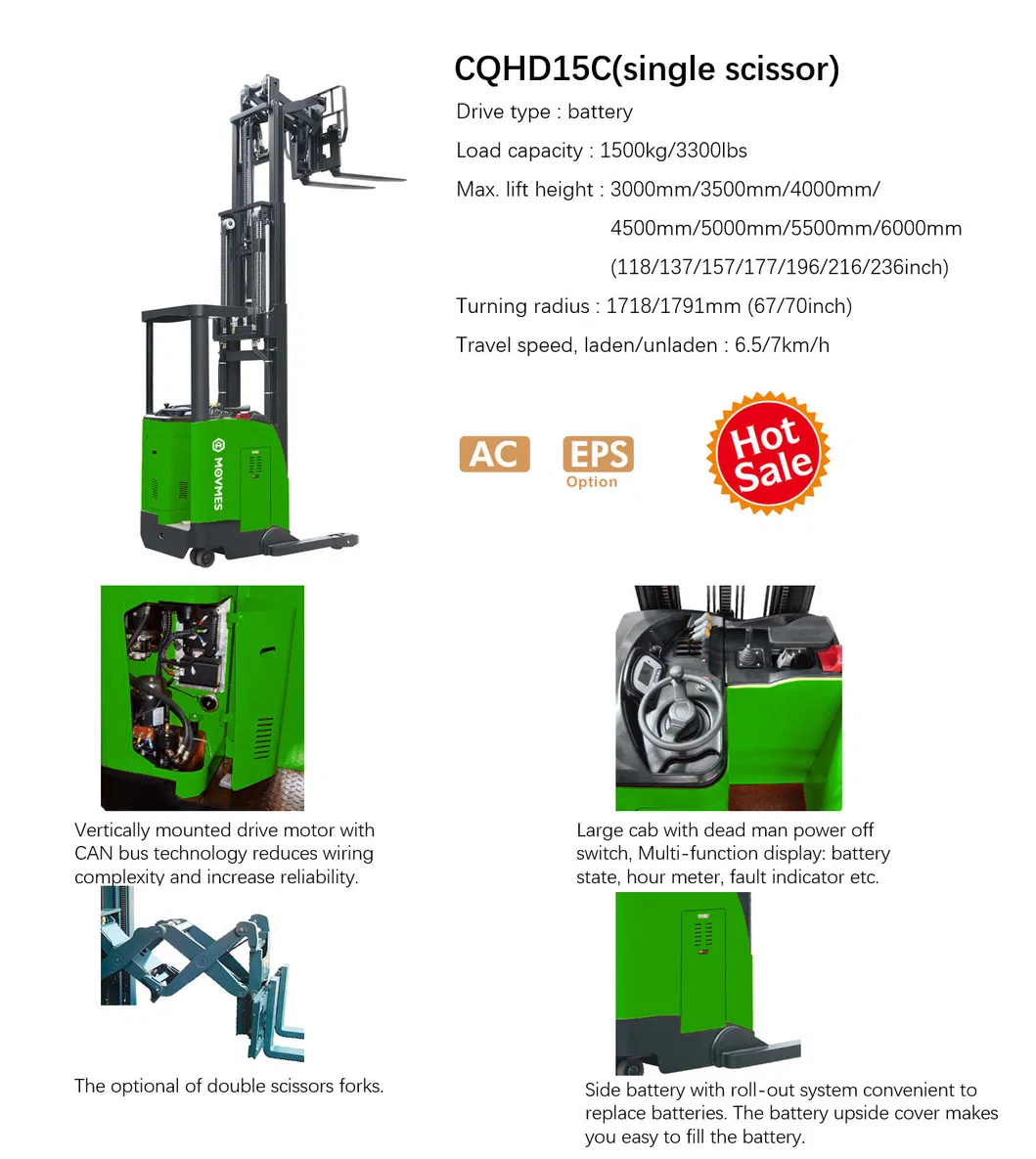

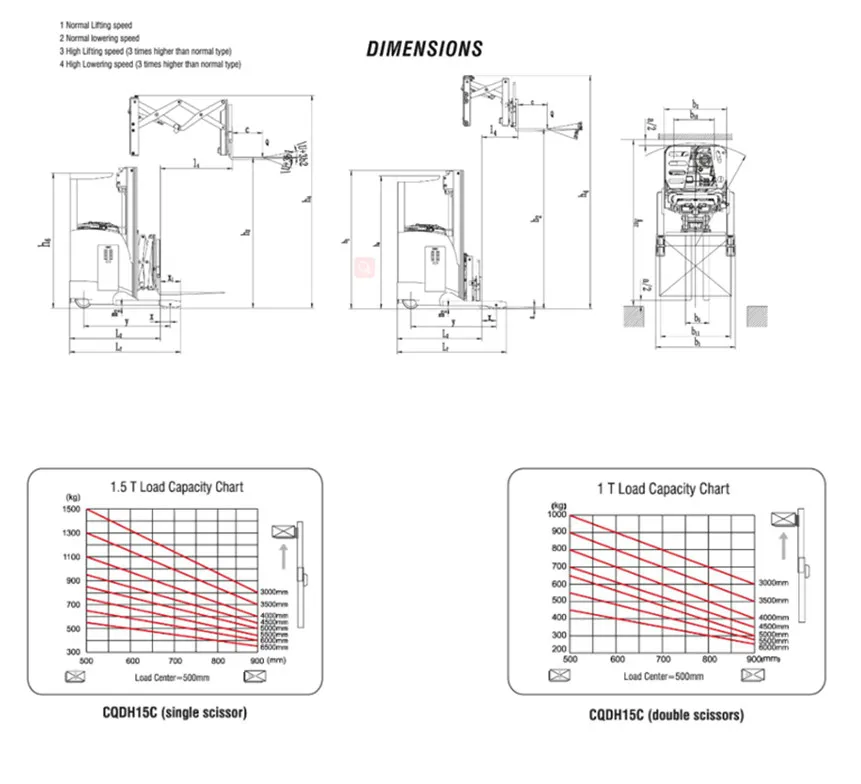

📊 Technical Parameters

Model	Unit	CQD15 Specifications
Capacity/rated load	Q(kg)	1500
Max. lift height	h3(mm)	3000/5000/6200/7400/8000
Load centre distance	C(mm)	600
Drive wheel size	mm	Dia310x125
Overall length	I1(mm)	2370
Overall width	b1(mm)	1200
Travel speed (laden/unladen)	Km/h	8/8.3
Lift speed (laden/unladen)	M/s	0.45/0.36
Battery voltage/capacity	V/Ah	48/400
Service weight	kg	2900 - 3300

💡 Design & Advantages

Our professional design team is committed to improving work efficiency, reducing safety risks, and optimizing space utilization.

🛡️ SAFETY AND STABILITY

Advanced AC control system eliminates motor brushes.
Intelligent regenerative brake system.

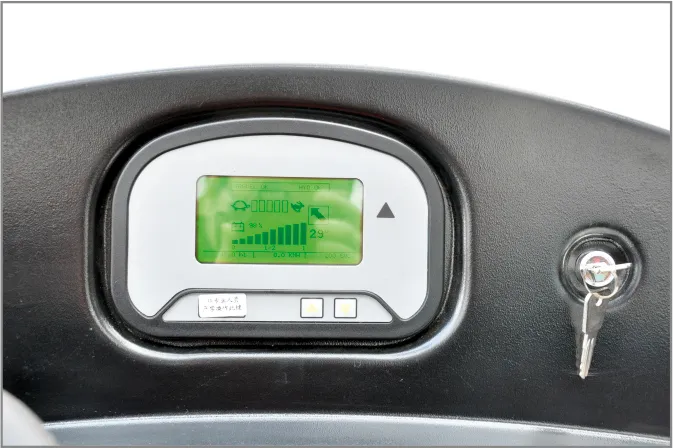

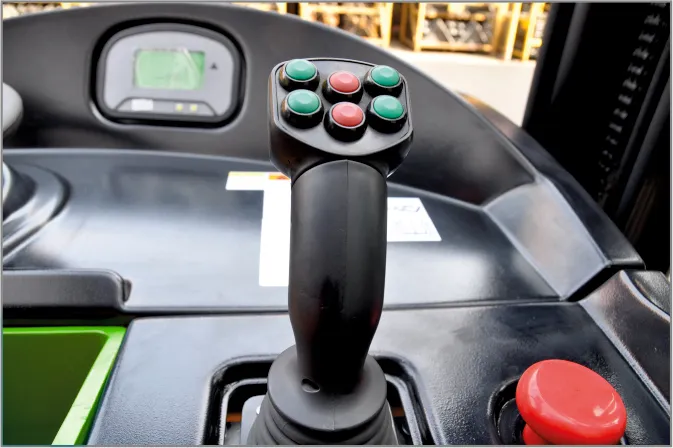

Multi-function display: battery status, hour meter, fault indicator.
Emergency power disconnect.

🏗️ STRUCTURAL DESIGN

Low center of gravity for stable operation.
Small turning radius with vertical driving wheel.

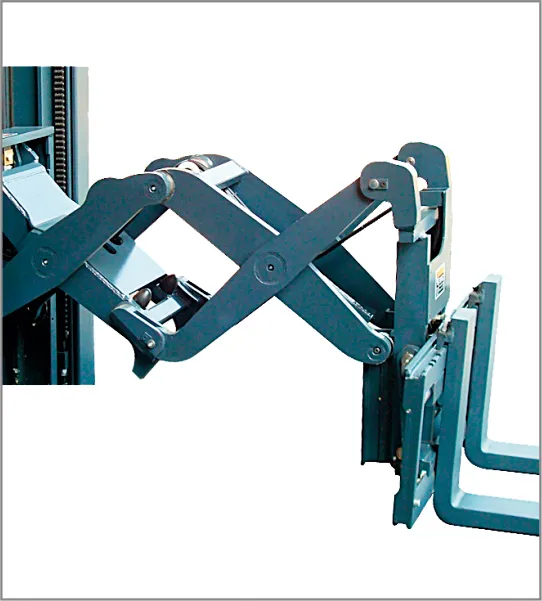

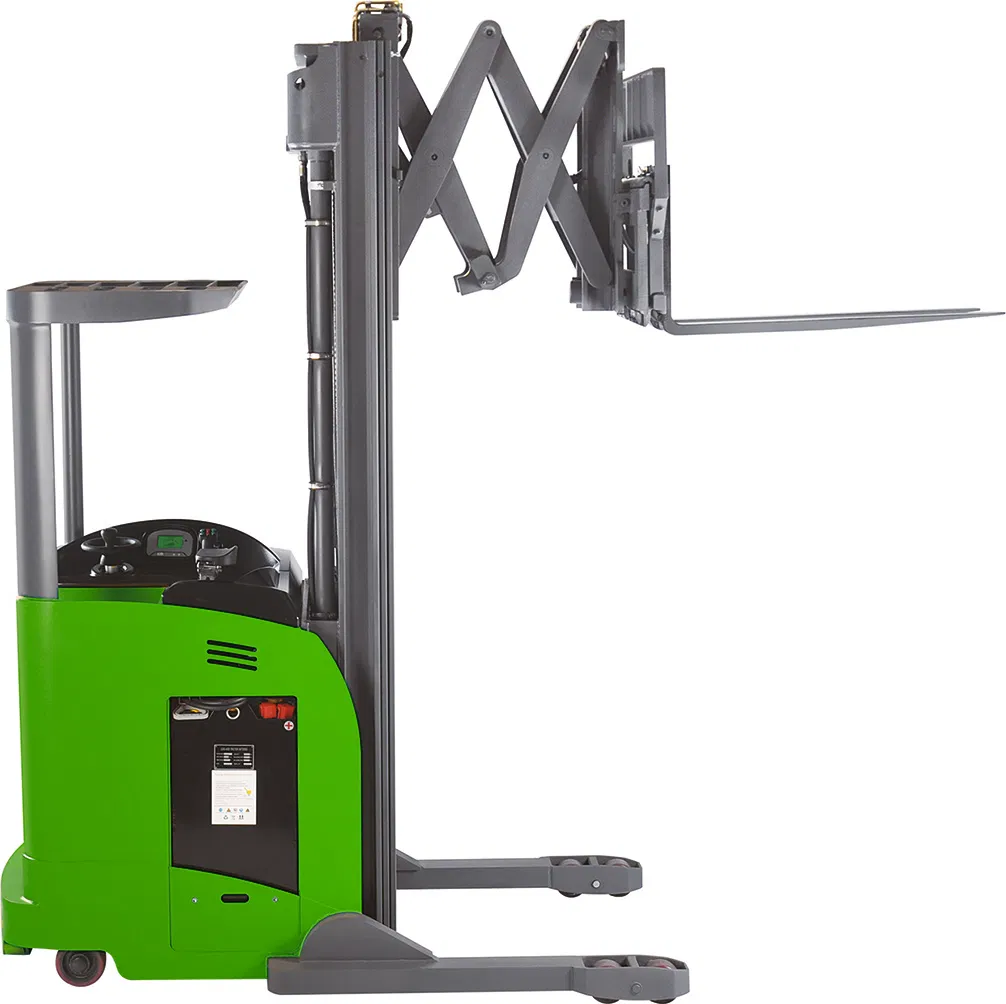

Electric controller for stable scissor reach fork operation.

🛠️ SERVICEABILITY

CANbus technology reduces wiring complexity.
Easy-open back cover for quick maintenance.
Serviceable bushings and grease fittings on all pivot points.

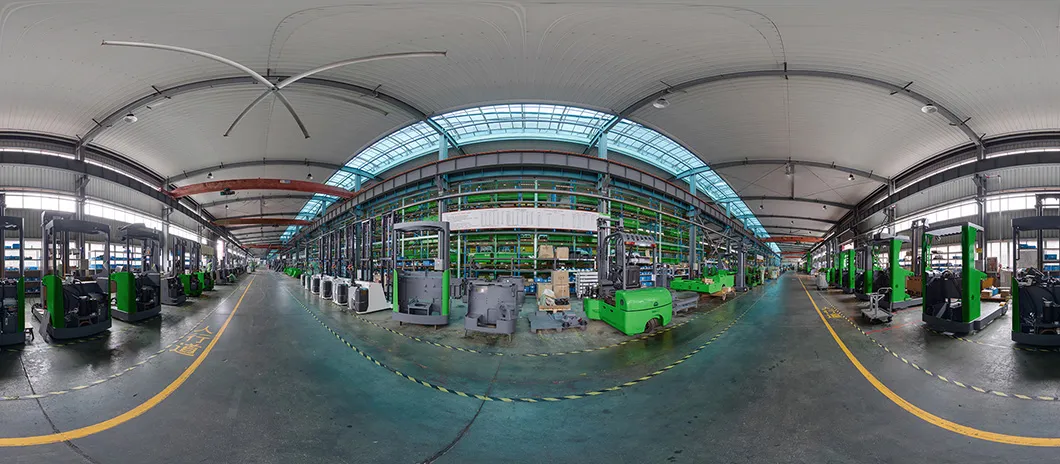

🏭 Production & Quality Control

36 YearsExperience

150,000m²Factory Area

1,200Employees

500+Equipment Types

Rigorous Testing System

Every truck undergoes five major tests before delivery:

Strengthening test detection
Stability detection
Climbing performance and current detection
Braking performance debugging
Technical parameter verification

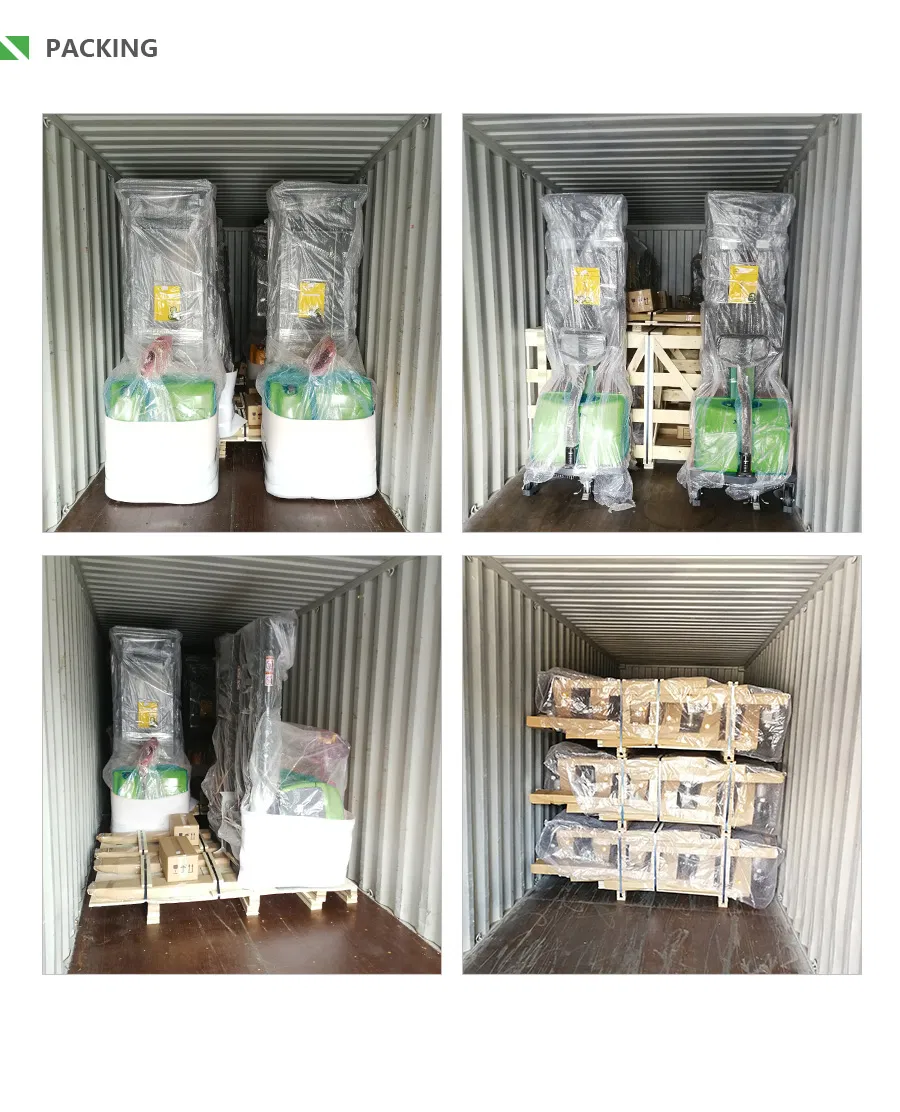

📦 Packing & Delivery

We carefully package each truck according to delivery requirements. Photos and videos are provided for customer approval before dispatch. Standard production time is 15-20 days.

Frequently Asked Questions

How about the continuous working time and charging time?

The battery continuous working time is around 3-6 hours depending on the volume. Full charging usually takes 3-6 hours.

What are the specifications for the chargers?

Chargers are available in 24V or 48V. Power plugs can be customized to USA, UK, Australia, or European standards.

Do you provide customized OEM or ODM products?

Yes, we have been professionally developing and producing warehouse logistics equipment since 1985, including customized solutions for global brands.

What is the warranty period for the products?

We provide a one-year warranty. During this period, we supply non-human damaged wearing parts for free.

What is the standard production lead time?

Usually, production takes 15-20 days after receiving the advance payment. Stock may be available for standard models.

How is the maintenance of the electric reach truck handled?

The design includes an easy-to-open back cover, providing quick access to the valve, oil tubes, and electronic parts for adjustment and maintenance.
