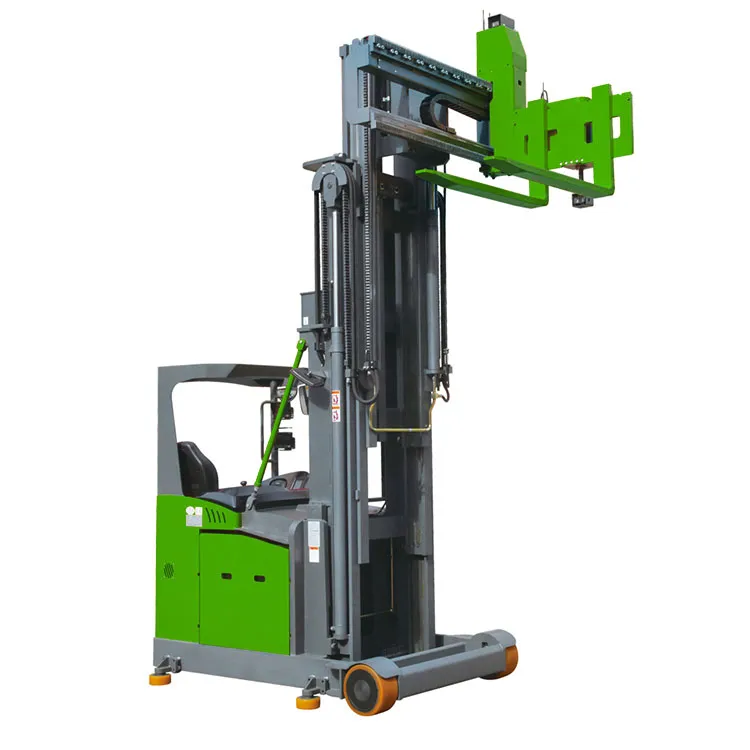

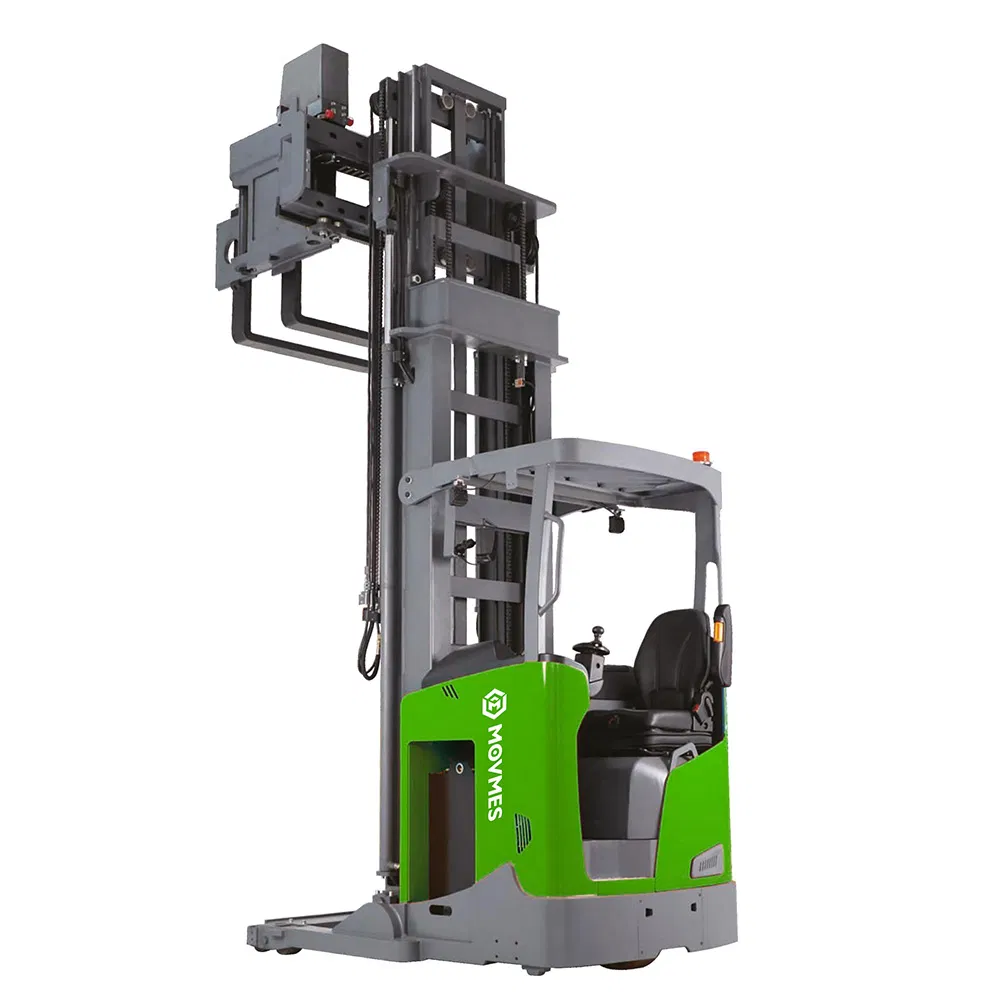

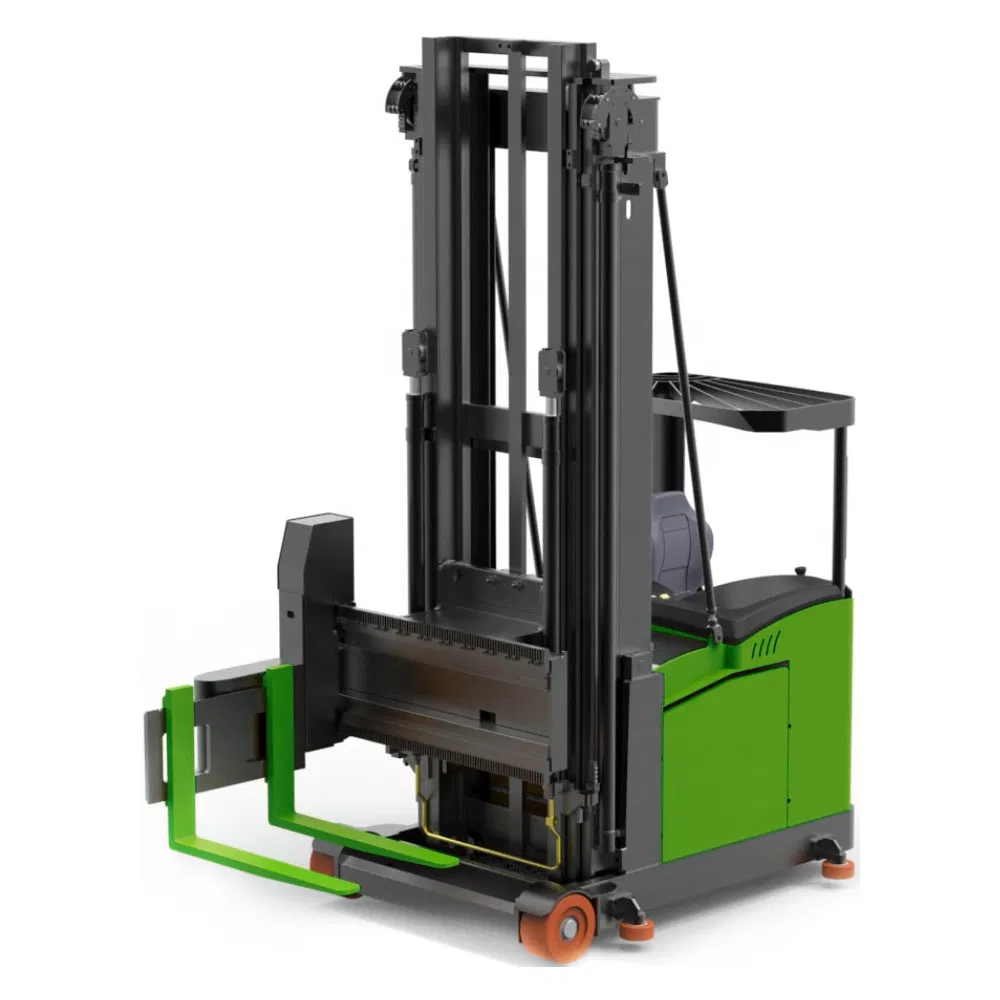

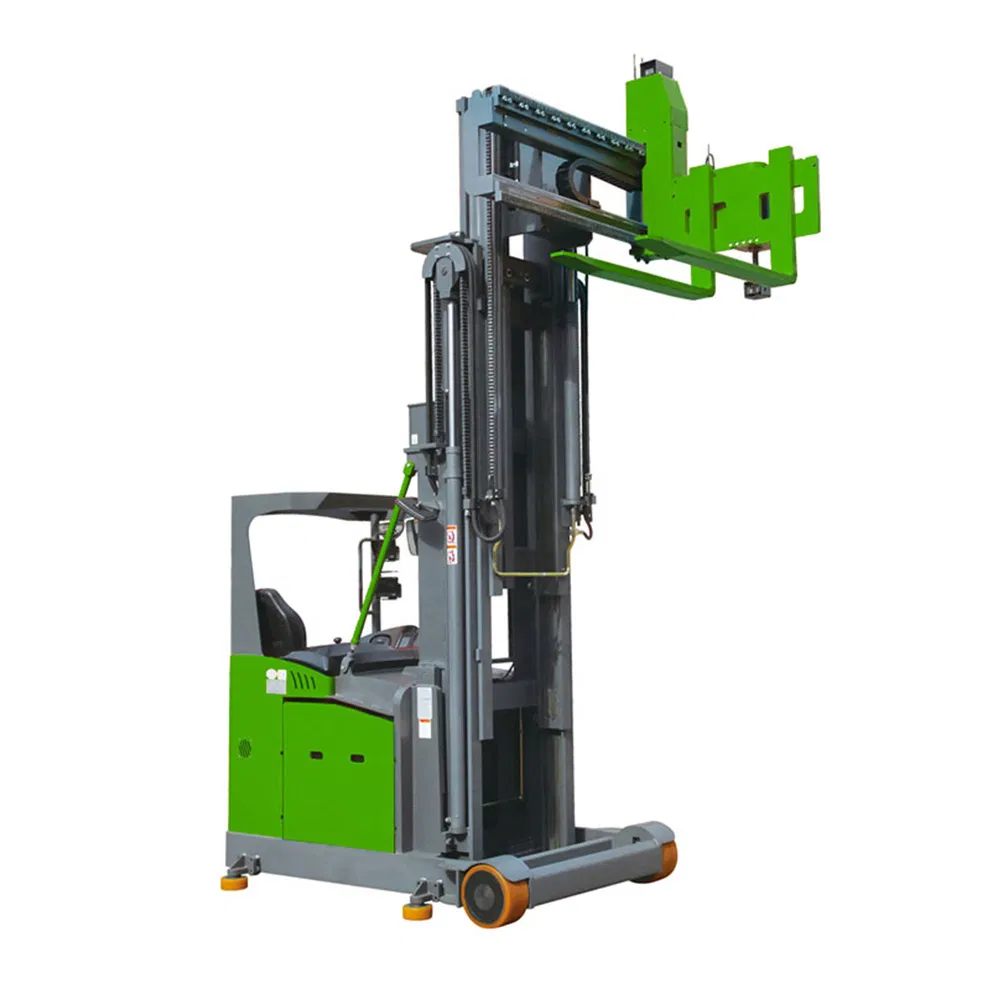

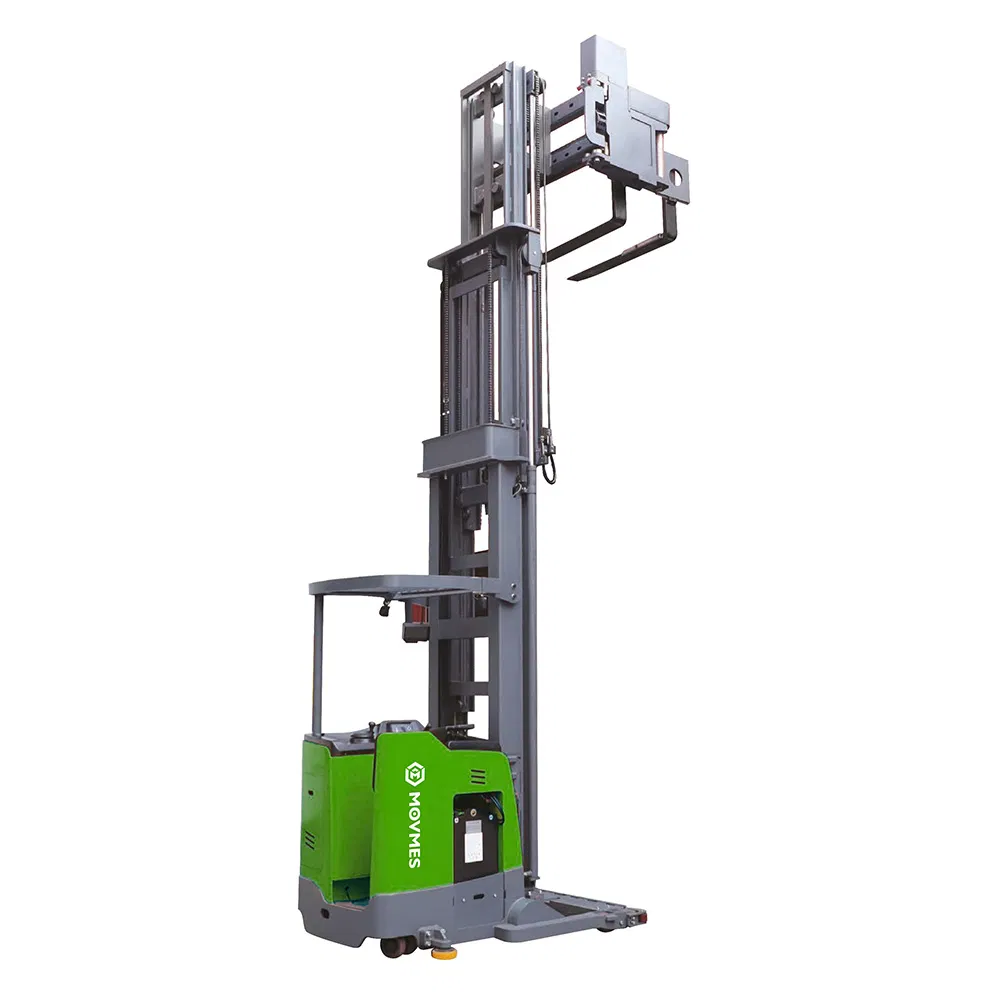

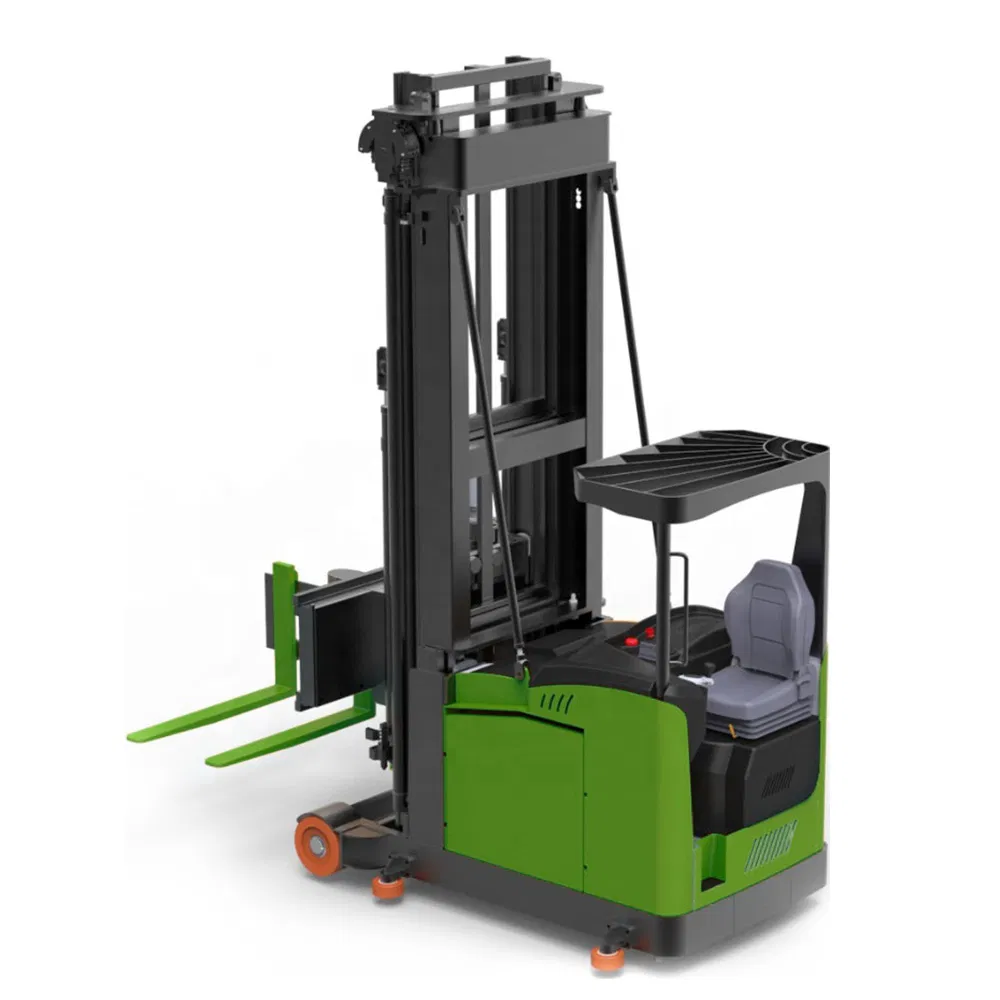

High-efficiency 3-Way Tri-Lateral Stacker Truck designed for maximizing warehouse storage density.

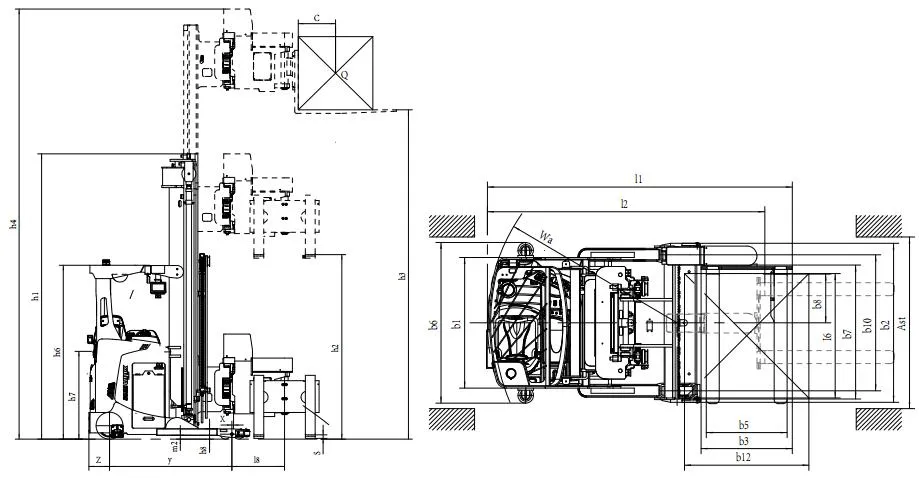

| Code | Description | Unit | Data |
|---|---|---|---|
| 1.2 | Manufacturer's type designation | - | OPD15Z |
| 1.4 | Operator type | - | Seated |
| 1.5 | Rated capacity | kg | 1500 |
| 1.6 | Load centre distance | mm | 600 |
| 3.2 | Tyre size, front | mm | 125x82 |
| 4.4 | Lift height (h3) | mm | 4500-7500 |
| 4.19 | Overall length | mm | 2950 |
| 4.21 | Overall width | mm | 1260/1534 |
| 4.34.1 | Aisle width (1000x1200 pallets) | mm | 1600 |
| 5.1 | Travel speed (laden/unladen) | km/h | 8 / 8.5 |
| 6.4 | Battery voltage/capacity | V/Ah | 48 / 450 |
Equipped with a full AC system and large-capacity battery, supporting two-shift operations on a single charge. The lateral fork can rotate 180 degrees for high-density racking navigation. Features include regenerative braking and electromagnetic braking for safety.

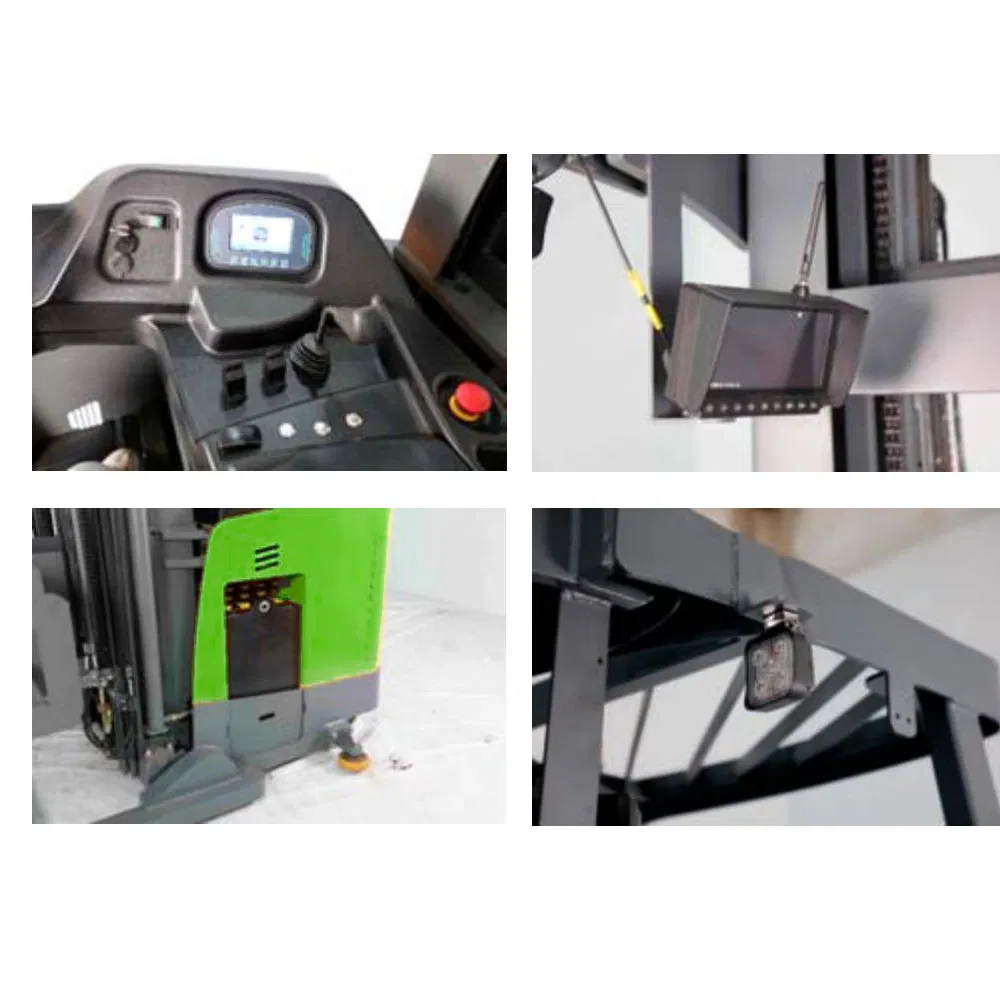

The integrated console design allows one-handed operation. The seat features an adjustable backrest and shock absorption. Both the steering wheel and mast are designed for maximum operator visibility and comfort.
A one-piece upper cover allows full access to the housing. The side-way moving battery design facilitates rapid replacement and easy maintenance routines.
Our products adhere to stringent international standards, holding several key certifications:
We are actively looking for agents worldwide to expand our footprint in the warehousing and logistics industry. Our factory provides high-end products that match the quality of world-famous brands. Join us to offer top-tier logistics solutions in your market.
